Zumtobel Micros2 R68 Swi/bc/ldo/pab Led Ceiling Light Instruction Manual

MICROS2
Schweizer Strasse 30
685 Dornbirn0AUSTRIA

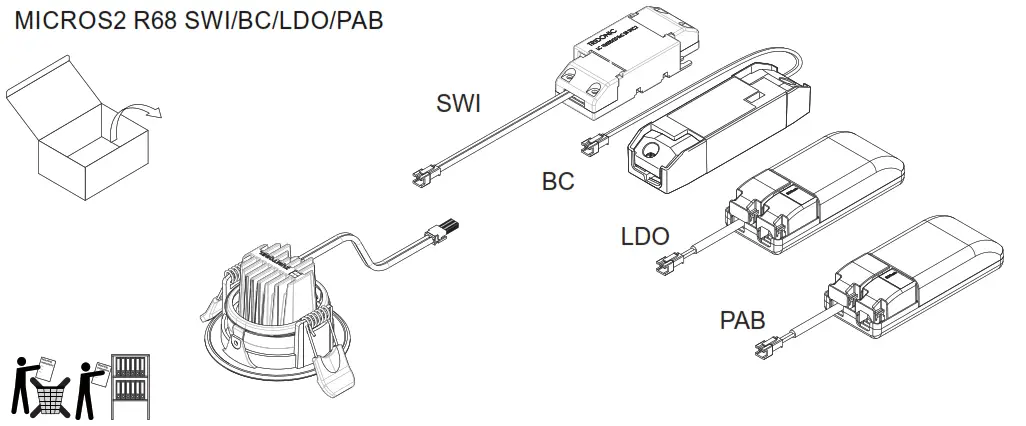

MICROS2 R68 SWI/BC/LDO/PAB LED Ceiling Light

TYP MICROS2 R68 SWI/BC/LDO/PAB

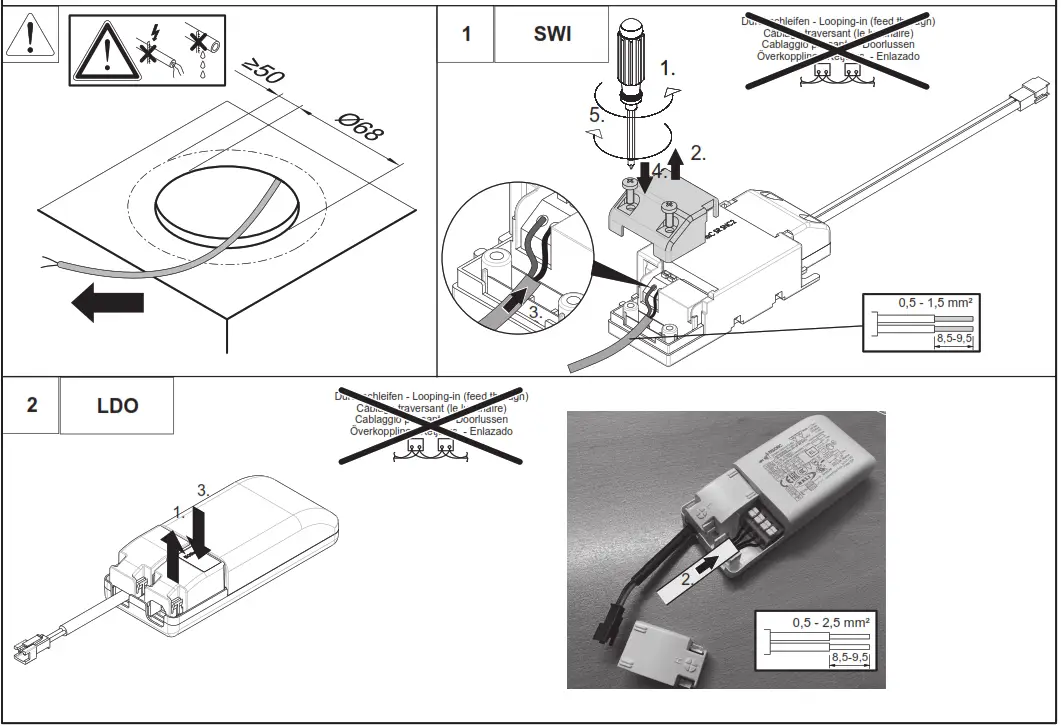

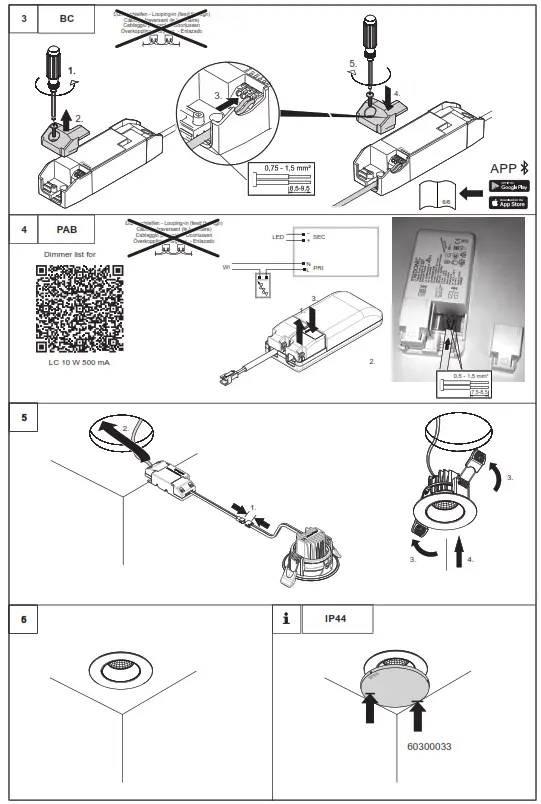

Mounting instructions
Important notice. Please, read first!

1. The installation and commissioning of the luminaire as well as any modification to the luminaire may only be performed by authorized personnel (qualified electrician).
   The manufacturer is not liable for damages resulting from improper or faulty installation or operation or from unauthorized modifications to the luminaire.
   The luminaire is used exclusively for lighting and is to be installed in accordance with the national installation regulations.
   Any other use or installation is regarded as “not according to instructions”.
   Caution, risk of electric shock! Disconnect mains cables and any existing DALI control lines from mains and check that the power is off before conducting any maintenance and assembly work.
   Neutral conductor breaks during operation will result in power surge damage to the lighting system. Therefore neutral disconnect terminals in three-phase AC circuits may only be opened voltage-free and must be closed before power supply is switched back on.
   Commissioning after the construction phase, if the mains voltage is continuously present !
2. Dispose of packaging and luminaire in accordance with applicable regional regulations.
   Specifications are subject to change without notice! If you have questions, please contact the manufacturer.
3. Luminaire not suitable for covering with material. thermally insulating
4. Use of the supplied control gear only in conjunction with the associated luminaire
   Hot plug-in is not permitted. Hot plug-in may result in damage to the luminaire and entail loss of warranty claims!

http://onelink.to/dpen5s
 https://resources.zumtobel.com/assets/SLR_ELR_Components/download/Replaceability_Instruction_Luminaire_Zumtobel.pdf

: The servicing of the control gear in this luminaire should only be undertaken by the manufacturer or his service agent or a similar qualified person.
EN: The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.

Info on (non-) replaceability
http://onelink.to/dpen5s
ZUMTOBEL
* Postfach 760 * D-32637 Lemgo
Tel. + 49/(0)5261/212-0 * Fax +49/(0)5261/212-9000
Internet: http://www.zumtobel.com
Mat.-Nr: 06 980 280/4/01 05.22
www.zumtobel.com
