H01 GreenHouse Photovoltaic Solar System
User Manual
PNI GreenHouse H01
Photovoltaic solar system
INTRODUCTION:
Please read this user manual carefully before using the product. The product is a solar system that can be used to power small electronics such as LED lamps, mobile phones, auto electronics and others.
FEATURES:
- 3 x 12V outputs (30W max) and 2 x USB 5V/1A outputs
- LED indicators for battery charge level, charging status, and load
- Protection circuits for reverse connection, overcharge, and overload
- Protection in case of full battery discharge
- FM radio and MP3 player
- SD card and USB inputs
- 7Ah/12V battery included
SAFETY NOTICE:
Do not use the product in areas with high temperatures, fire or explosion hazards The product supports a maximum load of 30W, please check the consumption of the electronics you want to power before connecting them to the charging unit.
PACKAGE CONTENT:
- Charging unit
- The solar panel (6m cable)
- 2 x LED lamps (4m cables)
- Multifunctional cable for small electronics (mobile phones, tablet,s etc.)

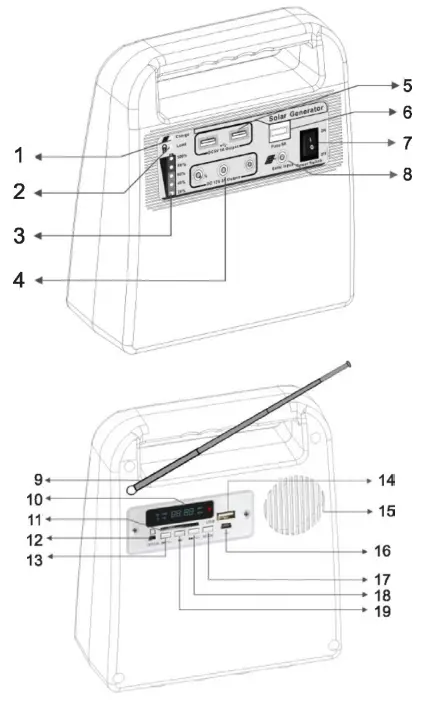

CHARGING UNIT DESCRIPTION:
- Battery charging status indicator
- Load indicator
- Battery charge level indicates
- 12V outputs
- USB 5V/1A outputs
- Safety fuse (please remove it if you don’t use the product for a long time)
- On/Off button
- Solar panel input
- Radio antenna
- Display
- SD card input
- FM radio/MP3 player On/Off buton
- Previous file / Volume +
- USB inputs
- Speaker
- Audio input
- Mode selection button (USB / card SD / AUX / FM )
- Next file / Volume
- Play / Pause button
INSTALLATION:

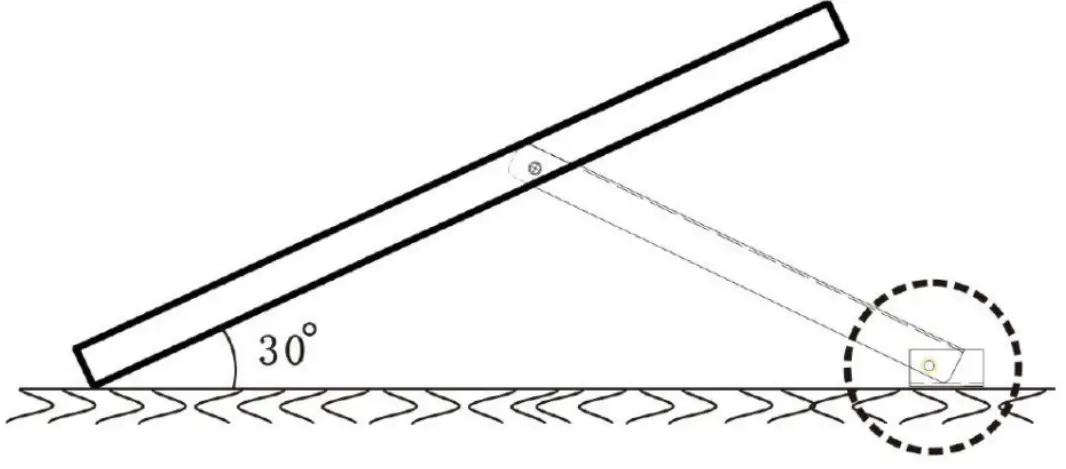

Place the solar panel outdoor in the sunlight. Adjust the solar panel position at a 30-degree angle.
Connect the solar panel to the charging unit.
Insert the safety fuse in it’s place.
If the sunlight is enough, the charging indicator will light to show you the battery is charging.
If the battery voltage is over 14V the charge level indicator will blink to let you know the battery is full.
Note: if this is the first time you use the system or you didn’t use it for a long time we recommend charging the battery for at least 10 hours before use.
Turn on the charging unit.
Connect the included LED lamps or other electronics you want to power.
Turn on the FM radio or MP3 player if you want to listen to music.
Turn off the charging unit if you don’t need it anymore, to avoid discharging the battery.
When offering the panels and extension cords, we have taken full consideration of the usage for customers, please do not randomly lengthen or change them.
If you do have a reason to adjust or change them, please make sure that the dimension of the solar panel cable is no less than 0.5mmp, and the dimension of the cable for LED lamps cables no less than 0.3mmp.
What’s more, all the lead wires have negative and positive polarity, please be sure to notice the distinction.
LED INDICATORS:
| Indicator | State | Function | |
|
Battery charging status indicator | On | Battery is charging | |
| Flashing | The battery is full and the system can be used for powering desired devices | ||
| Off | The battery is low or the charging unit is not connected to the solar panel | ||
|
Load indicator | On | Consumers are in the system | |
| Flashing | The system is overloaded, remove some the consumers | ||
| Off | There are no consumers | ||
|
Battery charge level indicator | 100% | On | Battery voltage higher than 13V |
| Off | Battery voltage lower than 12.6V | ||
| 80% | On | Battery voltage higher than 12.6V | |
| Off | Battery voltage lower than 12.4V | ||
| 60% | On | Battery voltage higher than 12.4V | |
| Off | Battery voltage lower than 12.0V | ||
| 40% | On | Battery voltage higher than 12.0V | |
| Off | Battery voltage lower than 11.5V | ||
| 20% | On | Battery voltage higher than11.5V | |
| Flashing | Battery voltage lower than 11V, the system will enter an Undervoltage protection state | ||
| Off | The charging unit is off or the battery voltage lower than 10.5V | ||
NOTES:
The loading unit can be used only indoors. Do not expose it to direct sunlight for a prolonged period of time and keep it away from moisture. If the unit gets wet accidentally turn it off and let it dry before you use it again. If you don’t use the system frequently you should not leave it switched on and fully charge the battery at least once a month to not diminish its lifespan.
The battery capacity is 7Ah. To keep the battery life the load of the system must not exceed 1/5 of the battery capacity. Please avoid keeping the battery under voltage for a long time otherwise, the capacity and lifespan of the battery will be affected.
TROUBLESHOOTING:
| Problem: | Cause and solution |
| Battery charging indicator is off | Check if the solar panel is placed in direct sunlight or if the battery is full |
| The output is inactive and the load indicator is off | Check cable connections Check if the battery is low (battery level indicator is under 20%) |
| The output is inactive and the battery level indicator is flashing | Check if the charging unit is not OFF The battery is discharged, please wait for it to charge before using the system |
| The output is inactive and the load indicator is flashing | The system is overloaded: turn off the system, remove consumers then wait 2 min before reuse |
| The output is inactive and all indicators are off | The system is OFF or the battery is completely discharged |
| FM radio does not work | Check if the radio/MP3 player function in ON and that you selected the correct mode. Search all radio stations then save them |
| The charging unit does not respond to commands | Check the safety fuse if it is not missing or burnt |
TECHNICAL SPECIFICATIONS:
| Solar panel | : 18V / 10W |
| Charging unit | |
| Battery | : 12V / 7Ah |
| Charging time | : ~ 7 ore |
| Battery charging voltage | : from the solar panel: ≤ 25V / DC:15-16V |
| Max charging current | : 2A |
| USB output | : 2 x 5V / 1A, to power small electronics |
| DC output | : 3 x 12V / max 3A (30W max load) |
| FM radio | : Yes, 88 – 108 MHz |
| Audio files playback | : Yes, MP3 format from SD card or USB |
| Speaker | : 3W / 4 Ω |
| Battery autonomy | : up to 12h with two 3W lamps |
| Using temperature | : -26°C ~ 80°C |
| LED lamp | : 2 x 3W / 12V, E27 |
EU Simplified Declaration of Conformity
SC ONLINESHOP SRL declares that Photovoltaic solar system PNI GreenHouse H01 complies with the Directive EMC 2014/30/EU and ROHS 2011/65/EU. The full text of the EU declaration of conformity is available at the following
Internet address: https://www.mypni.eu/products/5150/download/certifications
