Kavilo S22 White Noise Machine With Lamp User Manual

KAVILO

USER MANUAL

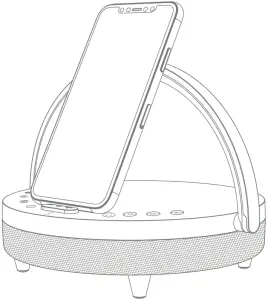

White Noise Machine with Lamp

White Noise Machine          WIRELESS CHARGER

NIGHT LIGHT                   PHONE HOLDER

SPECIFICATIONS:

PRODUCT FEATURES

• Simple and exquisite design
• Adjustable phone holder
• Wireless charging distance≤8MM
• Wireless fast charging
• White Noise Machine
• Night light

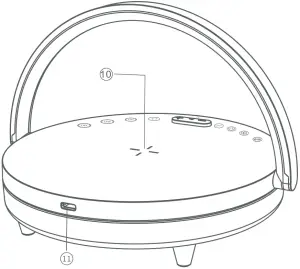

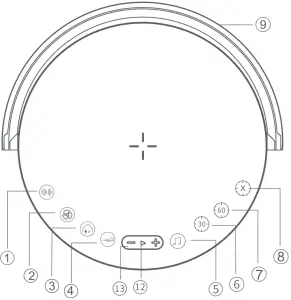

APPEARANCE FEATURES

1. white noise Sounds
2. Fan Sounds
3. Sound of rain & thunder
4. Sounds of sea waves
5. Non-repeating different sounds
6. 30-minute timing
7. 60-minute timing
8. X-minute timing
9. Night light
10. Wireless charging area
11. Type-c charging port
12. Power switch
13. Volume button

OPERATION METHOD

1. Connect power to the White Noise Machine with the USB cable we provided.
2. Press the play button about 3 seconds, and there will be a prompt sound indicating that it has been turned on, the play indicator blue light is always on, and the white noise sound is defaulted (After you use,it will default to the last sound you heard last time every time when you turn on).

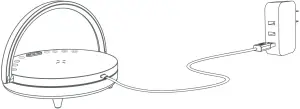

3. Charging your phone on the area.

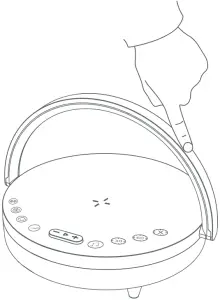

NIGHT LIGHT

Touch button

1. First Touch: Light brightness 10%
2. Second Touch: Light brightness30%
3. Third Touch: Light brightness 100%
4. Fourth touch: Light off

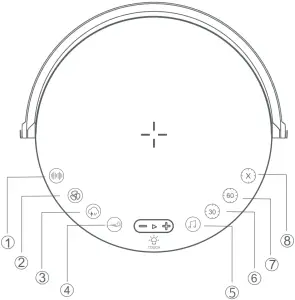

PRESS BUTTON FUNCTION

1. Touch the button on the left to play white noise, 8 different white noises selection, touch once to play next song.
2. Touch the button on the left to play fan sounds, 6 different fan sounds selection, touch once to play next song.
3. Touch the button on the left to play sound of rain & thunder, 4 different sounds of rain & thunder selection, touch once to play next song.
4. Touch the button on the left to play waves sounds, 2 different waves sounds selection, touch once to play next song.
5. Touch the button on the right to play different types of sleep aid sounds, 7 different sounds selection, touch once to play the next one.
6. Touch the button on the right to setting 30 minutes play , the indicator light flashes blue. Turn off the machine if you need to cancel the timer function.
7. Touch the button on the right to setting 60 minutes play , the indicator light flashes blue. Turn off the machine if you need to cancel the timer function.
8. Touch The right button, Long press for 3 seconds to cancel the timing mode

PLAY/PAUSE/OFF

Long Press the power button for 3 seconds to turn on.
Short press to pause.
Long press again for 3 seconds to turn off.

HOW TO CONNECT /DISCONNECT

Double click the play button to switch Bluetooth Connect to Bluetooth: Double-click the play button to connect to Bluetooth, the Bluetooth name is “S22”, there will be a sound on the connection Exit Bluetooth: In the Bluetooth connection state, double-click the play button to disconnect the Bluetooth connection

+ VOLUME BUTTON

Press + button to increase the volume. It will have “didi” sound when the volume increased to the maximum. Press – to decrease the volume.

Remarks:
This product supports fast wireless charging and conforms to Qi wireless charging standard; short-distance radio energy transmission is realized through magnetic induction. This device supports all wireless charging devices conforming to Qi standard. When 5V output adapter is used, the wireless charger supports 5W load. When adapter of QCQ2.0 or above is used, the wireless charger supports 10W load. It is featured with overcharge protection,Overvoltage protection (9V) and overcurrent protection (2A)

IMPORTANT NOTES

• Do not use or store the product in the place of direct sunlight or high temperature for a long time.
• Do not charge the product in the place where is too close to the magnetic recording medium of the magnetic card and the precise nstrument.
• Do not disassemble or modify the product.
• Do not touch the AC adapter with wet hands.
• Keep this product away from water or other liquids.
• Disconnect the power when clearing the product.
• Working temperature range of the product.

FCC statement

This equipment has been tested and found to comply with the limits fora Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)This device may not cause harmful interference
(2) this device must accept any interference received, including interference that may cause undesired operation.

The device has been evaluated to meet general RF exposure requirement The antennas used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

MADE IN CHINA
