SIEMENS BT300-KEYPAD Panel Adapter Kit Instruction
Panel Adapter Kit – Mounting Instructions
Introduction
The Panel Adapter is intended to replace the standard keypad in cases where keypad is not needed.The Pan-el Adapter is Type 12/IP54 protected.

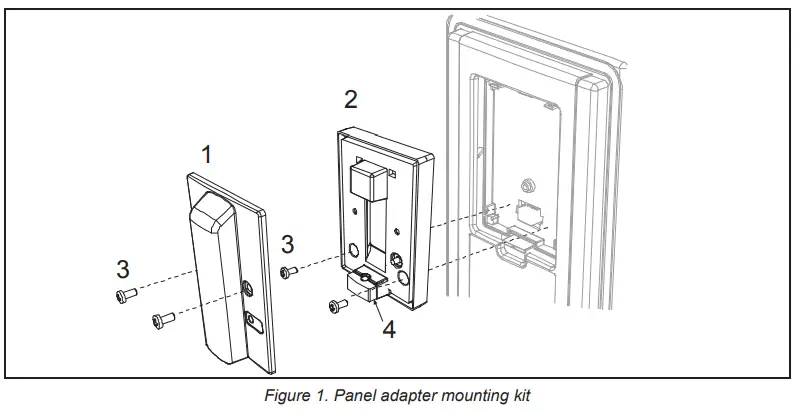

For the installation, you need the following parts included in the delivery. Make sure that you have received all necessary parts!
- Cover A
- Cover B
- Screws PT3.5 x 8 (4 pcs)
- Foam rubber gasket
Indication LED

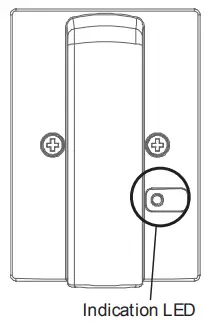

The LED on the Panel adapter gives indications about the status of the drive. Note the location of the LED in picture to the right.
| LED indication | Meaning |
| Blinking slow (1 s ON – 1 s OFF) | Drive works normally (software running) |
| Blinking fast | Software is loading |
Mounting procedure
