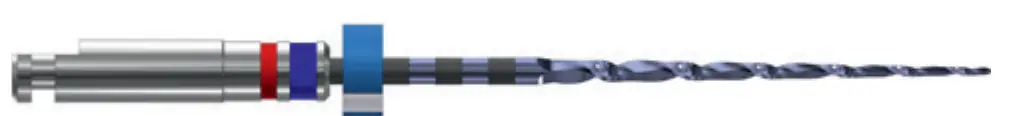

FKG RACE EVO Sequences Taper

Contents hide

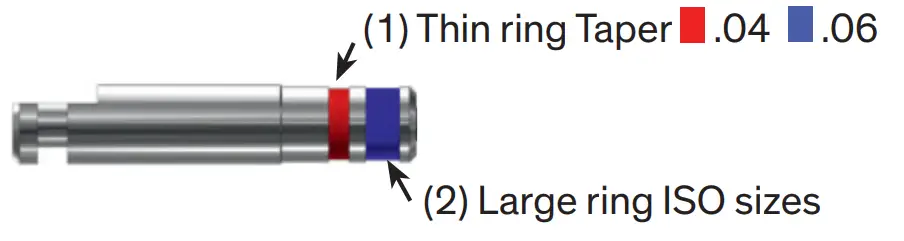

Taper (1) and ISO diameter (2) identification

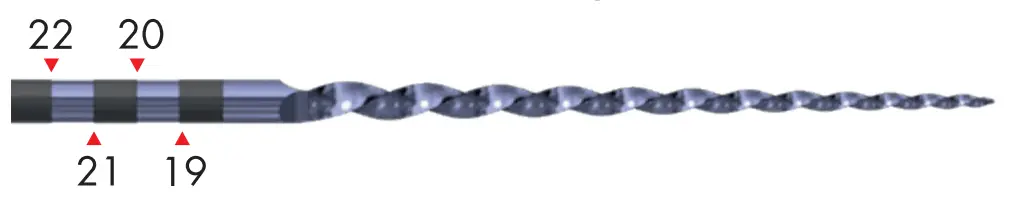

Depth marks ▲ (in millimetres)
Available on 21 / 25 / 31 mm instruments

Example on 25 / 31 mm instruments

Endo stop – ISO length / active part

Parameters for use :
Recommended speed range : 800-1000 rpm continuous rotation.

Torque : 1.5 Ncm.

Indications for use :
RACE® EVO endodontic instruments are intended for use in medical or hospital facilities, by qualified health professionals.

RACE® EVO instruments are designed for the glide path and shaping of root canals.

Contraindications :
Nickel-Titanium instruments must not be used on individuals with a known allergic sensitivity to these metals.

Adverse reactions : None known.

Notice and precautions :

Take several radiographs from different angles to determine the anatomy of the root canals (length, width and curvature).
The number of canals to be treated with a RACE® EVO instrument is limited to a maximum of 8 root canals.
Irrigate the canal thoroughly and frequently after the RACE® EVO instrument is extracted.
Regularly inspect the RACE® EVO instrument during use, and discard if it shows any signs of wear (for example : straightening).
If the RACE® EVO instrument is not progressing easily, remove it from the canal, clean it, inspect its cutting edges, then irrigate the canal and recapitulate with an ISO 010 hand file.
Always inspect the instrument(s) before use, and discard (it) them if there are any visible defect(s).
When an instrument reaches the end of its life, please dispose of it in accordance with the applicable laws and regulations.
Visit the FKG Dentaire SA website (www.fkg.ch) for all information relating to the applicable cleaning and sterilization methods.

Symbols

	Sterilized product (irradiation)
	Sterilizable in a steam sterilizer (autoclave) at the specified temperature
	To be used in continuous rotation at the recommended speed
	Warning : refer to the user manual
	Batch number
	Expiry date
	Do not use if package is damaged
	Nickel-Titanium instrument
	Reference number
	Manufacturer
