Thor Tmd2401 24 Inch Microwave Drawer User Guide (+ PDF)

Contents hide

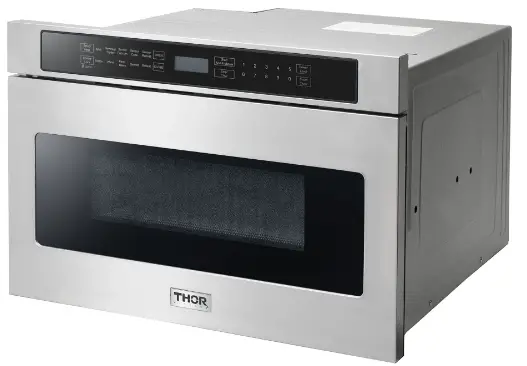

Product: 24 Inch Microwave Drawer in Stainless Steel
Model Number: TMD2401
UPC #: 850018999670

Drawer Design – The 24-inch Microwave Drawer is flexible to your kitchen design and can be placed below an island, peninsula, or standard cabinetry or can also be installed adjacent to your wall oven.
12 Unique Sensor Functions – 12 unique easy-to-use food prep functions include everyday functions like defrost and a beverage center as well as luxury features such as two popcorn settings, melting chocolate, and soft-ening ice cream. Use the “add a minute” feature to top off the perfect cook.
Multiple Power Modes – Offers 10 power modes for precision heating, from a delicate power mode for melting chocolate to cranking up the power and using 950-watts for cooking and defrosting your favorite foods. The control is at your fingertips.

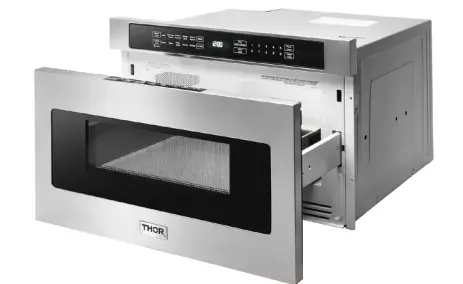

Auto Touch Open/Close Control – Allows you to easily open and close the microwave drawer at the touch of a button. And if you have your hands full, like that microwave chef that you are, just tap it with your hip and the draw-er will close automatically.
Spacious Capacity – 1.2 cu.ft. capacity can accommodate a variety of differ-ent container shapes and sizes.

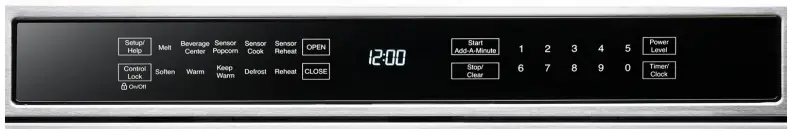

Keep Warm Function – Delivers brief pulses of microwave power to keep your cooked foods warm without overcooking until they’re ready to be served. Sleek Design – Stainless steel flush to cabinet design features a white touch LCD display that’s easy to operate and easy to clean.

WARRANTY: TWO YEAR PARTS AND 1 YEAR LABOR

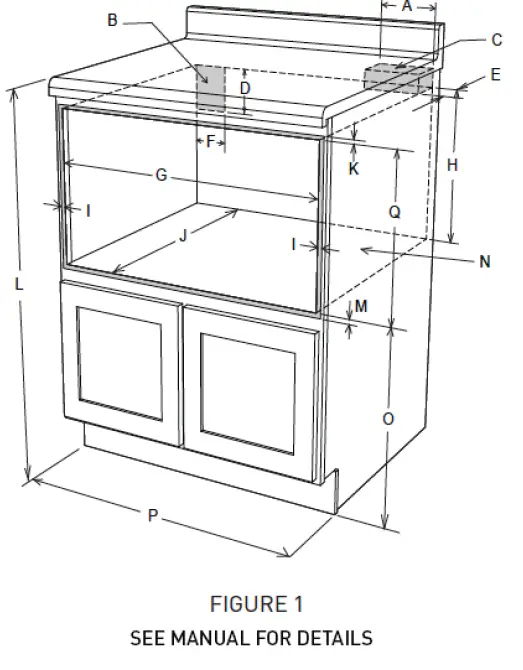

FIGURE 1 – MINIMUM CUTOUT DIMENSIONS
A	6” (152.40 mm)
B	Suggested electrical outlet location*
C	Anti-Tip block
D	5” (127 mm)
E	3-1/2” (88.90 mm)
F	4” (101.60 mm)
G	22-1/8” (561.98 mm) opening
H	14-13/16” (376.24 mm) to bottom of Anti-Tip block
I	Allow 7/8” (22.23 mm) overlap
J	23-1/2” (596.90 mm) minimum depth
K	Allow 3/16” (4.76 mm) overlap
L	36” (914.4 mm) countertop height
M	Allow 1/8” (3.17 mm) overlap
N	Floor must support 100 lb (45.4 kg)
O	19” (482.60 mm) to top of floor
P	24” (609.6 mm) cabinet minimum
Q	15-9/16” (395.27 mm) opening
