PRELIMINARY SPECIFICATION GUIDE
DRAWER MICROWAVE, 24″

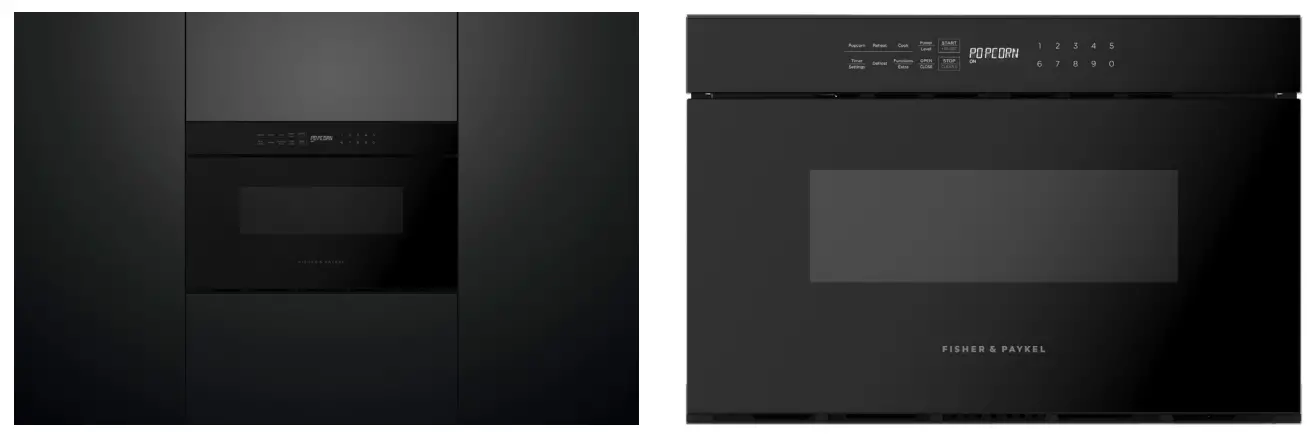

OVERVIEW
The 24” Drawer Microwave is designed to match our Contemporary or Minimal style family of appliances. Its spacious 1.2 cu ft capacity and handle-free design makes it a practical addition that can be installed under the counter or on the wall for convenient access. Intuitive touch controls ensure ease of use, while 10 power levels and sensor cooking technology provide precise results.
MODEL
Drawer Microwave, 24″, Drawer Style
OMD24SDB1
SERIES & STYLE
Series 7
Contemporary, Black
FEATURES
- Designed to match our Contemporary or Minimal style appliances
- Install flush or proud under the counter or in the wall, taking up less counter space
- Place at a convenient height for better accessibility
- Spacious 1.2 cu ft capacity
- Sensor function automatically sets power and cooking time based on the food type and moisture level
- Handle-free, push-to-open design
- Intuitive touch controls for ease of use
- 10 power levels including melt, soften and warm
- Easy to clean stainless steel interior
SPECIFICATIONS
| Model No. | OMD24SDB1 |
| Dimensions | H 15 15/16″ x W 23 7/8″ x D 23 5/16″ |
| Weight | 100 lbs |
| Oven TotalCapacity | 1.2 cu ft |
| Electrical | |
| Supply | 120V, max 60Hz |
| Outlet | 3 pin plug |

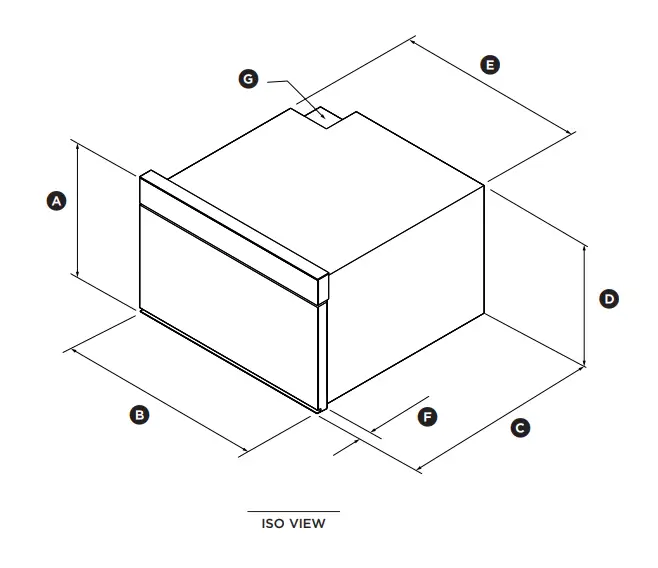

PRODUCT DIMENSIONS
| in | mm | ||
| A | Overall height | 15 15/16″ | 405 |
| B | Overall width | 23 7/8″ | 606 |
| C | Overall depth | 23 5/16″ | 592 |
| D | Height chassis | 14 3/4″ | 374 |
| E | Width chassis | 21 15/16″ | 557 |
| F | Control panel thickness | 1 9/16″ | 40 |
| G | Electrical connection (Inlet) |

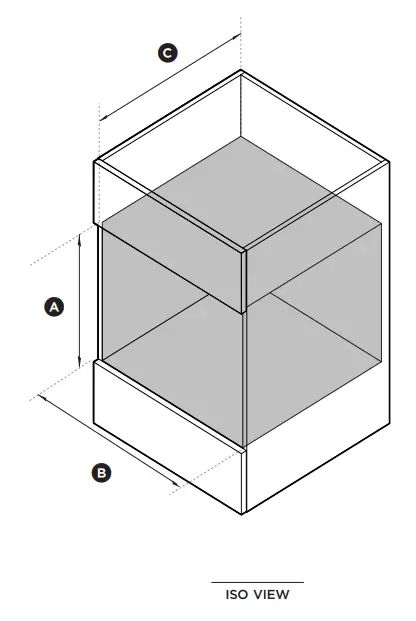

CAVITY DIMENSIONS
| in | mm | ||
| A | Minimum inside height | 15 1/12″ | 393 |
| B | Minimum inside width | 22 1/8″ | 562 |
| C | Minimum inside depth | 21 15/16″ | 557 |
90003034B Date: 21.06.2023 | The models shown in this Preliminary Specification Guide (PSG) may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This PSG is superseded and will become obsolete upon launch of the product. This PSG should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
