ENDLESS POOLS R200 Aquatic Fitness System Owner’s Manual

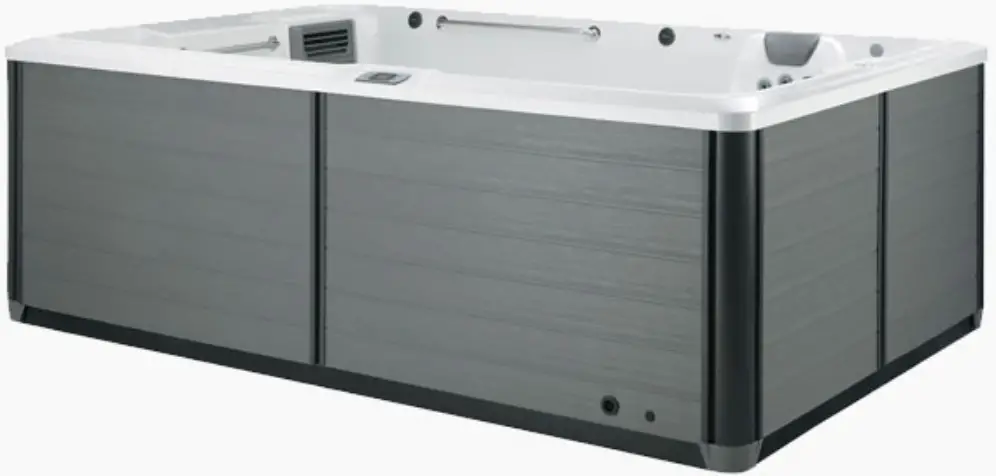

ENDLESS POOLS R200 Aquatic Fitness System

Congratulations on your decision to enjoy the finest Aquatic Fitness System available… Welcome to the growing family of ENDLESS POOLS owners.

Pre-Delivery Instructions

Please take the time to read this booklet carefully, as it will provide you with the information you will need to ensure the safe, secure, and timely installation of your system. The following sections are guidelines on how to prepare for delivery and set-up of your new system. Specifically covered are site selection, delivery access, ground preparation, and electrical requirements.
Remember to carefully review the Owner’s Manual that accompanies your system, and to register the system’s warranty within 10 days of delivery. These items, along with other valuable information, will be found in the Owner’s Package which has been placed in the equipment compartment of your system, where you will also find its serial number. Watkins Manufacturing Corporation reserves the right to change features, specifications and design without notification and without incurring any obligation.

DATE PURCHASED: _____________________________________
DATE INSTALLED: _____________________________________
ADDRESS: _____________________________________________
TELEPHONE: __________________________________________

In most cities and counties, permits will be required for the installation of electrical circuits or the construction of exterior surfaces (decks and gazebos). In addition, some communities have adopted residential barrier codes which may require fencing and/or selfclosing gates on the property to prevent unsupervised access to a pool (or spa) by children under 5 years of age. Your Aquatic Fitness System may be equipped with a locking cover that meets the ASTM F1346-91 Standard for Safety Covers and as a result, is usually exempt from most barrier requirements. As a general practice, your local Building Department will inform you of any applicable barrier requirements at the time a permit is obtained for the  installationof an electrical circuit.

Site Selection and Preparation

IMPORTANT: Site selection and preparation are your responsibility. Carefully read these instructions.

You probably have a spot picked out for your new system, whether it’s indoors or outdoors, on a patio or on a deck. Just make sure you check the following:

  • Always put your system on a structurally sound, level, and even surface. A filled system can weigh a great deal. Make certain that the location you choose can support the weight of your filled system.
  • Locate your equipment compartment, which houses all of the electrical components, in a place where water will drain away from it. Allowing water into the equipment compartment can damage the electronics, or may result in tripping your house’s circuit breaker.
  • Leave yourself easy access to the circuit breakers in the subpanel.
  • Never let water get into the subpanel. Your subpanel is raintight when installed correctly with the door closed.
  • Leave access to the equipment compartment for periodic system care and maintenance.

OUTDOOR AND PATIO INSTALLATION

No matter where you install your new system, it’s important that you have a solid foundation to support it. Structural damage to the system resulting from incorrect installation or placement on an inadequate foundation is not covered under the system’s limited warranty.
If you install the system outdoors, a reinforced concrete pad at least six inches thick is required. The reinforcing rod or mesh in the pad should be attached to a bond wire (see your Owner’s Manual). All Aquatic Fitness System may be installed onto a deck, provided that the load capacity of the deck is greater than the dead weight of the system (see Deck Installation).

DECK INSTALLATION

To be certain your deck can support your system you must know the deck’s maximum load capacity. Consult a qualified building contractor or structural engineer before you place the system on an elevated deck. To find the weight of your system, its contents and occupants, refer to the System Specification chart. This weight per square foot must not exceed the structure’s rated capacity, or serious structural damage could result.

INDOOR INSTALLATION

Be aware of some special requirements if you place your system indoors. Water will accumulate around the system, so flooring materials must provide a good grip when wet. Proper drainage is essential to prevent a build-up of water around the system. When building a new room for the system, it is recommended that a floor drain be installed. The humidity will naturally increase with the system installed. Water may get into woodwork and produce dryrot, mildew, or other problems. Check for airborne moisture’s effects on exposed wood, paper, etc. in the room. To minimize these effects, it is best to provide plenty of ventilation to the system area. Installation of a dehumidifier or exhaust fan in conjunction with an Aquatic Fitness System is recommended. An architect can help to determine if more ventilation must be installed.

RECESSED INSTALLATION

If you plan to recess your new Endless Pools Fitness system in a deck, patio, or other hardscape element, there are a few items to consider during the preparation process. Like other installations, it is important to have a solid foundation that will support the Fitness System. It is also important to check  theblueprints of you property to ensure no underground power cables, phone lines, or water pipes will be affected by  the recessed installation.
We recommend there be at least 36” of crawl space access outside of your Fitness System equipment compartment for maintenance. In addition, we recommend at least 24” of clearance around the perimeter of the Fitness System. This can be in the form of a crawl space. Don’t forget to define the  location of the subpanel, a minimum of 5 feet a way from the Fitness System. Finally, it is important to install your Fitness System in a way that will protect it from rising water levels. Keep in mind, recessed installations can be  susceptible to flooding and should have adequate drainage. A contractor or architect should be able to make specific recommendations on proper drainage as well as the other items to consider above.

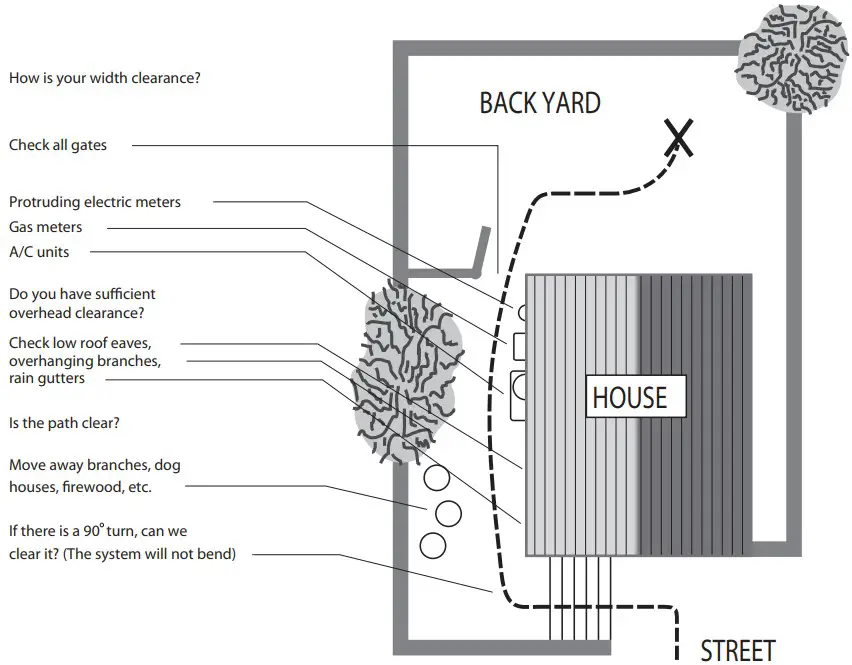

DELIVERY ACCESS

It may be necessary to remove a gate, part of a fence, or other movable obstructions in order to move the system to its installation site. Your system will determine what equipment is necessary to move your system to its final location. A roll back truck with a tilt bed is a good option if your site can be accessed by an across road vehicle. When a small reach is needed for the final placement of your system, a boom truck is ideal. A telehandler vehicle can off load,  traverse property and place your system in a more challenging situation or terrain. When access to your site is limited a crane may  be used to lift your system over obstructions for precise placement.

ModelWidth WLength LHeight H
R2007’5”12’0”50”
R500 / X5007’5”15’0”50”
E5007’5”15’0”58”
E5507’10”15’0”58”
E7007’5”17’0”58”
E2000/X20007’5”20’0”58”

Note: We do NOT recommend placing the Spa on its side when only minimal access is available.
DELIVERY ACCESS

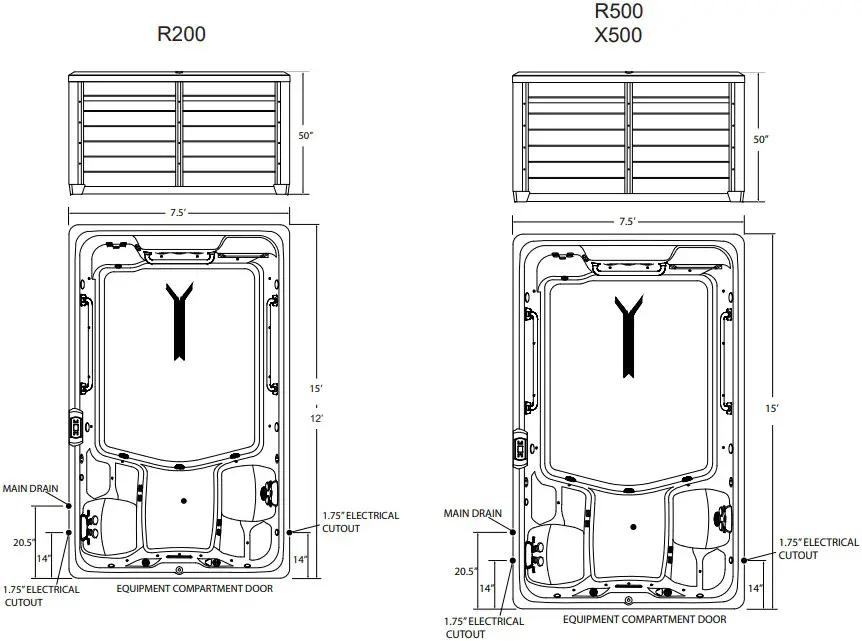

GROUND PREPARATION

A reinforced concrete pad at least six inches thick or a deck that is able to withstand more than 250 lbs. per square foot is required for the Aquatic Fitness System As a homeowner, it is your responsibility to provide a suitable, level foundation for your system.

NOTE: In order for the system to operate properly and the internal plumbing to drain completely, you must ensure that the system is level.

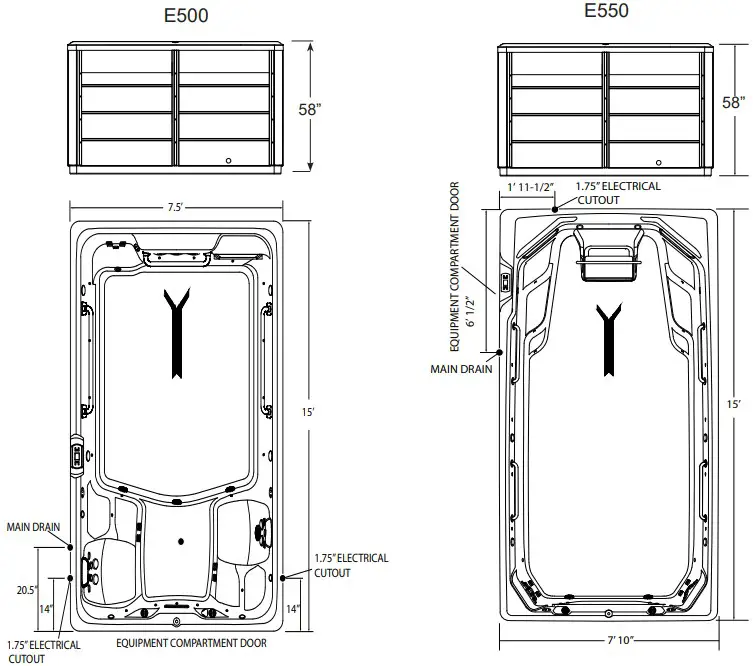

GROUND PREPARATION
GROUND PREPARATION
GROUND PREPARATION

ELECTRICAL REQUIREMENTS

To ensure you will have an opportunity to use your system soon after delivery, it is very important that the required electrical service has been installed.

IMPORTANT: All electrical circuits must be installed by a qualified, licensed electrician.
All X and E models require a 60 amp, single phase, 230 volt circuit breaker, R model require a 30 amp 230 bolt breaker in the main electrical service panel.

All Aquatic Fitness System must be wired in accordance with applicable local and national electrical codes, all electrical work must be done by a licensed electrician.
NOTE: Watkins Manufacturing Corporation REQUIRES THE USE OF A SUBPANEL TO SUPPLY POWER AND PROTECT THE SYSTEM. A licensed electrician should install a four-w ire electrical service (two line voltages, one neutral, one ground) from the main electrical service panel to the subpanel, and from the sub-panel to the system per the appropriate wiring diagram as illustrated below.

The grounding conductor must be at least #6 AWG. Your electrician should mount the subpanel in the vicinity of the system but it should not be closer than five (5) feet from the system water edge (NEC 680-38 to 41 A-3).

INSTALLATION NOTE: After the system has been installed, your electrician can connect the conduit from the subpanel to the Aquatic Fitness System Control Box and then complete the wiring connections in the control box.
NOTE: Complete step-by-step Installation and Wiring Instructions for all 230 volt ENDLESS POOLS models are included in the Owner’s Manual and with each sub-panel.
WARNING: Removing or bypassing the GFCI breakers in the subpanel at any time w ill result in an unsafe system and will void the warranty.

WIRE SPECIFICATION NOTE: Long electrical runs may require a larger gauge feed wire than stated. We recommend that a maximum voltage drop of 3% be used when calculating the larger wire size.
Refer to the Wiring Diagrams below for the electrical requirements this model.
When connecting the supply conduit, use a liquid-tight flex conduit fitting.
R200 / R500
ELECTRICAL REQUIREMENTS

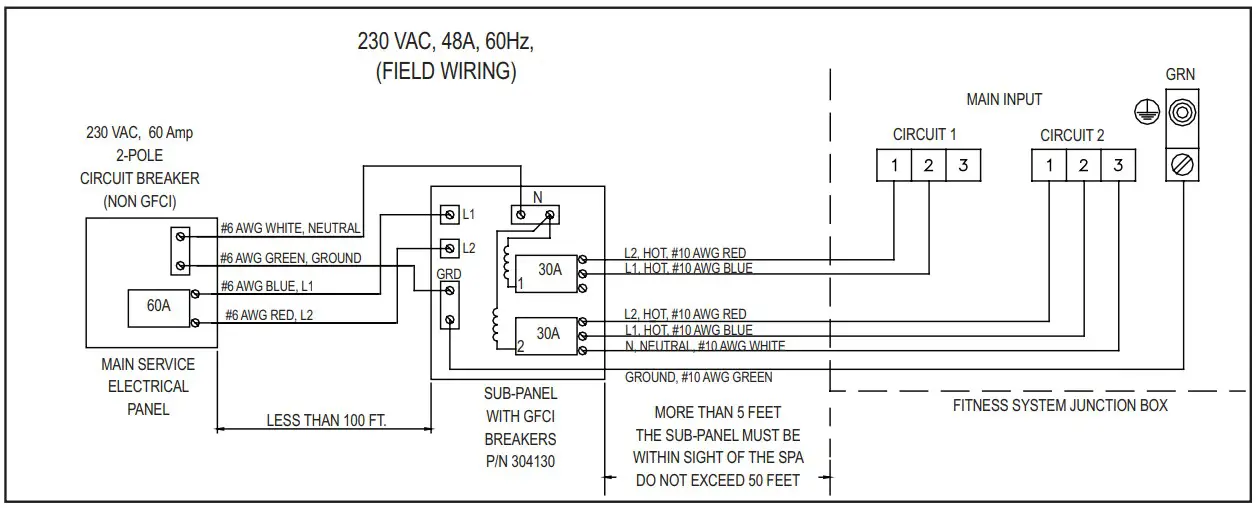

X500
ELECTRICAL REQUIREMENTS

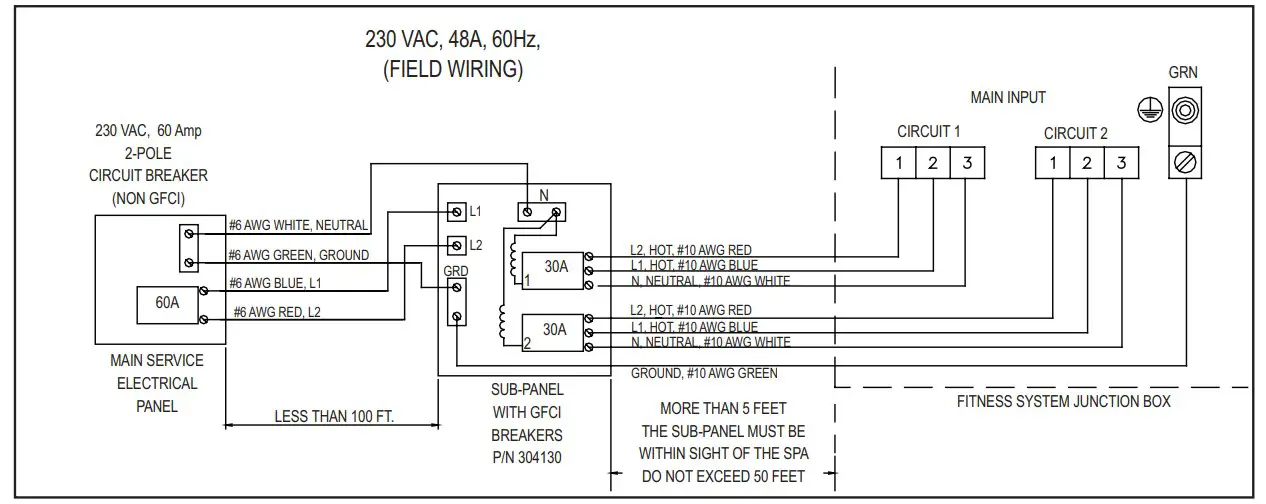

E500 / E700
ELECTRICAL REQUIREMENTS

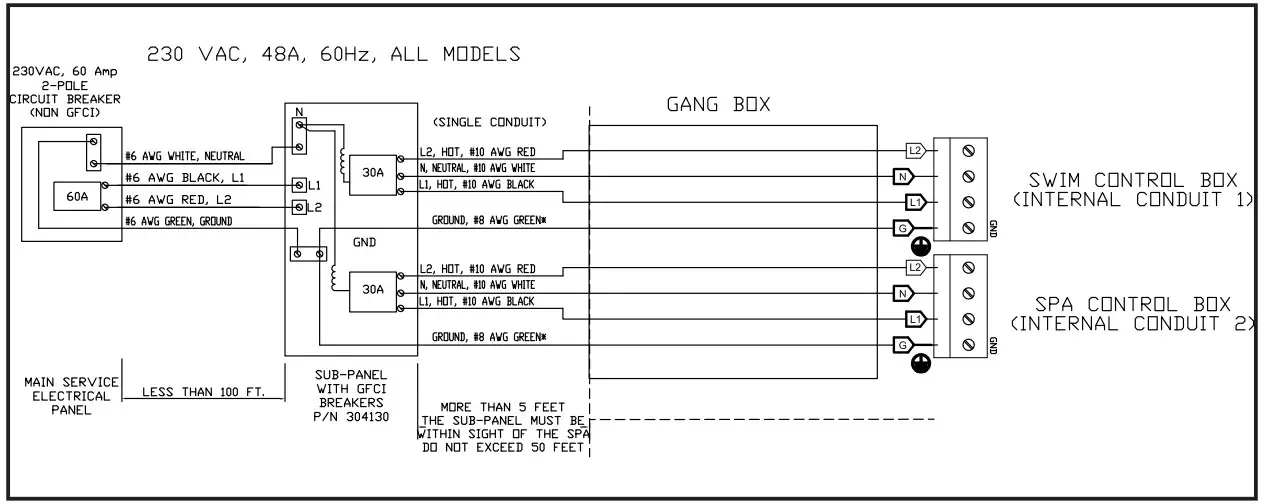

X2000
ELECTRICAL REQUIREMENTS
E550 / E2000
ELECTRICAL REQUIREMENTS

System Specifications

Footprint DimmensionsHeight Effective FilterArea Heater (Watts) Water Capacity Surface Water AreaSquare FeetMaximum Depth  Dry Weight Filled Weight  Dead Weight*  Electrical Requirements
R20012’ 0”x7’550”100Square Feet4,0001,335gallons66.6 Sq.40”1,845 lbs14,720 lbs190 lbs. per square foot230 volt, 30 amp single phase GFCI protected circuit
R50015’ 0”x7’550”100Square Feet4,0001,785gallons85.9 Sq.40”2,055 lbs18,675 lbs195 lbs. per square foot230 volt, 30 amp single phase GFCI protected circuit
X50015’ 0”x7’5”50”200Square Feet4,0001,650gallons81.9 Sq.40”2,705 lbs.18,200 lbs190 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
X200020’0”x 7”5”58”200Square Feet50 Square Feet (Spa)4,000Swim 2,000gallons Spa 350gallonsSwim80.3 Sq. Spa27.7 Sq48”3,460 lbs.24,790 lbs250 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E50015’0”x 7”5”58”200Square Feet4,0001,770gallons82.5 Sq.48”2,905 lbs.19,400 lbs205 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E500Treadmill15’0”x 7”5”58”200Square Feet4,0001,735gallons82.5 Sq.48””3,030 lbs.19,235 lbs205 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E55015’0”x 7”10”58”200Square Feet4,0002,392gallons88.4 Sq.48”3,575 lbs25,235 lbs245 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E550Treadmill15’0”x 7”10”58”200Square Feet4,0002,360gallons88.4 Sq.48”3,700 lbs25,110 lbs245 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E70017’0”x 7”5”58”200Square Feet4,0002,150gallons95 Sq.48”3,025 lbs.22,685 lbs210 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E700Treadmill17’0”x 7”5”58”200Square Feet4,0002,100gallons95 Sq.48”3,150 lbs.22,395 lbs210 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E200020’0”x 7”5”58”200Square Feet50 Square Feet (Spa)4,000Swim 2,045gallons Spa 350gallonsSwim 82 Sq. Spa27.7 Sq48”4,090 lbs.25,795 lbs200 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit
E2000Treadmill20’0”x 7”5”58”200Square Feet50 Square Feet (Spa)4,000Swim 2,000gallons Spa 350gallonsSwim 82 Sq. Spa27.7 Sq48”4,215 lbs.25,545 lbs200 lbs. per square foot230 volt, 60 amp single phase GFCI protected circuit

CAUTION: Watkins Manufacturing Corporation suggests a structural engineer or contractor be consulted before the system is placed on an elevated deck.
NOTE: The “Filled weight” and “Dead weight” of the system includes the weight of the occupants (assuming an average occupant weight of 175 lbs).
