Panorama Fisheye Network Camera
Quick Setup Guide
Precautions
Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip “You have entered the area of electronic surveillance” in an eye-catching place. Failure to correctly use electrical products may cause fire and severe injuries.
 WARNING | It alerts you to moderate dangers which, if not avoided, may cause minor or moderate injuries. |
 CAUTION | It alerts you to risks. Neglect of these risks may cause device damage, data loss, device performance deterioration, or unpredictable results. |
 NOTE | It provides additional information. |
WARNING
- Strictly observe installation requirements when installing the device. The manufacturer shall not be held responsible for device damage caused by users’ non-conformance to these requirements.
- Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.
- Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
- If this device is installed in places with unsteady voltage, ground this device to discharge high energy such as electrical surges in order to prevent the power supply from burning out.
- When this device is in use, ensure that no water or any liquid flows into the device. If water or liquid unexpectedly flows into the device, immediately power off the device and disconnect all cables (such as power cables and network cables) from this device.
- Do not focus strong light (such as lighted bulbs or sunlight) on this device. Otherwise, the service life of the image sensor may be shortened.
- If this device is installed in places where thunder and lightning frequently occur, ground the device nearby to discharge high energy such as thunder strikes in order to prevent device damage.
CAUTION
- Avoid heavy loads, intensive shakes, and soaking to prevent damages during transportation and storage. The warranty does not cover any device damage that is caused during secondary packaging and transportation after the original packaging is taken apart.
- Protect this device from fall-down and intensive strikes, keep the device away from magnetic field interference, and do not install the device in places with shaking surfaces or under shocks.
- Clean the device with a soft dry cloth. For stubborn dirt, dip the cloth into slight neutral cleanser, gently wipe the dirt with the cloth, and then dry the device.
- Do not jam the ventilation opening. Follow the installation instructions provided in this document when installing the device.
- Keep the device away from heat sources such as radiators, electric heaters, or other heat equipment.
- Keep the device away from moist, dusty, extremely hot or cold places, or places with strong electric radiation.
- If the device is installed outdoors, take insect- and moistureproof measures to avoid circuit board corrosion that can affect monitoring.
- Remove the power plug if the device is idle for a long time.
- Before unpacking, check whether the fragile sticker is damaged. If the fragile sticker is damaged, contact customer services or sales personnel. The manufacturer shall not be held responsible for any artificial damage of the fragile sticker.
Open Package Examination
Open the package, check the appearance of product for no obvious damage, and confirm the item list for table 1-1 is consistent.
Table 1-1 Packing list
| Component | Quantity | Remark |
| Panorama Fisheye Network Camera | 1 | |
| Quick Setup Guide | 1 | |
| Installation location sticker | 1 | |
| T15 Screw driver | 1 | |
| Swell plastic button (p5.6x29mm | 4 | |
| Black stainless self-tapping screw PA4.0x3Omm | 4 | |
| Network access port protective cover | 1 | |
| Waterproof rubber seal | 1 | |
| Terminal block | 2 |
Device Structure

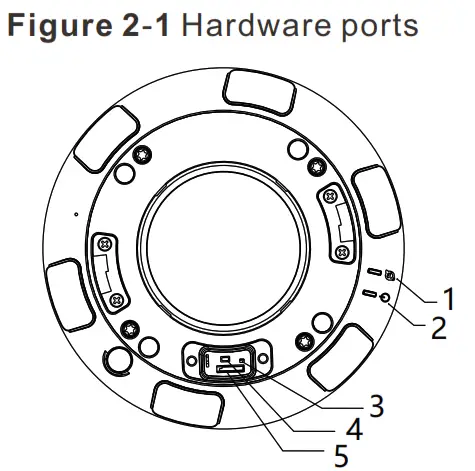

2.1 Device Ports NOTE
Different device may have different ports and multi-head cable, please refer to the actual product.
Table 2-1 Hardware ports description
| ID | Port Name | Description |
| 1 | NIC indicator | When there is a network activity, the indicator flashes. |
| 2 | Power supply indicator | The indicator on when connect to the power supply. |
| 3 | SD card indicator | Indicate the card status, the status is described as follows: • Off: No card is inserted • On: A SD card is inserted. |
| 4 | Reset button | Restores the camera to the factory settings by pressing and holding this button for more than five seconds. |
| 5 | SD card slot | Install a SD card. NOTE • Before install a SD card, verify the card not in write protection state. • Before remove the SD card. Verify the card not in write protection state. Otherwise, the data may be lost ,or the SD card may be damaged. • Before installing or removing a SD card when the camera is running, stop video recording first. |

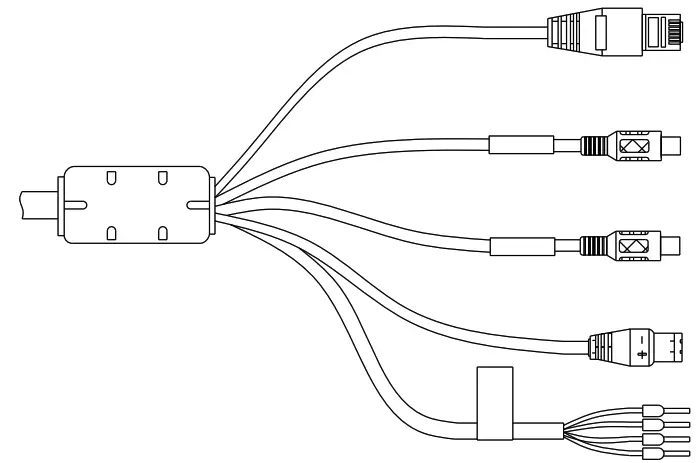

Figure 2-2 Multi-head cable
Table 2-2 Multi-head cable description
| ID | Core | Description | Remark |
| 1 | Network access port | Connects to a standard Ethernet cable. | |
| 2 | Audio input port | Receives an analog audio signal from devices such as a sound pickup device. | Applied for camera with audio |
| 3 | Audio output port | Connects to an external audio device such as a speaker. | |
| 4 | Power supply (DC 12V) | Connects to a 12V(-15%-+10% ) direct current (DC) power supply. | |
| 5 | Gray core | Alarm output terminal A(normal open) | Applied for alarm function |
| Purple core | Alarm output terminal B(normal open) | ||
| Yellow core | Alarm input positive terminal | ||
| Orange core | Alarm input ground terminal |
2.2 Camera Dimensions NOTE
Different device may have different dimensions, please refer to the actual product.

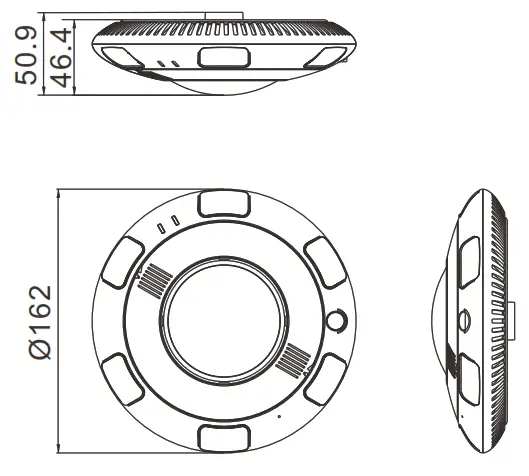

Figure 2-3 Dimensions Unit:mm
Device Installation
You can install the fisheye network camera in the ceiling and wall. This section describes how to install the camera in the ceiling.
3.1 Installation Steps
Step 1 Stick the Installation location sticker on the Installation surface, Drill four holes based on the marks on the sticker. Drive the swell plastic buttons into the holes.

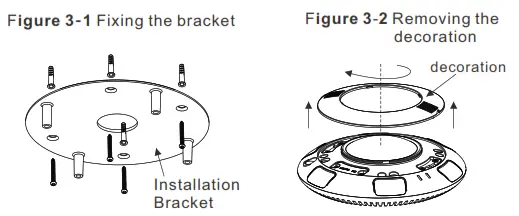

Step 2 Take out the camera and remove the installation bracket, use screws with a length of 30mm to fix the installation bracket, as shown in figure 3-1.
Step 3 Connect the multi-connector cable. NOTE
If you route cables from the top, drill a hole in the surface first. If you route cables from aside, please use the square type junction box or circular junction box, as show in table 3-1.
Step 4 Rotate and remove the decoration, as shown in figure 3-2.

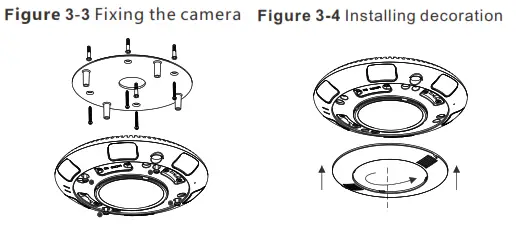

Step 5 Aim the four holes of the camera at the screw bolts, Fasten the screws and fix the camera, as shown in figure 3-3.
Step 6 Aim the buckles of the decoration at the classis gap, push in and rotate the decoration until it can’t rotate, as shown in figure 3-4.
3.2 Optional Accessories

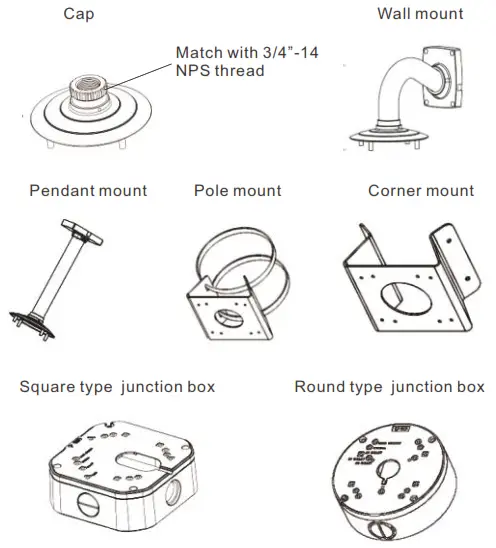

The bracket installation may be used in actual installation, the specific optional accessories as shown in figure 3-1.
Figure 3-5 accessories
Quick Configuration(e.g IE)
4.1 Login
Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.120 in the address box, and press Enter. The login page is displayed. as shown in figure 4-1 .
Step 2 Input the user name and password. NOTE
The default user name is admin. The default password is admin.
Change the password when you log in the system for first time to ensure system security.
You can change the system display language on the login page.

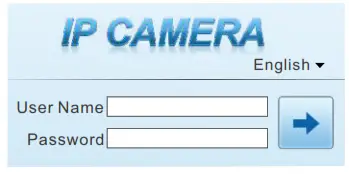

Figure 4-1 Login
Step3 Click Login, the main page is displayed.
4.2 Modify IP address
Choose Configuration > Device > Local Network, the Local
Network page is displayed.

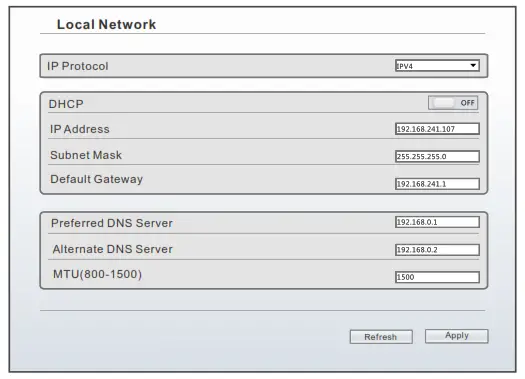

Enter the IP address in the IP Address box and click Apply as shown in figure 4-2.
After the success of the IP address setting, please use the new IP address to log in the Web interface.
Figure 4-2 Local Network
4.3 Browsing Video
To ensure the real-time video can be played properly, you must perform the following operation when you log in the web for the first time:

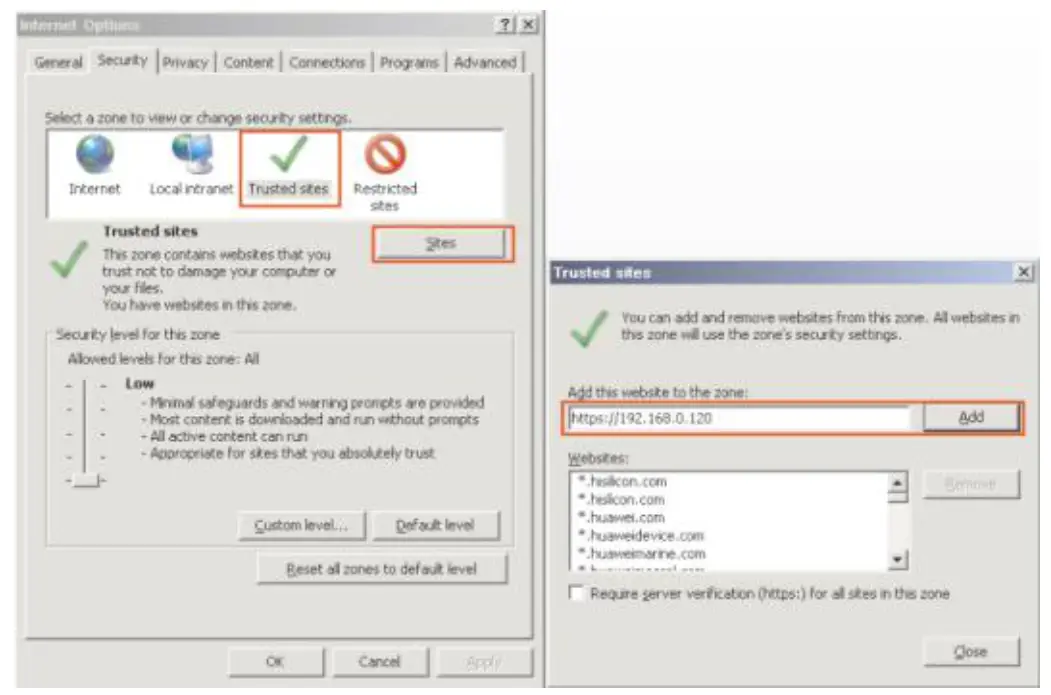

Step 1 the Internet Explorer. Choose Tools > Internet options > Security > Trusted sites > Sites, in the display dialog box, click
Add, as shown in figure 4-3.

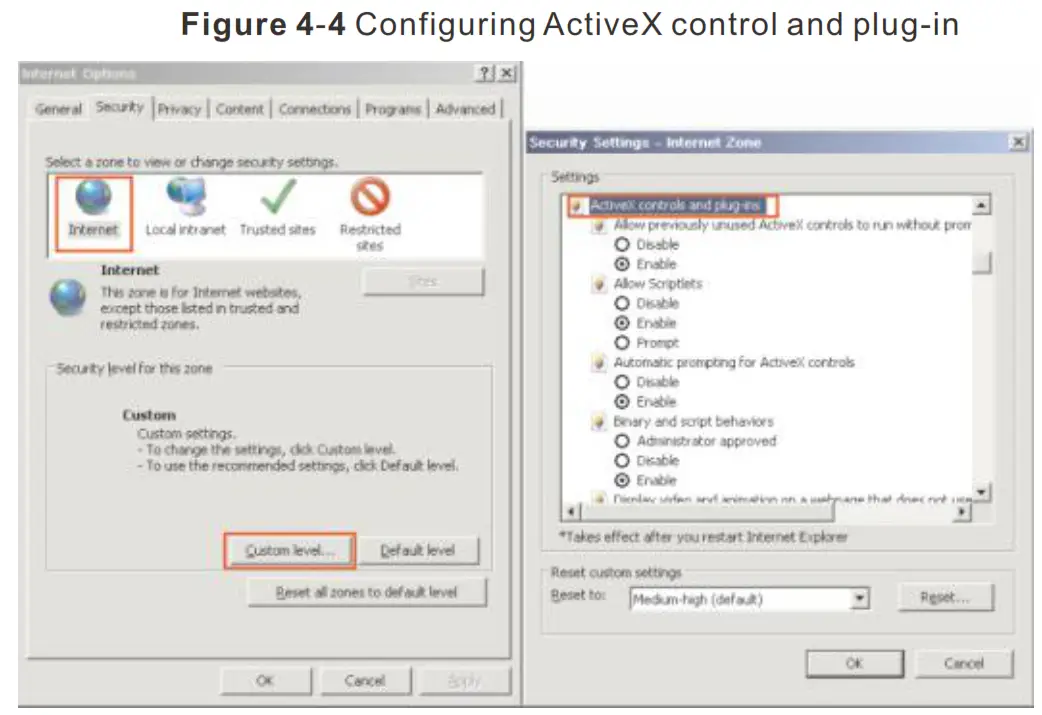

Step 2 In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in figure 4-4.
Step 3 Download and install the player control as prompted. NOTE
If the repair tips displayed when installing the control , please ignore the prompt, and continue the installation, the login page is displayed when the control is loaded.

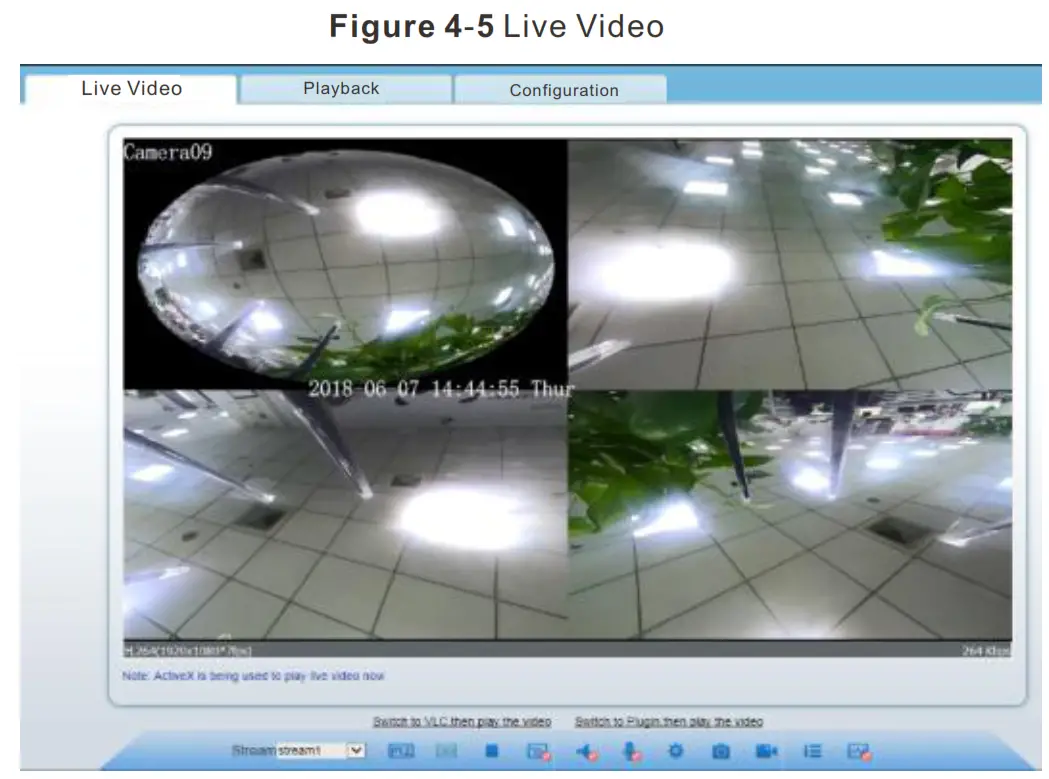

To browse a real-time video, click Live Video. The Live Video page is displayed, as shown in figure 4-5.
Figure 4-5 Live Video
4.4 Fish eye configuration

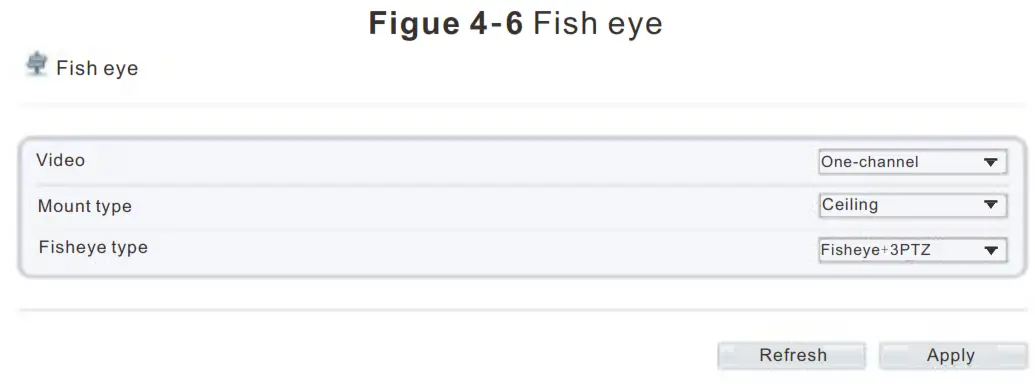

Choose“Configuration > Device > Fish eye”,The Fish eye configuration page is displayed, set the parameters for “Mount type” and “Fisheye type”, as shown in figure 4-6.
Three mount config are supported by the fisheye camera: wall, ceiling, table.
Fisheye mode include:
- Fish eye: Original 360°，surround image;
- Double panorama: Double 180° panoramic image ;
- 4PTZ: De-warping quad image.
- Single panorama: Single180° panoramic image ;
- Fisheye+3PTZ: 360° surround+3 De-warping images.
4.5 Two-way audio NOTE
Partial camera do not support two-way audio, this section do not apply.
4.5.1 Camera
PC
Connection
Step 1 Connect microphone to audio input interface of camera.
Step 2 Connect speaker to the PC audio output interface.
Step 3 Log in camera Web, click
to turn on two-way audio.
4.5.2 PC Camera
Step1 Connect microphone to PC audio input interface.
Step2 Connect speaker to camera audio out interface.
Step3 Log in camera Web, click to turn on two-way audio.
4.6 Alarm Configuration
NOTE
Partial camera do not support alarm, this section do not apply.
Alarm input and Alarm output connection:
Step1 Connect alarm input device to Alarm IN0 and Alarm COM0 of multi-head cable.
Step2 Connect alarm output device to Alarm OUT1 and Alarm COM1 of multi-head cable, alarm output interface can connect to normal open device only.
Step3 Log in Web, Choose Configuration>Alarm>I/O Alarm, set the parameters as shown in figure 4-6.
Step4 Choose Configuration>Alarm>I/O Alarm Linkage , enable the I/O Alarm and set the parameters of Schedule Setting.

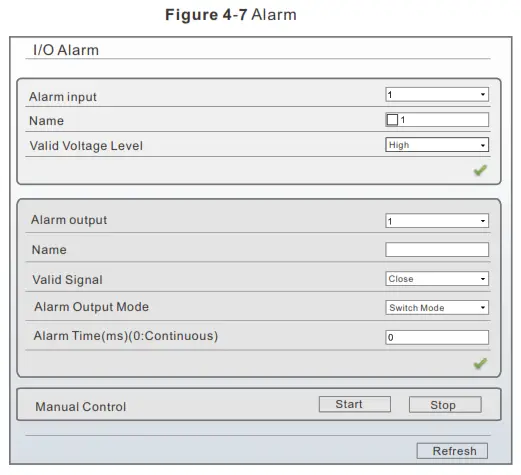

Figure 4-7 Alarm
NO:101-100-0373-03
Issue:1.3
