Hubbell Raceway
HBL2400 and HBL2400D Series

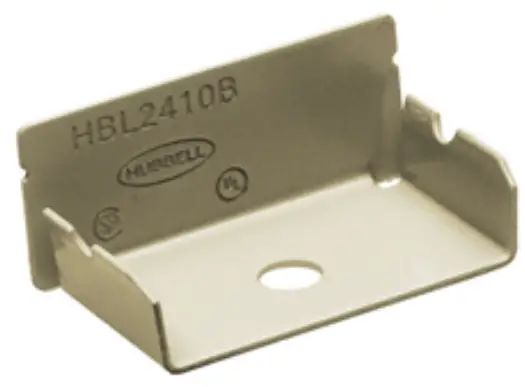

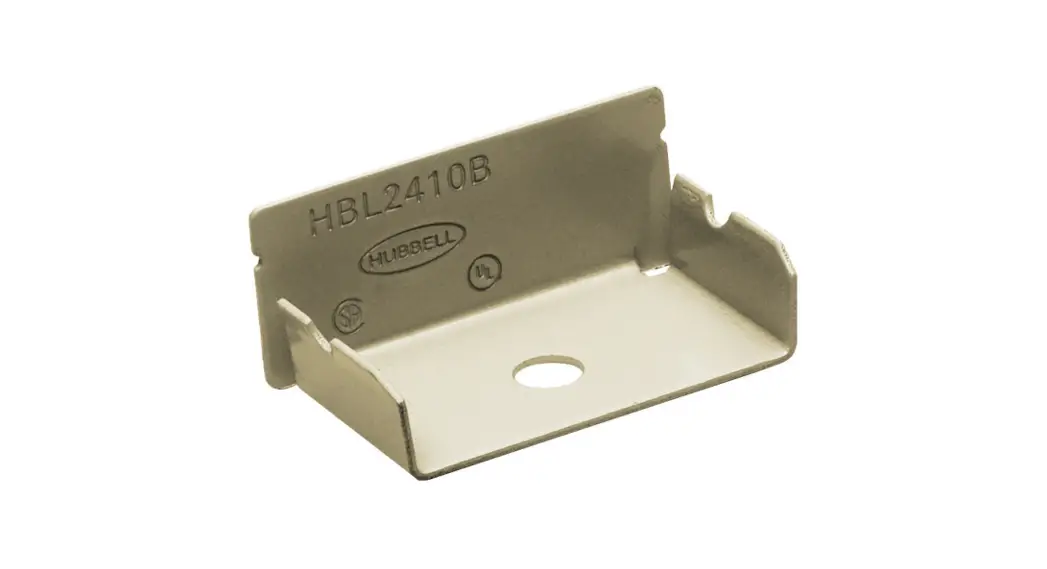

Blank End Fitting
Features
- Uses HBL 2400 Series raceway and fitting and accessories to customize the install
- Scratch resistant finish
- For use upto 600V AC
Ordering Information
| Accessory Type | Color | UPC Number |
| Blank End Fitting | Ivory | 7.83585E+11 |
Listings
UL Standard UL 5
E253976 /E253830 /E253833
CSA Standard C22.2 no. 62
Specifications
| Raceway Series | HBL2400 and HBL2400D Series |
| Material | Steel |
| Finish | Painted, Ivory |
| Raceway Base and Cover | HBL2400BCIV |
| Raceway Base, Divided | HBL2400BDIV |
| Raceway Base | HBL2400BIV |
| Raceway Cover | HBL2400CIV |
Online Resources
Customer Sales Drawings eCatalog
Installation Instructions

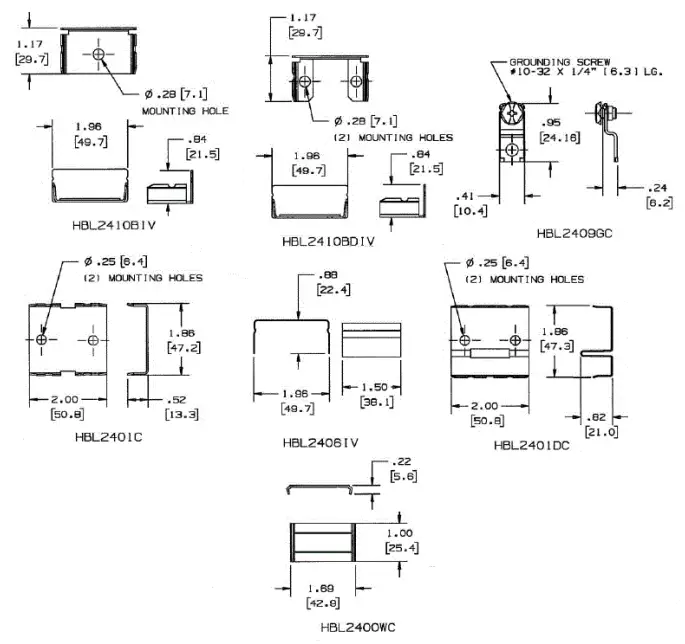

Dimensions in Inches (mm)
Hubbell Wiring Device-Kellems • Hubbell Incorporated (Delaware) • 40 Waterview Drive • Shelton, CT 06484
Phone (800) 288-6000 • Fax (800) 255-1031 • Specifications subject to change without notice.
