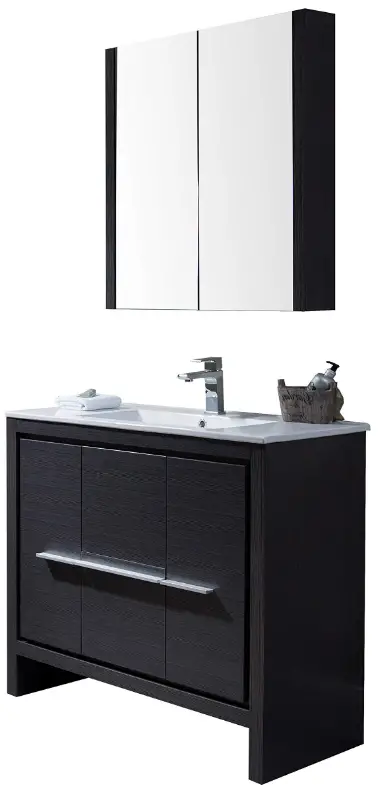

BLOSSOM V8014-2 Milan 20 Inch Vanity Silver Gray
Specification
Features
- Modern design with high glossy paint or silver-grey melamine finishes.
- Soft-closing doors and drawers.
- Compatible ceramic basins or artificial stone basins.
- Compatible matching mirror, medicine cabinet, or LED mirror, medicine cabinet.
- Full extension drawers.
- Easy installation
C o l o r s / F I n I s h e s
- Glossy White – 01
- Silver Grey – 16
Package Dimension
- 20″” 22 26/64″ x 22 16/64″ x 32 31/64″
- 24″ 26 3/8″ x 20 55/64″ x 36 1/32″
- 30″ 32 9/32″ x 20 55/64″ x 36 1/32″
- 36″ 38 3/16″ x 20 55/64″ x 36 1/32″
- 48″ 50″ x 20 55/64″ x 36 1/32″
- 60″ 62 63/64″ x 24 11/16″ x 36 1/32″
Gross Weight
- 20″ 66 LBS
- 24″ 81 LBS
- 30″ 91 LBS
- 36″ 121 LBS
- 48″ 143 LBS
- 60″ 178 LBS
Sink Top Options
| Vanities | Ceramic basin | Artificial stone basin | |
| 20″ | V8014-20 | С04 2020 | NONE |
| 24“ | V8014-24 | C04 2418 | A10 2418 25 |
| 30″ | V8014-30 | C04 3018 | A10 3018 25 |
| 36″ | V8014-36 | C04 3618 | A10 3618 25 |
| 48″ | V8014-48 | C04 4818 S/C04 4818 D | A10 4818 25 S / A10 4818 25 D |
| 60″ | V8014-60 | NONE | A10 6022 25 |

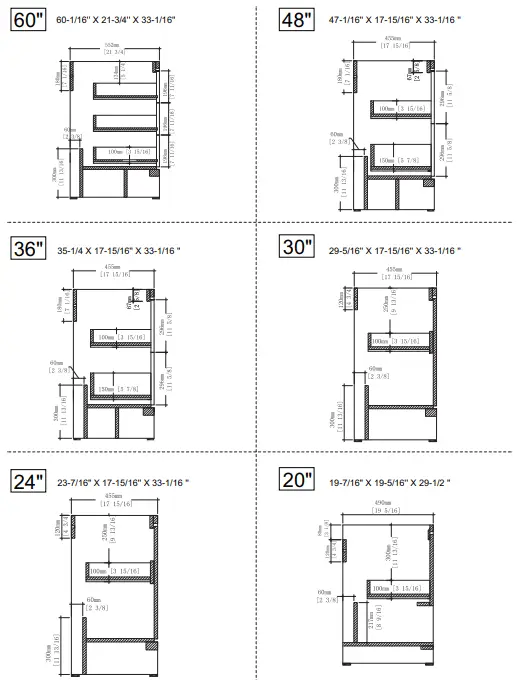

Dimension

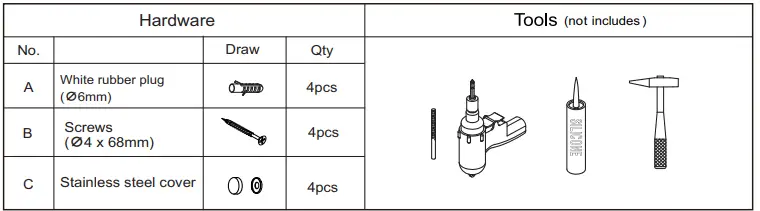

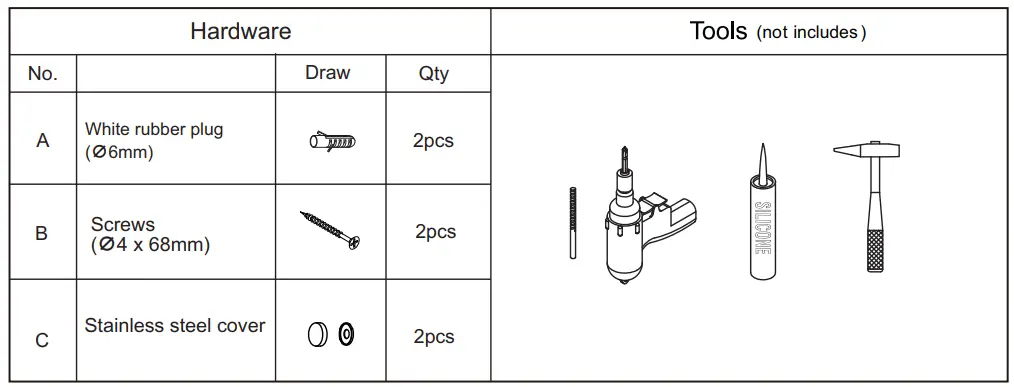

Hardware

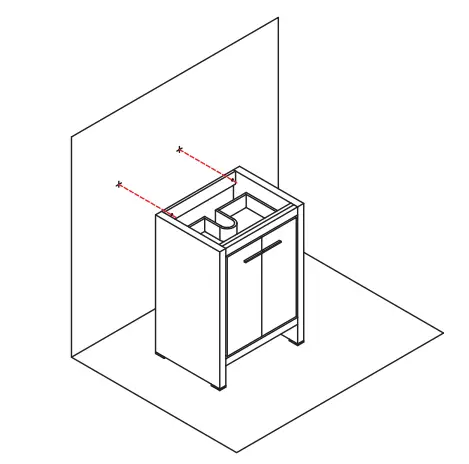

STEP 1
- Mark the pre-drilled holes with a pencil or marker after positioning the vanity.

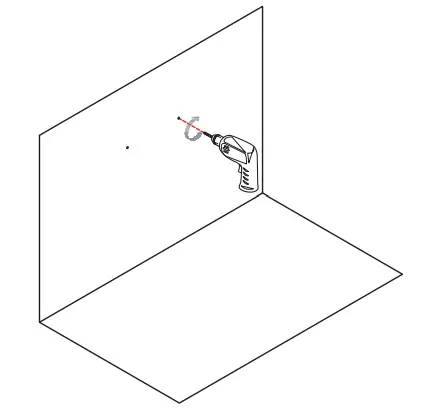

STEP 2
- Drill the holes with suitable drill bits based on the different conditions of the wall.

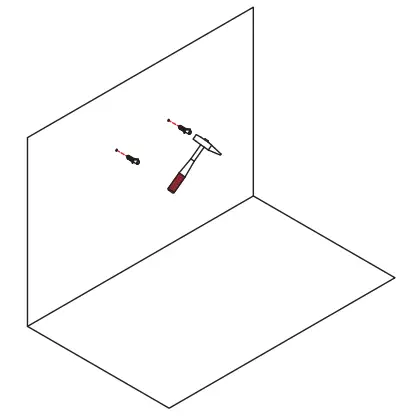

STEP 3
- Hammer in the expansion plug.

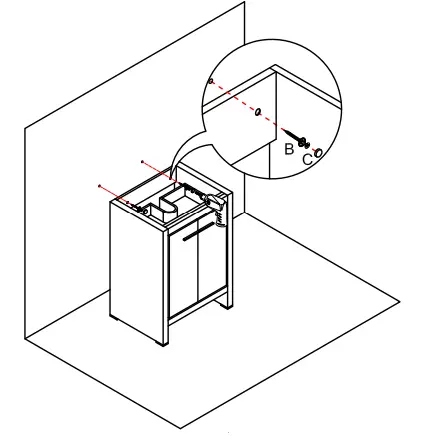

STEP 4
- Secure the vanity onto the wall with screws.

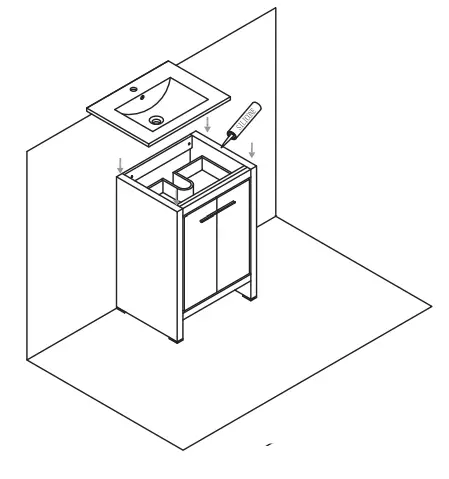

STEP 5
- Install the basin with silicone.

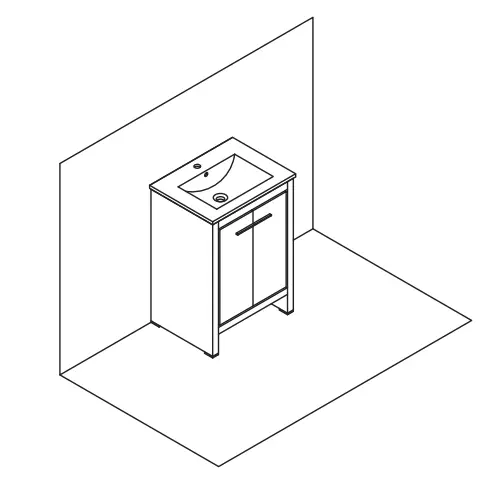

STEP 6
- Installation complete.

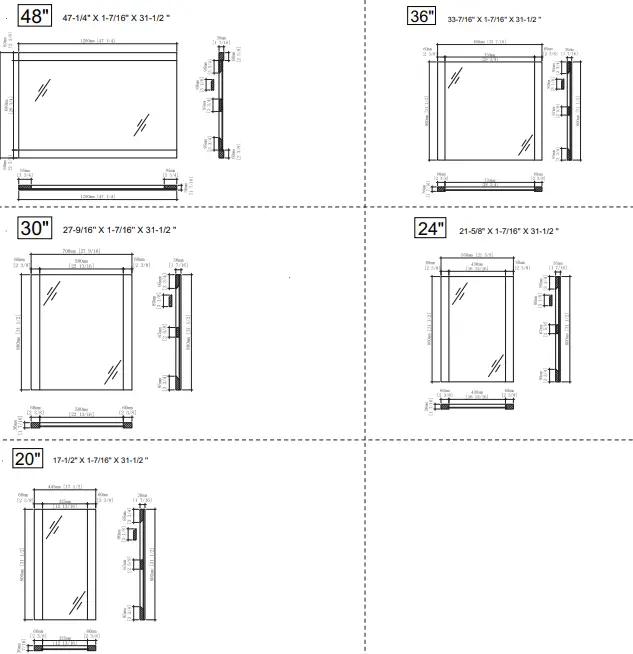

Series Mirror
Features
- Modern design with high glossy paint or silver-grey melamine finishes.
- Easy installation.
Colors / Finishes
- Glossy White – 01
Silver Grey – 16
Package Dimension
- 20″ 20-1/2″ x 4-9/64″ x 34-29/64″
- 24″ 24-39/64″ x 4-9/64″ x 34-29/64″
- 30″”30-33/64″ x 4-9/64″ x 34-29/64″
- 36″ 36-7/16″ x 4-9/64″ x 34-29/64″
- 48″ 50-13/64″ x 4-9/64″ x 34-29/64″
Gross Weight
- 20″ 21 LBS
- 24″ 21 LBS
- 30″25 LBS
- 36″ 26 LBS
- 48″ 46 LBS

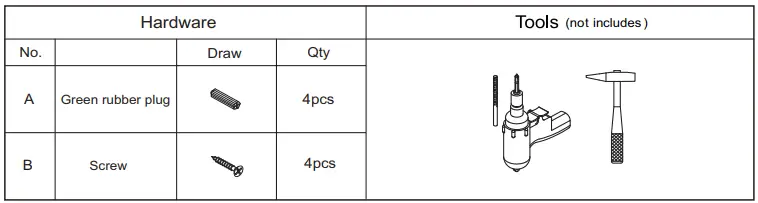

Hardware

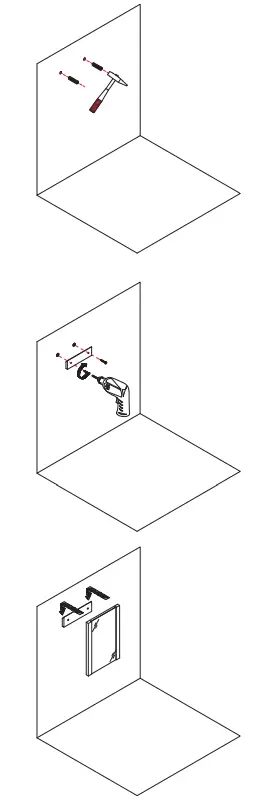

STEP 1
- Measure the wall-hung board and mark down the holes in the wall.
- Drill the holes with suitable drill-bits base on the different conditions of the wall.
- Use a hammer to knock the green expansion rubber plug into the hole.
STEP 2
- Screw the 45-degree wall-hung panel onto the wall.
STEP 3
- Put up the back top panel of the mirror on the 45-degree wall-hung panel.
- Installation completed.
- Carefully slide the mirror left or right to center with the vanity

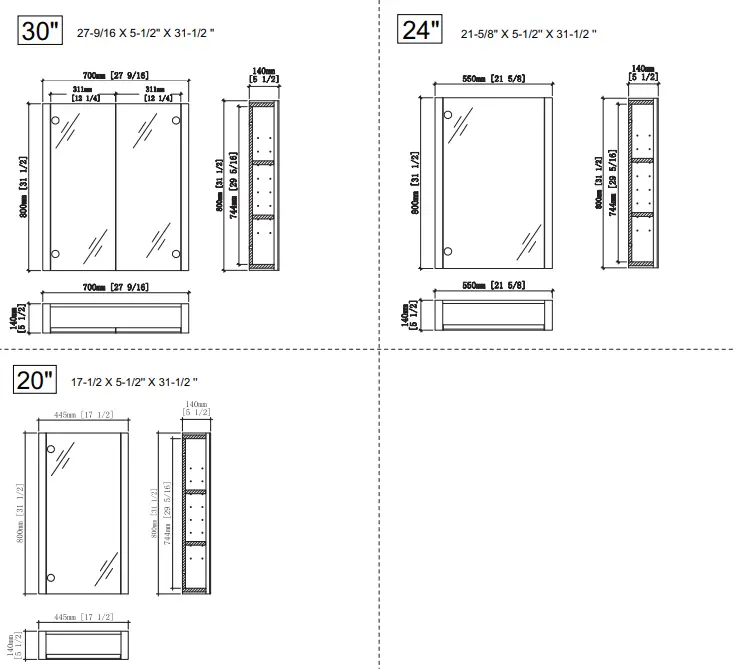

Series Medicine Cabinets
Features
- Modern design with high glossy paint or silver-grey melamine finishes.
- Soft-closing doors.
- Easy installation.
- Adjustable shelves.
Colors / Finishes
- Glossy White – 01
- Silver Grey – 16
Package Dimension
- 20″ 20 1/2″ x 8 15/32″ x 34 29/64″
- 24″”24 39/64″ x 8 15/32″ x 34 29/64″
- 30″ 30 33/64″ x 8 15/32″ x 34 29/64″
Gross Weight
- 20″ 45 LBS
- 24″ 49 LBS
- 30″57 LBS
Hardware

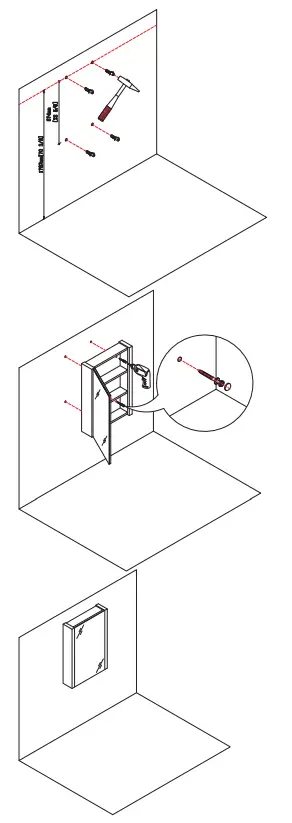

STEP 1
- Drill the holes with suitable drill bits base on the different conditions of the wall.
- Use a hammer to knock the white expansion rubber plug into the hole.
STEP 2
- Align the holes in the wall and lock the mirror cabinet to the wall with screws.
STEP 3
- Finish
- Blossom Kitchen & Bath Supply Corporation (718)-366-0088
- [email protected]
- www.BlossomUS.com
- For clarification, please contact us at (718)-366-0088 or [email protected]
- All dimensions are approximate and subject to standard tolerance. Specifications are subject to change without prior notice.
- www.blossomus.com
