Eval Kit Quick Start Guide
CCS801 Standard Board
CCS801-DF_EK_ST
Note: For a detailed description of the CCS801 Standard Board please refer to the Eval Kit user manual!
Out of the Box
Each CCS801 evaluation kit comes with the following components:
- CCS801 sensor shield
- USB-I2C dongle
- Thank You card with URL to download application software

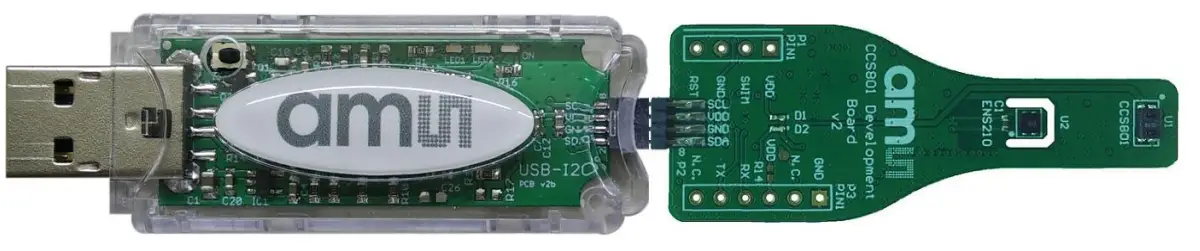

Figure 1 CCS801 sensor shield with USB-I2C dongle
Software Installation
Quick steps:
- Connect CCS801 shield and USB-I2C dongle
- Connect the USB interface of the dongle to Windows PC
- Install Windows PC ENS dashboard application available at
https://download.ams.com/ENVIRONMENTAL-SENSORS/WINDASHBOARD
The ENS Dashboard application setup wizard will be launched and guide you through the installation, please refer to the ENS Dashboard User manual.
