QUICK REFERENCE GUIDE > WB30SDEB1
Warming Drawer, 30″

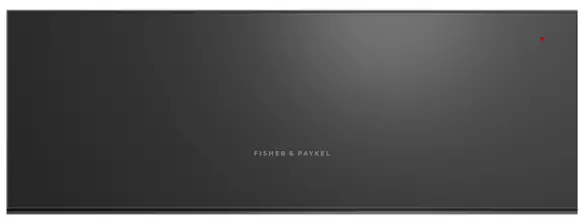

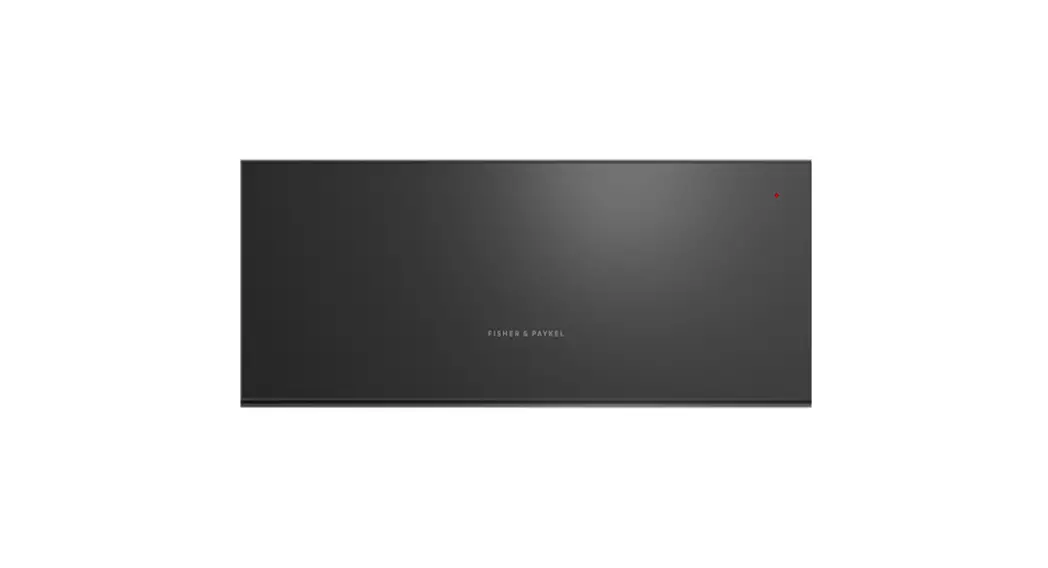

WB30SDEB1 30-Inch Warming Drawing
Series 9 | Minimal Black
Keep plates warm until ready to serve; rapid proof or slow cook to perfection. Pair with an oven for a matching Minimal design.
- A companion product, designed to match with another Minimal style Fisher & Paykel products
- Space to keep 16 standard-sized place settings evenly warm, with an accessory rack for optimizing space
- Easy to clean smooth-glass base
- Six versatile tailored programs for warming, proofing, dehydrating, and slow cooking
DIMENSIONS
| Height | 29 15/16″ |
| Width | 10 11/16″ |
| Depth | 22 5/16″ |
FEATURES & BENEFITS
Complementary design
Our Warming Drawer comes in either a stylish black reflective glass or brushed stainless steel, for seamless pairing with our matching ovens.
Multi-function flexibility
Choose from six tailored functions including Rapid Proof, Dehydrate, and Slow Cook.
Easy to clean <>
Easy to use
Handle-free, push-to-open with capacitive touch controls, our Warming Drawer comes with an accessory rack for optimizing space.
Precise control
With fast and even heating, our warming drawer is great for keeping food warm and low-temperature cooking, as well as resting after a traditional roast in the oven and proofing dough.
Safe and sound
With Automatic switch-off and Delayed start functionality, our warming drawers help keep dishes warm until it is time to serve the main meal.
SPECIFICATIONS
Accessories
| Wire shelf | 1 |
Capacity
| Accessory rack maximum | 42lb |
| Cappuccino cups | 24 |
| Espresso cups | 54 |
| Maximum allowable weight | 55lbs |
| Place settings | 16 |
| Usable depth | 16 1/16″ |
| Usable height | 9 1/16″ |
| Usable width | 27 1/2″ |
Cleaning
| Easy clean smooth-glass base | • |
Controls
| Audio feedback | • |
| Automatic timers | 30′, 45′, 1h, 2h, 4h, 6h |
| Delayed start | • |
| Electronic capacitive touch | • |
| On/Off indicator | • |
| Pre-set heating functions | • |
| Push-to-open drawer | • |
| Sabbath mode | • |
| Soft close drawer | • |
| Standby mode | • |
Functions
| Cups | • |
| Dehydrate | • |
| Number of functions | 6 |
| Plates | • |
| Slow cook | • |
| Warm | • |
Performance
| Heated glass base and fan | • |
| Low-temperature cooking | • |
| Temperature levels | 6 |
| Temperature range | 95°F-185°F |
Power requirements
| Amperage | 10A |
| Power outlet | 3-prong grounding-type |
| Supply frequency | 60Hz |
| Supply voltage | 110V |
Product dimensions
| Adjustable front door panel to | • |
| Depth | 22 5/16″ |
| Height | 29 15/16″ |
| Width | 10 11/16″ |
Safety
| Automatic turn-off after 12 | • |
| Full extension slides | • |
Warranty
| Parts and labor | 2 years |
| SKU | 82113 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
