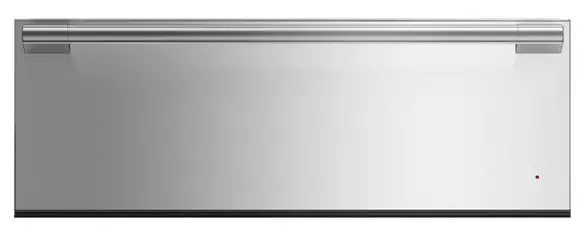

Fisher Paykel Wb30spex1 Warming Drawer 30 User Guide (+ PDF)

QUICK REFERENCE GUIDE > WB30SPEX1
Warming Drawer, 30″
Series 9
Professional Stainless Steel

Keep plates warm until ready to serve; rapid proof or slow cook.
Pair with a Professional-style oven for design cohesion.

A companion product, designed to match with other
Professional style Fisher & Paykel products
Space to keep 16 standard-sized place settings evenly warm, with accessory rack for optimizing space
Easy to clean smooth-glass base
Six versatile tailored programs for warming, proofing, dehydrating, and slow cooking

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

DIMENSIONS

Height	10¹¹/_16″
Width	₂₉¹⁵_/16″
Depth	₂₂³_/16″

FEATURES & BENEFITS

Complementary design	Choose from six tailored functions including Rapid Proof, Dehydrate and Slow Cook.
Multi-function flexibility	Choose from six tailored functions including Rapid Proof, Dehydrate, and Slow Cook.
Easy to clean	<>
Easy to use	Soft-close with capacitive touch controls, our Warming Drawer comes with an accessory rack for optimizing space.
Precise control	With fast and even heating, our warming drawer is great for keeping food warm and low-temperature cooking, as well as resting after a traditional roast in the oven and proofing dough.
Safe and sound	With Automatic switch-off and Delayed start functionality, our warming drawers help keep dishes warm until it is time to serve the main meal.

SPECIFICATIONS

Accessories Wire shelf	1
Capacity Accessory rack maximum Cappuccino cups Espresso cups Maximum allowable weight Place settings Usable depth Usable height Usable width	42lb 24 54 55lb 16 16 9 21
Cleaning Easy clean smooth-glass base	•
Controls Audio feedback Automatic timers Delayed start Interior light Intuitive capacitive touch On/Off indicator Pre-set heating functions Sabbath mode Soft close drawer Standby mode	• 30′, 45′, 1h, 2h, 4h, 6h • LED • • • • • •
Functions Cups Dehydrate Number of functions Plates	• • 6 •
Rapid proof Slow cook Warm	• ••
Performance Heated glass base and fan Low temperature cooking Temperature levels Temperature range	• • 6 95°F-185°F
Power requirements Amperage Maximum power Power cord length Power outlet Supply frequency Supply voltage	10A 810W 70 3-prong grounding-type 60Hz 110V
Product dimensions Adjustable front door panel to Depth Height Width	• ₂₂³_/16″ 10¹¹/_16″₂₉¹⁵_/16″
Safety Automatic turn off after 12 Full extension telescopic	• •
Warranty Parts and labor	2 years

TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
