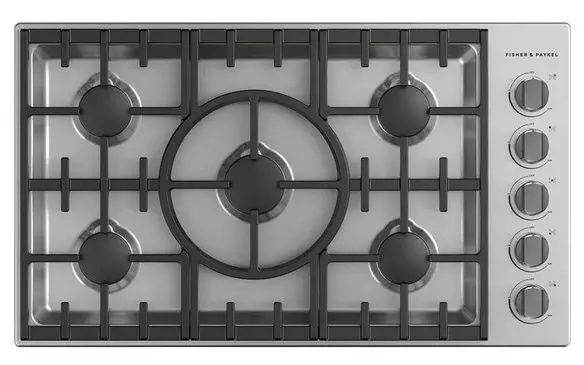

Fisher Paykel Cdv3-365h-n Gas Cooktop 36 User Guide (+ PDF)

QUICK REFERENCE GUIDE > CDV3-365H-N
Gas Cooktop, 36″
Series 9
Professional Stainless Steel
Natural gas

A powerful high-heat five burner with precision control and performance. Pair with any other appliance in our Professional range.

Your burners can deliver anything from a high 20,000 BTU heat per burner for fast boiling, to a gentle flame for simmering
Continuous surface grates designed for pots and pans to move safely across the cooktop
Designed to match Professional-style appliances
Made from quality materials and real stainless steel

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

DIMENSIONS

Height	5½”
Width	36″
Depth	21″

FEATURES & BENEFITS

Cooktop power
Sealed Dual Flow Burners™ deliver cooktop power up to 20,000
BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
Precise control
From the highest to the lowest temperatures you get total control with halo-illuminated cooktop dials. A precise full surface simmer is delivered across all burners.
Cooking flexibility
The self-locating grates focus the flame on the base of each pan, where it is most required. They are designed for easy and safe sliding of pans across the cooktop surface. For cooking variety, a wok ring accessory is also available.
<<Missing Feature Title>>
These cooktops are easy to clean with a commercial-style stainless steel finish, sealed burners, and a single sheet cooking surface.
Information at a glance
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
Complementary design
Built to last with distinctive, bold styling, this cooktop is designed to match the Fisher & Paykel Professional style family of appliances.

SPECIFICATIONS

Burner ratings Max burner power Power back left Power back right Power front centre Power front left Power front right Total Power	20,000 BTU 15,000 BTU 15,000 BTU 20,000 BTU 15,000 BTU 15,000 BTU 80,000 BTU
Controls Metal illuminated dials Titanium coated, illuminated	• •
Gas requirements Fitting and pipe Supply Pressure (natural gas)	½ NPT, min. ⅝” flex line 6″ to 9″ W.C
Performance Sealed Dual Flow Burners™ Sealed cooking surface Simmer on all burners	5 • 140°F
Power requirements Amperage Supply frequency Supply voltage	15A 60Hz 120V
Product dimensions Depth	21 “
Height Width	5½” 36″
Recommended back guards and ventilation Downdraft Minimum CFM Pro hood Traditional hood	HD36 600 HCB36-12 N / HCB36-6 N ES36
Warranty Parts and labor	2 years

TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

Other product downloads available at fisherpaykel.com

User Guide
Service & Warranty Booklet
Installation Guide
