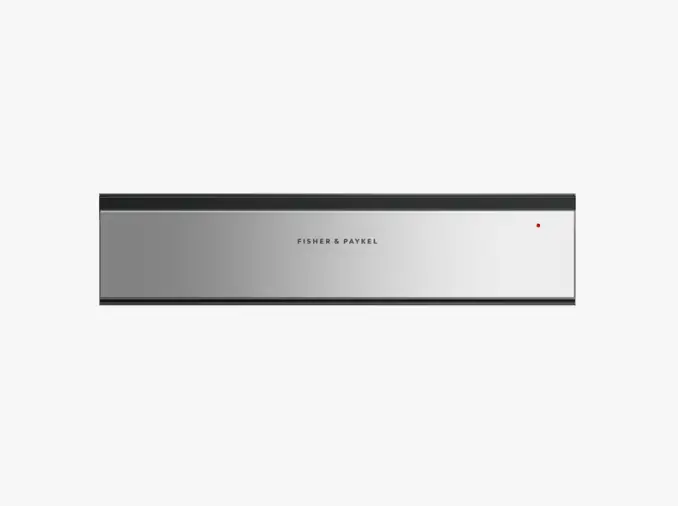

Fisher Paykel Wb60sdex2 60cm Warming Drawer User Guide (+ PDF)

A companion product, designed to match with other Contemporary style Fisher & Paykel products
Space to keep six standard-sized place settings evenly warm
Easy to clean smooth-glass base
Six versatile tailored programmes for warming, proofing, dehydrating and slow cooking

DIMENSIONS

Height 140mm
Width 596mm
Depth 567mm

FEATURES & BENEFITS

Complementary design
Our Warming Drawer comes in either a stylish black reflective glass or brushed stainless steel, for seamless pairing with our matching ovens.

Multi-function flexibility
Choose from six tailored functions including Rapid Proof, Dehydrate and Slow Cook.

Easy to clean
<>

Easy to use
Handle-free, push-to-open with capacitive touch controls, our Warming Drawer gives you the freedom to keep plates or cups warm while you continue to cook.

Precise control
With fast and even heating, our warming drawer is great for keeping food warm and low temperature cooking, as well as resting after a traditional roast in the oven and proofing dough.

Safe and sound
With Automatic switch-off and Delayed start functionality, our warming drawers help keep dishes warm until it is time to serve the main meal.

SPECIFICATIONS

Capacity

Cappuccino cups 20
Espresso cups 42
Place settings 6
Usable depth 408mm
Usable height 98mm
Usable width 535mm

Cleaning

Easy clean smooth-glass base •

Controls

Audio feedback •
Automatic pre-set •
Automatic timers 30′, 45′, 1h, 2h, 4h, 6h
Delayed start •
Electronic capacitive touch •
On/Off indicator •
Pre-set heating functions •
Push-to-open drawer •
Sabbath mode •
Standby mode •

Functions

Cups •
Dehydrate •
Number of functions 6
Plates •
Slow cook •
Warm •

Performance

Heated glass base and fan •
Low temperature cooking •
Temperature levels 6
Temperature range 35°C-85°C

Power requirements

Amperage 10A
Power cord length 1800mm
Power outlet 3-prong grounding-type
Supply frequency 50Hz
Supply voltage 220V

Product dimensions

Adjustable front door panel to •
Depth 567mm
Height 140mm
Width 596mm

Safety

Automatic turn off after 12 •
Full extension slides •

Warranty

Parts and labour 2 years

SKU 82107

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
