Fisher Paykel Wb60sdeb2 60cm Warming Drawer User Guide

 FISHER PAYKEL WB60SDEB2 60cm Warming Drawer User Guide

SAFETY AND WARNINGS

READ AND SAVE THIS GUIDE

WARNING

To reduce the risk of fire, electrical shock, injury to persons or damage when using the appliance, follow the important safety instructions listed below. Read all the instructions before using the appliance. Use the appliance only for its intended purpose as described in these instructions.

General Use

• This appliance is designed for use in a normal domestic (residential) environment.
• Do not use the appliance outdoors.
• Children should be supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• To avoid hazard due to instability of the appliance, it must be fixed in accordance with installation instructions.
• Keep the operating panel clean and dry. Wash and dry your hands before operating the drawer to ensure the buttons will respond properly.
• Avoid drying food types with high moisture content e.g. tomatoes or pineapple.

Installation

• Ensure your appliance is properly installed and earthed by a qualified technician.
• Ensure this appliance is connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• Do not install or operate the appliance if it is damaged or not working properly. If you receive a damaged product, contact your local dealer or installer immediately.
• Do not install the appliance near a hot gas or electric burner or in a heated oven.

Servicing

• Check the appliance for any damage inside or outside surface of the appliance. Do not use damaged cord or plug. If there is any damage, do not operate the appliance. Contact a Fisher & Paykel trained and supported service technician.
• Do not repair or replace any part of the appliance unless specifically recommended in this user guide. All other servicing must be done by a qualified person or Fisher and Paykel trained and supported service technician.

Cleaning and maintenance

• Ensure the appliance is turned off or set in STANDBY mode before cleaning the drawer.
• Unplug from the power outlet and allow the appliance to cool down after use before cleaning the drawer.
• Cleaning and user maintenance shall not be undertaken by children without supervision.
• Use a moderately damp cloth for cleaning. Do not spray water outside or inside the appliance. Water can cause damage inside the appliance.
• Do not use aggressive or abrasive detergent or sharp metal scrapers for cleaning the glass base of the appliance.

Safety

• Do not touch hot surfaces. Use handles or knobs.
• Do not sit or lean on the appliance. Damage to the surface of the glass may cause it to shatter.
• Do not store hazardous objects that can explode like containers with gas or air chambers (e.g spray cans).
• Do not immerse cord, plug or other parts in water or other liquid to protect against electrical shock. Do not let the cord hang over the edge of table or counter, or in a heated oven.
• Do not use accessory attachments that are not recommended.

Packaging disposal

• Remove packaging and recycle materials that can be reused.
• Dispose packaging materials in accordance with local regulations on waste disposal.

BEFORE YOU BEGIN

• Ensure the installer has completed the final checklist in the installation instructions.
• Read this guide, taking special note of the Safety and warnings section.

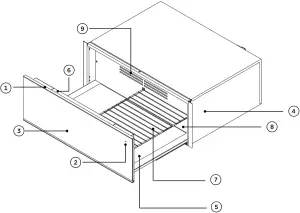

Drawer features & accessories

1. Control panel
2. Indicator light
3. Push-to-open door
4. Serial plate*
5. Heated glass base
6. LED internal lighting
7. Wire shelf
8. Fan Plate
9. Ventilation slots

• Located inside the chassis of the drawer
• Available in WB60SDTEB1 model

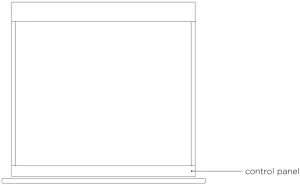

Control panel

Control panel features

1. Power On/Off
2. Temperature indicator
3. Temperature controls
4. Duration indicator
5. Duration controls
6. Heat modes


Using the touch controls

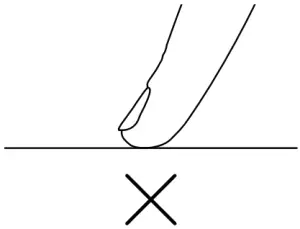

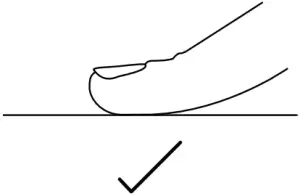

Your Warming Drawer is operated using a touch control panel. To operate the control panel, use the ball of your finger, not its tip. The controls respond to touch, so pressure is not needed.

Keep the operating panel clean and dry. Wash and dry your hands before operating the drawer to ensure the buttons will respond properly

USING YOUR WARMING DRAWER

First time use

If using the Warming Drawer for the first time, three LEDs in temperature controls are illuminated at start up.

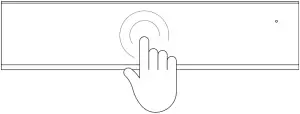

1. For push-to-open models, touch the centre-front of the drawer to open. Do not force the drawer open.

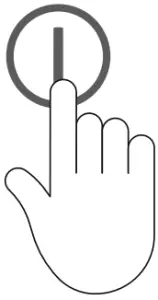

2. Touch the button to switch the drawer ON.

3. Select the desired heating function. If no function is selected, the drawer will start at the default setting.

4. Press the centre of the door to close the drawer. The indicator light will flash if the drawer is not close

At the end of a cycle:

A tone will sound and the symbol will dim. Use caution when unloading the drawer, the heated glass base and its contents will be hot.

During a cycle

The drawer can be opened at any point during operation. This will pause the programme and the indicator light will flash until the drawer is closed again. To cancel a cycle, touchat any time. To turn off the drawer, touchfor two to three seconds and release.

Standby mode

After 12 hours of continuous use, the drawer automatically switches to standby mode. The button is dimmed when in standby mode. Touch button to resume drawer use. Do not leave the Warming Drawer unattended for long periods of continuous operation.

FUNCTIONS

Your Warming Drawer is designed to utilise the heated glass base and rear fan in differing heat levels and durations to provide optimal  performance. Each function has a default time and temperature setting that illuminates upon selection. These settings can be customised by manually adjusting the duration and temperature controls in place of a pre-set function
.

CUPS
Heat circulates from the heated glass base

• Heat is circulated for 30 minutes.
• Heating duration depends on material and thickness of the cups including quantity, height and arrangement.
• Do not place any cups and/or glasses in front of the ventilation slots. This will block the airflow and cause uneven heating.

PLATES
Heat circulates from the heated glass base

• Heat is circulated for 45 minutes.
• Heating duration depends on material and thickness of the plates including quantity, height and arrangement.
• Do not place any large plates in front of the ventilation slots. This will block the airflow and cause uneven heating.

WARM
Heat circulates from the heated glass base and rear fan

• Preheat the drawer for at least 15 minutes before use.
• Heat is produced for 60 minutes.
• Provides constant low heat to keep cooked food hot.
• Do not overfill the drawer to avoid spillage. Cover the food with a heat-resistant lid or aluminum foil to prevent food from drying out.
• This function is not suitable for reheating refrigerated food


RAPID PROOF
Gentle heat is generated from heated glass base

• Heat is produced for 30 minutes.
• Provides warm and draught-free enviroment for proofing dough for bread making or pizza.

DEHYDRATE
Heat circulates from the heated glass base and rear fan

• Heat is circulated for four hours.
• Provides constant low heat for dehydrating and drying food eg meat, fruit, vegetables and herbs.
• Ideal for preserving food and creating healthy snacks, such as beef jerky, and fruit leather.
• For best results, lay the food flat on a wire shelf and do not overlap.
• If dehydrating meat, turn over halfway through the cooktime to ensure even drying.
• Store dehydrated food in an airtight container after it’s completely cooled.


SLOW COOK
Heat circulates from the heated glass base and rear fan

• Heat is circulated for six hours until food is cooked accordingly.
• Ideal for finishing off seared meat at low temperature eg roast meats, casseroles, stews and braises.
• Resting the meat before serving is not necessary since this function uses low temperature. Meat can be carved and served straight from the drawer

DELAYED START

When using Delayed Start, the Warming Drawer will automatically switch on at a set time and turn off at the end of a cycle.

1. For push-to-open models, touch the centrefront of the drawer to open. Do not force the drawer open.
2. Touch the button and select the desired function.

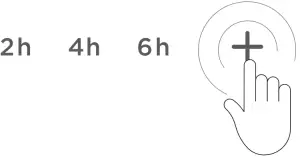

3. Touch and hold the + button for five seconds to activate DELAYED START.

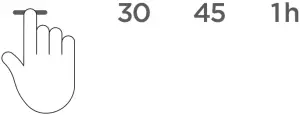

4. Use and to increase or decrease the desired DELAYED START time.

   Push the drawer closed to start the countdown

During delayed start:

The indicator light will flash until the selected cycle starts. The indicator light will illuminate consistently once the cycle begins.

SABBATH MODE

This setting is designed for religious faiths that observe a ‘no work’ requirement on the Sabbath. While your drawer is in SABBATH MODE, operation of up to 72 hours can be set and the safety shut-off and illumination features are deactivated.

Activating SABBATH MODE:

1. Touch the button for 10 seconds to activate SABBATH MODE.



2. The temperature and duration indicators will illuminate briefly three times to indicate SABBATH MODE has been enabled.


Deactivating SABBATH MODE:

1. Touch the  button for 10 seconds to deactivate SABBATH MODE.


2. The temperature and duration indicators will illuminate briefly three times to indicate SABBATH MODE has been disabled.


LOADING YOUR APPLIANCE

For WB60SD models

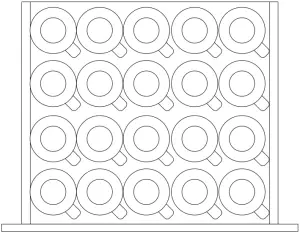

• 20 Cappuccino cups
  Diameter guide 20x Ø92 mm

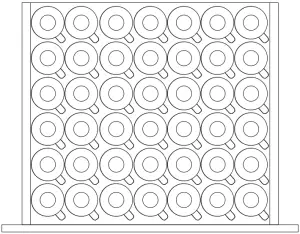

• 42 Espresso cups
  Diameter guide 48x Ø58mm

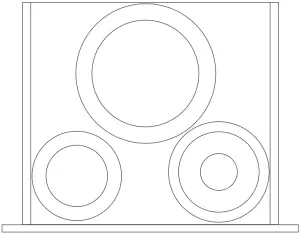

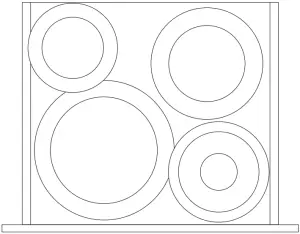

• Plate settings
  Diameter guide
  6x Ø250mm Dinner
  6x Ø230mm Soup bowl
  6x Ø180mm Bread & Butter
  6x Ø165mm Saucer


Diameter guide for WB60SDTEB Tall model
16x Ø250mm Dinner
16x Ø180mm Bread & Butter
20x Ø190mm Saucer

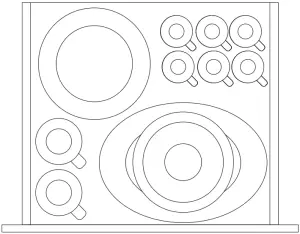

Mixed load

Maximum load
Do not load more than 25kg to prevent damage to the appliance.

Unloading the dishes
Keep dishes in the Warming Drawer until you need to take them out as heated dishes cool down quickly. Always use protective gloves or oven cloths to remove the dishes.

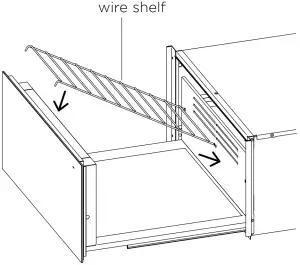

USING THE WIRE SHELF

The wire shelf is available for WB60SDT models to increase the loading surface.

Insert the wire shelf in the left or right hand side of the Warming Drawer.

COOKING CHARTS

The information in these charts is for guidance only. Refer to your recipe or the packaging and be prepared to adjust the cooking times and settings accordingly.

CARE AND TROUBLESHOOTING

Cleaning the drawer exterior and interior

• Ensure that the appliance is turned off or set in STANDBY MODE before cleaning. Do not use high pressure or steam cleaners.
• Remove any soiling or excess cleaning solution immediately.
• Clean the surfaces with a soft cloth dampened with water and detergent.
• Rub in the direction of the polish lines and dry immediately with a soft cloth.

Troubleshooting

SERVICE AND WARRANTY

Before you call for service or assistance

Refer to the installation guide and your user guide to:

• Ensure your product is correctly installed.
• Ensure you are familiar with its normal operation.
• Check the model and serial numbers.
• Check the date of installation.

If after checking these points you still need assistance or parts, please refer to the Service & Warranty book for warranty details and your nearest Service Centre, Customer Care, or contact us through our website www.fisherpaykel.com or email:
[email protected]

Complete and keep for reference:

Mode:
Serial No:
Purchase Date:
Purchaser:
Dealer:
Suburb:
Town:
Country:

http://www.fisherpaykel.com/

© Fisher & Paykel Appliances 2021. All rights reserved.
The models shown in this guide may not be available in all markets and are subject to change at any time.

The product specifications in this guide apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time.

For current details about model and specification availability in your country,
please go to our website or contact your local Fisher & Paykel dealer.

591996C 01.21
