LED Dustproof Luminaire
www.emos.eu
| Part No. | Input Voltage | Power | Color Temperature (K) | Luminous Flux (lm) | Beam Angle | Lifespan (hour) | Protection Rate | Working Temperature | CRI (Ra) | Dimensions |
| ZT1520 | 220-240 V AC | 37 w | 4 000 K (neutral white) | 5 300 lm | 120° | 50 000 h | IP66 | -20-440 °C | >80 | 1 220 . 85 . 80 mm |
| ZT1620 | 53 W | 7 700 lm | 1 520 . 85 . 80 mm |
| TF1530 | 220-240 V AC | 37 W | 6 500 K (cool white) | 5 300 lm | 120° | 50 000 h | IP66 | -20-440 °C | >80 | 1 220 . 85 . 80 mm |
| ZT1630 | 53 W | 7 700 lm | 1 520 x 85 x 80 mm |
LED Dustproof Luminaire
LED luminaire is designed for indoor and outdoor use to be mounted on a solid base.
Ingress Protection IP66 – for outdoor use.
Housing colour: grey
Diffuser colour: milky

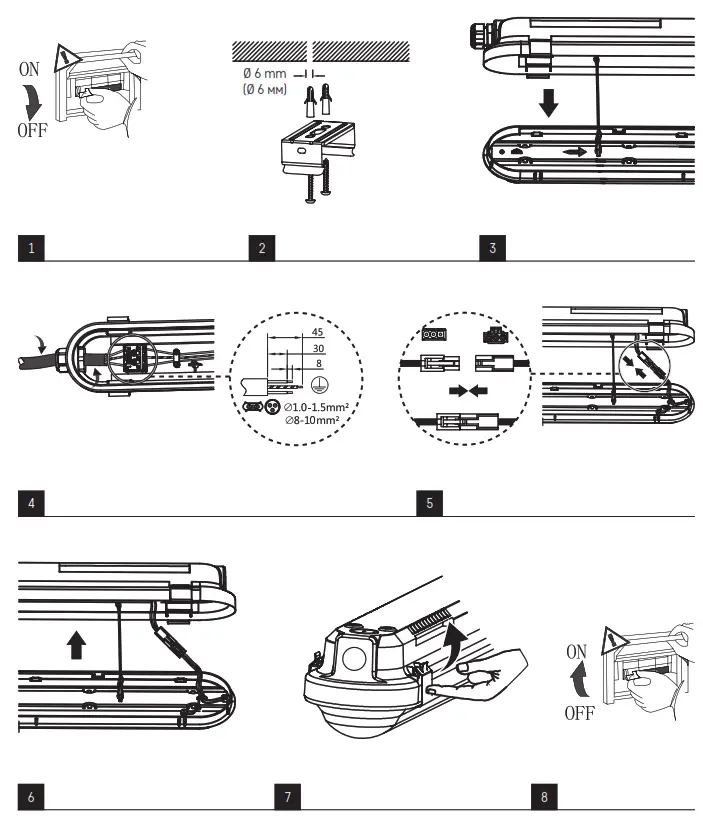

Turn off the switch (see Fig. 1).

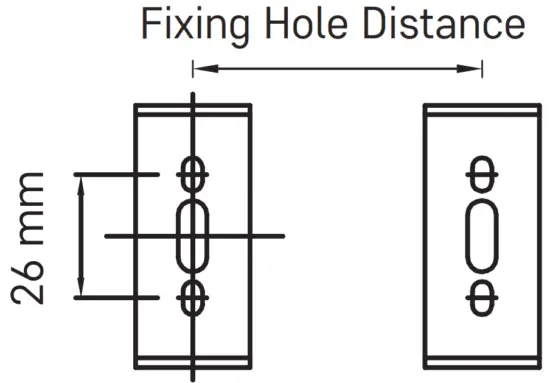

Drill Ø 6 mm holes according to below drawing.
| Type | Power | Fixing Hole Distance |
| ZT1520 | 37 W | 850 mm |
| ZT1530 | ||
| ZT1620 | 53 W | 1 200 mm |
| ZT1630 |
Insert Ø 6 mm expansion pipe in the wall, fix the mounting bracket by M4 screw (see Fig. 2).
Take off the diffuser with LED board (see Fig. 3).
Loosen the nut of the cable gland, put the cable, through the cable gland. Conect the cable on the terminal block and tighten the cable gland (see Fig. 4).
Connect terminal block with LED board (see Fig. 5).
Close the diffuser (see Fig. 6).
Fix gear tray with the housing (see Fig. 7).
Turn on the switch (see Fig. 8).
WARNING
- Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection comply with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
- The protection from dangerous contact voltage is ensured by „earthing“.
- In case of any damage to any part of the luminaire, don’t use it.
- LED chips inside the luminaire are not replaceable.
- Don’t change the inner wiring of the luminaire.
- In case of a broken cover don’t use the luminaire and replace the broken cover with new one immediately.
Do not throw electric appliances into unsorted municipal waste, use collection points of sorted waste! Dangerous substances from electric appliances deposited in landfills can leak into underground waters, reach the foodchain and damage your health and well-being. For actual information about collection points, contact the local authorities.
EMOS spol. s r.o. declares that the LED Dustproof Luminaire is in compliance with the essential requirements and other relevant provisions of Directive. The device can be
freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.
This product contains a light source of energy efficiency class
