EMOS ZM3303 LED Ceiling Luminaire
INSTALLATION

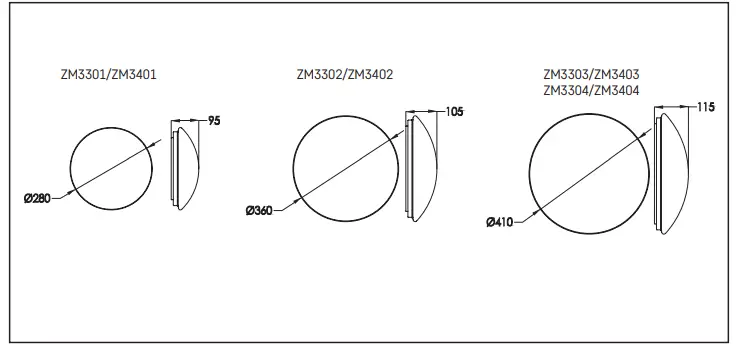

| Part No. | Input Voltage | Power | Power Factor | Color Temperature(K) | Luminous Flux (lm) | Beam Angle | Lifespan (hour) | Protection Rate | Working Temperature | CRI (Ra) | Dimensions |
| ZM3301 |
220–240 V AC | 12 W |
>0.9 |
3 000 K (warm white) | 925 lm |
120° |
30 000 h |
IP44 |
-20~+40 °C |
>80 | Ø 280 × 95 mm |
| ZM3302 | 18 W | 1 390 lm | Ø 360 × 105 mm | ||||||||
| ZM3303 | 22 W | 1 760 lm | Ø 410 × 115 mm | ||||||||
| ZM3304 | 32 W | 2 560 lm | Ø 410 × 115 mm |
| Part No. | Input Voltage | Power | Power Factor | Color Temperature(K) | Luminous Flux (lm) | Beam Angle | Lifespan (hour) | Protection Rate | Working Temperature | CRI (Ra) | Dimensions |
| ZM3401 |
220–240 V AC | 12 W |
>0.9 |
4 000 K (neutral white) | 1 020 lm |
120° |
30 000 h |
IP44 |
-20~+40 °C |
>80 | Ø 280 × 95 mm |
| ZM3402 | 18 W | 1 530 lm | Ø 360 × 105 mm | ||||||||
| ZM3403 | 22 W | 1 980 lm | Ø 410 × 115 mm | ||||||||
| ZM3404 | 32 W | 2 880 lm | Ø 410 × 115 mm |

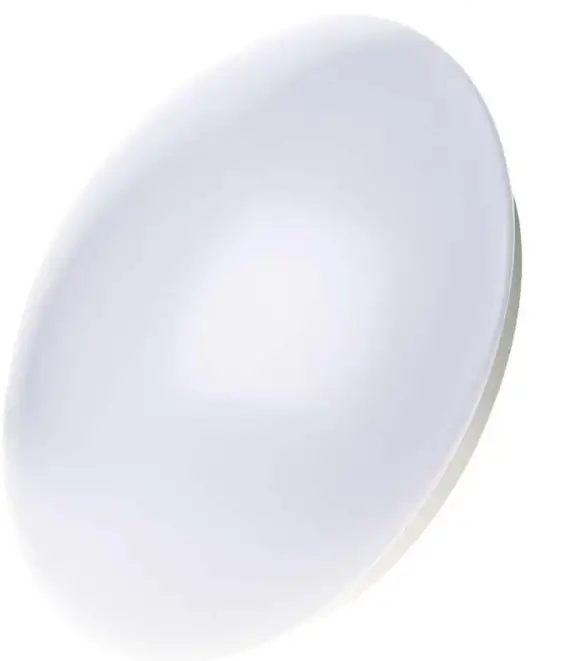

LED Ceiling Luminaire
LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP44 – for indoor use
Mounting
Mount the lamp firmly onto a solid basis, for example a wall,a ceiling and like that. Connect the power cord to the mains 230 V AC. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.
WARNING
- Luminaire is suitable entirely for fixed mounting.
- The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
- Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
- The protection from dangerous contact voltage is ensured by „earthing“.
- In case of any damage to any part of the luminaire, don’t use it.
- LED chips inside the luminaire are not replaceable.
- Don’t change inner wiring of the luminaire.
- In case of broken cover don’t use the luminaire and replace broken cover with new one immediately.
ZM3301 / ZM3302
This product contains a light source of energy efficiency class F.
ZM3303 / ZM3304 / ZM3401 / ZM3402 / ZM3403 / ZM3404
This product contains a light source of energy efficiency class E. Do not dispose of domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfill ll, dangerous substances may reach groundwater and subsequently the food chain, which it could affect human health.
Servis: EMOS SI, d.o.o., Rimska cesta 92, 3311 Šempeter v Savinjski dolini, Slovenija
tel: +386 8 205 17 21
e-mail: [email protected]
