TECHNICAL DATA SHEET

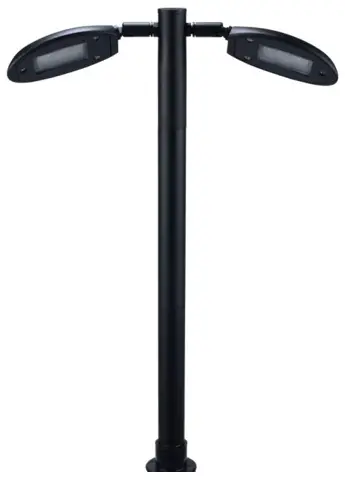

E5631 – Elipta LED Path Light Duo
Instructions
Installation notes
Ensure mains supply is isolated prior to installation of this product.
Unscrew the bezel and insert lamp. Apply small amount of grease to thread and screw back on to the body of the light.
Refer to the instruction manual for further guidance.
Note – This product must be installed by a qualified electrician.
| Part code | E5631 |
| Diffuser | Clear |

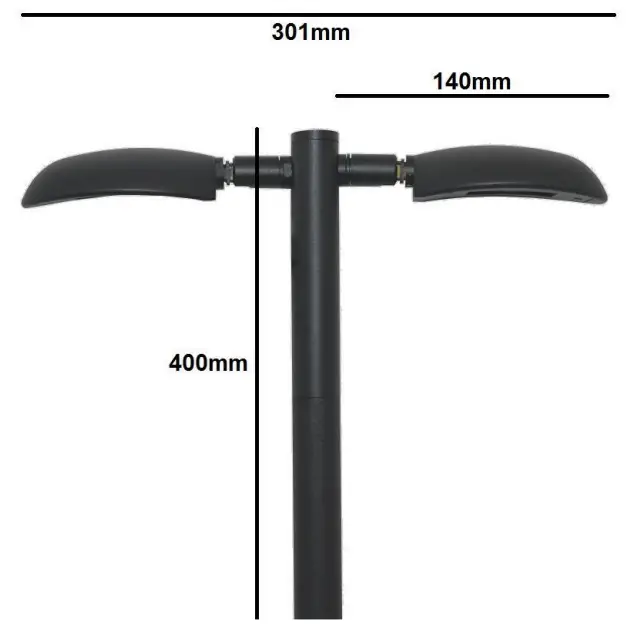

| Dimensions (mm) | Body — 301×400 |
| Construction | Aluminium |
| Finish | Matt Black Powder Coat |
| Class | Class III |
| IP rating | IP65 |
| Wattage | 2 x 2W |
| Lumen output | 105Im |
| CCT | 2700K |
| Lamp included | Integrated |
| Dimmable | No |
| Input voltage | 12V DC |
| Net weight (g) | 760 |
| Gross weight (g) | 868 |
| Warranty | 2 Years |
| Manufactured in accordance with | BS EN 60598 |
| Origin of manufacture | PRC |
2 YEAR WARRANTY
Powder Coated Aluminium Body & Fitting
Exclusions: Damage by machinery, animals or the use of incorrect cleaning materials. Corrosion due to exposure to salt or chlorine. Damage due to incorrect installation practices. Responsibility for 3rd party cost; indirect or consequential loss.
2 YEAR WARRANTY
Internal wiring & lampholder
Exclusions: Damage due to incorrect lamp Fitting or lamps above specification Responsibilty for 3rd party cost; indirect or consequential loss
