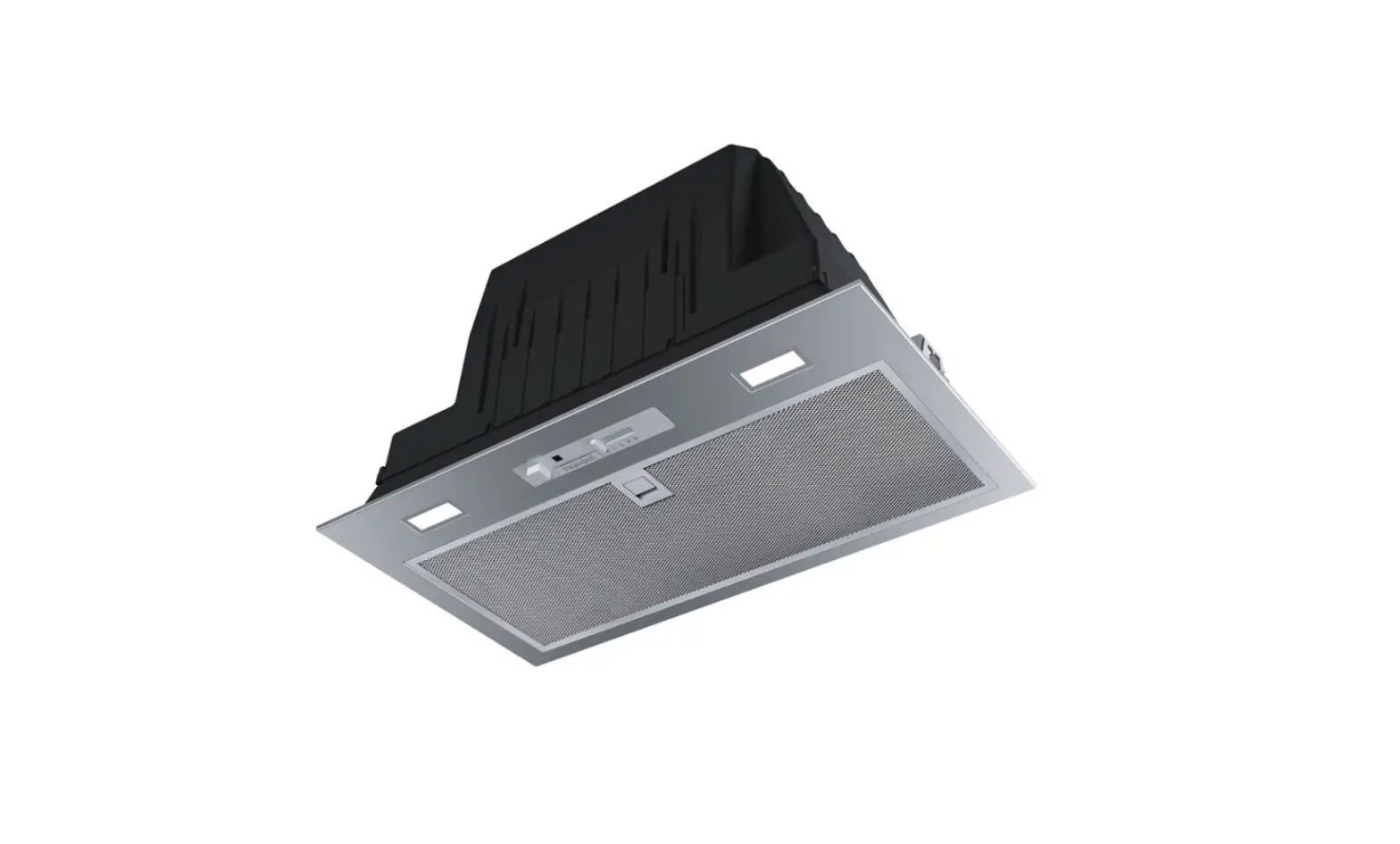

FBI 705 BK Box Undercabinet Hood cm 70
Product Information:
The product is a hood with the following model variations: FBI
705 BK, FBI 525 BK, FBI 525 XS, FBI 525 GR, FBI 705 GR, FBI 725
XS.
The product comes with a user manual and safety information in
multiple languages including Italian (IT), English (EN), German
(DE), Greek (GR), Russian (RU), Dutch (NL), Polish (PL), Ukrainian
(UK), Bulgarian (BG), Slovenian (SI), and Arabic (AR).
Installation of the hood requires following the safety
instructions mentioned in the user manual.
Product Usage Instructions:
1. The hood must be installed inside a unit.
- Ensure that the plastic casing around the hood is not
accessible after installation.
2. The hood should be installed with the following
dimensions:
- Width: 450-650mm
- Minimum distance from other objects: 200mm
3. Connect the necessary electrical connections following the
instructions provided in the user manual.
4. Place 4x O1 screws and 1x G1 screw as per the provided
diagram.
5. Secure the hood using 2x G screws and 1x W screw.
6. The final dimensions of the installed hood should be:
- Width: 520-700mm
- Height: L1 497-677mm
7. Ensure that there is a minimum gap of 15mm and a maximum gap
of 30mm between the hood and the installation unit.
8. Verify that all connections are secure and the hood is
properly installed before use.
For more detailed instructions and specifications, refer to the
user manual provided with the product.
Model Number: 991.0674.371_03 – D000000008471_02 – 221006
