Baseus Sxbc000002 Capacitive Stylus Pen User Manual

Baseus SXBC000002 Capacitive Stylus Pen

Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before first use and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please contact the customer line.

www.alza.co.uk/kontakt
+44 (0)203 514 4411
Importer Alza.cza.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

Please read these instructions completely and keep it properly.

Product details

1. Material: Aluminium Alloy + Plastic
2. Colour: White
3. Product size: 165.2 x 9.1 mm
4. Weight: about 14.7 g
5. Battery: Lithium polymer battery 130 mAh
6. Charging time: about 1 hour
7. Charging interface: Type-C
8. Charging specifications: 5 V~0.13 A
9. Intelligent energy saving: Automatically shut down if not used for 5 minutes
10. Use time: 8.5 hours continuous use with full charge
11. Standby time: standby for 12 months on full charge
12. Compatibility list:

Pad compatible models

The above data are measured by the Baseus laboratory, the actual use will be slightly different depending on the specific circumstances.

Packing list

• Capacitive Stylus x 1
• Type-C cable x 1
• Active tip x 1
• User Manual x 1

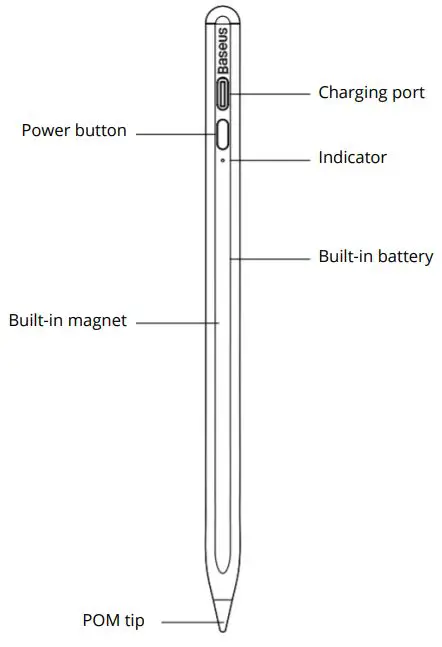

Product description

Instructions

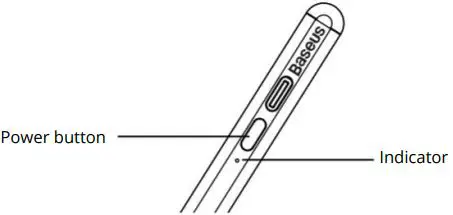

1. Please press the power button on the upper part of the stylus, the blue light will turn on quickly and the active capacitive stylus will enter working mode.

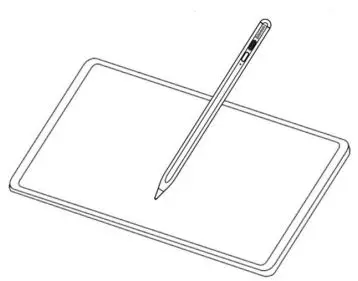

2. Now you can use the stylus on your Pad instead of your finger for operations such as press and slide. You can also use the stylus to write, draw, etc., in specific apps.
3. When you press the power button again, the active capacitive stylus will shut down. It will automatically shut down after 5 minutes of inactivity during use.

Battery charging

1. Please use a standard USB to Type-C cable. (Most pf the Android phones and tablets on the market use this type of charging cables or data cables.) Connect the Type-C connector to the Type-C interface of a stylus and connect the USB connector to the USB interface of a computer or tablet.
2. Connect the Type-C connector of the USB to Type-C cable to the Type-C interface of the stylus and insert the USB connector into a 5 V~0.13 A DC power adapter for charging.
3. Connect the 5 V~0.13 A power bank with a Type-C USB connector into the stylus for charging. The red light will automatically turn off and the green light will turn on after fully charged.

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for which the claimed claim may not be recognized:

• Using the product for any purpose other than that for which the product is intended or failing to follow the instructions for maintenance, operation, and service of the product.
• Damage to the product by a natural disaster, the intervention of an unauthorized person or mechanically through the fault of the buyer (e.g., during transport, cleaning by inappropriate means, etc.).
• Natural wear and aging of consumables or components during use (such as batteries, etc.).
• Exposure to adverse external influences, such as sunlight and other radiation or electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic discharge voltage (including lightning), faulty supply or input voltage and inappropriate polarity of this voltage, chemical processes such as used power supplies, etc.
• If anyone has made modifications, modifications, alterations to the design or adaptation to change or extend the functions of the product compared to the purchased design or use of non-original components.

EU Declaration of Conformity

Identification data of the manufacturer’s / importer’s authorized representative:
Importer: Alza.cza.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
CIN: 27082440

Subject of the declaration:
Title: Writing Capacitive Stylus
Model / Type: Baseus-SXBC000002
The above product has been tested in accordance with the standard(s) used to demonstrate compliance with the essential requirements laid down in the Directive(s):
Directive No. 2014/30/EU
Directive No. 2011/65/EU as amended 2015/863/EU
Prague

WEEE
This product must not be disposed of as normal household waste in accordance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE – 2012/19 / EU). Instead, it shall be returned to the place of purchase or handed over to a public collection point for the recyclable waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. Contact your local authority or the nearest collection point for further details. Improper disposal of this type of waste may result in fines in accordance with national regulations.
