3 x 18650 Lithium Battery Charger Board/Module 12V with Charge Protect
Quick Start Wiring Guide
Model: LBB-3v2

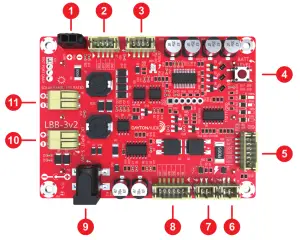

| 1. 12 VDC Power Output | 7. Optional External LED Power Input Indicator |
| 2. 12 VDC Power Output | 8. Expansion Voltage In/Out Port for Optional 325-140 External Power/Charging Board |
| 3. 12 VDC Power Output | 9. 5 to 24 VDC Input |
| 4. Battery Status Button | 10. 5 to 24 VDC Input |
| 5. Optional External LED Battery Status and Push Button | 11. 19V Solar Input |
| 6. Optional External LED Charge Done Indicator |
