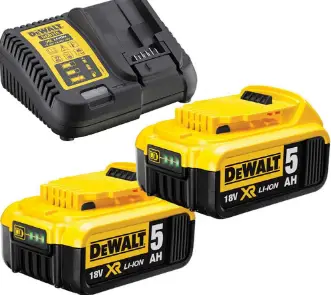

DeWALT DCB115P2 Rail Battery Twin Pack And Charger
Stanley Black & Decker’s product lithium-ion cells and batteries have been successfully tested and comply with the UN Model Regulations, Manual of Test and Criteria, Part III, subsection 38.3.
| Performed Tests | Results | |
| 38.3.4.1 T1 | Altitude Simulation | Pass |
| 38.3.4.2 T2 | Thermal Test | Pass |
| 38.3.4.3 T3 | Vibration | Pass |
| 38.3.4.4 T4 | Shock | Pass |
| 38.3.4.5 T5 | External Short Circuit | Pass |
| 38.3.4.6 T6 | Impact/Crush | N/A to battery packs |
| 38.3.4.7 T7 | Overcharge | Pass* |
| 38.3.4.8 T8 | Forced Discharge | N/A to battery packs |
The UN38.3 tests were performed by one of the following test houses and were tested to UN Manual Test and Criteria Revision 6 subsequent revisions or amendments for all current production battery packs. For older battery packs that are no longer in production, testing was conducted to UN Manual Test and Criteria Revision 3 Amendment 1 or subsequent revisions or amendments. *Stanley Black & Decker chooses to perform the Overcharge Test of T7 to demonstrate an extra level of safety. Because our battery packs are designed to be charged only with Stanley Black & Decker battery chargers, they will never be exposed to the conditions prescribed in the Overcharge Test.
| Shanghai Research Institute of Chemical Industry Testing Centre 2779 Guangfu West Road, Putuo District, Shanghai, China 200062 E: [email protected] T: 021-31765555 | Vkan Certification & Testing Co., Ltd. No.3,Tiantaiyi Road, Kaitai Avenue, Science City, Guangzhou P.R. China 510663 E: [email protected] T: 020-32293888 |
Product Test Information
| Model Number | Physical Description | Battery Weight (kg) | Battery Voltage (V) | Wh Rating (Wh) | Test report Number | Test Report Date |
| DCB080 | Removable Battery Pack | 0.08 | 8/7.2 | 8.0/7.2 | E1209175 | 9-3-2012 |
| DCB120/DCB125 | Removable Battery Pack | 0.22 | 12/10.8 | 15.6/14 18/16.2 | 1113070017 1113120004 | 8-12-2013 4-15-2014 |
| DCB127 | Removable Battery Pack | 0.22 | 12/10.8 | 24/21.6 | 1113070016 | 8-13-2013 |
| DCB122 | Removable Battery Pack | 0.23 | 12/10.8 | 24/21.6 | 1118120256 1119050049 1119040241 | 2-2-2019 6-11-2019 5-21-2019 |
| DCB124 | Removable Battery Pack | 0.23 | 12/10.8 | 36/32.4 | 1118120261 | 1-21-2019 |
| DCB126 | Removable Battery Pack | 0.23 | 12/10.8 | 60/54 | 1120040437 1120040438 | 6-10-2020 6-8-2020 |
| DCB207/DCB185 | Removable Battery Pack | 0.35 | 20/18 | 26/24 | 1117040232 1116090062 | 6-8-2017 10-18-2016 |
|
DCB201/ DCB181 | Removable Battery Pack |
0.35 |
20/18 |
30/27 | 1114010235 1117070250 1113050164 1118070133 1118070131 | 3-11-2014 9-18-2017 6-27-2013 8-29-2018 8-29-2018 |
|
DCB203/ DCB183 |
Removable Battery Pack |
0.37 |
20/18 |
40/36 | 1114030234 1118120179 1116090172 1118120255 1119060068 1116110056 1117070249 1116090063 | 4-30-2014 2-18-2019 10-26-2016 1-16-2019 7-8-2019 12-13-2016 9-12-2017 10-18-2016 |
|
DCB200/ DCB180 | Removable Battery Pack |
0.62 |
20/18 |
60/54 | 1116090061 1113050163 1113050165 1117070255 1117060277 | 10-20-2016 7-5-2013 6-27-2013 9-19-2017 8-15-2017 |
|
DCB204/ DCB182 |
Removable Battery Pack |
0.62 |
20/18 |
80/72 | 1116090173 1118120254 1117090047 1118010273 1116090058 1116110057 | 10-26-2016 1-21-2019 11-7-2017 3-16-2018 10-18-2016 12-13-2016 |
|
DCB205/ DCB184 | Removable Battery Pack |
0.62 |
20/18 |
100/90 | 1116090170 1116110132 1116090171 1119030112 1116090059 | 10-24-2016 12-15-2016 10-26-2016 4-9-2019 10-18-2016 |
| DCB230/ DCB187 | Removable Battery Pack | 0.48 | 20/18 | 60/54 | 1118020128 1118020129 | 4-10-2018 4-10-2018 |
| DCB240/ DCB189 | Removable Battery Pack | 0.48 | 20/18 | 80/72 | 1118030034 | 5-2-2018 |
| DCB206/ DCB186 | Removable Battery Pack | 0.86 | 20/18 | 120/108 | RZUN2016-5019 1118050336 | 1-9-2017 7-11-2018 |
| DCB208/ DCB188 | Removable Battery Pack | 0.86 | 20/18 | 160/144 | 1119050252 | 7-10-2019 |
| DCB210/DCB1810 | Removable Battery Pack | 1.05 | 20/18 | 200/180 | 1120060051 | 7-22-2020 |
| DCBP034 | Removable Battery Pack | 0.31 | 20/18 | 34/30 | 1121060155 | 7-9-2021 |
| DCB404 | Removable Battery Pack | 1.49 | 40/36 | 160 | 1114030016 | 4-1-2014 |
| DCB406 | Removable Battery Pack | 1.94 | 40/36 | 240 | 1114040068 | 5-9-2014 |
| DCB407 | Removable Battery Pack | 1.94 | 40/36 | 300 | 1115080175 | 10-23-2015 |
| DCB409 | Removable Battery Pack | 1.94 | 40/36 | 360 | 1117040009 | 5-22-2017 |
|
DCB606/ DCB546 |
Removable Battery Pack |
1.08 |
3×20/ 3×18 -or- 60/56 | 3×40/ 3×36 (with shipping cap) -or- 120/108 |
RZUN2019-2062(40Wh) RZUN2019-2061(120Wh)
RZUN2018-1022(36Wh) RZUN2018-1021(108Wh) |
6-17-2019
1-9-2018 |
|
DCB609/ DCB547 /DCB609G |
Removable Battery Pack |
1.46 |
3×20/ 3×18 -or- 60/54 |
3×60/ 3×54 (with shipping cap) -or- 180/162 | RZUN2016-3244(60Wh) RZUN2016-3245(180Wh) RZUN2019-2063(180Wh) RZUN2019-2064(60Wh) RZUN2018-2204- M1(60Wh) Rzun2018-2203- M1(180Wh) RZUN2018-2130(162Wh) RZUN2018-2131(54Wh) RZUN2018-2203(162Wh) RZUN2018-2204(54Wh) RZUN2019-1592(180Wh) RZUN2019-1593(60Wh) | 10-9-2016
6-17-2019
7-10-2018
4-9-2018
7-5-2018
5-31-2019 |
|
DCB612/ DCB548 |
Removable Battery Pack |
1.46 | 3×20/ 3×18 -or- 60/54 | 3×80/ 3×72 (with shipping cap) -or- | RZUN2018-2120(80Wh) RZUN2018-2121(240Wh) RZUN2018-1096(72Wh) RZUN2018-1097(216Wh) |
3-29-2018
3-26-2018 |
| 240/216 | ||||||
|
DCB615/ DCB549 |
Removable Battery Pack |
2.1 | 3×20/ 3×18 -or- 60/54 | 3×100/ 3×90 (with shipping cap) -or- 300/270 |
1121030383 (100Wh) 1121030384 (300Wh) |
4-27-2021 |
Revision Sheet
| Revision Number | Date | Name | Details of Change |
| 1.0 | 12th Dec 2019 | Cynthia Davey | Initial document |
| 1.1 | 10th Jan 2020 | Cynthia Davey | Update to T7 test statement |
| 1.2 | 27th Feb 2020 | Cynthia Davey | Updated contact info |
| 1.3 | 3rd August 2020 | Cynthia Davey | Added additional packs |
| 1.4 | 7th December 2020 | Cynthia Davey | Added additional packs |
| 1.5 | 29th April 2021 | Cynthia Davey | Added additional packs |
| 1.6 | 19th August 2021 | Cynthia Davey | Added additional packs |
| 1.7 | 8th September 2021 | Cynthia Davey | Updated test report details |
| 1.8 | 22nd October 2021 | Cynthia Davey | Updated pack info |
| 1.9 | 9th December 2021 | Cynthia Davey | Updated test information |
Product Manufacturer: Stanley Black & Decker, Inc.
1000 Stanley Drive
New Britain, CT 06053
Telephone: 1-860-225-5111 Emergency: 1-888-698-2571
Email: [email protected]
Web: www.stanleyblackanddecker.com
