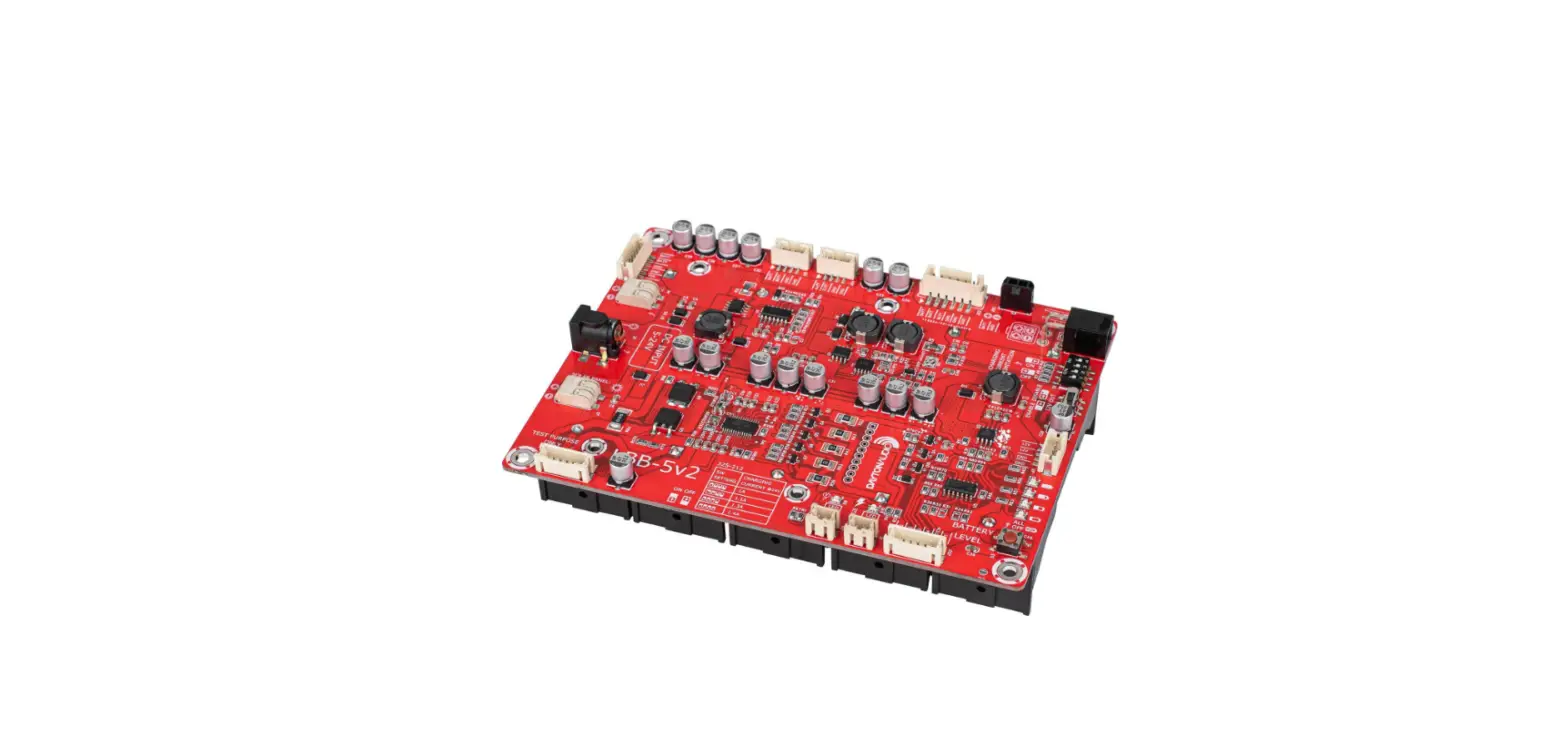

DAYTON AUDIO LBB-6S 25 VDC 6×18650 Battery Holder/ Charger Board

25 VDC 6 x 18650 Battery Holder/ Charger Board

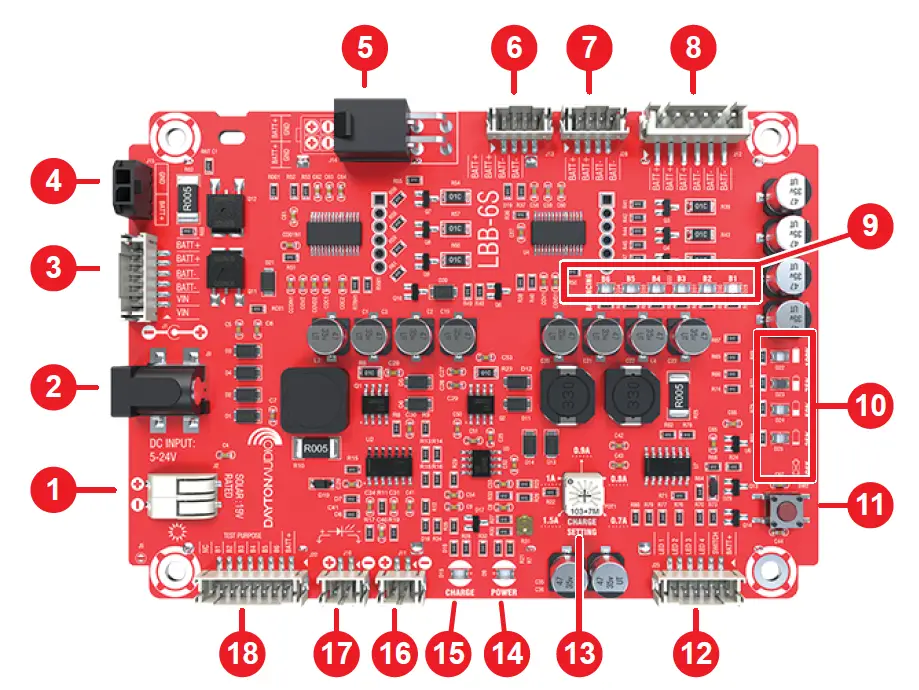

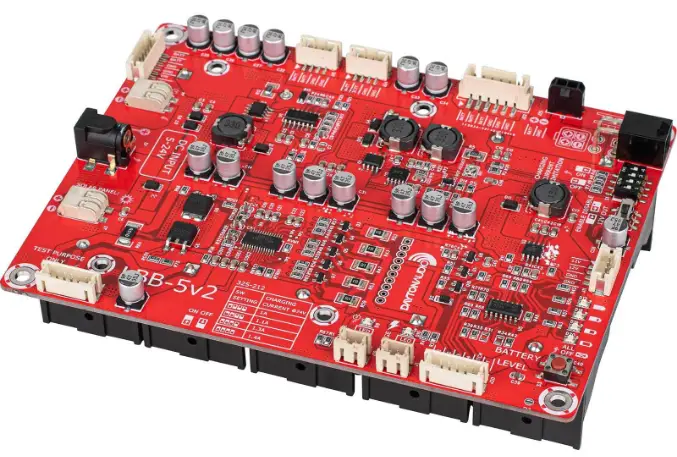

Quick Start Wiring Guide Model: LBB-6S

1. 15-24 VDC Solar Panel Input WAGO 2060
2. 5-24 VDC Input 5.5 x 2.1mm Jack Tip +
3. DC Input/Output Expansion Board 325-140 Option
4. Power Output 25 VDC Max. Molex Micro-Fit
5. Power Output 25 VDC Max. Molex Mini-Fit
6. Power Output 25 VDC Max. JST PH 2
7. Power Output 25 VDC Max. JST PH 2
8. Power Output 25 VDC Max. JST PH 2.5
9. Individual Battery Balance Status LEDs
10. Indicator for Battery Level Status LEDs (estimated)
11. Battery Level Status Switch
12. Optional External LED Battery Status and Push Button
13. Charge Current Adjustment
14. LED Indicator for Power Input
15. LED Indicator for Charging
16. External Power Input Indicator Port
17. External Charge Indicator Port
18. N/A
