Be Whirl-a-way Pressure Washer Surface Cleaner User Manual

PRESSURE WASHER SURFACE CLEANER
WHIRL-A-WAY
85.403.003 85.403.007 85.403.008
85.403.009 85.403.010 85.403.011
USER MANUAL
BEPOWEREQUIPMENT.COM

INTRODUCTION

Congratulations on your purchase of a BE Power Equipment Whirl-A-Way Surface Cleaner.
Reading this manual will help get you the best results for set-up, operation, maintenance and avoid personal injury or damage to your machine. By knowing how best to  operate this machine, you will be better positioned to show others who may also operate the unit.
All the information in this manual is based on the latest product information available at the time of printing. BE Power Equipment reserves the right to make changes at any  time without notice or incurring any obligation.

Owner/Operator Responsibility
The owner/operator must have a thorough understanding of the operation, maintenance and dangers associated with using this machine. It must be understood that it is  ultimately up to the owner/operator to safely use this machine as outlined in this manual.
This manual is considered a part of the machine and needs to be kept in a safe location. If the machine is resold or given to someone else, this manual needs to be included.

WARNING
Cancer and Reproductive Harm
www.P65Wannings.ca.gov

Record Identification Numbers
It is recommended that you record the product identification numbers in this manual.
These numbers are important to have on hand if you need to contact technical support (1-866-850-6662). The model and serial number can be found on the box and on decal on the machine.

PRODUCT IDENTIFICATION

Model Number:…………………………………………..
Date of Purchase:…………………………………………
Dealer Name:……………………………………………….

PRODUCT SPECIFICATIONS

The pressure washer being used MUST be compatible with the below specifications to ensure proper operation.

• 3/8″ Quick Connect hose coupler
• 4,000 Maximum PSI / 5,000 PSI for 85.403.008 Model
• 1,500 Minimum PSI
• 5.0 Maximum GPM
• 3.0 Minimum GPM
• Up to 200°F/82°C water temperature
• (Changing nozzles will alter the min and maxes, see NOZZLE CHART)

SAFETY

• ALWAYS review and know all the warnings and safety alerts for the pressure washer that you are using that can be found in the pressure washer manual.
• ALWAYS be aware of where the Whirl-A-Way is being used or pointed. High-pressure spray can cause injury or damage.
• If this type of injury occurs, DO NOT TREAT AS A SIMPLE CUT. SEEK EMERGENCY MEDICAL ATTENTION IMMEDIATELY. If you are using cleaning detergents, be prepared to tell the physician exactly what kind.
• Spray guns can have significant kickback. ALWAYS brace yourself and have firm footing when operating.
• NEVER attempt to repair high-pressure components if damaged. Always replace parts.
• ALWAYS use on flat surfaces.
• WARNING: Hitting any raised obstacle with the surface cleaner can cause damage. If performance changes, or if it begins to vibrate after impact, immediately turn off the pressure washer. Inspect for damages and make repairs.
• ALWAYS ensure all component connections and fittings are securely fastened. Highpressure water can turn loose fittings or spray nozzles into projectiles causing injury or damage.
• CAUTION: If stones or debris collect in the whirl-a-way they can be cleared by tilting it in safe direction to flush away the debris.
• ONLY use cold water pressure washers. Hot water pressure washers will cause failures and will void warranty.
• ALWAYS be aware of surfaces that will become wet and may become slippery.
• ALWAYS wear appropriate personal safety equipment. Eye protection is especially important.
• NEVER use without wearing foot protection.
• ALWAYS have a secure grip of the gun and stable footing.
• NEVER modify the Whirl-A-Way in any manner.
• NEVER reach under the Whirl-A-Way while it is operating.
• ALWAYS test in a safe location when first using.

OPERATING INSTRUCTIONS

Intended Use

1. The Whirl-A-Way is designed to rapidly clean large, flat surfaces such as concrete floors.
2. It is not intended to clean rough or uneven surfaces such as stairs. Uneven surfaces can cause damage.
3. The pressure washer must be rated to make the Whirl-A-Way operate properly. For the standard nozzles that come with the Whirl-A-Way the pressure washer must have the following.
   • 3/8” Quick-connect coupler on the end of the high-pressure hose
   • 1,500 – 4,000 PSI rating / 5,000 for 85.403.008 Model
   • 3.0 – 5.0 GPM rating

Pre-Operation Instructions

1. Remove Whirl-A-Way from packaging. Ensure there is no damage and that rotary arm freely spins by hand.
2. Connect Whirl-A-Way to the end of the high-pressure hose. The high-pressure hose will need to have 3/8” quick connect coupler to attach to the 3/8” quick connect  plug on the Whirl-A-Way.
3. Prepare your pressure washer for start-up as per its start-up procedure found its manual.
4. Once water is connected to the pressure washer, squeeze the trigger of the spray wand to ensure that water flows through the whirl-a-way.
5. Level the Whirl-A-Way onto a flat surface.
6. Start the pressure washer as instructed in its manual.

Operating Instructions

1. Walk slowly behind the Whirl-A-Way moving it in a rhythmic side-to-side motion.
2. If striping or swirling occurs then slow your pace.
3. If striping or swirling continues then it is likely the nozzles are clogged or damaged. If they are damage you will see visible deformation of the nozzle from impact. If  there is no damage, then they need to be cleaned. See the Nozzle Maintenance section for details.
4. When done working, always flush with clean water. Detach from your pressure washer and drain out any water to prevent possible freezing damage. Store in a manner so not to deform the bristle skirt.

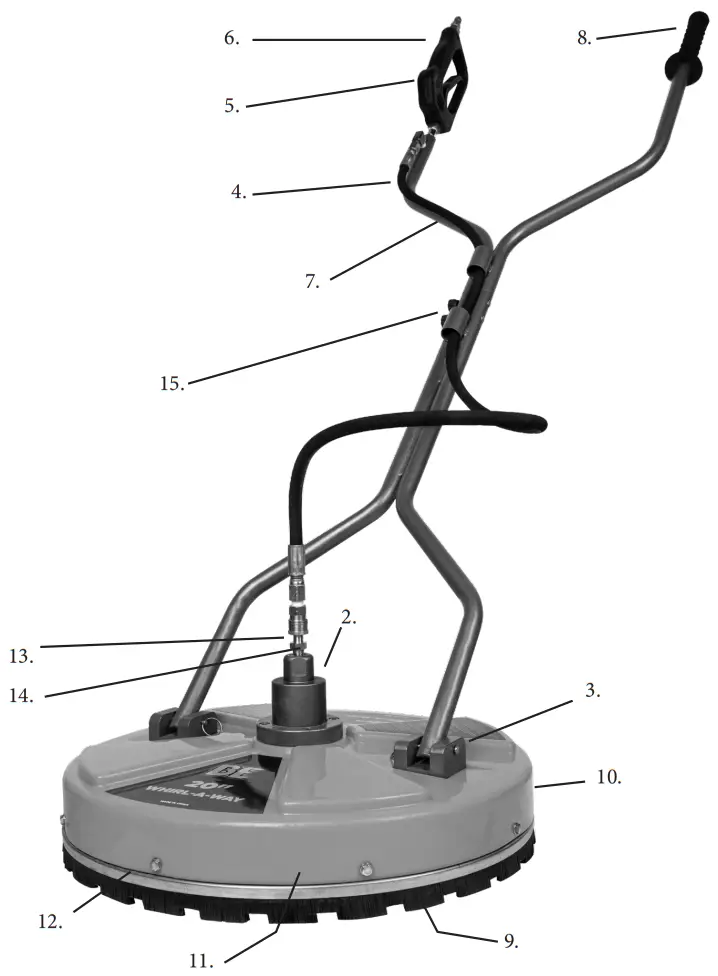

PARTS DIAGRAM
85.403.003
85.403.007
85.403.011

PARTS LIST

85.403.003

85.403.007

85.403.011
See 85.403.007 for parts 1-13.

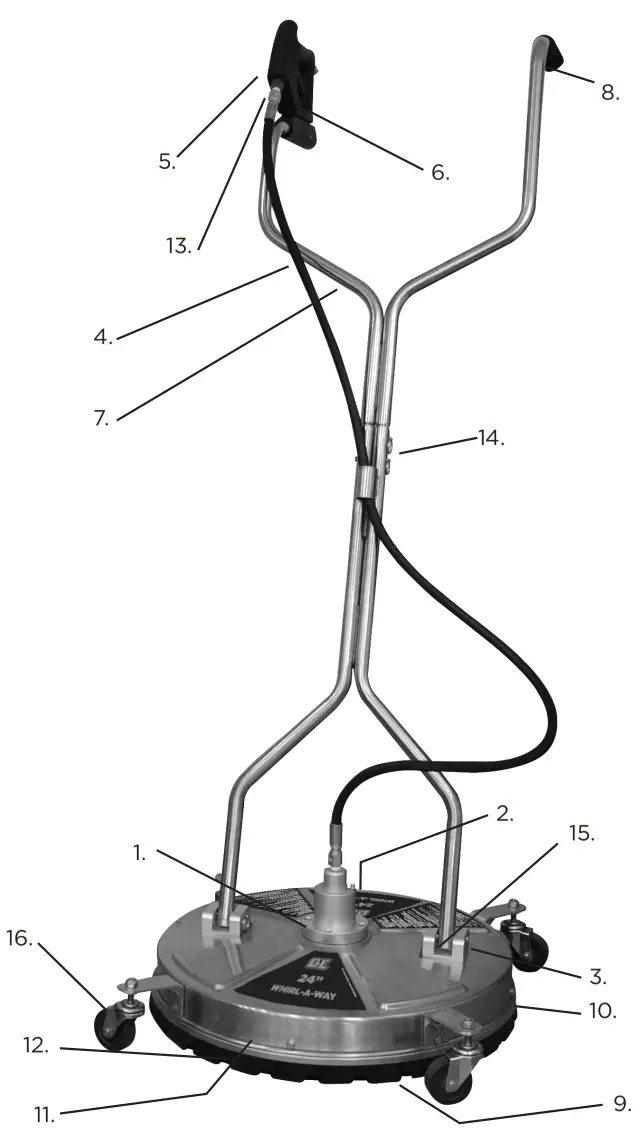

PARTS DIAGRAM

PARTS DIAGRAM

85.403.008

Includes nozzle cleaning tool
(sold separately with other models)

85.403.009
85.403.010

85.403.009/85.403.015

85.403.010

Troubleshooting

Rotary Head Repair Parts
A repair kit for this Whirl-a-Way’s rotary head, is available.
If you encounter problems with the rotary head after the 1 year warranty has expired, this repair kit (part #85.790.010) allows you to replace the inner components very quickly.
The rotary head has a snap ring on the bottom holding all the bearings inside.
By removing the snap ring and washer, you can tap off the outer shell with a hammer while the output shaft is held in a vice. The rotary head repair kit can then be used to replace the worn items inside the rotary head shell.

Nozzle Maintenance

The Whirl-A-Way comes with 25° nozzles that have an orifice size of 020. They are installed and aligned properly during production. To confirm proper alignment, inspect the nozzles. The indent line of the nozzle has to be in line with the rotary arm. If they are out of alignment the resulting spray angle will result in striping with the possibility  of the rotary arm not spinning at all.
If there are any performance issues, including vibration, pulsing, or stripping, then it is very likely the nozzles are damaged or clogged.
Always turn off the pressure washer and detach the Whirl-A-Way when performing any inspection or maintenance.

1. If the nozzle struck any hard object it can be damaged. If the metal nozzle is deformed it will need to be replaced.
2. If there is no damage, then it is likely the nozzle is clogged.
3. To clean, remove the nozzles. Use CAUTION when removing the nozzles as trapped pressure may be suddenly released.

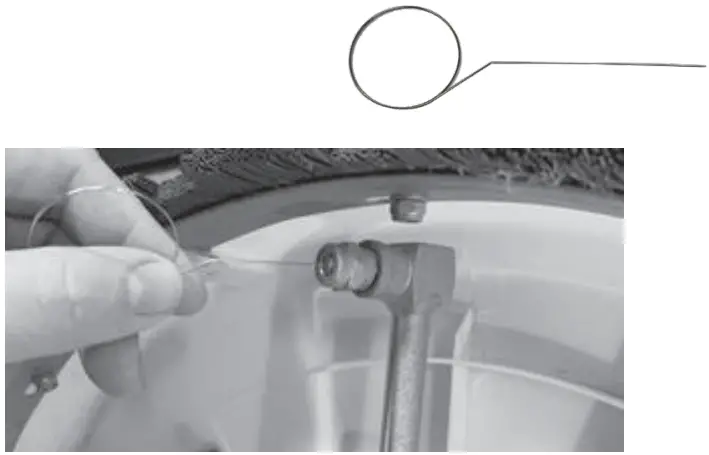

4. Use the included cleaning tool (or a fine metal wire) to remove any debris or foreign material that has built up in the nozzle.
5. Use water to back flush the nozzle. (Run the water through the nozzle in the opposite direction the water would normally spray out).
6. Use Teflon tape or paste on the threads to prevent leaks when reinstalling.
7. Install nozzles back on. Ensure the indent on the nozzles are in line with the rotary arm.
8. Reconnect your pressure washer and start.
9. Always flush the Whirl-A-Way with clean water after use, especially if soaps or detergents were used.
10. When not in use, make sure water has been drained from the Whirl-A-Way to prevent freezing damage.

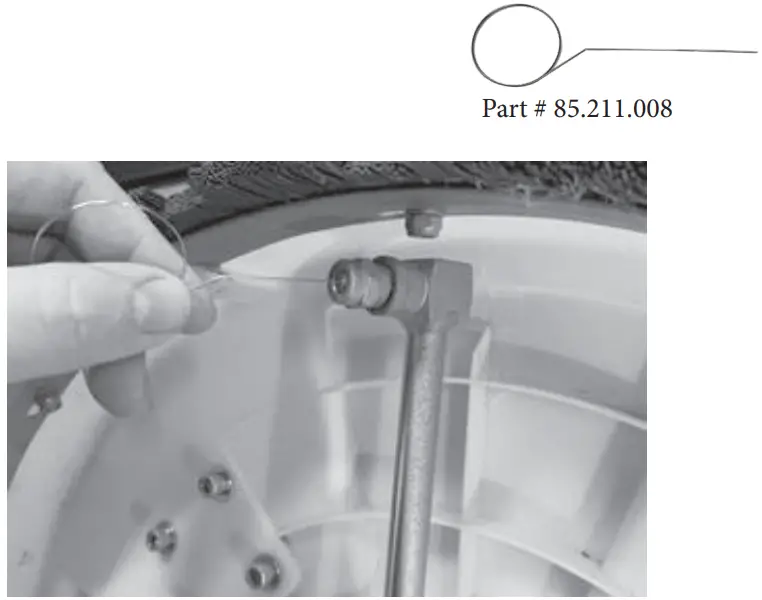

Nozzle Cleaning Tool
Part # 85.211.008

Nozzle Chart

This Whirl-A-Way comes equipped with 020 nozzles. These can be swapped out with larger nozzles to increase the PSI and GPM capacities as per the cart below.

If the minimum requirements are not observed, then the Whirl-A-Way will spin poorly, if it at all.
If the maximum requirements are not observed, then there will be risk of damage or injury.

Warranty

This surface cleaning unit has a 1-Year warranty on all components except for the nylon brush ring. This includes the rotary head, spray gun, hose, the nylon brush ring, and  plastic cover.
This warranty covers manufacturer defects only and does not extend to any damage caused by the user. It also does not extend to any wear and tear caused by regular use of the product.

DO NOT RETURN THIS PRODUCT TO THE RETAILER
CONTACT OUR CUSTOMER SERVICE if you need assistance with the assembly, operation, or if you experience a problem with your pressure washer, please call 1-866- 850-6662 Monday – Friday. 8AM to 430PM PST.
