vPad-IV™ Infusion Device Analyzer
Quick Start Guide
Package Contents
- Vision Pad tablet + stand (7050-128 + 5550-106)
- Tablet charger + blade set (3000-087 + 7500-491)
- vPad-IV Controller (8000-201)
- vPad-IV left side panel (7400-004)
- vPad-IV right side panel (7400-005)

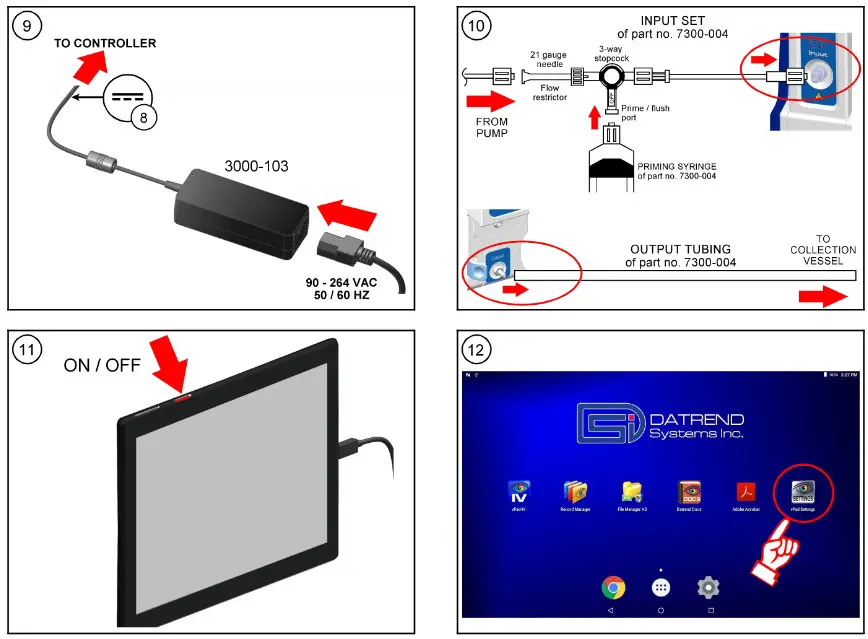

- vPad-IV input/output tubing set (7300-004)
- Power supply, 12VDC 60VA (3000-103)
- AC power cord (3000-XXX, per region)
- USB-A OTG adaptor (3140-390 microUSB or 3140-391 USB-C)
- USB-A to tablet cable (3140-396 microUSB or 3140-500 USB-C)
- Accessory bag (7006-066)
Per additional channel
vPad-IV Module (8000-200)
vPad-IV input/output tubing set (7300-004)
Module interconnect cable (3140-071)

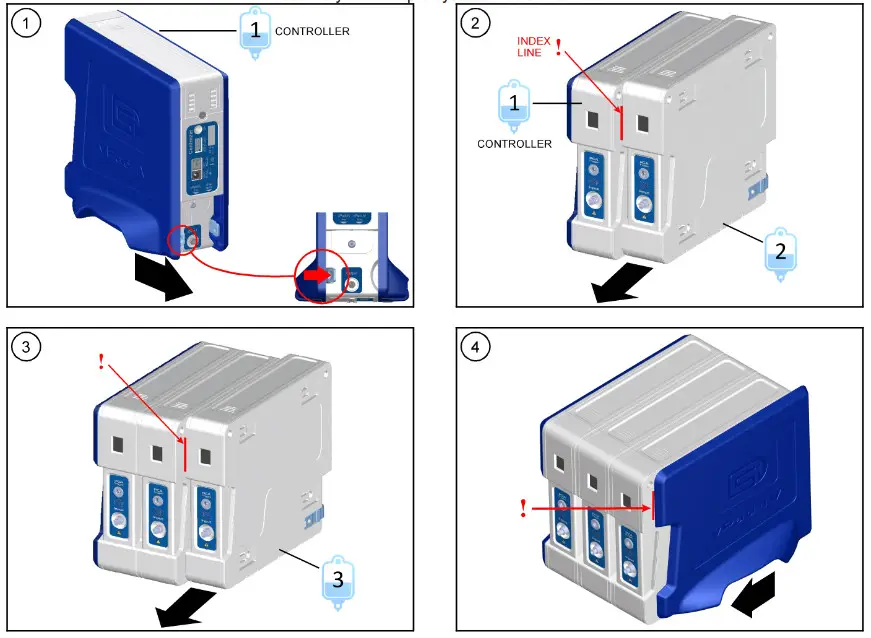

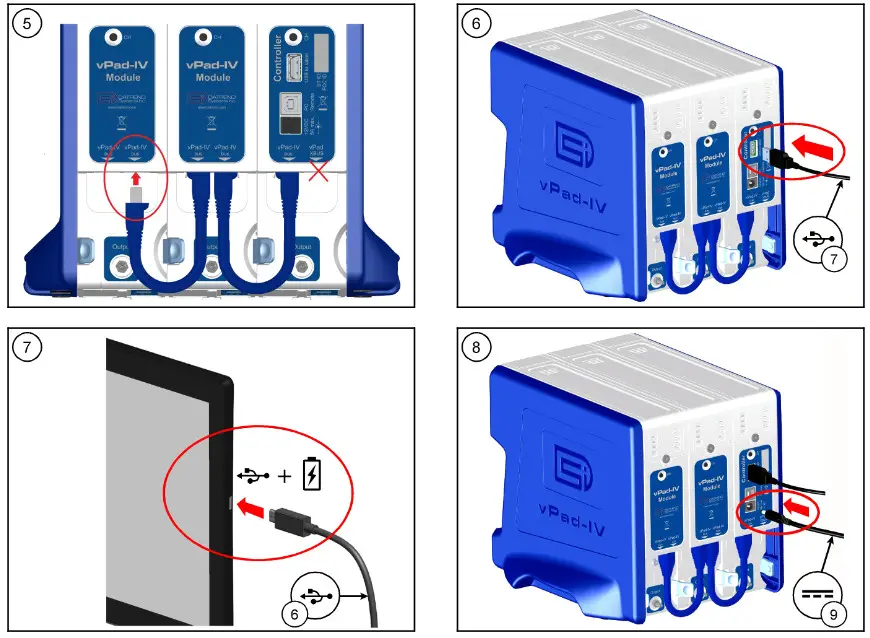

Assembly of an example system with 3 channels
FOR MORE INFORMATION
Datrend Systems Inc.
130 – 4020 Viking Way, Richmond, BC, Canada V6V 2L4
Phone: +1-604-291-7747 Fax: +1-604-294-2355 Toll Free (North America only): 800-667-6557
E-mail: [email protected] Web: www.datrend.com
MN-139a 6100-029 vPad-IV Quick Start Guide 2021-May-31
