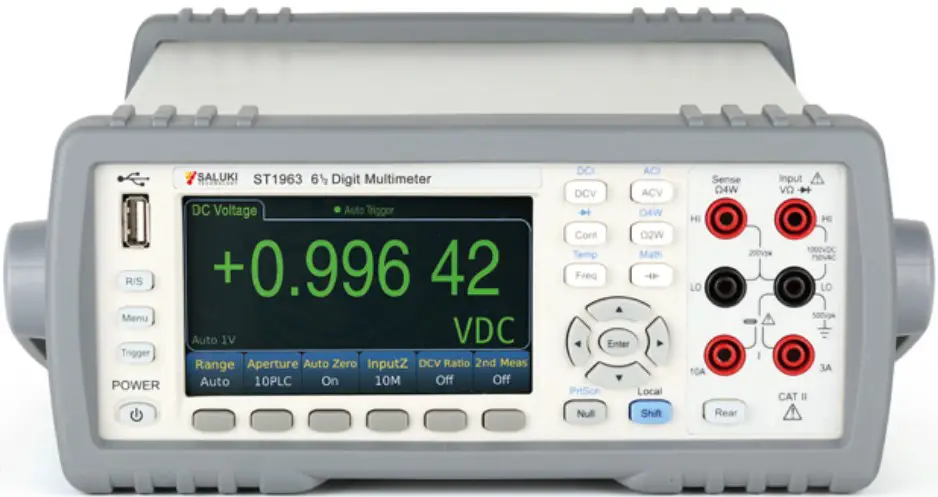

SALUKI TECHNOLOGY ST1963 Series Digit Multimeter Owner’s Manual
Features
- 4.3-inch LCD color display, Chinese and English menu
- 6 1/2 bit 1199999 digits reading
- Test speed up to 1000 / s
- Small size, front and rear input terminal, easy to shelve (ST1963 only)
- Histogram, bar graph, trend chart display
- AC low frequency signal can be tested down to 3Hz
- Capacitance test function
- Up to 5V diode test voltage
- Stores data up to 10,000
- Fast help
Application
- Production line workbench
- Maintenance workbench
- Teaching laboratory
- Automated test equipment
Specifications
| Model | ST1963 | ST1963A | |||||
| Display | 4.3-inch LCD color display | ||||||
| Display digits | 1199999 digits reading | ||||||
| Measurementparameters | DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, breakover, diode, temperature | ||||||
| Display mode | Direct reading, histogram, bar graph, trend chart | ||||||
| Measurement speed | Up to 1000 times / s | ||||||
| Math function | Reset function, Min / Max / Average / Standard deviation, dB, dBm | ||||||
| Common features | Range | Trigger mode | Reading-hold | Limit measurement | |||
| Auto / Manual | LOCAL: AUTO / SINGLE / EXT REMOTE: IMMEDIATE / BUS / EXT | Yes | HI, Lo and IN (PASS), with sound beep | ||||
| Technical Index | Uncertainty: ± (% of reading +% of range), TCAL=25°C | ||||||
| Parameters | Range / Test Range | Frequency | Highest annual accuracy TCAL ± 5°C | Highest temperature coefficient/°C | |||
| ST1963 | ST1963A | ||||||
| DC voltage | 100.0000 mV – 1000.000V | 0.0035 +0.0005 | 0.0075 +0.0005 | 0.0005 + 0.0001 | |||
True RMS ACvoltage | 100.000mV – 750.000V | 3 – 5Hz | 1.00 + 0.03 | 1.00 + 0.03 | 0.100 + 0.003 | ||
| 5 – 10Hz | 0.35 + 0.03 | 0.38 + 0.03 | 0.035 + 0.003 | ||||
| 10Hz – 20kHz | 0.06 + 0.03 | 0.09 + 0.03 | 0.005 + 0.003 | ||||
| 20 – 50kHz | 0.12 + 0.05 | 0.15 + 0.05 | 0.011 + 0.005 | ||||
| 50 – 100kHz | 0.60 + 0.08 | 0.63 + 0.08 | 0.060 + 0.008 | ||||
| 100 – 300kHz | 4.00 + 0.50 | 4.00 + 0.50 | 0.200 + 0.020 | ||||
| DC Resistance | 10Ω-100MΩ,Test current:10mA – 500nA | 0.010 + 0.001 | 0.014 + 0.001 | 0.0006 + 0.0001 | |||
DC current | 100μA – 10mA | 0.050 + 0.006 | 0.050 + 0.005 | 0.0020 + 0.0005 | |||
| 100mA | 0.050 + 0.004 | 0.050 + 0.004 | 0.0020 + 0.0005 | ||||
| 1A | 0.100 + 0.004 | 0.100 + 0.004 | 0.0050 + 0.0010 | ||||
| 3A | 0.200 + 0.020 | 0.200 + 0.020 | 0.0050 + 0.0020 | ||||
| 10A | 0.120 + 0.010 | 0.120 + 0.010 | 0.0050 + 0.0010 | ||||
AC current | 100μA – 100mA | 3kHz – 5kHz | 1.00 + 0.04 | 0.10 + 0.04 | 0.100 + 0.006 | ||
| 5kHz – 10kHz | 0.10 + 0.04 | 0.10 + 0.04 | 0.030 + 0.006 | ||||
| 1A | 3kHz – 5kHz | 0.10 + 0.04 | 0.10 + 0.04 | 0.015 + 0.006 | |||
| 5kHz – 10kHz | 0.10 + 0.04 | 0.10 + 0.04 | 0.030 + 0.006 | ||||
| 3A | 3Hz – 5kHz | 0.23 + 0.04 | 0.23 + 0.04 | 0.100 + 0.006 | |||
| 5kHz – 10kHz | 0.23 + 0.04 | 0.23 + 0.04 | 0.030 + 0.006 | ||||
| 10A | 3Hz – 5kHz | 0.15 + 0.04 | 0.15 + 0.04 | 0.100 + 0.006 | |||
| 5kHz – 10kHz | 0.15 + 0.04 | 0.15 + 0.04 | 0.030 + 0.006 | ||||
Frequency | 3Hz – 10Hz | 0.100 | 0.100 | 0.0002 | |||
| 10Hz – 100Hz | 0.030 | 0.030 | 0.0002 | ||||
| 100Hz – 1kHz | 0.010 | 0.012 | 0.0002 | ||||
| 100Hz – 300kHz | 0.010 | 0.012 | 0.0002 | ||||
| Square wave | 0.010 | 0.012 | 0.0002 | ||||
| Diode | 5V,Test current:1mA | 0.010 + 0.030 | 0.0010 + 0.0020 | ||||
| Breakover | 1kΩ,Test current:1mA | 0.010 + 0.030 | 0.0010 + 0.0020 | ||||
| Capacitance | 1.0000nF | 1.0 + 0.5 | 0.02 | ||||
| 10.000nF – 1.0000mF | 0.5 + 0.1 | 0.02 | |||||
| 10.000mF | 1.0 + 0.5 | 0.02 | |||||
| Temperature | PT100 (DIN/ IEC 751) | ± 0.05°C | |||||
| 5 kΩ Thermistor | ± 0.10°C | ||||||
Standard Accessories
3 cord power line ST26017 USB Cable
ST26036 One pair of test lead (red and black)
ST1963
Rack mount (mm): 215(W) x 88(H) x 300(D)
Dimension (mm): 235(W) x 105(H) x 320(D)
Net weight: 2.7 kg
