Schneider Electric LUNE SP D2W Round Illuminated Mirror
DIMENSION
FEATURES
Assembling instructions

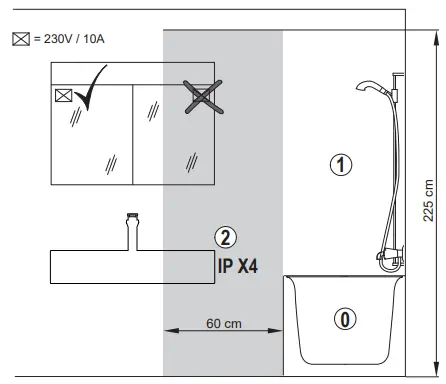

Electric installation work may only be carried out by approved specialists according to the local regulations. Liability will only be accepted by us when our products are installed by qualified engineers. The light sources incorporated in this product should only be replaced by the manufacturer, or by another similarly well-qualified person. Rooms with bath or shower have to be protected with residual-current-operated protective device (RCD) FI (RCD) I Δ n = 30mA. Volume 2 min. protection IP X4. Volume 2 no socket admitted.
The light sources and electronic components are replaceable by a qualified person in accordance with Article 4 of EU Regulation 2019/2020.
This mirror cabinet contains light sources with the energy efficiency class
| Scope of delivery | 73cm |
| Lighting mirror | 1 |
| Suspension plate | 1 |
| Set of screws | 1 |

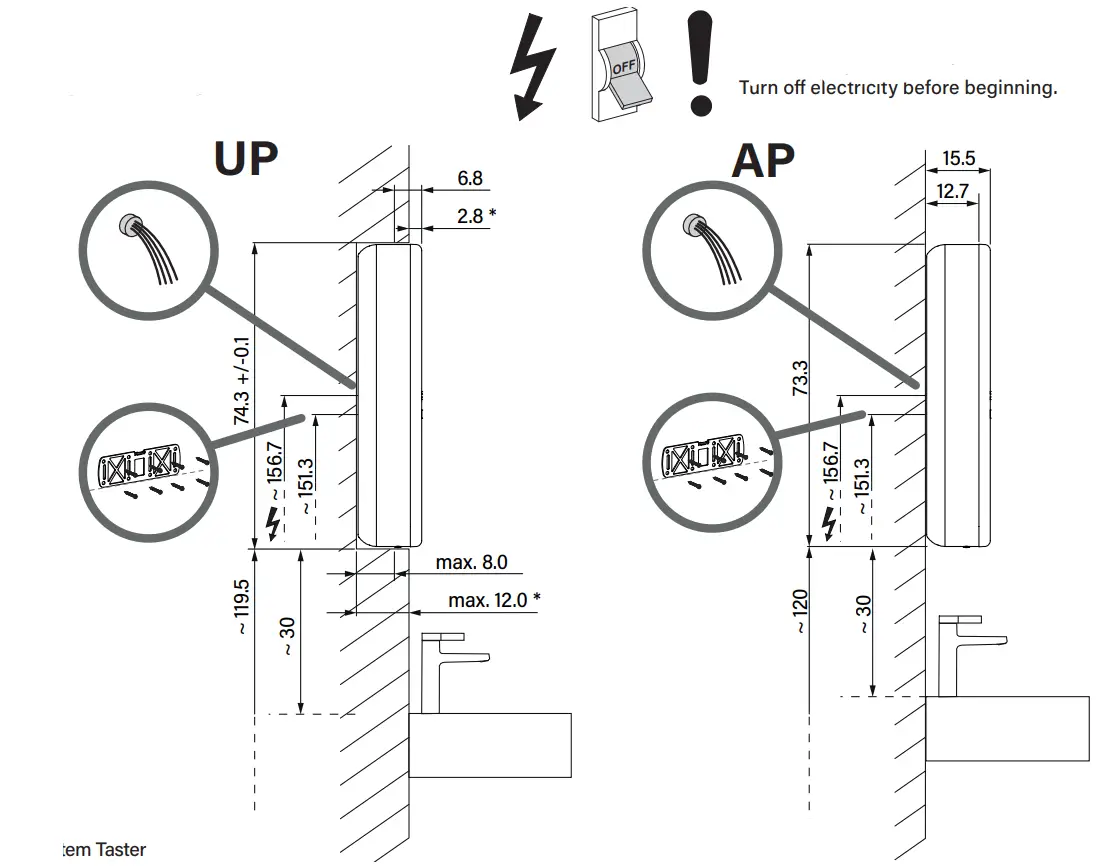

Installation depth with concealed button

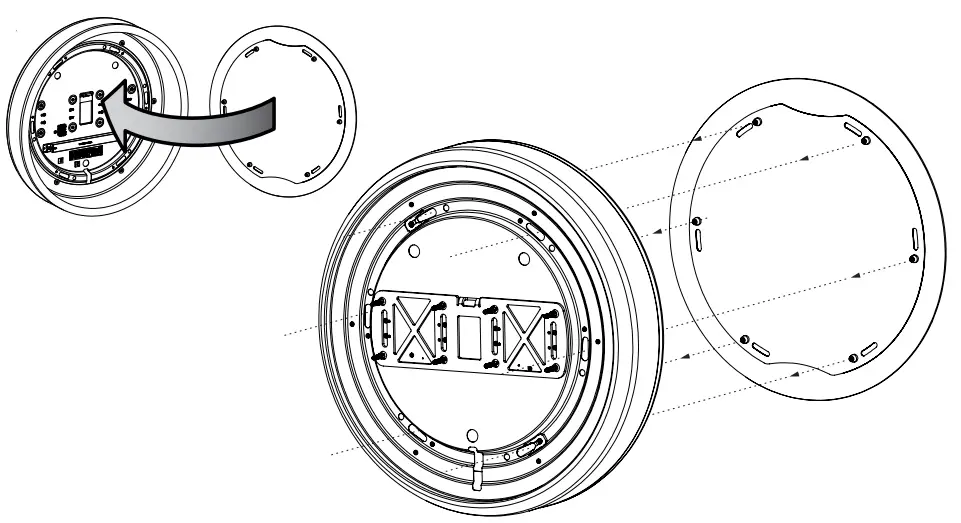

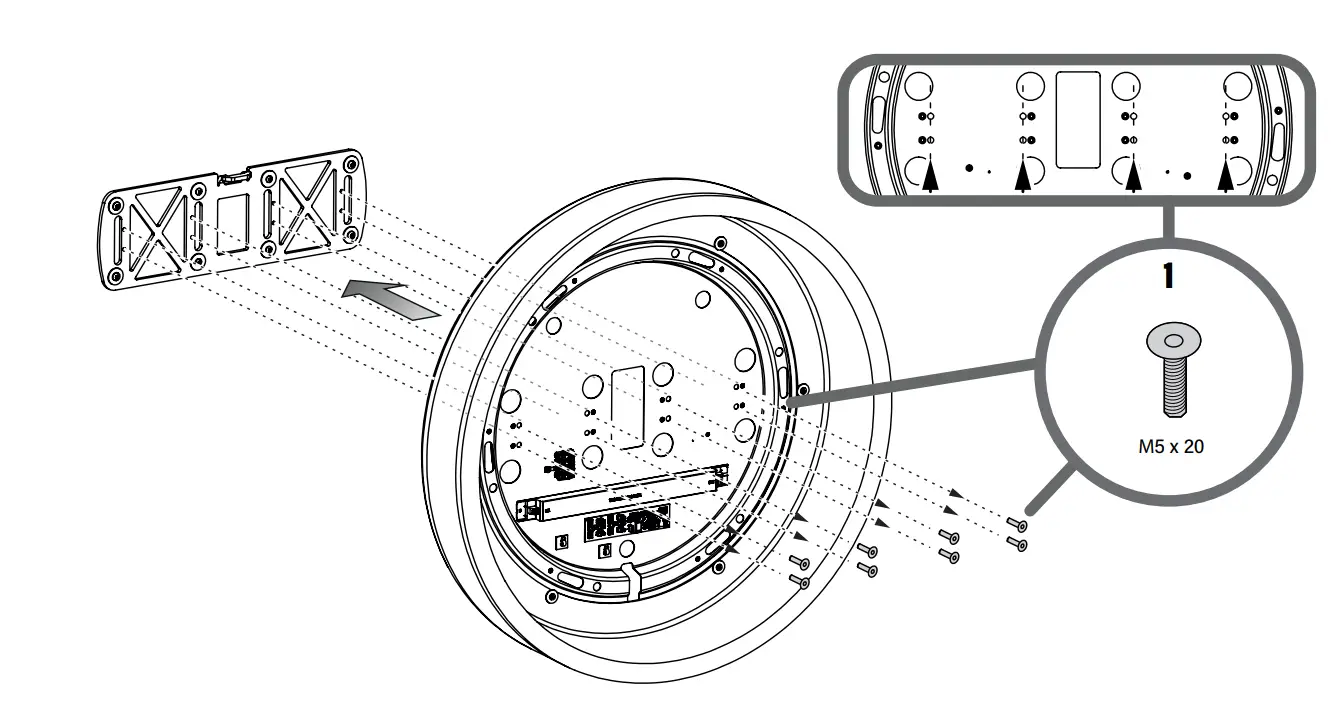

Disassembly

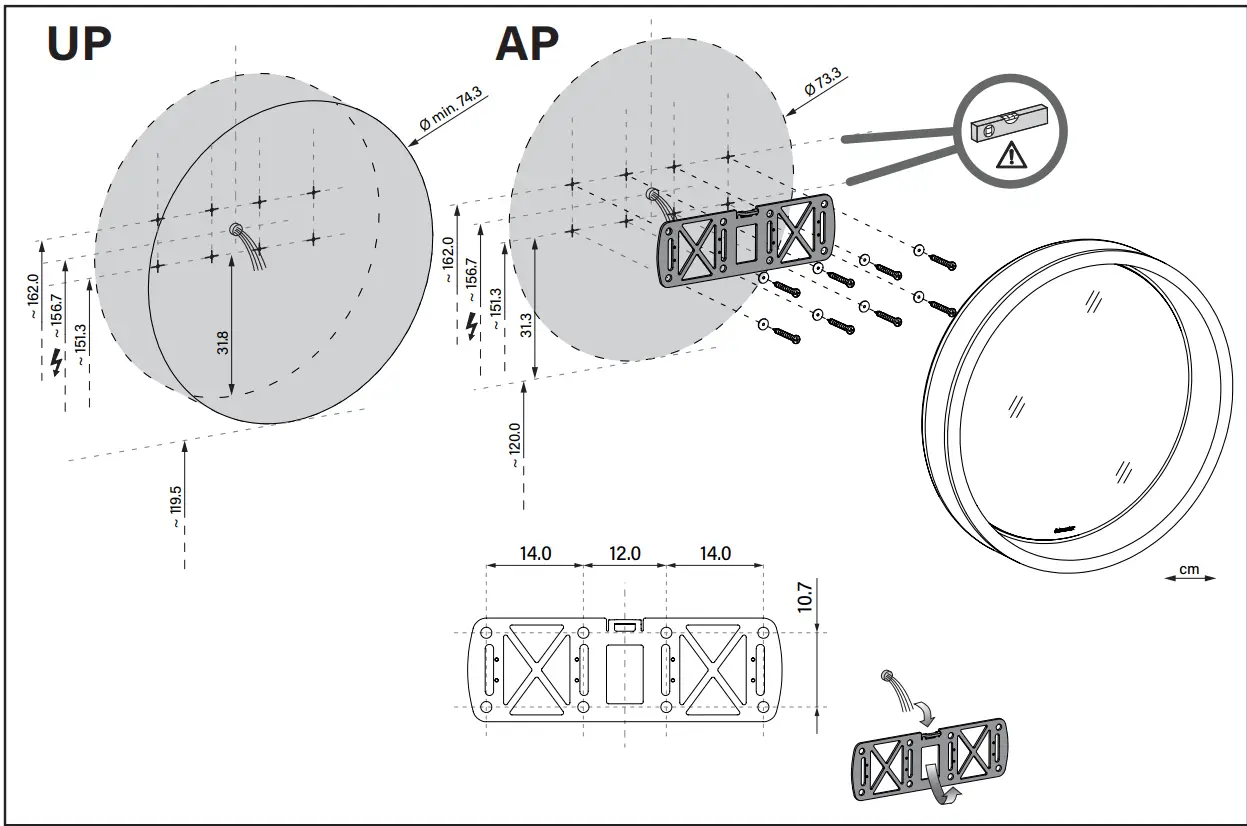

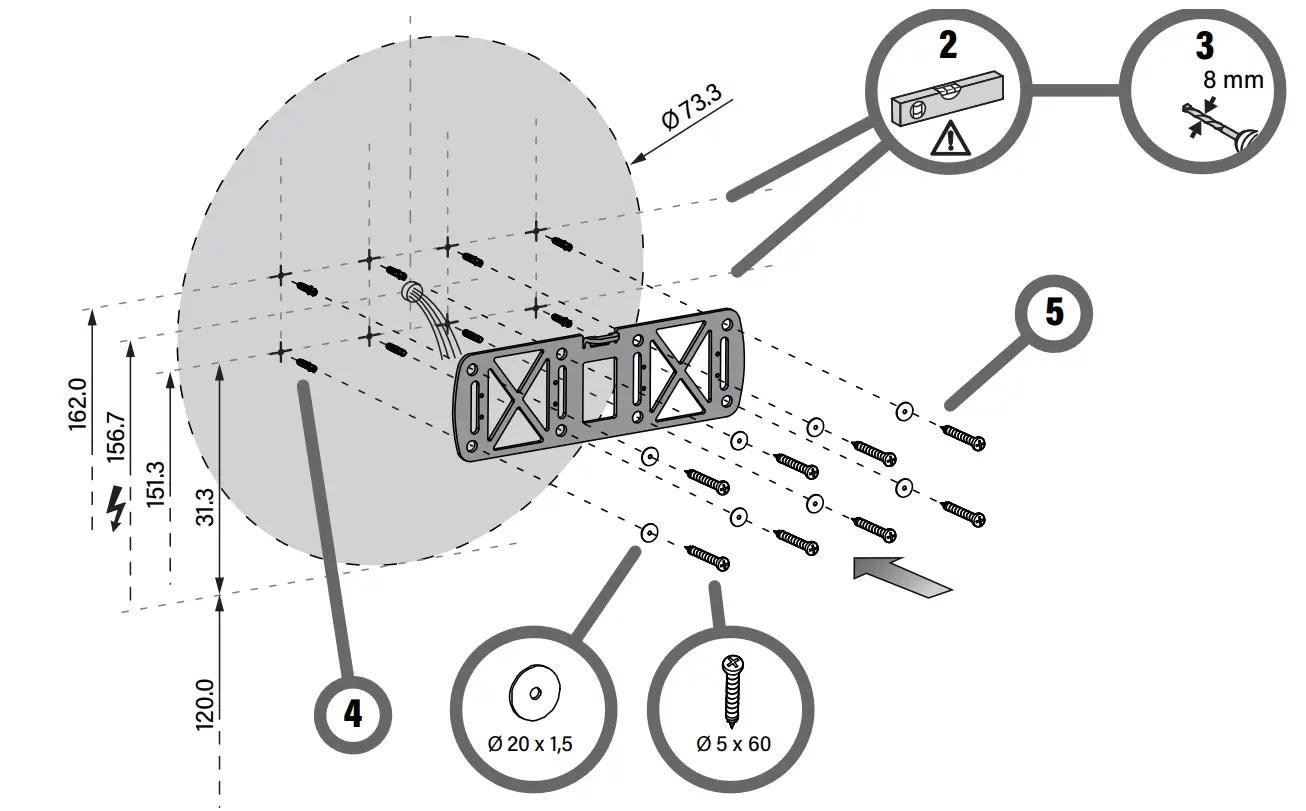

Suspension
Ensure that the suspension rail is in a horizontal position!

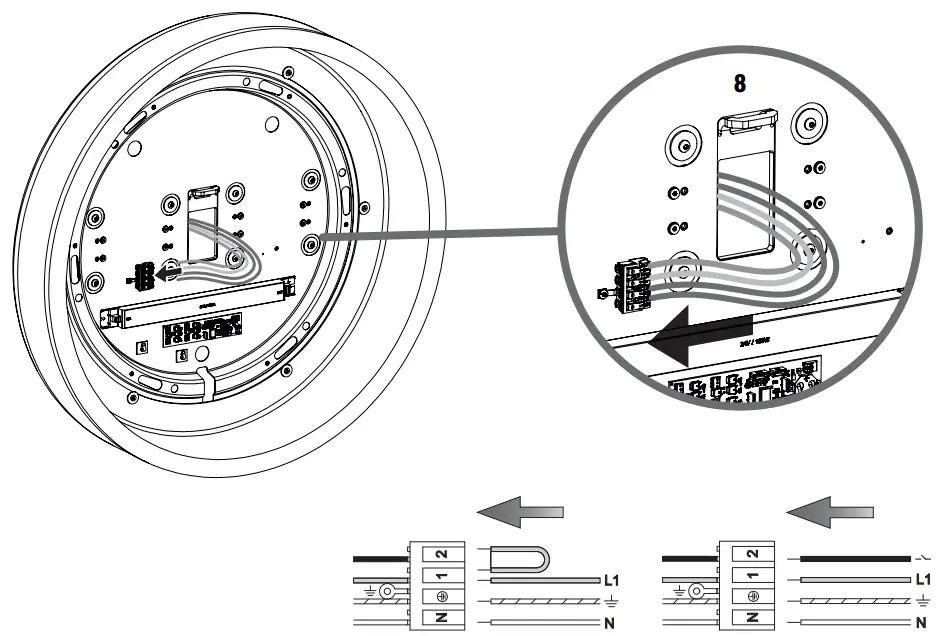

Wiring

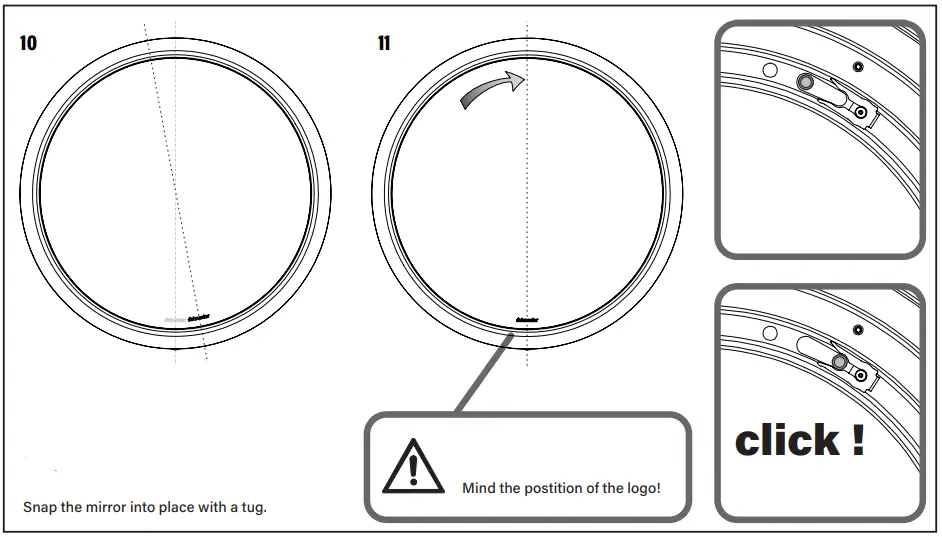

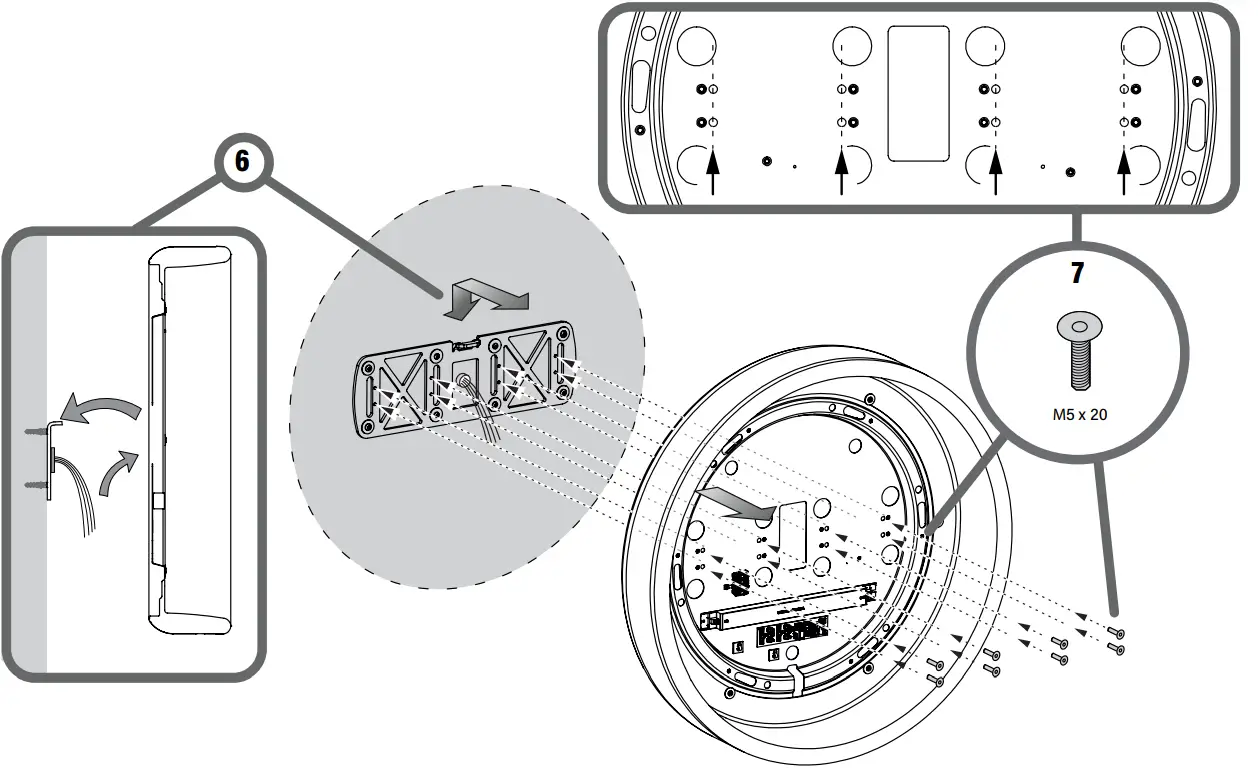

Mirror assembly
Insert bolts into slotted holes, turn mirror to the left.

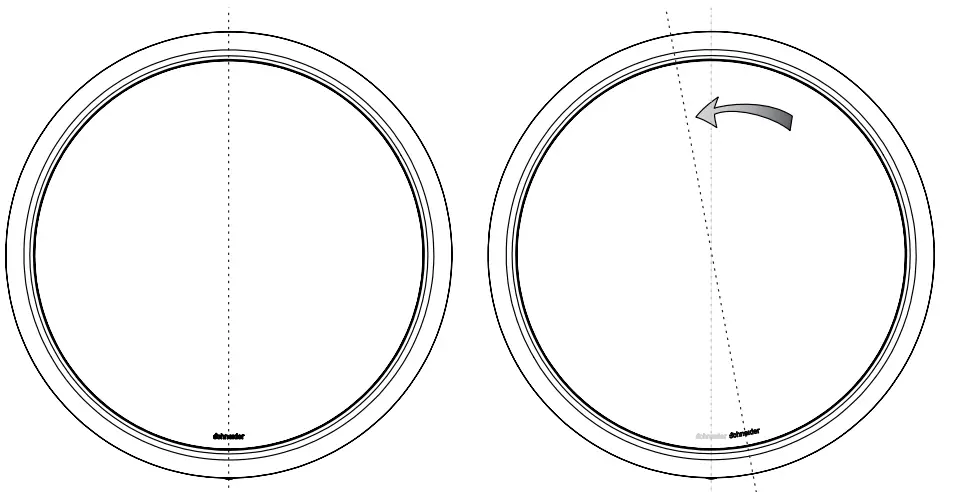

Mirror disassembly
- Turn the mirror clockwise with your hands.
- Remove the mirror carefully from the casing.
The product is controlled after current guidelines
The product must be disposed of separately from normal household waste.Indoor installation only
W. Schneider+Co. AG, Büntenrietstrasse 12, 8890 Flums www.wschneider.com
Schneider mirrors – the high-quality Swiss brand
