Specification sheet

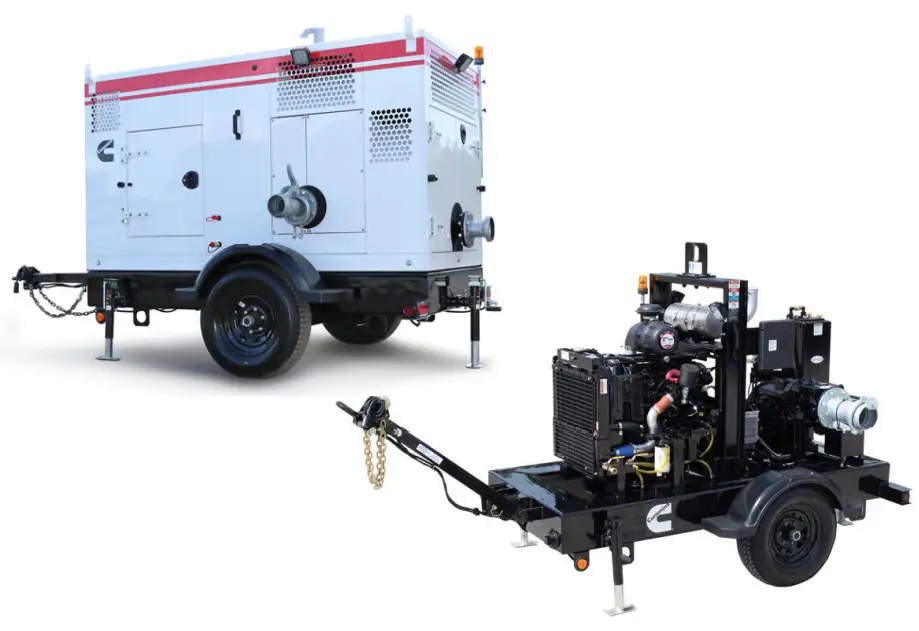

Portable pump
1350-2600 gpm
Tier 4 Final
Description
You can count on the 1350-2600 gallon-per-minute (gpm) portable pumps for the reliability, quality, and dependability that is genuine Cummins performance. EPA-certified, this fully-integrated powerful pump system provides optimum performance and versatility for water and waste water applications in the rental, construction, oil and gas, mining, and agricultural markets.
Features
- Over 100 years of Cummins technology and innovation
- Two-year, 2000 hour base warranty supported by a worldwide Cummins twenty-four hour, seven days-a-week, distributor network. Cummins warrants and services all unit components. Control panel is pre-programmed with Cummins fault codes for ease of service from remote locations. Remote mounting of the engine Electronic Control Module (ECM) allows rapid plug-in diagnostics and data downloads using electronic tools.
- Tier 4 Final near-zero emissions
- Enclosed impeller passes up to 3″ diameter spherical solids
- Trailer comes standard with reinforced step and safety handle, LED work lights, and beacon warning light. Folding trailer tongue makes the product easy to ship and store, as well as promotes safety at the site and security from theft.
- Audible alarm
- Optional sound-attenuated enclosure for residential or low-noise conditions emits at or below 67 decibels at 30 feet for low locations
- Fully-automatic, dry priming – automatic priming and re-priming up to 28 feet of vertical lift
- Large 100-gallon fuel tank boasts 3” clean out ports with option to connect an auxiliary fuel source
| Model | Water flow rate (gpm) | ANSI #150 steel flanges | Total dynamic head (tdh) (feet) | Pump operating pressure (psi) | Minimum operating time | Engine rating (hp) @ 2500 rpm |
| CP1350D4 CP1350D4E* | up to 1350 | 4×4 | 135 | 50 | 51 hours @ 2400 rpm | 49 |
| CP2600D4 CP2600D4E* | up to 2600 | 6×6 | 150 | 65 | 26 hours @ 2200 rpm | 74 |
* model with enclosure
Pump specifications
| Model | End suction centrifugal |
| Casing and wear ring | Ductile iron, class 30 |
| Impeller | Two vane with rear equalizing vanes, non-clogging, enclosed, class 65-45-12 ductile iron. Open impeller is available as an option. |
| Seal | Dry-running, grease lubricated, mechanical type. Tungsten carbide rotating face with silicon carbide stationary seal faces. |
|
Valve and air chamber | Flanged to suction of heavy-duty, self-priming, centrifugal pump. Single 204 stainless steel float mounted on a steel cover, easily removable. Nitrile valve seat with single rod. Stainless steel sup- ports, levers and all internal hardware. Prevents blow-by of pumpage. |
| Solids capacity | 3” diameter spherical solids |
| Clean outs | Ductile iron, fully accessible and removable |
| Discharge priming valve | Valmatic® check valve |
| Flanges | ANSI #150 steel |
Engine specifications
| Base engine | Cummins QSF 2.8 |
| Displacement | 171 in3 (2.8 L) |
| Fuel system | Electronic High Pressure Common Rail (HPCR) |
| Starting | Electric, 12V |
| Air intake | Cummins direct flow air cleaner |
| Turbocharger | Cummins wastegated |
| Emissions control | Exhaust gas recirculation + diesel oxidation catalyst (EGR + DOC) |
Fuel
| Fuel | CP1350D4/CP1350D4E | CP2600D4/CP2600D4E | ||
| Maximum fuel consumption | 1.96 gph | 3.51 gph | ||
| Fuel economy @ 2400 RPM | .392 lb./hp-hr | 51 hrs runtime | ||
| Fuel economy @ 2200 RPM | .373 lb./hp-hr | 64 hrs runtime | .373 lb./hp-hr | 28 hrs runtime |
| Fuel economy @ 2000 RPM | .369 lb./hp-hr | 90 hrs runtime | .369 lb./hp-hr | 34 hrs runtime |
| Fuel economy @ 1800 RPM | .369 lb./hp-hr | 45 hrs runtime | ||
Outline drawings
These outline drawings are for reference only.
Do not use for installation design.

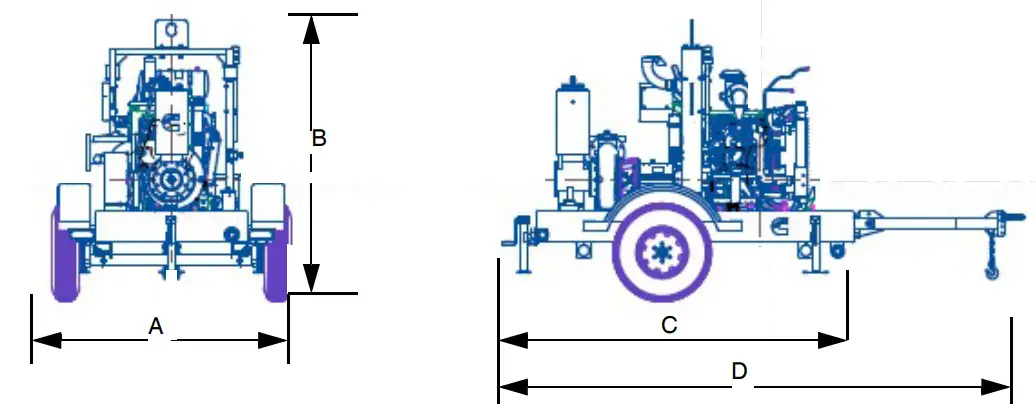

CP1350D4 and CP2600D4
| Model | Dim “A” in. (cm) | Dim “B” in. (cm) | Dim “C” in. (cm) | Dim “D” in. (cm) | Weight lbs. (kg) |
| CP1350D4 | 75 (191) | 89 (226) | 100 (254) | 151 (384) | 3350 (1520) |
| CP2600D4 | 75 (191) | 89 (226) | 100 (254) | 151 (384) | 3750 (1701) |

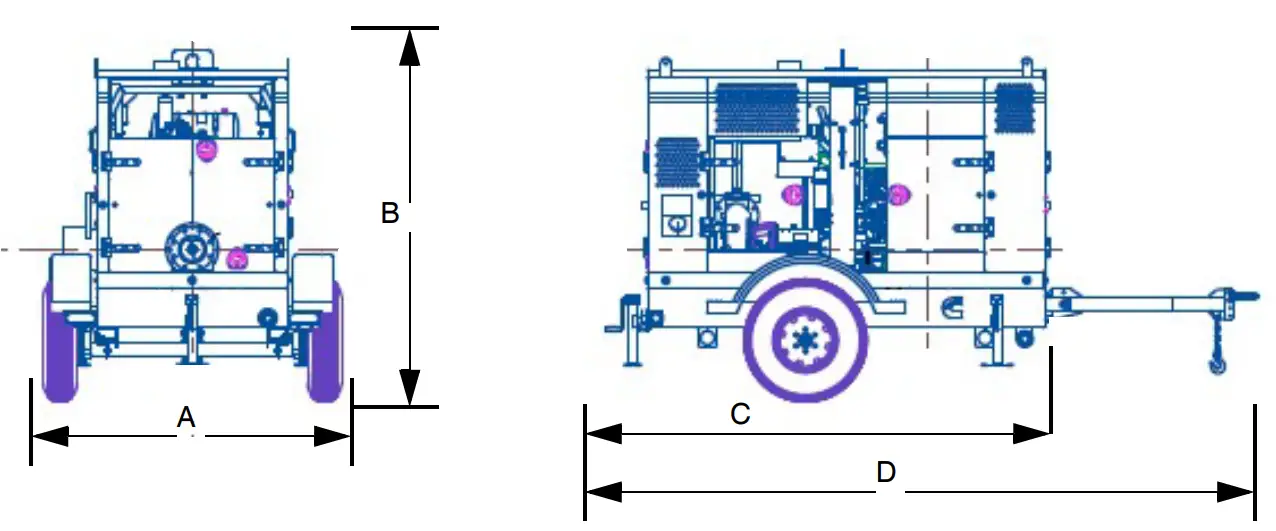

CP1350D4E and CP2600D4E
| Model | Dim “A” in. (cm) | Dim “B” in. (cm) | Dim “C” in. (cm) | Dim “D” in. (cm) | Weight lbs. (kg) |
| CP1350D4E | 75 (191) | 89 (226) | 100 (254) | 151 (384) | 4300 (1950) |
| CP2600D4E | 75 (191) | 89 (226) | 100 (254) | 151 (384) | 4800 (2177) |
Contractors Pump Bureau (CPB) performance curves

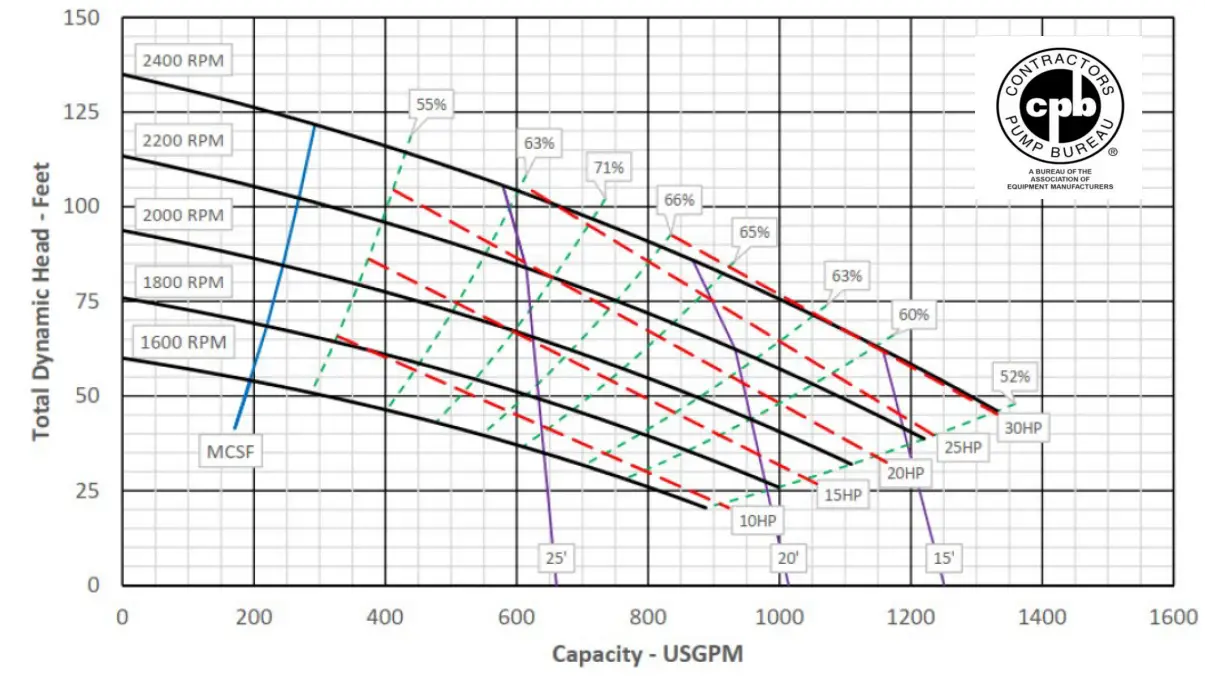

CP1350D4
CP2600D4
ANY CUSTOMER, ANY QUESTION ANY CHANNEL, ANY TIME
Cummins Care is not a typical call center. We are a solutions center helping to prevent issues, provide answers quickly and reimburse accurately. We are your connection to a whole new level of customer service, to support and deliver faster personal attention with rapid results. From the moment you engage Cummins Care, you will have access to a Cummins expert with specialized skill sets, experience and in-depth knowledge to take care of your needs.
Customer Service……………………
Warranty Assistance………………..
Technical Support…………………….
Connected Service………………….
We are experts with advanced technology to make your life easier while providing a seamless support experience. Contact us at care.cummins.com or 1-800-CUMMINS (1-800-286-6467)
Member of the Contractors Pump Bureau (CPB) The CPB was formed in 1938 to offer services tailored to the needs of portable contractor and dewatering pump manufacturers, to their suppliers, and to the operators and owners of portable contractor and dewatering pumps.
ISO 9001:2015
This product has been manufactured under the controls established by an approved management system thatconforms with ISO 9001:2015.
Specifications are subject to change without notice.
