Mini Max Dosing Pumps Instruction Manual

DOSING PUMPS

Dosing Pumps

About us
Recognize and appreciated Globally among our clients for the purpose of manufacturing, supplying, Installation & Commissioning the best quality Dosing Pumps & accessories. Minimax Dosing Pumps came into existence in the year 2004. We offer a wide range of dosing / Metering & Skid Mounted injection Packages that comply with PI675 Standards. Our material management team procures the best quality metals and alloys for manufacturing of Dosing pumps in compliance with the pumping industry-laid norms.  Their salient features such as high strength, chemical compatibility, aesthetic finish, durable construction, maintenance-free, and thermal stability. The offered pumps & their accessories are available with us in user-defined specifications.  Since the inception of our company, we have been backed and supported by our team of skilled professionals under the guidance of our CEO Mr. Omprakash Vishwakarma, who is a technocrat himself. Owing to their experience and knowledge of this domain, our professionals hold expertise in their area of work. We have our strength in our team, which consists of engineers skilled technicians, high-tech quality control, production, sales & marketing executives. By providing our professionals with regular training sessions with following & maintaining ISO systems, we continuously enhance and upgrade their skills in the most proficient manner.

OUR NATIONAL & INTERNATIONAL CLIENTS

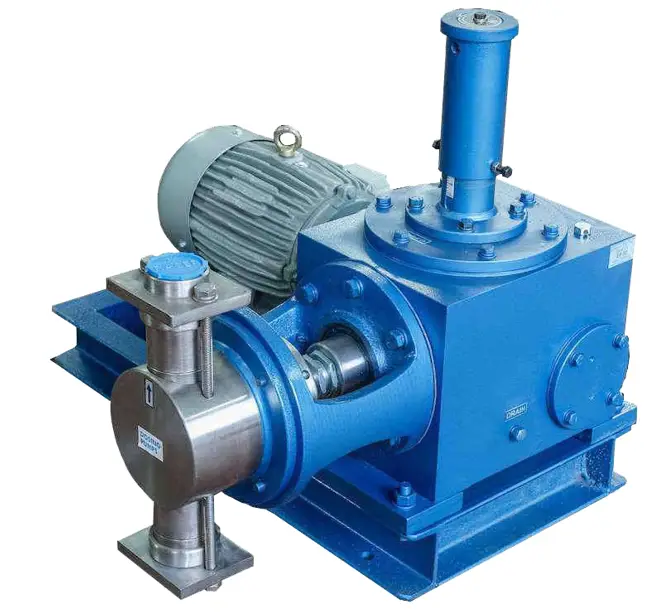

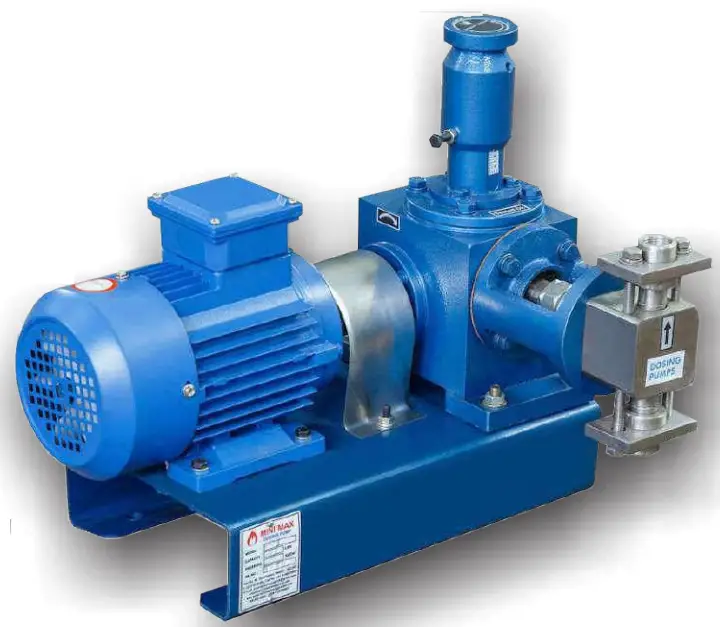

METERING-TYPE PLUNGER PUMPS

APPLICATION
Oil & Gas, Chemicals, Detergents, Cosmetics, Food & Beverages, Fertilizers, Nuclear, Reactor, Water, Treatment ETP &STP, Paints, Steel, Textiles, Paper, Pharmaceuticals,  Power, Petroleum Mine, Institutes, ConsultancyAgencies

FEATURES

HEAVY DUTY CONSTRUCTION Designed for severe industrial application.
Easy to maintain
Low NPSHR
Oil bath splash-type lubrication for longer life
High metering accuracy.
Modular Configurations: Simplex, Duplex, Triplex, and Quadruplex
Turn down ratio 10: 1
Accuracy up to ± 1%
No Welds on Wet End Parts
Pumps can be provided with lantern ring flushing connections.
Manual stroke length control standard (optional VFD)
Micrometric stroke adjustment while pumping.
available in variable/fixed stroke.
Available with jacketing molten liquids.
Process Temperature from -20°C to 220°C

Ø Reagent head: AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
Ø Check Valves: AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
Ø Metal Gearbox: Cast Iron

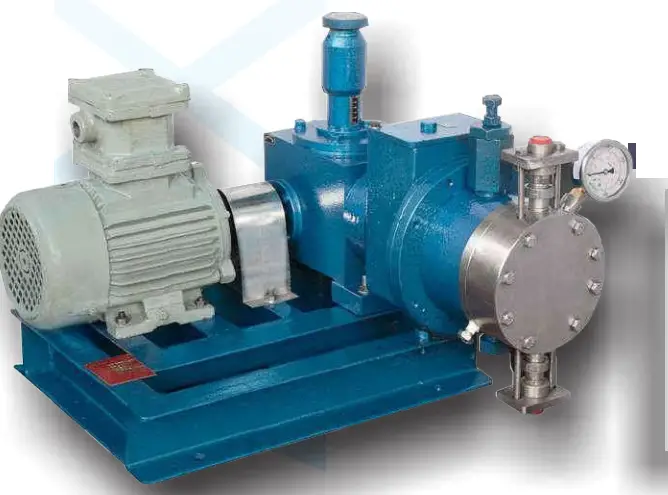

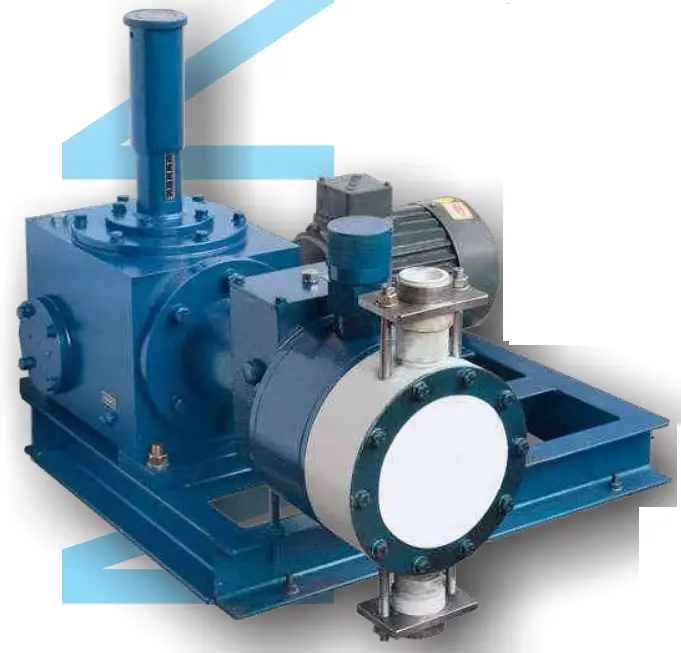

HYDRAULIC DIAPHRAGM PUMP

APPLICATION
Oil & Gas, Chemicals, Detergents, Cosmetics, Food & Beverages, Fertilizers, Nuclear, Reactor, Water, Treatment, Paints, Steel, Textiles, Paper, Pharmaceuticals, Power, Petroleum Mines, Institutes, Consultancy Agencies

HEAVY DUTY CONSTRUCTION Designed for severe industrial application.
Easy to maintain with zero leakages.
Hydraulically Balanced Sandwich (Double) Diaphragm with Rupture Detection.
Inbuilt Safety Relief Valve.
Low NPSHR6.Oil bath splash-type lubrication for longer life.
High metering accuracy.
Modular Configurations: Simplex, Duplex, Triplex, and Quadruplex.
Turn down ratio 10:1.
Accuracy up to ± 1%.
No Welds on Wet End Parts.
Pumps can be provided with lantern ring flushing connections.
Manual stroke length control standard (optional VFD).
Micrometric stroke adjustment while pumping.
Available in variable/fixed stroke.
Available with jacketing molten liquids.
Process Temperature from -20°C to 220°C

MOC
Reagent head: PTFE, Polypropylene,
AISI 316L, AISI 304, AISI 316,
Alloy 20, Hastelloy C
Check Valves: PTFE, Polypropylene,
AISI 316L, AISI 304, AISI 316,
Alloy 20, Hastelloy C
Metal Gearbox: Cast Iron
Diaphragm: PTFE / Metallic

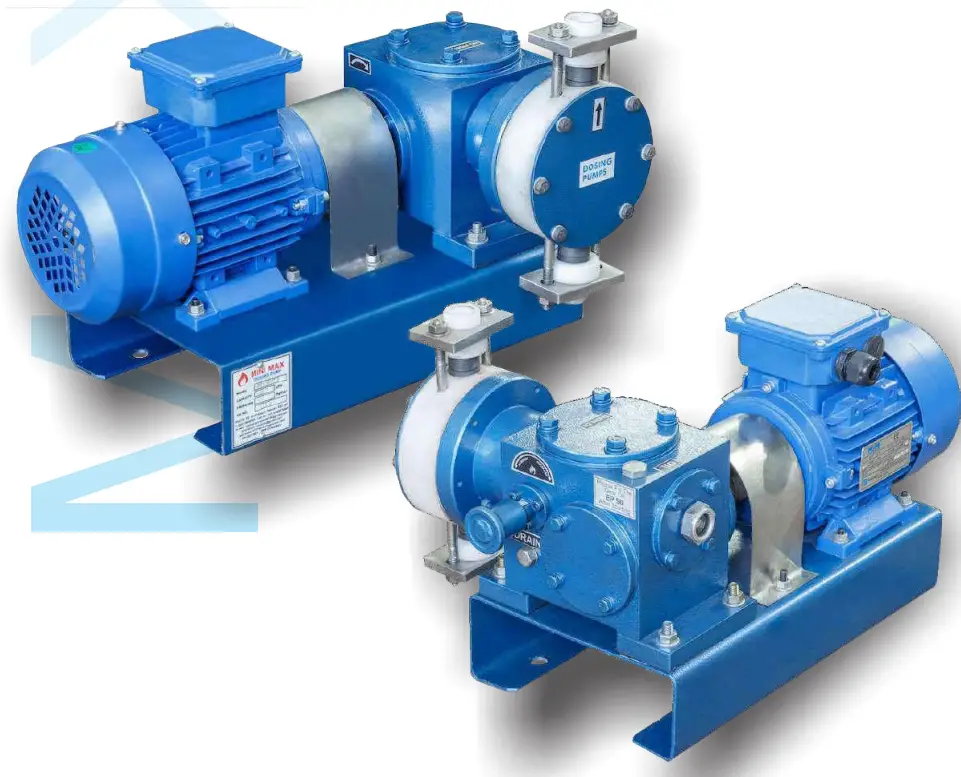

DIAPHRAGM PUMPS MECHANICALLY ACTUATED

Simple Design,
Leakproof & Low NPSHR.
Flame Proof.
Oil bath splash-type lubrication for longer life.
Economical & maintenance-free.

Reagent head: PTFE, Polypropylene, AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
Check Valves: PTFE, Polypropylene, AISI 316L, AISI 304, AISI 316, Alloy 20, Hastelloy C
Metal Gearbox: Cast Iron
Diaphragm: PTFE / Metallic
APPLICATION
Chemical Detergents Institutes Food & Beverages Fertilizers WaterTreatment Paints Steel Textiles Paper Pharmaceuticals Power Plant.

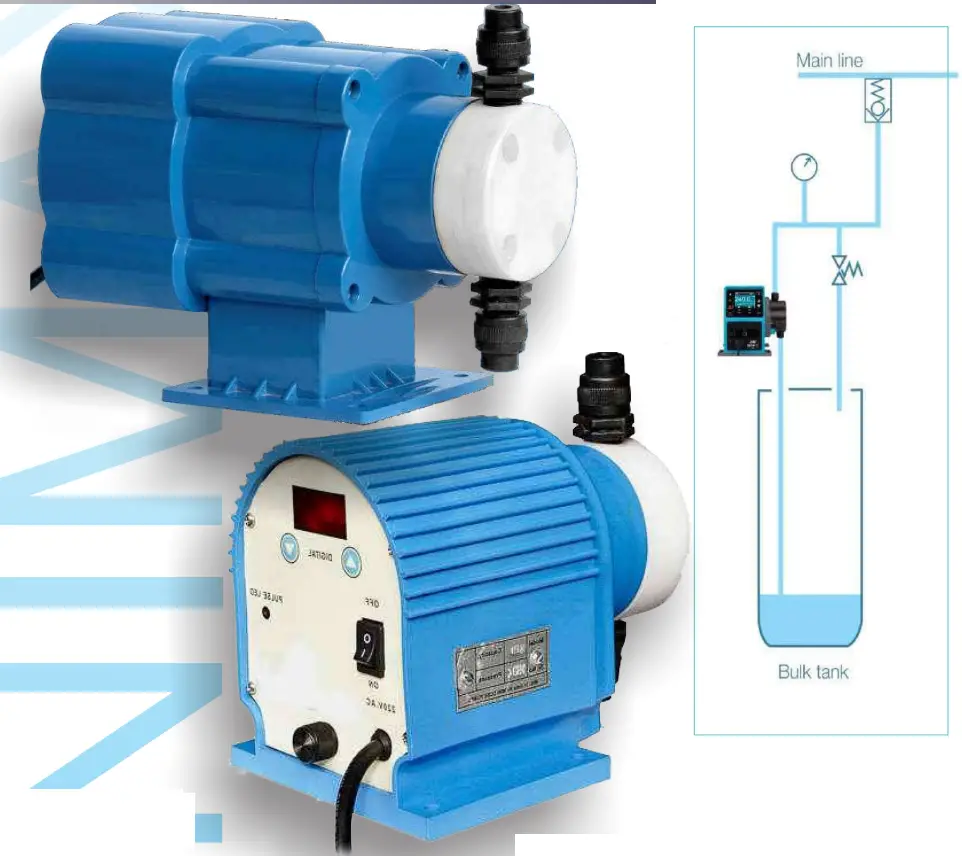

SOLENOID-OPERATED DIAPHRAGM DOSING PUMPS

FEATURES

Lightweight Stroke adjustment 0 — 100 SPM lir
High precision check valve1M Suction lift
Totally enclosed corrosion-resistant GFPP construction.
Compact size ‘Less Moving Parts.Low maintenance
Solenoid Drive -Low Power Consumption (>40 Watts)
application
Oil & Gas, Chemicals, Detergents, Cosmetics, Food & Beverages, Fertilizers, Nuclear, Reactor, Water, Treatment, Paints, Steel, Textiles, Paper, Pharmaceuticals, Power, Petroleum Mines, Institutes, Consultancy Agencies

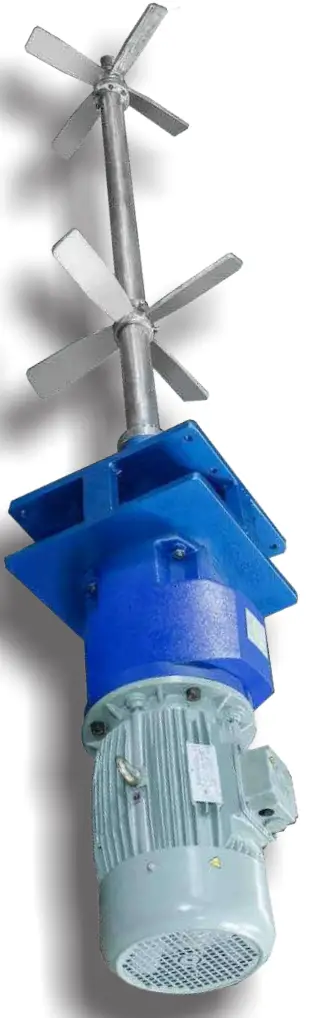

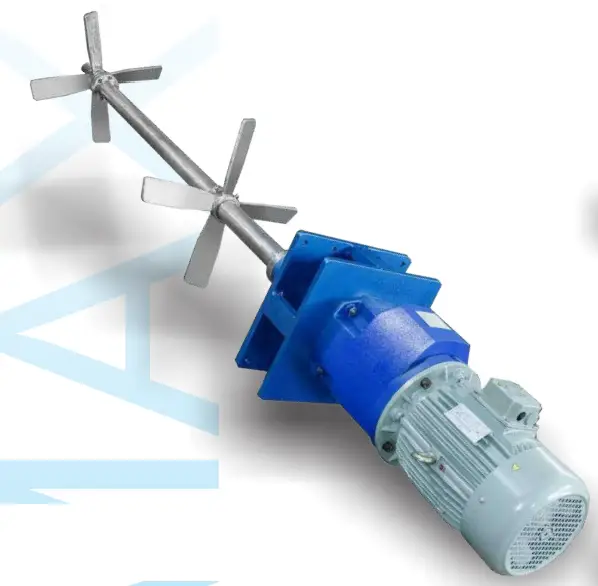

AGITATORS

MINIMAX DOSING PUMPS specializes in designing and manufacturing high-speed and Iowspeed mixing ag factors for various applications. The company has supplied more than 3000 agitators ranging up to 7.5 HR Our highly experienced engineering team is able to design and manufacture the agitator up to 4.5 meters in height and power ranging from 0.25HP to 7.5HP. Agitator mounting types: Top Side Inclined Types of Impellers: Pitch Blade
Ideal for viscous mixtures and for applications requiring a combination of pumping and shearing.
Radial Blade Ideal for applications where shear is the primary requirement, or where agitation close to the bottom of the tank is desired.
Marine-Type Propellers are Ideal for low-viscosity, high-speed direct drive mixers for high speed and low speed.
Agitator impeller & shaft: SS316,SS304,PTFElined, Alloy20, HastelloyC, MSRL
APPLICATION  Pharmaceuticals, chemicals, Water – Treatments, Process Industries, etc.

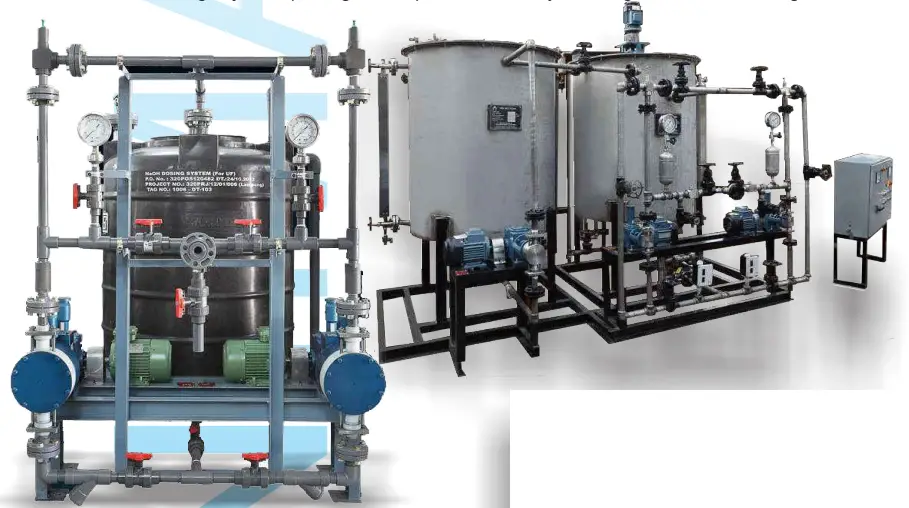

SKID-MOUNTED DOSING PACKAGE

MINIMAX DOSING PUMPS is the leading supplier of the Skid Mounted Dosing System for Liquids and Gases (Oxygen). Oxygen dosing systems are widely used in power plants. Dosing systems come in several specifications as per the need of our customers, in various capacities and sizes. These systems are ready for dosing/injections in the pipelines with dosing pumps, Piping, Storage vessels & instruments required for optimum and trouble-free operations. These turnkey packages are supplied duly mounted on single skids with platforms, ladders, etc. Skid-mounted dosing/injection packages are operated manually or through SCADA interfacing.

ACCESSORIES

Pumps available both manually & electronically actuated.
Motors, Safety Relief valves
Back Pressure valve (Antisiphon Valve) Pulsation dampers (Volume bottle / Diaphragm / Bladder Type)
Strainers (Y & Basket Type), Agitators Frequency Inverters (VFD) /Actuators Pressure Switch /
Trolley mounted base, Homogenizing Valves Valves /
Electrical & pneumatic actuated Pressure
Transmitter & different types of Gauges
Level Gauges & Transmitter, Screw feeder
Tanks & Associated piping
Wide range of plastic & Metallic MOCs
Tanks available in SS, MSRL, FRP, HDPE, LDPE, etc
APPLICATION

LP & HP Dosing System
phosphate Dosing System
Hydrazine Dosing System
Ammonia Dosing System
Corrosion inhibitor Dosing System
Mercaptan Dosing System
BFW Dosing System
Additive Injection System
Sulphuric Acid Dosing System
Flocculent Dosing System
Mobile Hydro test units
Chlorine dosing systems

MINIMAX DOSING PUMPS ARE
AN ISO 9001:2015 COMPANY
Plot No: W (55)A. MIDC Satpur. Nashik- 422007(M.S.)
Ph.:+91 9130009453. Mob:+91 8149879664
[email protected]
[email protected]
[email protected]
SOURABH-8208178412-MAR2018
