Andymark Am-4846 Compact Linear Slide Installation Guide

Assembly Guide

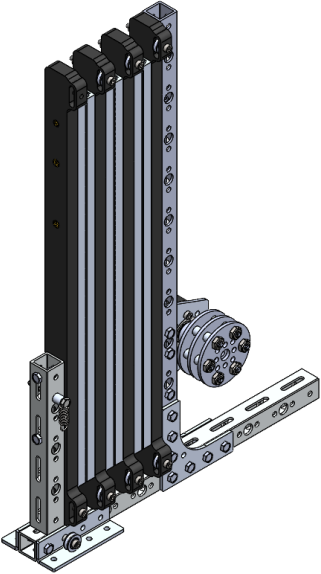

Compact Linear Slide

Base Kit (am-4846) and Add-on Stages (am-4848)

Recommended Tools:

Tool	Product Number	Qty	Product Photo
1/4IN Nut Driver	am-3677	1
5/16IN Nut Driver	am-1273	1
Fold Up 12 Set Hex Allen Wrench	am-3864	1

Parts Used:

Component	Product Number	Qty	Product Photo
Linear Slide Base Kit (am-4846)
SAR330 Aluminum Slide	am-4837	1
3mm x 12mm x 4mm V-Groove Bearing	am-4836	3
M3-0.5 x 35mm Zinc Plated SHCS	am-1671	4
M3-0.5 x 5mm Steel FHCS	am-1668	4
M3-0.5 Nylock Nut	am-1023	4
1.4mm 100′ Spool of Power String	am-3159	1
0.1875IN OD x 0.115IN ID x 0.1875IN L Nylon Spacer	am-1473	1
16mm Box Tube | 352mm S3	am-3594-352	1
16mm Box Tube | 256mm S3	am-3594-256	1
16mm Box Tube | 128mm S3	am-3594-128	1
90° Gusset for 53	am-3602	2
4×1 Angle Gusset for S3	am-4839	2
0.141IN ID x 0.250IN OD 0.266IN L Aluminum Spacer	am-1669	1
NeveRest Orbital and 875 Bearing Mount Plate for S3	am-4642	1
6-32 x 1IN HHCS	am-1565	15
6-32 x 1-1/4IN HHCS	am-1566	1
6-32 Nylock Jam Nut	am-1419	12
M3-0.5 x 5mm Steel SHCS	am-1443	4
1IN x 0.25IN x 0.031IN Extension Spring	am-4835	1
0.257 in. ID 0.625 in. OD 0.500 in. Long Aluminum Spacer	am-3720	1
NeveRest Orbital 13.7:1 with Encoder	am-4610b	1
352mm Pulley Mount	am-4838	2
Double Spool Assembly (am-4849)
6-32 Nylock Jam Nut	am-1419	6
Small Pulley Plate	am-4635	3
6mm D Bore Double Boss Tapped Nub	am-4311	1
0.141IN ID x 0.250IN OD x 0.266IN L Aluminum Spacer	am-1669	12
6-32 x 3/8IN HHCS	am-1562	4
6-32 x 1IN HHCS	am-1565	6
Add-on Stage Kit (am-4848)
SAR330 Aluminum Slide	am-4837	1
3mm x 12mm x 4mm V-Groove Bearing	am-4836	2
M3-0.5 x 5mm Steel FHCS	am-1668	4
M3-0.5 x 35mm Zinc Plated SHCS	am-1671	2
M3-0.5 Nylock Nut	am-1023	2
352mm Pulley Mount	am-4838	1

NOTE: STEPS WITH RED BORDERS ARE DIFFERENT WHEN BUILDING WITH ADDITIONAL STAGES. IF YOU INTEND TO CONSTRUCT A LIFT WITH STAGES BEYOND THE BASE KIT’S SINGLE STAGE, PAY CLOSE ATTENTION TO THESE

Assembly

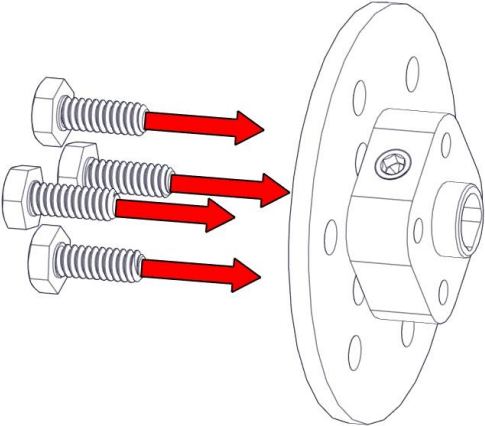

Step 1: Beginning with one of the three small pulley plates (am-4635), attach the 6mm D-bore Nub (am-4311) via four 6-32, 3/8′ long screws (am-1562).

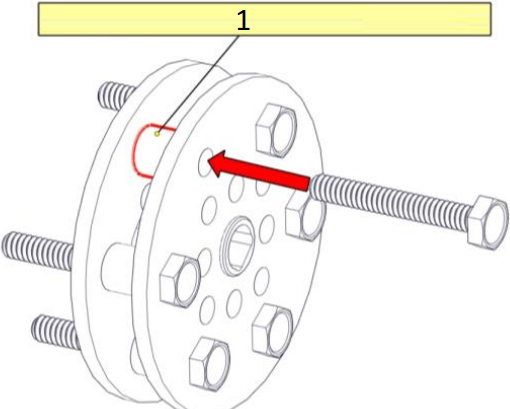

Step 2: Place a second small pulley plate (am-4635) on the other side of the Nub. Between the two plates, place six aluminum spacers (am-1669) and hold them in place with six 1″ long 6-32 screws (am-1565).

1. am-1669 0.141ID 0.25OD 0.266 Long Aluminum Spacer

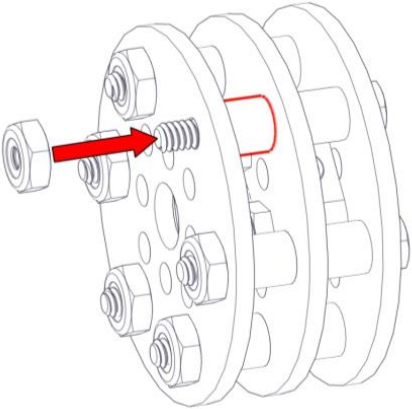

Step 3: Place six more spacers (am-1669) on the other side of the first pulley plate (am-4635) on the exposed screws. Place the final pulley plate overtop, then secure with six 6-32 nuts (am-1419).

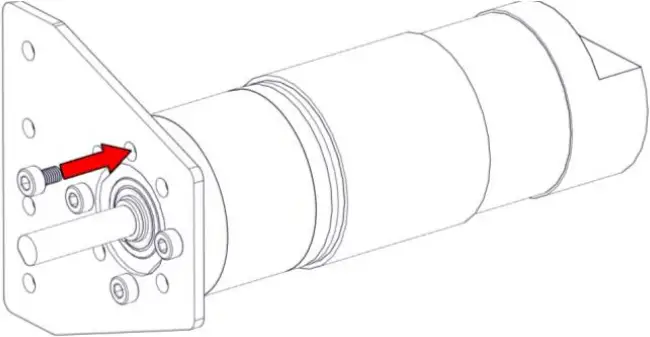

Step 4: Set aside the completed pulley. Connect the NeveRest Orbital Mount Plate (am-4642) to the NeveRest Orbital Gearmotor (am-4610b) using four 5mm M3 screws (am-1443).

NOTE: AndyMark recommends the use of threadlocker (am-3171) when attaching these screws.

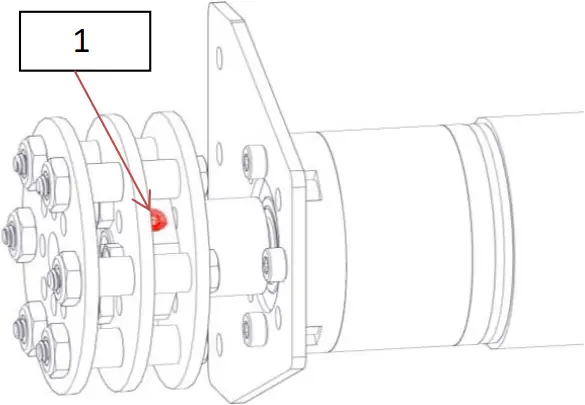

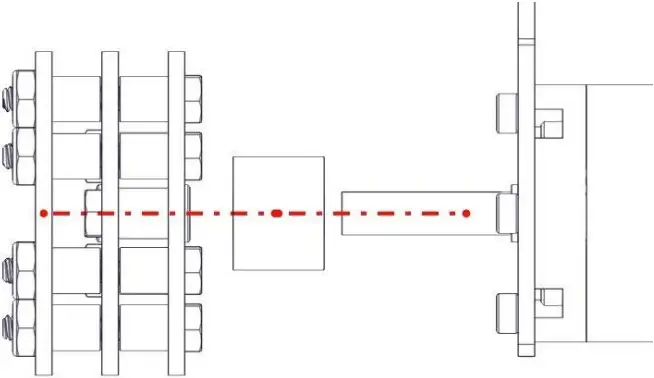

Step 5: Fit the 1/2″ aluminum spacer (am-3720) over the motor shaft. Then place the assembled pulley from step 3 on the motor shaft, and tighten the nub setscrew to secure it.

1. Set Screw

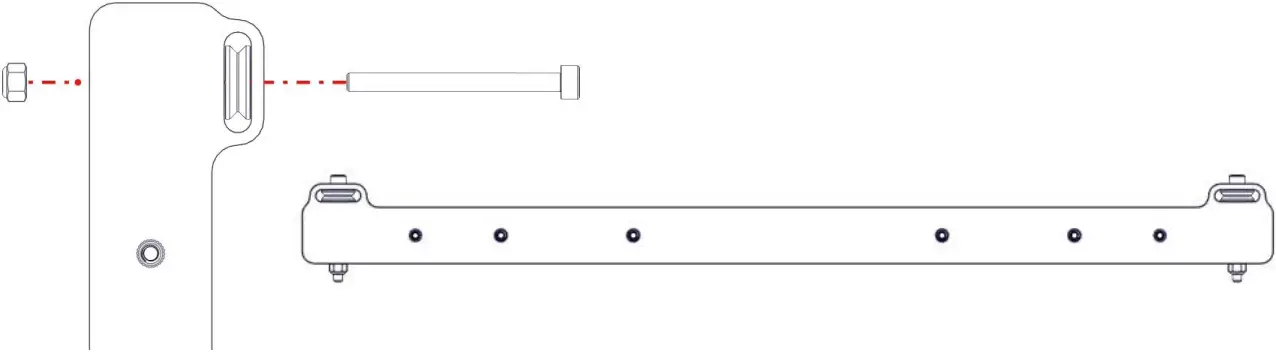

Step 6: On both ends of a Pulley Mount (am-4838), use a single 35mm M3 screw (am-1671) to hold a V-Groove Bearing (am-4836) in the provided slot. Use an M3 nut (am-1023) to secure it in place.

NOTE: If you intend to add more stages, repeat this step for as many stages as you intend to add!

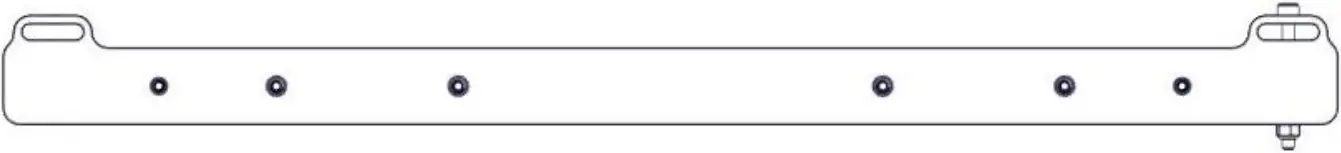

Step 7: On one other Pulley Mount (am-4838), put a 35mm M3 screw (am-1671) through just one of the slots and secure it with an M3 nut (am-1023). The second Pulley Mount should match the image below.

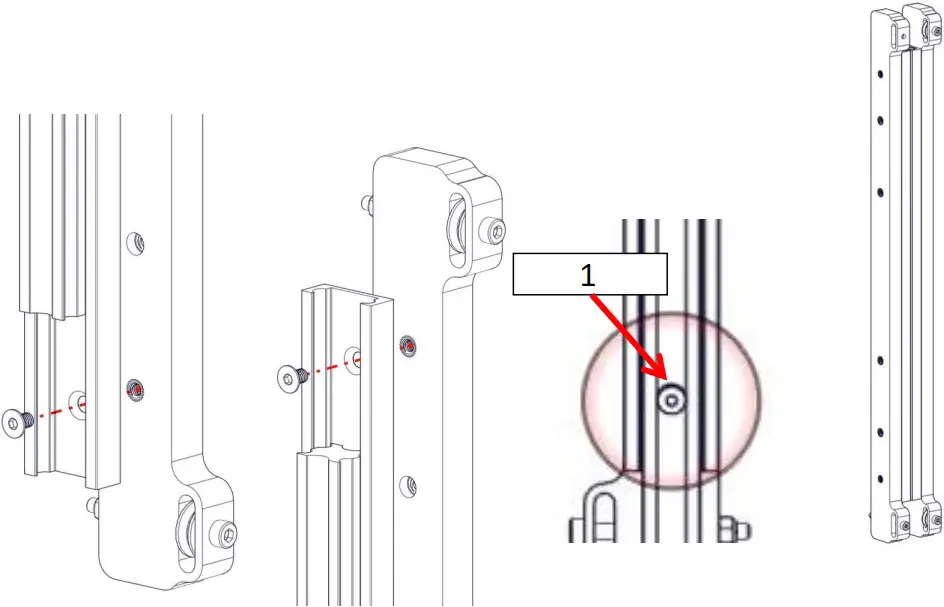

Step 8: Connect the SAR330 slide (am-4837) to the Pulley Mounts from steps 7 & 8 using two 5mm M3 screws (am-1668) each by moving the slider slightly to reveal the countersunk holes at either end as shown. One of these screws can only be accessed via a through-hole when fully extended. Ensure pulleys are all on the same side.

1. Through-Hole

NOTE: AndyMark recommends the use of threadlocker (am-3171) when attaching these screws.

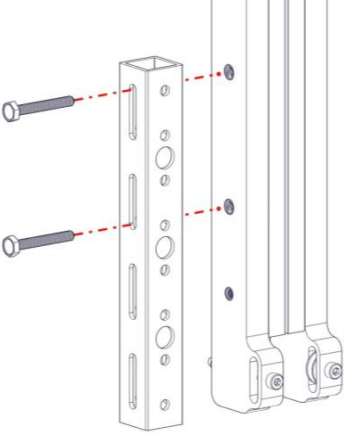

Step 9: Attach the final S3 tube (am-3594-128) to the bottom of the Pulley Mount with no bearings using two 1″ long 6-32 screws (am-1565).

Step 10: Slide the spring (am-4835) and 0.266″ aluminum spacer (ann-1669) over a 1 and 1/4″ 6-32 bolt (am-1566) and slide the assembly through the S3 tube from Step 12. Secure with a 6-32 nut (am-1419).

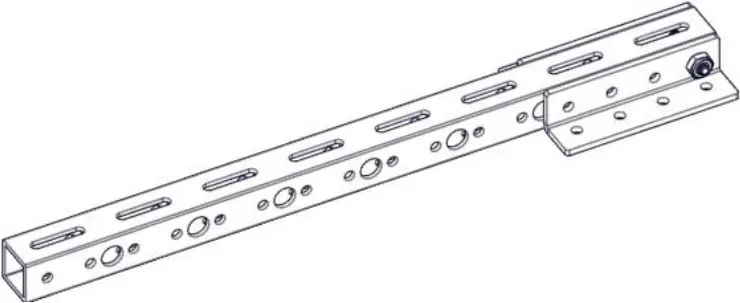

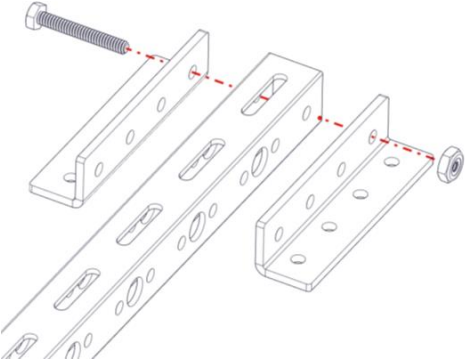

Step 11: Attach the 4×1 Angle Gussets (am-4839) to the 256mnn S3 tube (am-3594-256) using a single 1″ long 6-32 screw (am-1565) and 6-32 nut (am-1419).

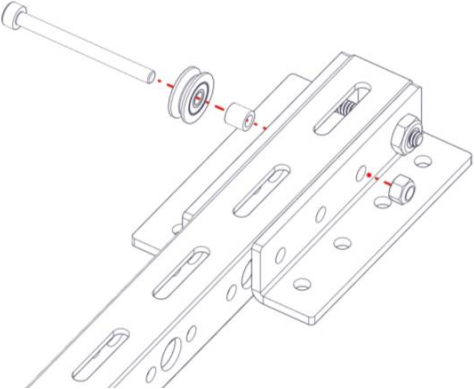

Step 12: Slide a V-groove bearing (am-4836) and 0.1875″ nylon spacer (am-1473) over a 35mm M3 screw (am-1671). Slide the screw through the assembled base and secure it with an M3 nut (am-1023). Be sure not to crush the nylon spacer.

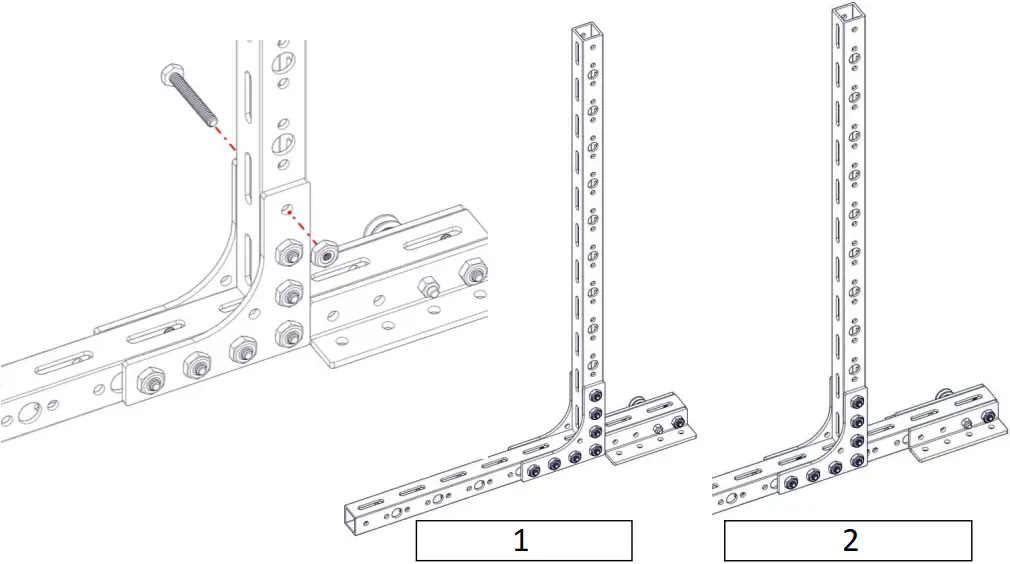

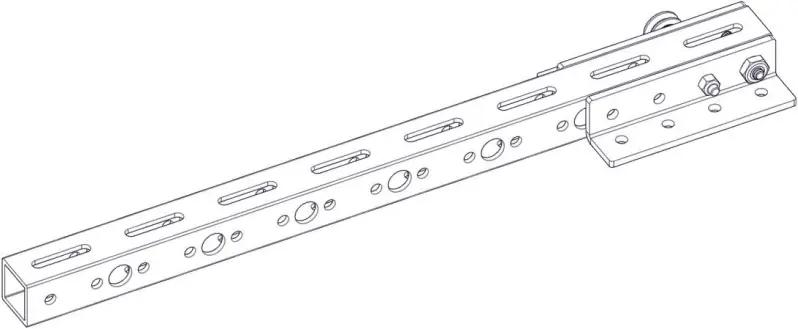

Step 13: Attach the longest 53 tube (am-3594-35A to the base created in step 6 by running seven 1″6-32 screws (am-1565) through the tube and two 90° gusset plates (am-3602) positioned on either side of the base. Secure with two 6-32 nuts (am-1419).

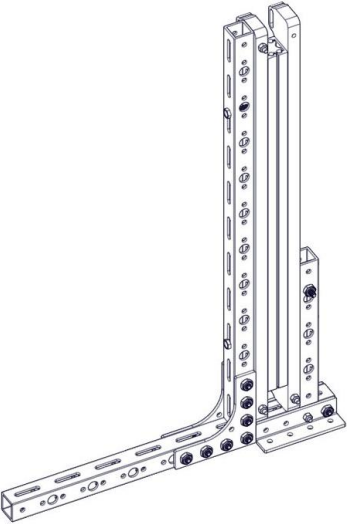

1. Default Configuration
2. Two-Stage Configuration

NOTE: If adding additional stages, shift the upright further away from the angle gusset by 2 holes for each additional stage.

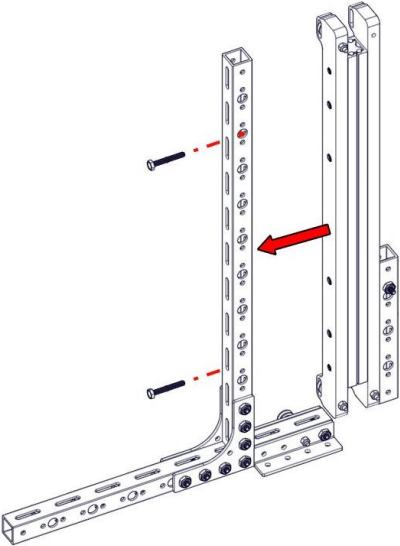

Step 14: Attach the completed slide assembly to the base assembly from step 8 using two 1″ 6-32 screws (am-1565) screwed into the threaded inserts in the first pulley mount as shown.

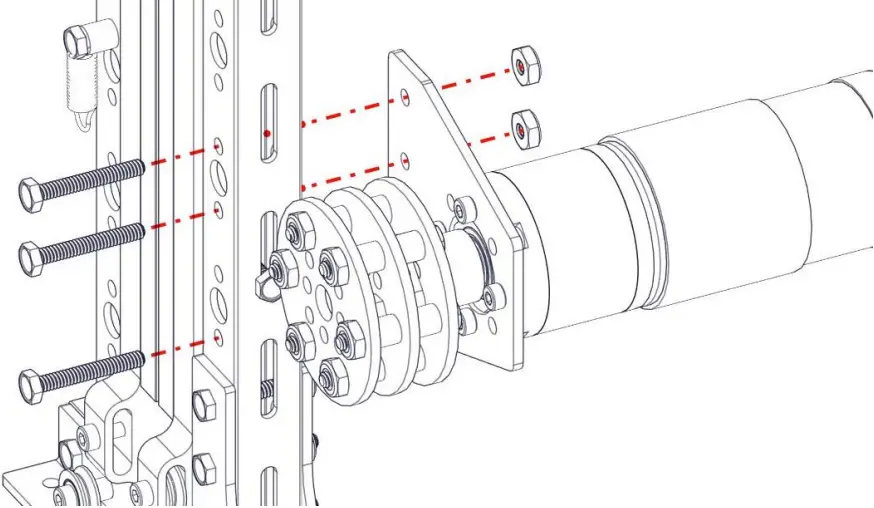

Step 15: Attach the completed motor assembly from step 5 to the main assembly with three 1″6-32 screws (am-1565) and secure with 6-32 nuts (am-1419).

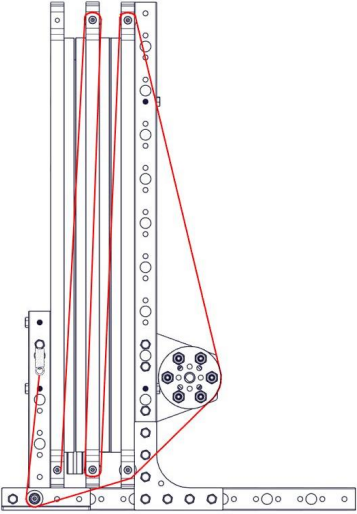

Step 16: To attach the string to the Compact Linear Slide and complete it for use, follow the instructions at the video available via the QR code below.


Default Configuration           Multi-Stage Configuration

9-9-2022
