SB-GM-5GSUV/10TW3 Stealthbox for 2021 Up
Chevrolet or GMC Full Size SUVs
Installation Guide
INSTALLATION GUIDE for the
SB-GM-5GSUV/10TW3
SKU# 94698
2021-Up Chevrolet / GMC Full-Size SUVs

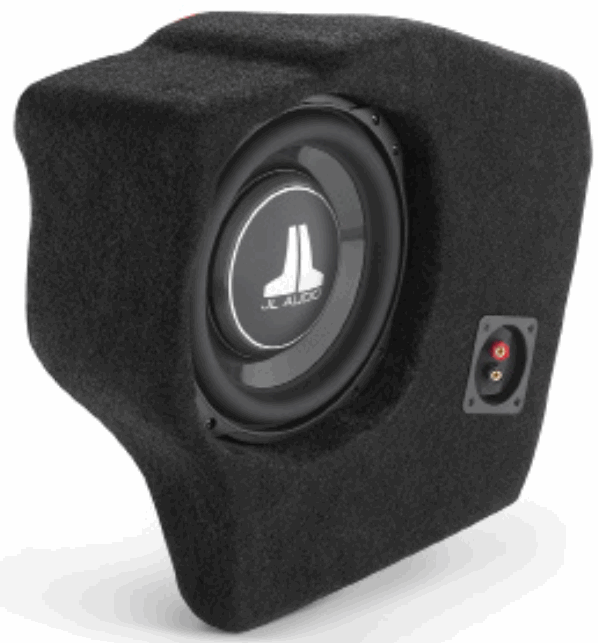

SB-GM-5GSUV/10TW3 Stealthbox for 2021 Up Chevrolet or GMC Full Size SUVs
Enclosure Type: Sealed
Driver Type: 10TW3-D4
Nominal Impedance: 2 ohms
Continuous Power Handling: 400 watts (RMS method)

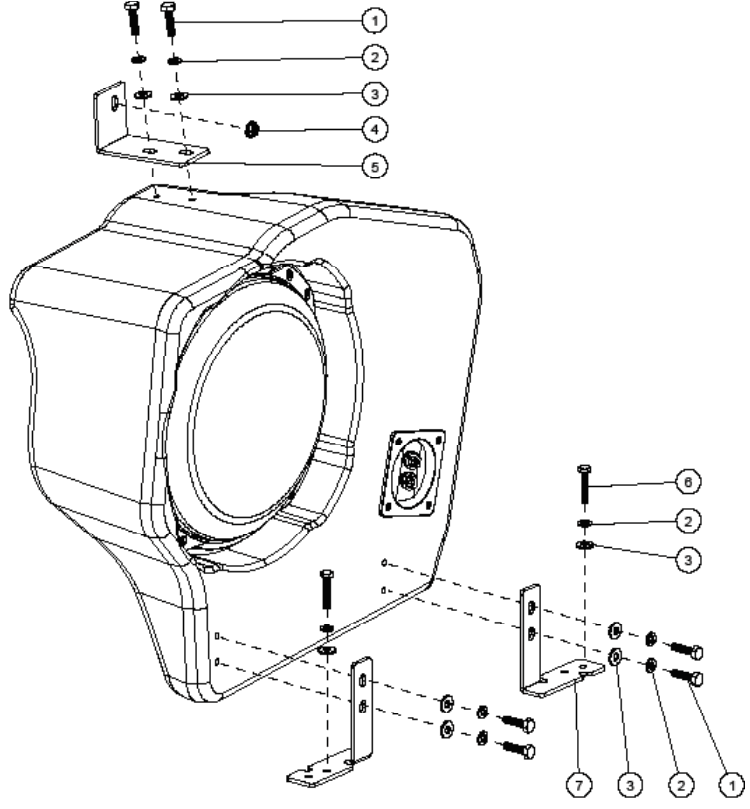

INCLUDED HARDWARE
| BOM ID | Qty | SKU | Description |
| 1 | 6 | 150042 | 1/4 – 20 x 1″ Hex Head Screw |
| 2 | 8 | 151098 | 1/4″ Split Lock Washer |
| 3 | 8 | 151021 | 1/4″ Flat Washer |
| 4 | 1 | 150074 | M6 -1 mm Serrated Flange Nut |
| 5 | 1 | 154446 | Top Bracket |
| 6 | 2 | 154446 | M6 -1 x 30 mm Hex Head Screw |
| 7 | 2 | 154447 | Bottom Bracket |
POWER RECOMMENDATION
JL Audio recommends high quality amplifiers such as the JL

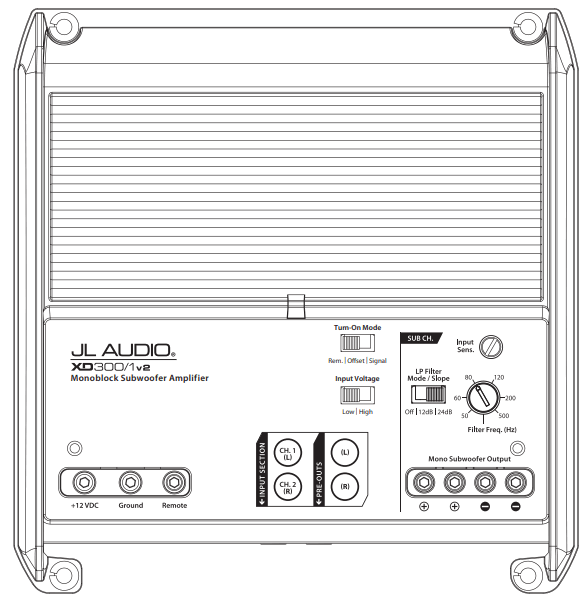

Audio XD300/1v2. The diagram below shows the recommended crossover settings for the XD300/1v2. For a detailed description of the amplifier settings, consult the owner’s manual for the amplifier. If another amplifier is being used, please reference this illustration and use similar settings on that amplifier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your Stealthbox® amplifier. Other kits are available should you be using more than one amplifier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for both channels of the amplifier. JL Audio recommends using 12 AWG speaker wire for subwoofers such as our XC-BCS12-25.
STEP 1

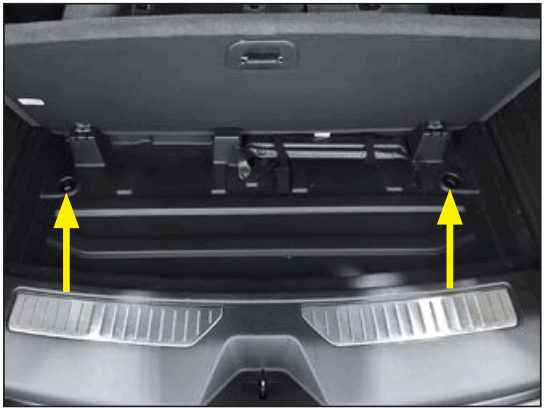

Flip the floor cargo door open. Unscrew and remove the two indicated plastic nuts.
STEP 2

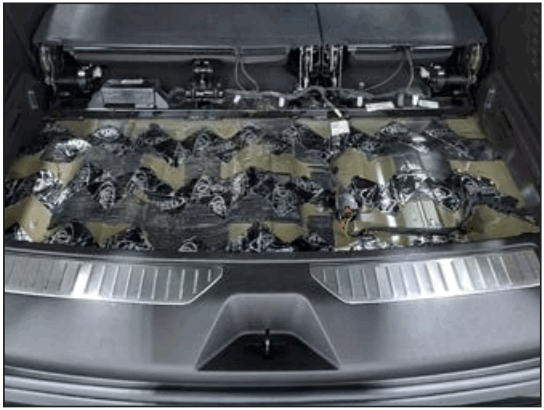

Lift the cargo floor from the vehicle and set aside.
STEP 3

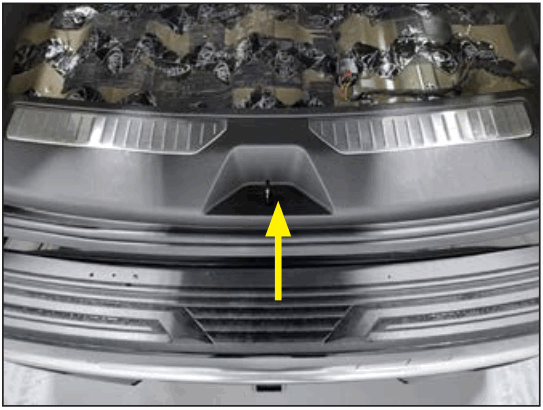

Pry and remove the plastic lock striker cover from the rear sill panel.
Unclip the rear sill panel’s perimeter clips and lift it from the floor. Set the panel aside.
STEP 4
Pry the indicated cargo loop bolt cover open, exposing the Torx bolt underneath. Remove the exposed Torx bolt.
Unscrew and remove the indicated plastic nut.
Pry and release the weatherstripping from the rear edge of the panel.
STEP 5
Pry and unclip the upper panel to release.
Remove the indicated bolt and detach the indicated bungee clip. Set the panel aside.
STEP 6

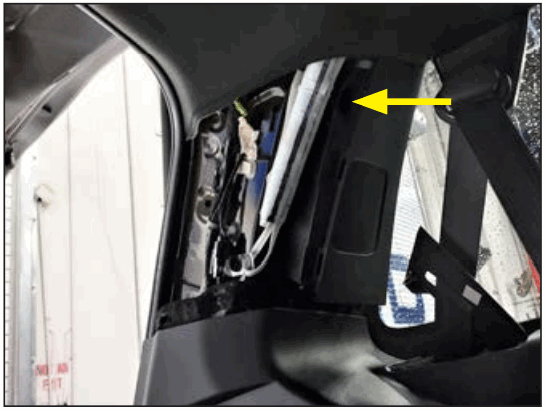

Remove the exposed bolt from the rear pillar speaker panel. Pry the panel to release it from the panel clips.
Disconnect the speaker harness from the rear of the pillar speaker and set the panel aside.
STEP 7

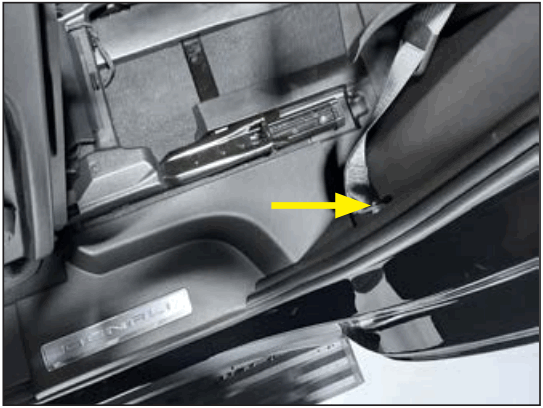

Release the seat belt bolt cover from the bottom of the driver side second row seat belt, exposing the bottom seat belt bolt. Remove the exposed lower seat belt bolt.
STEP 8

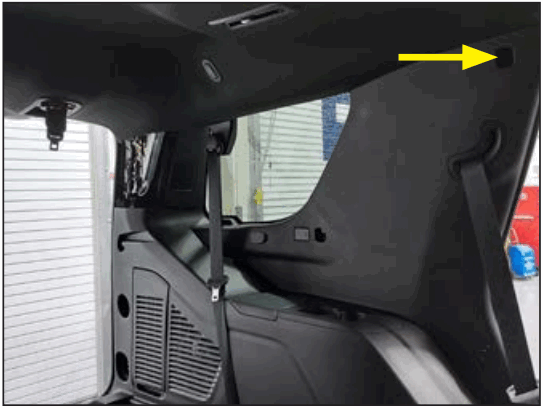

Pry and remove the indicated bolt cover from the panel, exposing the Torx bolt underneath. Remove the exposed Torx bolt.
Pry the panel from the vehicle, releasing it from the perimeter clips.
STEP 9

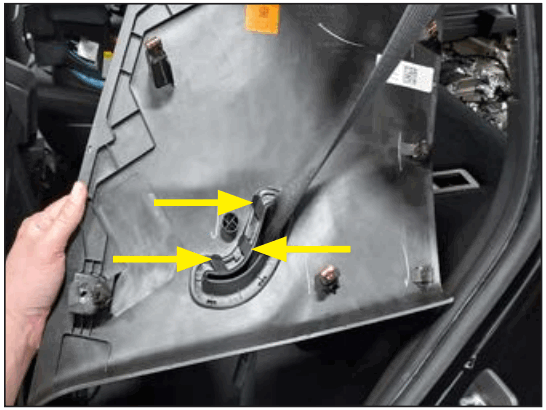

Flip the panel over that was removed in STEP 8. The seat belt guide trim is attached to the panel by plastic tabs. Carefully detach the seat belt guide trim from the panel by unlatching the plastic tabs.
Guide the unbolted seat belt bottom through the panel and set aside.
STEP 10
Remove the driver side rear door sill panel by prying it up from the floor, releasing it from the clips. Set the panel aside.
STE P 11
Unclip and remove the third row seatbelt guide panel.

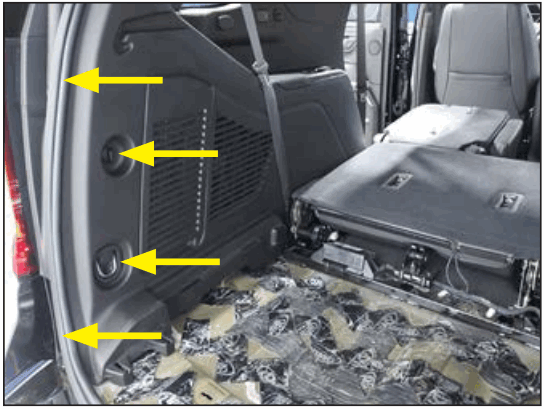

Unclip the rear panel from its perimeter mounting clips.
Note: If the vehicle is equipped with a rear panel USB port, unclip the USB port from the panel and disconnect its wiring harness.
STEP 12

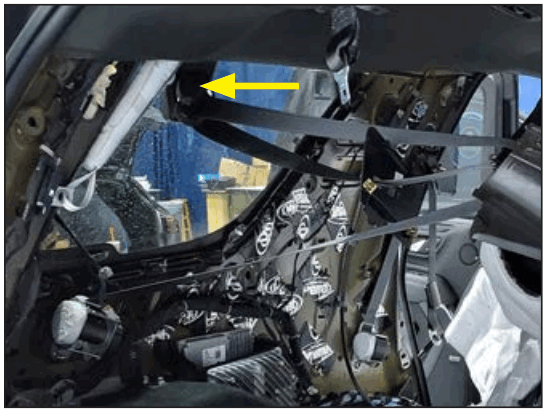

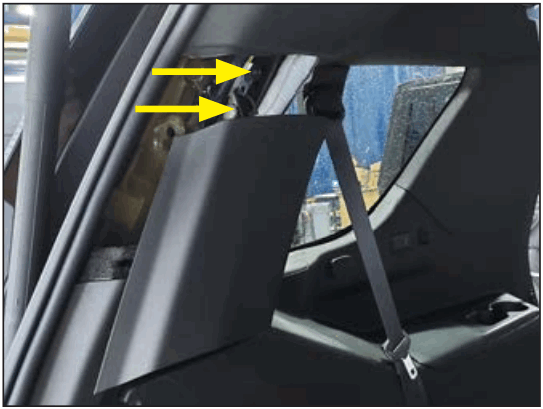

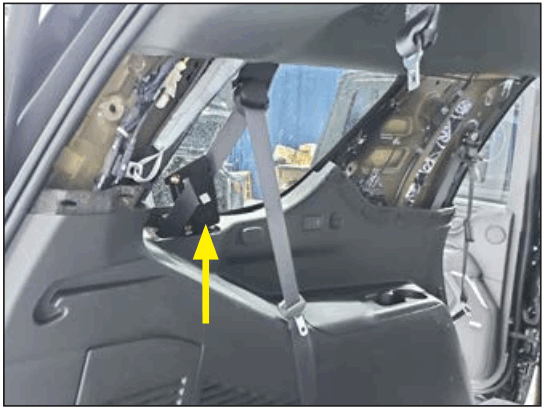

Open the third row seat belt upper bolt cover and remove the exposed bolt. Guide the third row seatbelt upper through the rear panel to free the panel from the vehicle completely.
Set the rear panel aside.
STEP 13

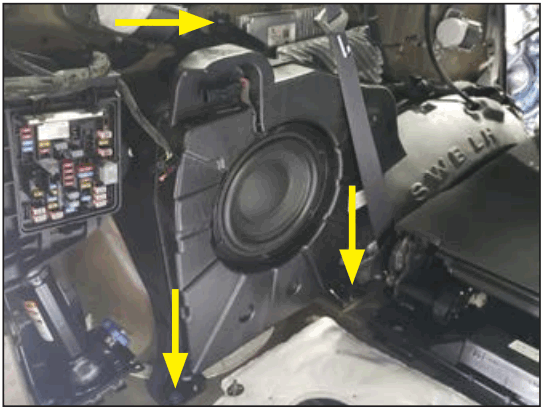

Uninstall the factory subwoofer by removing the single indicated nut from the top bracket and the two indicated bolts from the bottom brackets.
Disconnect the factory subwoofer wiring harness and set the factory subwoofer aside.
STEP 14
Create four screw assemblies by sliding a supplied 1/4” Lock Washer and 1/4” Flat Washer onto a 1/4 – 20 x 1” Hex Head screw.

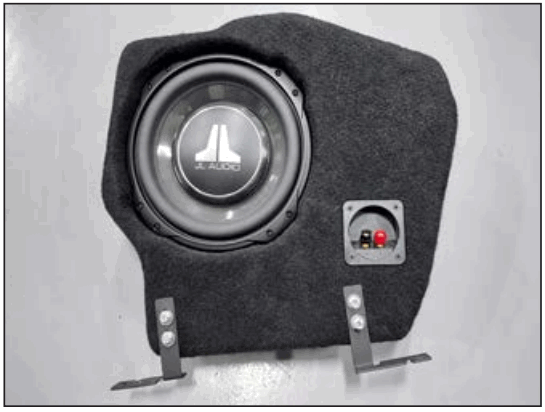

Referring to Page 2 as a guide, orient two Bottom Brackets as shown in the illustration. Pass two screw assemblies through each Bottom Bracket into the threaded inserts at the bottom of the Stealthbox® and hand tighten.
STEP 15

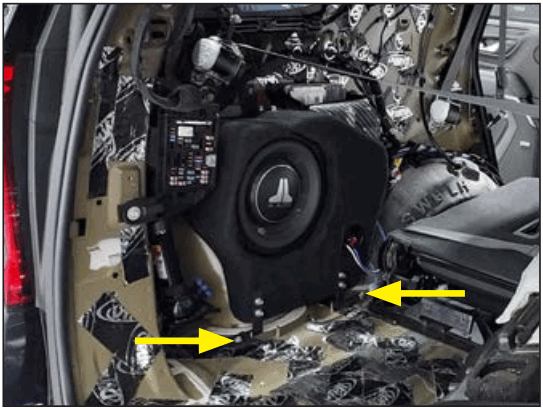

Place the Stealthbox® into the vehicle, aligning the Bottom Bracket notches to the factory floor studs as shown in the image.
STEP 16
Create two screw assemblies by sliding a supplied 1/4” Lock Washer and 1/4” Flat Washer onto a M6 – 1 x 30 mm Hex Head Screw.
Use the two assemblies to attach the Bottom Brackets to the factory subwoofer enclosure mounting bolt holes in the floor. Hand tighten the screw assemblies. Connect speaker cable to the terminal cup of the enclosure, and route the cable as necessary.
STEP 17
Create two screw assemblies by sliding a supplied 1/4” Lock Washer and 1/4” Flat Washer onto a 1/4 – 20 x 1” Hex Head screw.
Referring to Page 2 as a guide, orient the Top Bracket as shown in the illustration. Pass two screw assemblies through the Top Bracket into the threaded inserts at the top of the Stealthbox® and hand tighten.
STEP 18

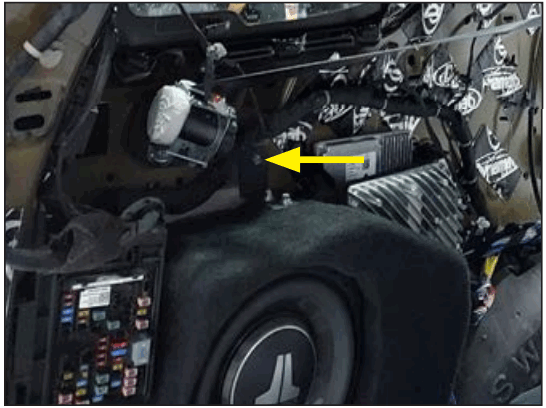

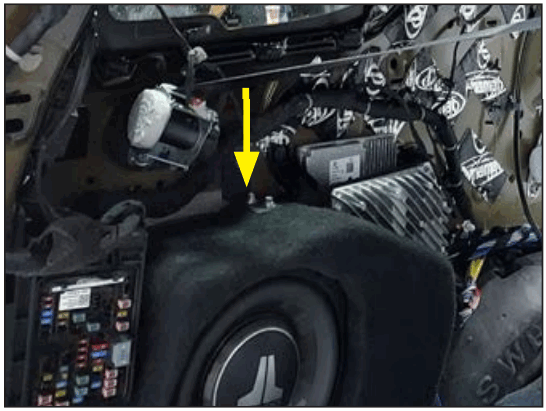

Align the top hole of the Top Bracket to the factory upper subwoofer enclosure mounting stud. Use the supplied M6 – 1 mm Serrated Flange Nut to attach the Top Bracket to the vehicle.
Once all mounting brackets are aligned, fully tighten all bracket screw assemblies to the enclosure and the Top Bracket M6 – 1 mm Serrated Flange Nut to the factory stud.
STEP 19
Reinstall all factory parts and panels.

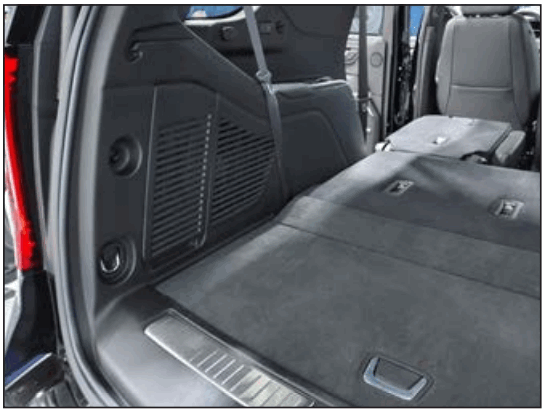

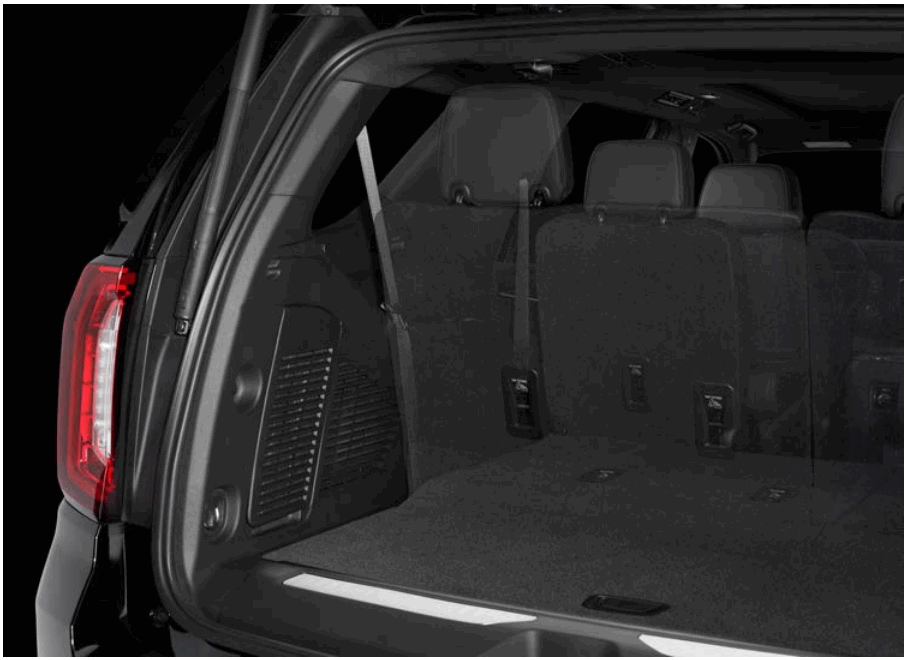

CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of your vehicle.
| Location / OEM Speaker Size | Suggested JL Audio Speaker Models | |
| Front Doors / 6 x 9-inch | Coaxial Models | Component Models |
| C-690x(1) , C1-690tx(1) , C2-690tx(1) C2-50x(1) , C5-650x(1) | C1-690(1) , C1-650(1), C2-650(1), C3-650(1), C5-650(1), C7-650cw(1,2) | |
| Rear Doors / 6.5-inch | C1-650x, C2-650x, C5-650x | C1-650, C2-650, C3-650, C5-650, C7-650cw(2) |
1 – Installation may require adaptor, 2 – Component woofer only
IMPORTANT
- Installation requires appropriate tools and safety equipment.
Professional installation is recommended. - If you prefer to perform your own installation, please read this installation guide completely before beginning.
- Before cutting or drilling, check for potential obstacles behind mounting surfaces.
- Mount this product securely to prevent damage or injury in severe conditions.
