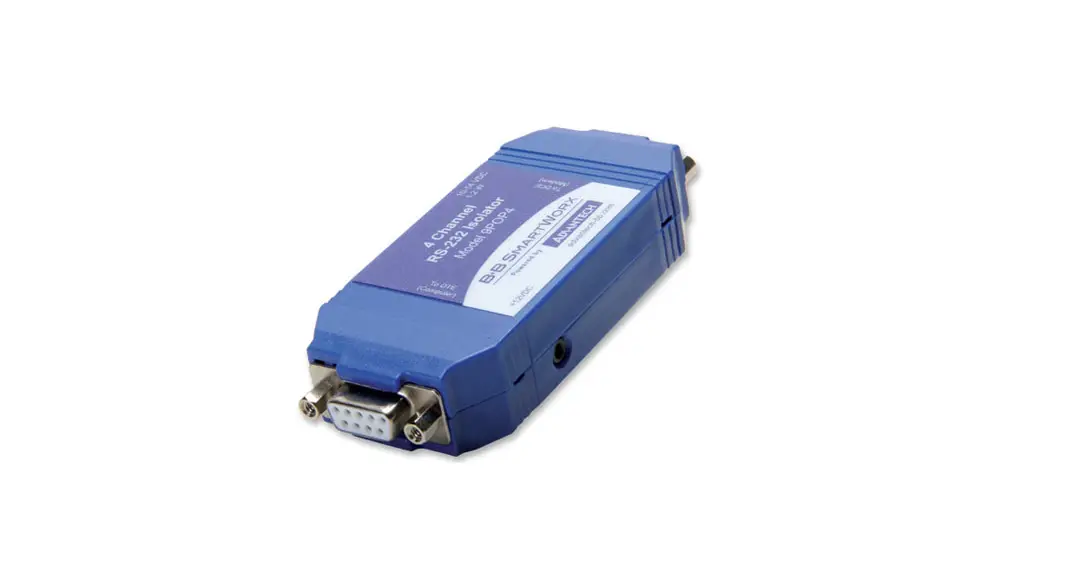

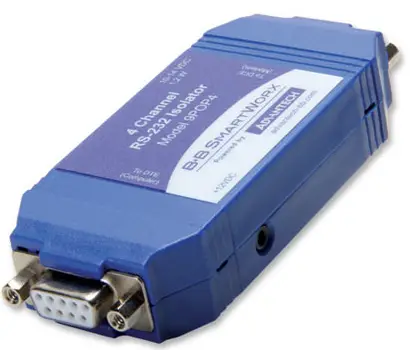

Advantech 9pop4 Rs-232, 4-channel Optical Isolator User Guide (+ PDF)

Contents hide

Before you begin, be sure you have the following:

DTE stands for “Data Terminal Equipment.” DTE include computers, PLC’s, and most devices which are not used to extend communications. (Think COMPUTER for DTE.)
DCE stands for “Data Communications Equipment.” DCE includes devices intended to plug directly into a DTE port; modems or devices that extend communications like a modem, such as RS-422, RS-485, or fiber optic converters or radio modems. (Think MODEM for DCE.)

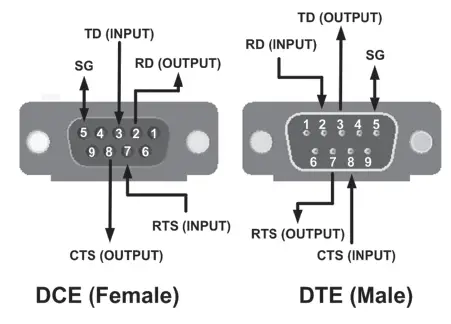

On the DCE (female) side, Pins 1, 4, and 6 are tied together internally.
On the DTE (male) side, Pins 4 and 6 are tied together internally.

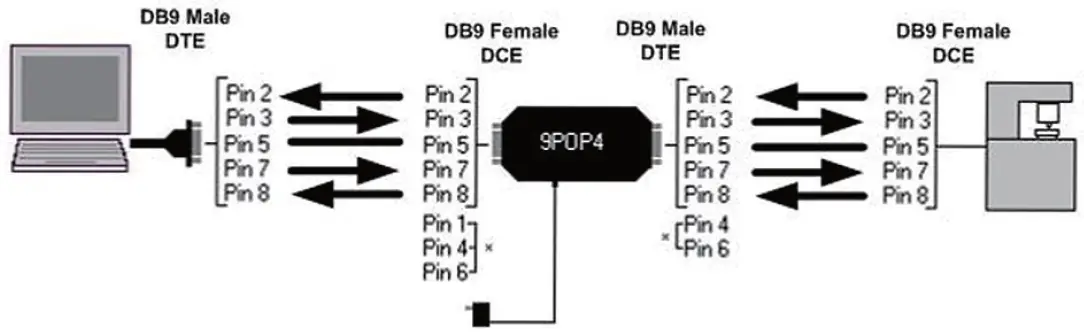

Wiring Example

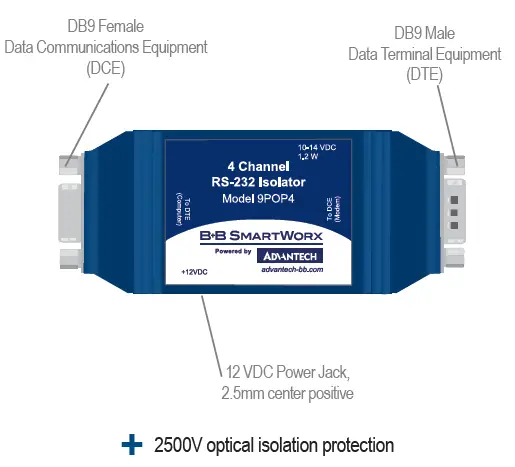

The two sides of the isolator are powered from a single +12VDC power supply and maintain isolation. This powering configuration allows the device to be run in any system with only a single power supply, regardless of the power levels on the RS-232 ports.
In order to maintain the required isolation, use the recommended power supply. Using an unregulated power supply may negate the isolation.
Recommended power supply: Model SMI6-12-V-P230-C1 (available from Advantech B+B SmartWorx).

Use a DB9 female to DB9 male cable to connect a PC to the DCE port.
(Recommended) Connect a DB9 female to DB9 female cable to the DTE port.

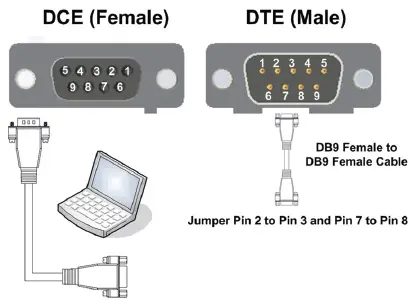

On the DTE Port, jumper Pin 2 to Pin 3 and Pin 7 to Pin 8 on the female end of the cable. This loops TD to RD and CTS to RTS.
Using hyper-terminal or a similar program, connect to the appropriate COM port (remember to set the baud rate to 9600).Turn off hyper terminal local echo
Transmit data. The same data should be returned.

Recommended Accessories

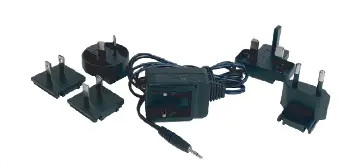

Model BB-SMI6B12V-P230 C1 12 VDC Power Supply, International AC Input & Blades
