Universal HVAC Parts & Accessories
REPLACEMENT PARTS LIST
DUCTFREE MINI-SPLIT SYSTEM
UNIVERSAL HEAT PUMP MODEL
GHH18(5.3)LUK4DH
Instructions
GHH185.3LUK4DH Duct Free Mini-Split System

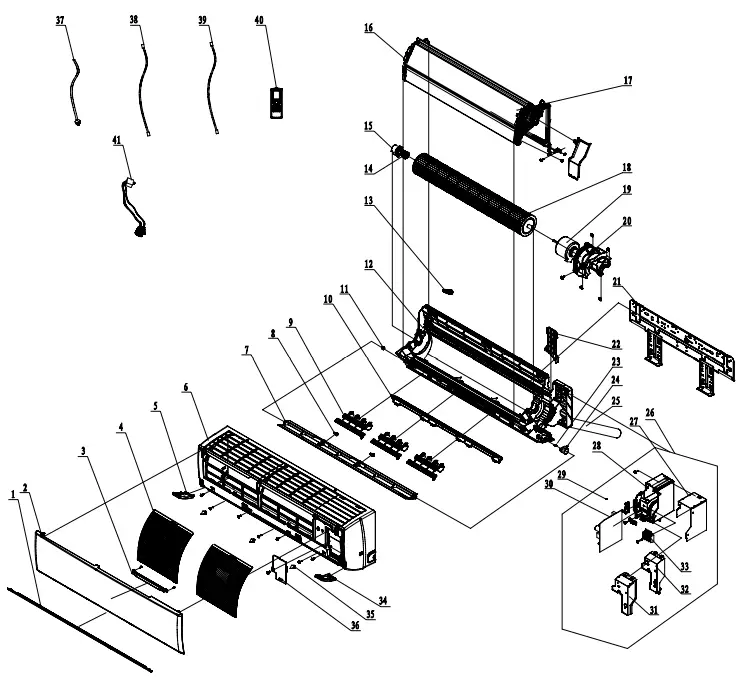

| ITEM # | COMPONENT |
| 1 | DECORATIVE STRIP |
| 2 | FRONT PANEL |
| 3 | DISPLAY BOARD |
| 4 | FILTER SUB-ASSY |
| 5 | DECORATIVE BOARD (RIGHT) |
| 6 | FRONT CASE ASSY |
| 7 | GUIDE LOUVER |
| 8 | AXILE BUSH |
| 9 | AIR LOUVER(MANUAL) |
| 10 | HELICOID TONGUE |
| 11 | LEFT AXILE BUSH |
| 12 | REAR CASE ASSY |
| 13 | RUBBER PLUG (WATER TRAY) |
| 14 | 0-GASKET SUB-ASSY OF BEARING |
| 15 | RING OF BEARING |
| 16 | EVAPORATOR SUPPORT |
| 17 | EVAPORATOR ASSY |
| 18 | CROSS FLOW FAN |
| 19 | BLOWER MOTOR |
| 20 | MOTOR PRESS PLATE |
| 21 | WALL MOUNTING FRAME |
| 22 | CONNECTING PIPE CLAMP |
| 23 | CRANK |
| 24 | STEPPING MOTOR |
| 25 | DRAINAGE HOSE |
| 26 | ELECTRIC BOX ASSY |
| 27 | LOWER SHIELD OF ELECTRIC BOX |
| 28 | ELECTRIC BOX |
| 29 | JUMPER |
| 30 | MAIN BOARD |
| 31 | SHIELD COVER OF ELECTRIC BOX |
| 32 | ELECTRIC BOX COVER |
| 33 | TERMINAL BOARD |
| 35 | SCREW COVER |
| 36 | ELECTRIC BOX COVER2 |
| 40 | REMOTE CONTROLLER |
GHH18(5.3)LUK4DH
| PART DESCRIPTION | PART CODE | NORTEK PART NUMBER | |
| 2 | Front Panel | 20000300040T | 1032433 |
| 3 | Display Board | 30565278 | 1008336 |
| 4 | Filter Sub-Assy (Filters) | 1112208904 | 1014086 |
| 5 | Decorative Board (Right) | 20192662 | 1028806 |
| 6 | Front Case Assy | 200042 | 1028851 |
| 7 | Guide Louver | 1051276501 | 1028862 |
| 8 | Axile Bush | 10542036 | 1025086 |
| 9 | Air Louver(Manual) | 10512732 | 1028747 |
| 10 | Helicoid Tongue | 26112512 | 1028865 |
| 11 | Left Axile Bush | 10512037 | 1028872 |
| 12 | Rear Case assy (Drain Pan) | 22202571 | 1032348 |
| 13 | Rubber Plug (Water Tray) | 76712012 | 1025142 |
| 14 | 0-Gasket Sub-Assy Of Bearing | 7651205102 | 1025066 |
| 15 | Ring Of Bearing | 26152025 | 1025108 |
| 16 | Evaporator Support | 24212177 | 1028849 |
| 17 | Evaporator Coil Assy | 1100100085 | 1025112 |
| 18 | Cross Flow Fan (Blower Wheel) | 10352060 | 1014029 |
| 19 | Blower Motor | 15012136 | 1008326 |
| 20 | Motor Press Plate | 26112511 | 1032349 |
| 21 | Wall Mounting Frame | 1362026 | 1032350 |
| 22 | Connecting Pipe Clamp | 2611218801 | 1028795 |
| 23 | Crank | 73012005 | 1028802 |
| 24 | Stepping Motor (Louver Motor) | 1521240212 | 1014023 |
| 25 | Drainage Hose | 5230014 | 1028812 |
| 26 | Electric Box Assy | 10000202930 | 1028833 |
| 27 | Lower Shield of Electric Box | 1592139 | 1032351 |
| 28 | Electric Box | 2011221102 | 1028819 |
| 29 | Jumper | 4202021924 | 1028870 |
| 30 | Main Board | 30138000318 | 1014002 |
| 31 | Shield Cover of Electric Box | 1592176 | 1032352 |
| 32 | Electric Box Cover | 2011220901 | 1028838 |
| 33 | Terminal Block | 42011233 | 1025146 |
| 35 | Screw Cover | 2425201726 | 1032353 |
| 36 | Electric Box Cover2 | 2011221001 | 1028841 |
| 40 | Remote Controller | 30510475 | 1013845 |
| Wired Controller (Not Shown) | MC207 00970 | 1009614 | |
| Temperature Sensor (Not Shown) | 3900031302 | 1013965 | |
| Remote Control Holder, YAN1 F (Not Shown) | 26150009 | 1014068 |
D3140960
(NEW)
Specifications & illustrations subject to change without notice or incurring obligations (11/22).
O’Fallon, MO, © Nortek Global HVAC LLC 2022. All Rights Reserved.
