NORTEK GHH308.8LUK4DH Duct Free Mini-Split System

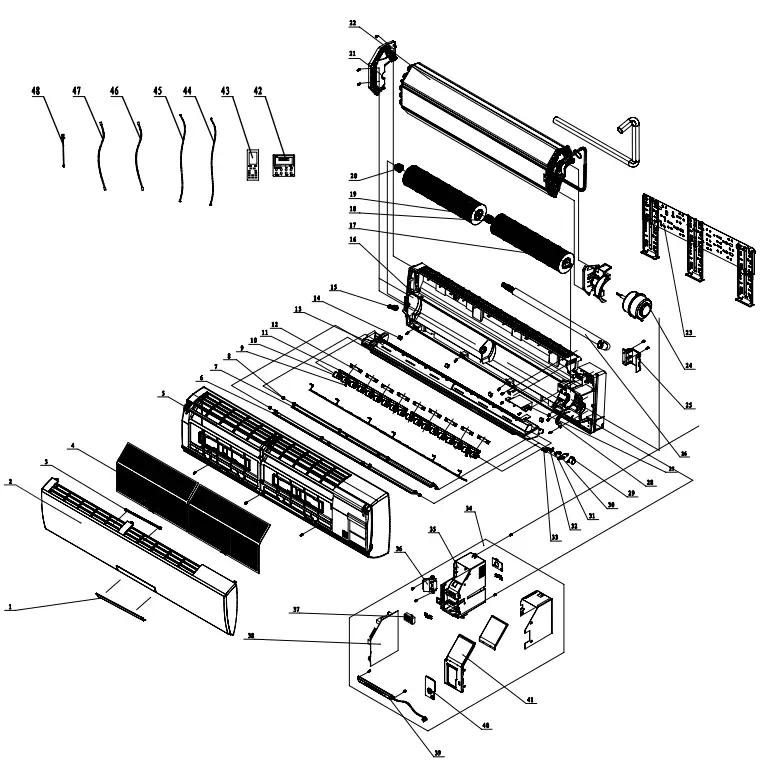

Components
- RECEIVER WINDOW
- FRONT PANEL
- STAND BAR
- FILTER SUB-ASSY
- FRONT CASE SUB-ASSY
- UPPER GUIDE LOUVER
- LOWER GUIDE LOUVER
- AXILE BUSH
- AIR LOUVER 2
- AIR LOUVER 1
- CONNECTING ROD
- LOUVER CLAMP
- SCREW COVER
- RUBBER PLUG (WATER TRAY)
- REAR CASE ASSY
- CROSS FLOW FAN 1
- BEARING HOLDER SUB-ASSY
- CROSS FLOW FAN 2
- O-GASKET SUB-ASSY OF BEARING
- LEFT EVAPORATOR SUPPORT
- EVAPORATOR ASSY
- WALL MOUNTING FRAME
- BLOWER MOTOR
- PIPE CLAMP
- DRAINAGE HOSE
- COVER PLATE
- MOTOR FIXED CLIP 1
- STEPPINGMOTOR
- PRESS PLATE(CRANK)
- CRANK-GUIDE
- UPPER CRANK
- LOWER CRANK
- ELECTRIC BOX ASSY
- ELECTRIC BOX
- TERMINAL BOARD
- MAIN BOARD
- DISPLAY BOARD
- ELECTRIC BOX COVER
- ELECTRIC BOX COVER
- DISPLAY BOARD
- REMOTE CONTROLLER
- SIGNAL WIRE
- TEMPERATURE SENSOR
- TEMPERATURE SENSOR
REPLACEMENT PARTS LIST
- DUCTFREE MINI-SPLIT SYSTEM
- UNIVERSAL HEAT PUMP MODEL
- GHH30(8.8)LUK4DH
GHH30(8.8)LUK4DH
| PART DESCRIPTION | PART CODE | NORTEK PART NUMBER | |
| 1 | Receiver Window | 22430024 | 1032368 |
| 2 | Front Panel | 20000300022S | 1025097 |
| 3 | Stand Bar | 2421212001 | 1025109 |
| 4 | Filter Sub-Assy (Filters) | 11122106 | 1028711 |
| 5 | Front Case Sub-Assy | 20900700005 | 1028854 |
| 6 | Upper Guide Louver | 1051216601 | 1032370 |
| 7 | Lower Guide Louver | 1051216701 | 1032371 |
| 8 | Axile Bush | 10542704 | 1028750 |
| 9 | Air Louver 2 | 1051216902 | 1017023 |
| 10 | Air Louver 1 | 1051216802 | 1017022 |
| 11 | Connecting Rod | 10582086 | 1028797 |
| 12 | Louver Clamp | 26112158 | 1032385 |
| 14 | Screw Cover | 2425200506 | 1032375 |
| 15 | Rubber Plug (Water Tray) | 76712012 | 1025142 |
| 16 | Rear Case Assy | 00000100113 | 1032376 |
| 17 | Cross Flow Fan (Blower Wheel) 1 | 10352039 | 1025063 |
| 18 | Bearing Holder Sub-Assy | 26152028 | 1025064 |
| 19 | Cross Flow Fan (Blower Wheel) 2 | 10352040 | 1025065 |
| 20 | O-Gasket Sub-Assy Of Bearing | 76512051 | 1025066 |
| 21 | Left Evaporator Support | 24212041 | 1028873 |
| 22 | Evaporator Coil Assy | 01002000027 | 1025062 |
| 23 | Wall Mounting Frame | 01252398 | 1025067 |
| 24 | Blower Motor | 1501213401 | 1014013 |
| 25 | Pipe Clamp | 26112071 | 1032377 |
| 26 | Drainage Hose | 0523001404 | 1025068 |
| 27 | Cover Plate | 2012212402 | 1028801 |
| 28 | Motor Fixed Clip 1 | 26112324 | 1032378 |
| 29 | Stepping Motor (Louver Motor) | 1521210701 | 1014021 |
| 30 | Press Plate(Crank) | 26112070 | 1032379 |
| 31 | Crank-Guide | 10582041 | 1028803 |
| 32 | Upper Crank | 10562004 | 1032380 |
| 33 | Lower Crank | 10562005 | 1032387 |
| 34 | Electric Box Assy | 10000202639 | 1028830 |
| 35 | Electric Box | 201022502 | 1028818 |
| 37 | Terminal Block | 42011233 | 1025146 |
| 38 | Main Board | 30138000192 | 1014004 |
| 39 | Display Board | 30565277 | 1008335 |
| 40 | Electric Box Cover | 201022523 | 1028836 |
| 41 | Electric Box Cover | 2011204404S | 1028837 |
| 42 | Wired Controller | MC20700970 | 1009614 |
| 43 | Remote Controller | 30510475 | 1013845 |
| 46 | Signal Wire | 4001024503 | 1032388 |
| 47 | Coil Temperature Sensor | 390000592 | 1004001 |
| 48 | Ambient Temperature Sensor | 390000453 | 1008342 |
| Remote Control Holder, YAN1F (Not Shown) | 26150009 | 1014068 |
