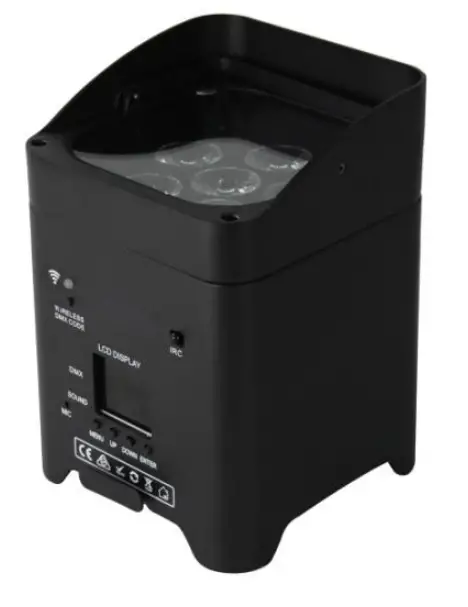

V-show 6*18w Rgbwa+uv 6in1 Battery/wireless Dmx/wifi/remote Led Up Light User Manual

6*18W RGBWA+UV 6in1 Battery/wireless
DMX/WIFI/Remote LED Up light

User Manual

Most important: FIRST CHARGE THE FIXTURES FOR 6-8 Hours on the First Charge before use. Plug-in Power cord. Turn off Power Switch and Turn off another switch to charge.

Introduction

Unpacking: Thank you for purchasing this product, all products have been thoroughly tested and have been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit have arrived intact. In the case, the damage has been found or parts are missing, please contact the manufacturer or your dealer for further instructions. Do not return this unit to your dealer without first contacting. Introduction: This par light is a DMX intelligent and battery-powered LED par light. This par light is lightweight and compact which makes it a great piece for mobile DJ‟s and clubs. Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or
moisture.
Caution! There are no user-serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufactures warranty. In the unlikely event your unit may require service please contact the manufacturer or your dealer. PLEASE recycle the shipping carton whenever possible.
General Instructions
To optimize the performance of this product, please read these operating instructions carefully to familiarize you with the basic operations of this unit. These instructions contain important safety information regarding the use and maintenance of this unit. Please keep this manual with the unit, for future reference.

Features

• Input Voltage: AC110V-250V 50-60Hz
• Light source: 6pcs18W high brightness 6 in 1LED
• Lamp life: 6-10 ten thousand hrs
• Lens angle:25 degree
• Color: 16.7 million kinds of color change
• Channels: 6/10 CH
• Control mode: DMX512,Master/Slave,Auto,Sound active,Remote,Wifi
• Automatic model(by function button) : color change, color strobe, color dimmer, color gradual
• change/color jump change
• Lithium Battery Capacity: 8800MAH
• Control Board: LCD Display
• size: 140*140*200mm
• N.W: 2.7kg
• G.W: 3.2kg

Safety Precautions

• To reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture.
• Do not spill water or other liquids into or onto your unit.
• Be sure that the local power outlet matches the required voltage for your unit.
• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to remove or break off the ground prong from the electrical cord. This prong is used to reduce the risk of electrical shock and fire in case of an internal short.
• Disconnect from the main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user-serviceable parts inside.
• Never operate this unit when it‟s cover is removed.
• Never plug this unit into a dimmer pack.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only; the use of this product outdoors voids all warranties.
• During long periods of non-use, disconnect the unit‟s main power.
• Always mount this unit in a safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See “Cleaning” for details.
• Heat -The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
  A. The power-supply cord or the plug has been damaged.
  B. Objects have fallen, or liquid has been spilled into the appliance.
  C. The appliance has been exposed to rain or water.
  D. The appliance does not appear to operate normally or exhibits a marked change in performance
• Fuse standard is 2A/250V
• Grounded using yellow/green line
• The ambient temperature must always be under +35° C

Set-Up
Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the required voltage for your light is workable in 100-220V/50~60Hz. Because line voltage may vary from venue to venue, you should be sure your unit voltage matches the wall outlet voltage before attempting to operate your fixture.

Operating Instructions

Operating Modes: You can use the in 5 ways:

• Sound activation – The unit will be activated by the sound signal.
• Static display – The unit will display the color in a static way.
• Auto Mode -The unit will automatically chase through the different patterns.
• DMX control mode -This function will allow you to control the lighting with a standard DMX 512 controller.
• Battery powered – This function will allow you to control the lighting independently without any DMX cable

DMX Mode: Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. This function also allows you to use your fixtures as pattern-changing lights.

1. This function will allow you to control each individual fixture’s traits with a standard DMX 512 controller.
2. The par light uses 6/10 DMX channels to operate. Please see “DMX channel and Functions” for the DMX traits.
3. To run your fixture in DMX mode, plug in the fixture via the XLR connections to any standard DMX controller. Set your desired DMX address following the setup specifications that come with your DMX  controller.
4. The unit can automatically recognize the DMX signal once the DMX connection is done.

DMX Linking:
To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed anywhere in a
DMX line, in the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain.

6CH Mode

10CH Mode

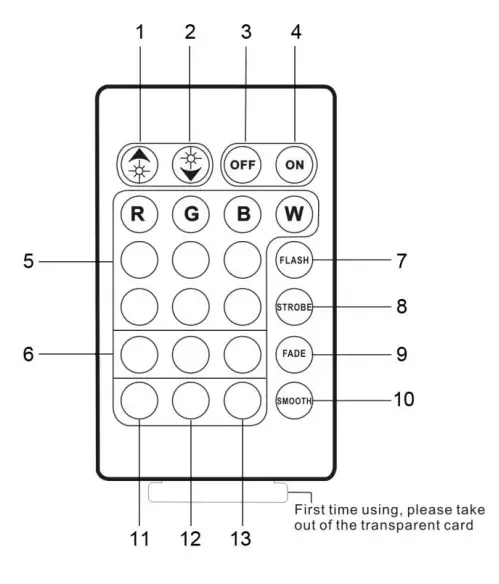

Infrared remote control function:

attention：
1）In a place as long as the infrared function to open a lamp
2)At the same time and console infrared can only choose a control mode (infrared to operate in the host mode);

operation declaration

1. relieve IRC
2. no function
3. turn off
4. turn on
5. setting color
6. user-defined color
7. color sudden
8. strobe
9. color fade
10. color jump
11. slow
12. uniform speed
13. fast

Product features:

DMX512 console control, via signal cable or wireless dmx 2.4G
WIFI phone operation control supports Android 2.3 or above, Apple 4. 3 or above(this feature applies to the motherboard)
Phone App Name: LED HOME language: software automatically recognizes Chinese or English according to the system
Static color choices(6 colors, dimming 0-255)+strobe function(speed adjustable 0-20
Macro color: 32 colors available
Color automatically jump function (speed adjustable 1-2
Color mutations function(speed adjustable 1-20)
Strobe with red, green, blue-white amber, or(speed adjustable 1-20 3 of sound modes (ump. jump+gradient, strobe)+sound sensitivity(0-100)can be adjusted via control
panel or remote control 2.4G wireless electronic switch can be turned on or off via the menu, whether there is know whether turned on or off the wireless module through the upper left corner icon
Wifi module electronic switches will be turned off automatically when exiting of mode to sav White balance settings brightness 6 colors to make the appropriate adjustment(also fin-tune the current role ) a value of(127-255)
The top right see battery icon by setting on or off icons appear, such as product without battery, can be set OFF
Open the two-dimensional code in the WIFI scanner to download the app of the mobile phone. It is more convenient to connect the WIFI control of lamps and lanterns.

http://www.hao2b.cn/72821

FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20cm between the radiator and your body.
