EZ SERIES® PLUGGER CONTROL PANEL
Convenient Wiring Connection for Pump
Easy to install control panel provides convenient wiring connection for use with one single phase pump in effluent and sewage installations.

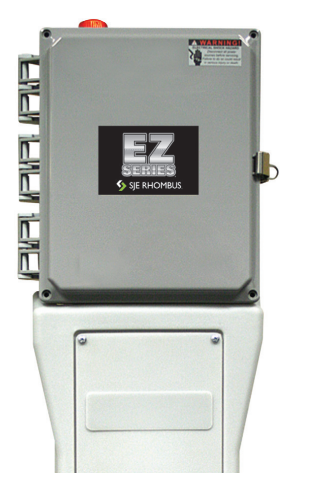

The EZ Series® Plugger control panels feature a sleek easy to install panel and optional mounting post. The panel includes a built-in high water alarm with test/ normal/silence switch and incorporates a receptacle to accept 120 VAC or 240 VAC pump and piggy-back pump switch.
Models with the optional post include a removable access door and cord seal which allow piggy-back and pump plugs to be easily routed and sealed into the panel. The post can be mounted in the ground directly, over a 4X4, or over conduit. The panel is also available with optional duo alarm and auxiliary contacts to meet the needs of various applications.
COMPONENTS

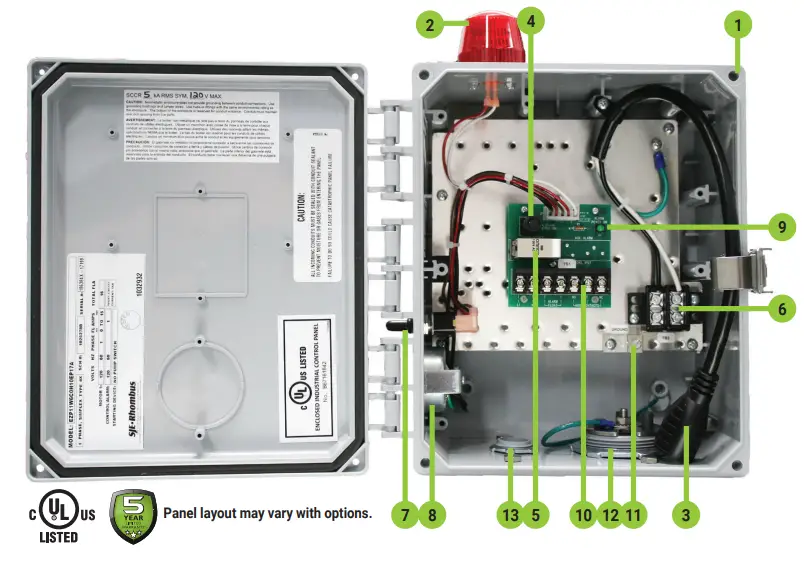

- Enclosure measures 10 x 8 x 6 inch (25.40 x 20.30 x 15.2 cm) with removable mounting feet, NEMA 4X rated, ultraviolet stabilized thermoplastic for indoor and outdoor use; includes locking latch as standard
- Red LED beacon provides 360° visual check of alarm condition
- Receptacle for use with piggy-back pump switch
- Alarm fuse (mounted on circuit board)
- Horn silence relay (mounted on circuit board)
- Pump circuit terminal block
- Exterior Alarm Test/Normal/Silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared
- Alarm horn provides audio warning of alarm condition (83 to 85 decibel rating)
- Alarm Power indicator (mounted on circuit board)
- Alarm circuit terminal block (mounted on circuit board)
- Ground lug
- Custom engineered liquid tight 2″ cord seal
- Incoming pump power 3/4″ hub
Note: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel.
OPTIONAL FEATURES
- 34″ mounting post with cord seal
- Duo Alarm
- Elapsed Time Meter (See Accessories catalog page for information.)
- Various cord lengths available
- Pump circuit breaker
- Auxiliary contacts
EZ SERIES® PLUGGER – Provides convenient wiring connection for use with one single phase 120V or 230V pump in effluent and sewage installations.
CONTROL PANEL  | EZP | ||||
| MODEL TYPE | 1 | 120V (includes Option 10E as standard) | $498.00 | ||
| 2 | 240V (includes Option 10E as standard) | $619.00 | |||
| 0 | No Alarm Package | – $39.00 | |||
| ALARM PACKAGE | 1 | Alarm Package (includes test/normal/silence switch, red light, & horn) | Base | ||
| ENCLOSURE RATING | W | Weatherproof, NEMA 4X (engineered thermoplastic) | Base | ||
| 2 | SJE PumpMasters Plus Pump Switch (0-15 FLA) | $80.00 | |||
| STARTING DEVICE | 6 7 | No Pump Switch | Base | ||
| 120V Double Floats Master Pump Switch (0-15 FLA) | $119.00 | ||||
| 8 | 240V Double Floats Master Pump Switch (0-15 FLA) | $119.00 | |||
| A | SJE MicroMasters Plus WS Pump Switch (0-13 FLA) | $59.00 | |||
| PUMP FULL LOAD AMPS | | C | 0 -15 FLA | Base | |
| PUMP DISCONNECTS | 0 | No Pump Disconnect | Base | ||
| 4 | Circuit Breaker | 120V | $43.00 | ||
| 240V | $86.00 | ||||
| FLOAT SWITCH | H | Floats – Pump Down (select Option 17 below) | Base | ||
| APPLICATION | X | No Alarm Floats | – $34.00 | ||
PRICING WORKSHEET
BASE PRICE
EZ Plugger 120V – $498.00
EZ Plugger 240V – $619.00
EZ Plugger Base Price ———–
Alarm Package ———–
Enclosure Rating ————
Starting Device ———-
Pump Full Load Amps ———-
Pump Disconnects ———–
Float Switch Application ————-
Total Options ————-
TOTAL LIST PRICE ———–
| OPTIONS | DESCRIPTION | LIST PRICE | ||
| 1J | Duo Alarm Inputs | with Alarm | $91.00 | |
| without Alarm | $34.00 | |||
| 1V | Vertical Reed Switch (must also select Option 1 J) | $86.00 | ||
| 6A | Auxiliary Alarm Contact, Form C | $21.00 | ||
| 8G | ETM with Piggy-Back | $112.00 | ||
| 10E | Lockable Latch – NEMA 4X (included as standard) | $0.00 | |
| 10P | Mounting Post (Factory installed, includes Cord Seal) | $175.00 | ||
| 11 C | Additional NEMA 1 Remote Alarm Panel (must also select Option 6A) | $114.00 | ||
| 11G | Additional NEMA 3R Alarm Panel (Tank Alert’ EZ Duo) (must also select Option 1J) | $164.00 | ||
| OPTIONS | DESCRIPTION | LIST PRICE | |
| 16A | 10′ Cord in Lieu of 20′ Cord (per Float) Does not apply to Double Float’ Master pump switch | –$3.00 | |
| 16B | 15′ Cord in Lieu of 20′ Cord (per Float) | –$2.00 | |
| 16C | 30′ Cord in Lieu of 20′ Cord (per Float) | $6.00 | |
| 16D | 40′ Cord in Lieu of 20′ Cord (per Float) | $18.00 | |
| 17A | SJE SignalMaster / Pipe Clamp (Alarm Float Only) – Mechanical | –$3.00 | |
| 22C | 2″ Hub Installed with Cord Seal | $72.00 | |
| 22 F | Riser Mounting Kit | $72.00 |
