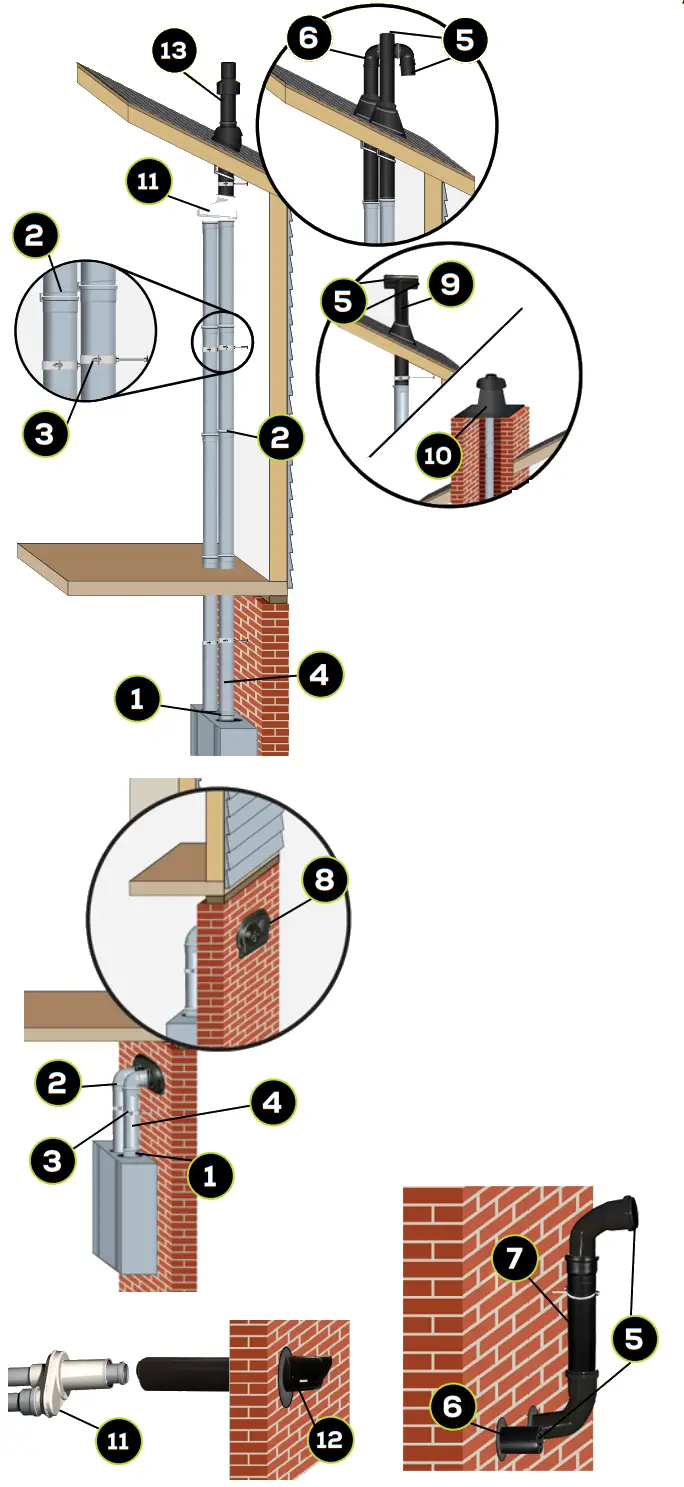

InnoFlue Polypropylene Vent Systems:
Installation Quick Guide
Polypropylene Vent Systems

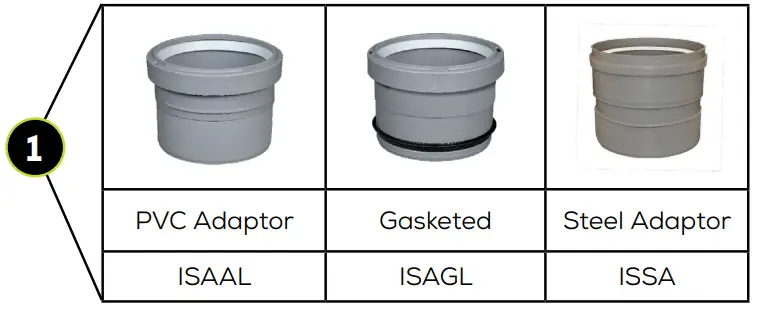

Adaptors
Consult InnoFlue OEM Matrix for correct fitting

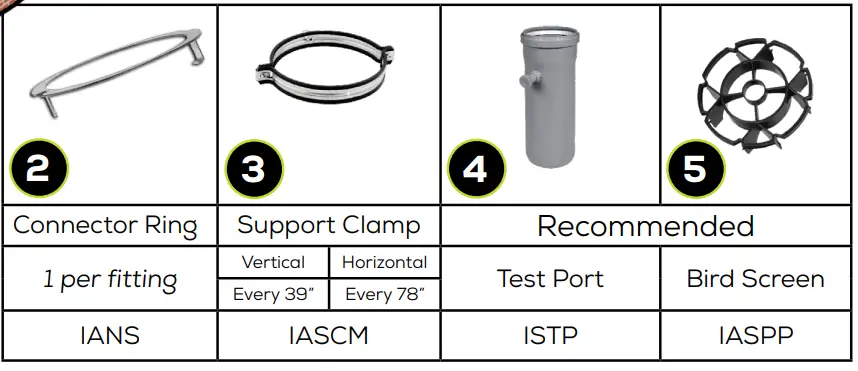

Accessories

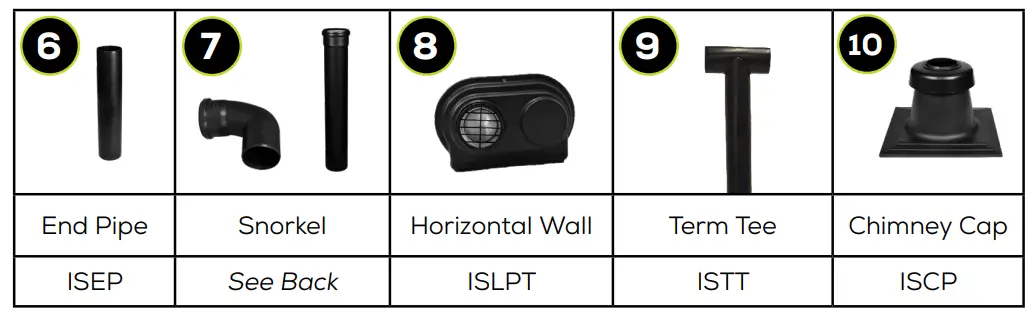

Termination Options
Consult local codes and OEM I&O manuals for snowline and other requirements
Concentric Adaptor -> Terminations
InnoFlue Polypropylene Vent Systems
NOTE: Both gray and black InnoFlue components can be used outdoors. All InnoFlue components have passed the UV stability test (ASTM G23-81) relevant to UL listing.
Two Minute
Product Overview
Take the
Factory Tour!
Full I&O Manual
Condensate
Management Guide
InnoFlue Flex
Product Overview
InnoFlue® is the first polymeric vent system tested and listed to ULC-S636 and UL-1738 in North America

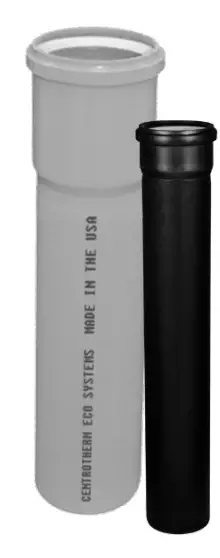

Vent Lengths
InnoFlue never requires glues, solvents or primers.
Each component has a socket, and a male/female fitting connection.
Apply Centrocerin lubricant and push together
| 2″ | 3″ | 4.” | |
| 1′ | ISVL021 | ISVL031 | ISVL041 |
| 2′ | ISVL022 | ISVL032 | ISVL042 |
| 2′ UV | ISVL022UV | ISVL032UV | ISVL042UV |
| 3′ | ISVL023 | ISVL033 | ISVL043 |
| 6′ | ISVL026 | ISVL036 | ISVL046 |
| 10′ | ISVL0210 | ISVL0310 | ISVL0410 |

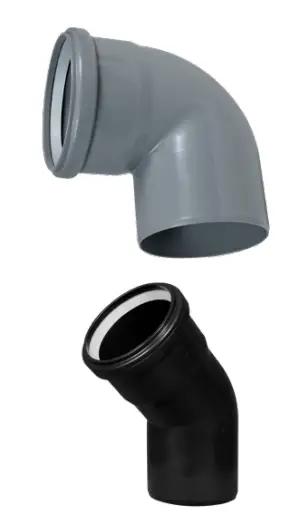

Elbows
| 2″ | 3″ | 4″ | |
| 45° | ISELS0245 | ISELS0345 | ISELSO445 |
| 87° | ISELS0287 | ISELS0387 | ISELSO487 |
| 870 eep Long Sw | ISELL0287 | ISELL0387 | ISELL0487 ISELSO445UV |
| 45° UV 87° UV | ISELS0245UV ISELS0287UV | ISELS0345UV ISELS0387UV |

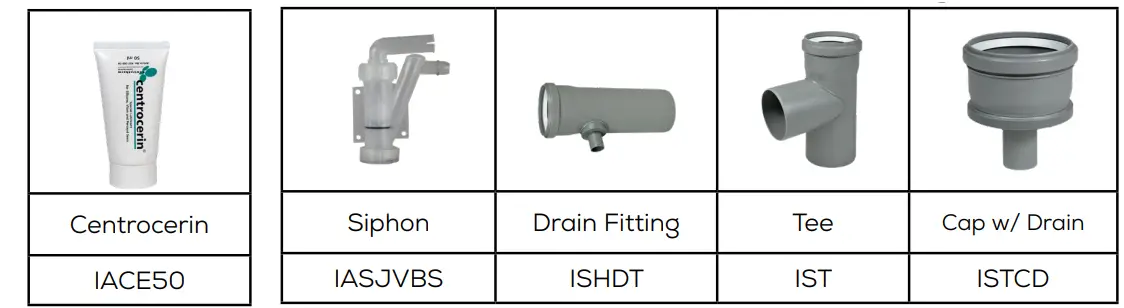

Lubricant
Condensate Management
Other Useful Components
