ASSEMBLY INSTRUCTION
MODEL NUMBER : BF-707G

WARRANTY:
We stand behind our products & service with confidence! If parts damaged or mising please feel free to contact us for a FREE REPLACEMENT.
We warranty this product to be free from defects in materials. This warranty covers one year from the date of original purchase.
NOTES:
- The item is only intended to be used indoors. The product must be assembled and used in accordance with the provisions of the manual.
- It is recommended that assembly is undertaken by about 2 adults. Please read assembly instructions before assembly and strictly adhere to each step outlined. Estimated assembly time is 30 minutes.
WARNING:
- WARNING FOR YOUNG CHILDREN – This product contains small components, please ensure that they are kept away from small children while assembling.
PARTS LIST
| A | B | C | D |
| 1 PC | 1 PC | 1 PC | 1 PC |
| E | O | P | Q |
![]() | ![]() | ![]() | ![]() |
| 2 PCS | 1 PC | 6 PCS | 2 PCS |
| R | S | T | U |
![]() | ![]() | ![]() | ![]() |
| 2 PCS | 2 PCS2 PCS | 2 PCS | 2 PCS |
| V | W | X | Y |
![]() | ![]() | ![]() | ![]() |
| 2 PCS | 2 PCS | 1 PC | 2 PCS |
| Z | N | a | b |
| 2 PCS | 4 PCS | 1/4*50 8PCS | 1/4*45 2PCS |
| c | d | e | f |
| 1/4*40 4PCS | 1/4*35 10PCS | 1/4*28 4PCS | 1/4*19 12PCS |
| h | i | k | t |
| | |||
| 1/4*55 2PCS | 1/4*45 1PC | 4 PCS | 8 PCS |
| v | w | x | y |
![]() | ![]() | ||
| 4 PCS | 24 PCS | 2 PCS | 2 PCS |
IMPORTANT:
Please check parts list before you start to assembly. If parts damaged or missing. Contact your seller for a FREE REPLACEMENT. Please provide your order number, a brief message about the issue, and your shipping address. Thank you!
NOTE: PLEASE DO NOT TIGHTEN THE BOLTS UNTIL ALL FIXED

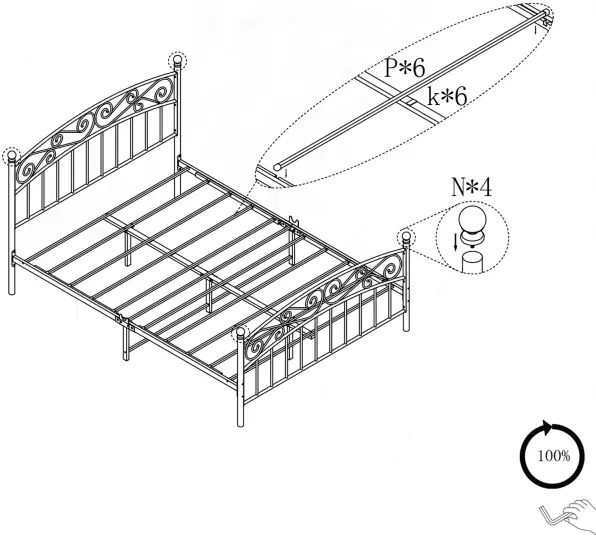

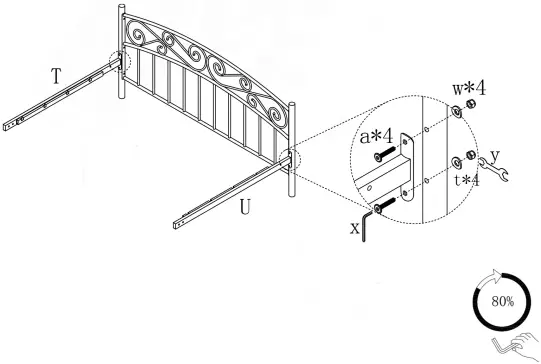

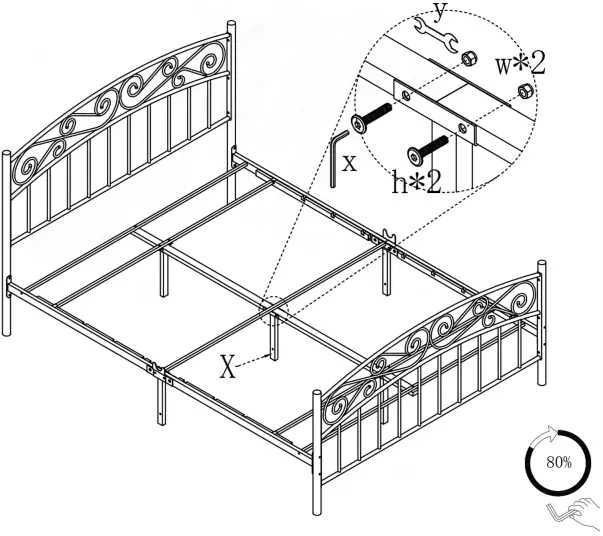

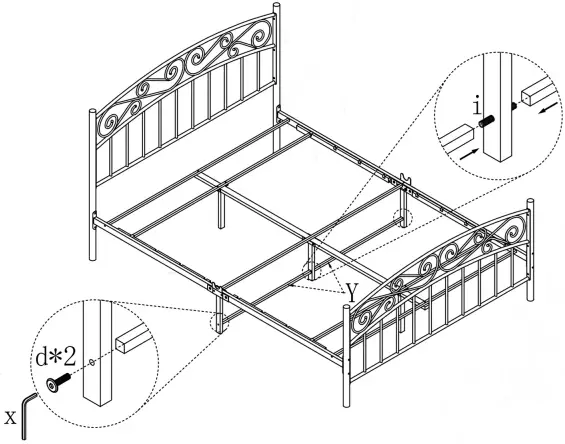

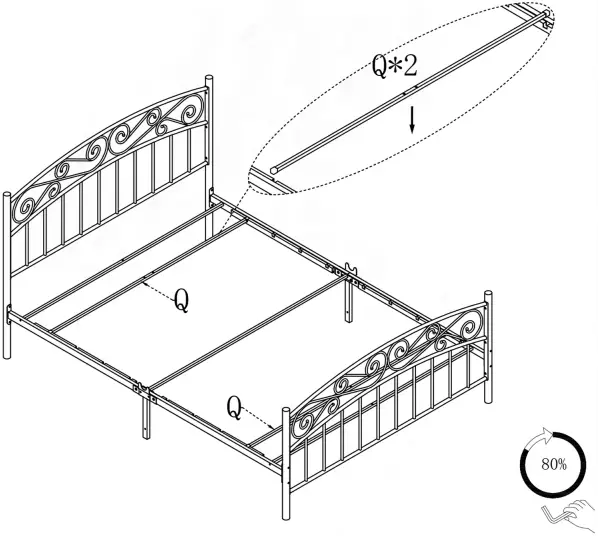

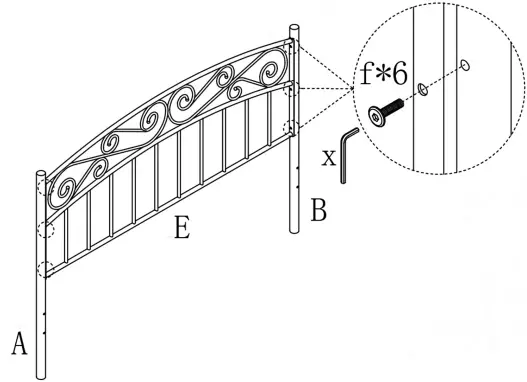

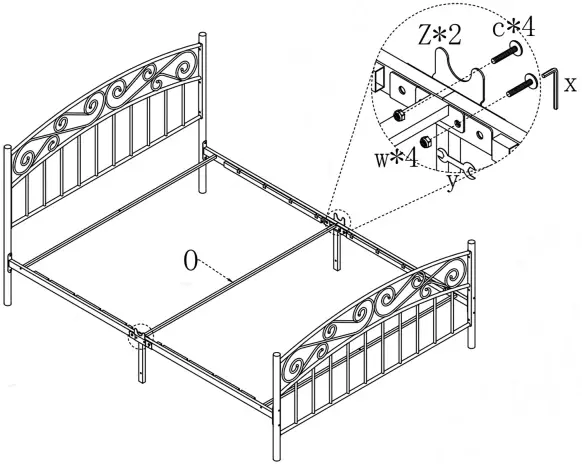

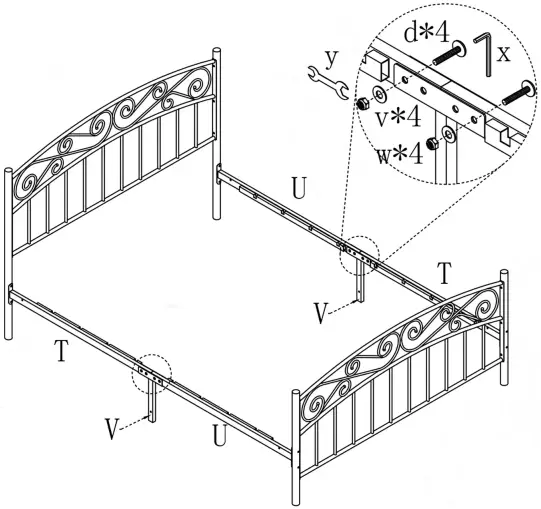

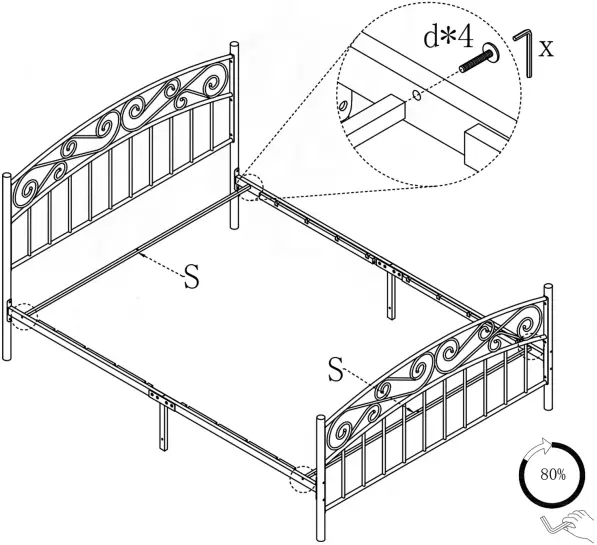

1![]() | 2
|
3 ![]() | 4
|
| 5
| 6
|
| 7
| 8
|
| 9
| 10
|
| 11
| 12

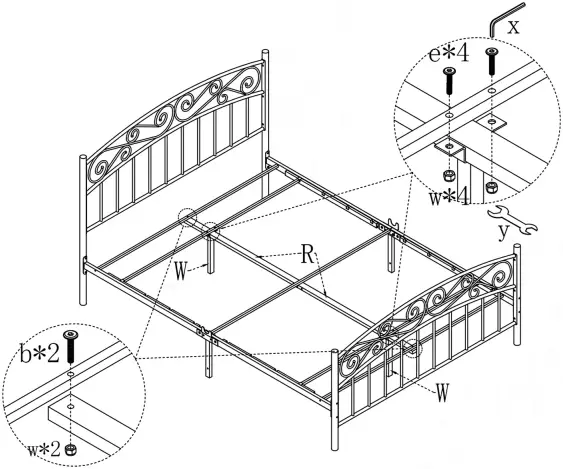

Note: paste the “k” fitting on the surface of the “R” fitting, as shown in the picture in the middle of the “R” fitting. |
IMPORTANT: Please completely tighten all the bolts and nuts.
After-sales support email: [email protected]
