PROJECTOR
M1+_G2
PROJECTORKey Features
- Smart Wi-Fi & Bluetooth connectivity
- 360° Smart stand that allows for ceiling projection
- Integrated stereo Harman Kardon speakers
- Cinema SuperColor+™ Technology with 125% Rec.709
- Advanced LED light source with a 30,000-hour lifespan
Product Description

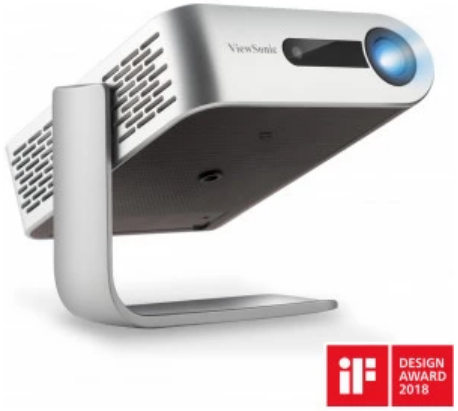

The ViewSonic M1+_G2 is an iF award-winning, ultra-portable LED projector that can deliver a convenient, enjoyable entertainment experience anywhere it goes. With a built-in battery, a LED light source with up to 30,000 hours of lifespan, all packaged into less than 1 kg, the M1+_G2 can deliver years of multimedia entertainment wherever it goes - from room to room, both inside and outdoors. Its smart stand enables simple 360-degree setup, while doubling as a lens cover. Once the lens is uncovered, the projector automatically powers on to full brightness for instant entertainment. Stereo Harman Kardon speakers provide room- lling sound for an ampli ed experience, while more exible audio needs can be realized via Bluetooth. Integrated Wi-Fi connectivity makes streaming easier than ever - both wireless casting from smart devices and built-in content streaming are possible.

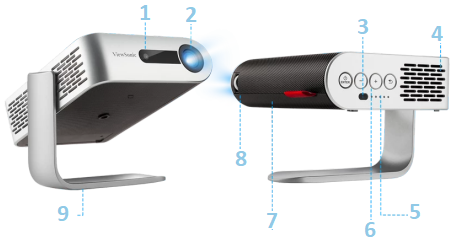

- IR Receiver
- Lens
- IR Receiver
- Harman Kardon Speakers
- LED Indicator
- Function Keys
- Hidden I/O Ports
- Focus Ring
- 360-degree Smart Stand

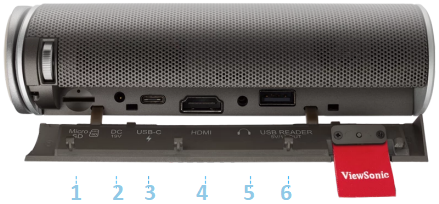

- Micro SD
- DC In
- USB Type C (5V/2A)
- HDMI 1.4
- Audio Out
- USB Type A (5V/1A)
Visit Us – www.viewsonic.com
SPECIFICATION
| Native Resolution: | 854×480 |
| Brightness: | 300 (LED Lumens) |
| Contrast Ratio: | 120000:1 |
| Display Color: | 1.07 Billion Colors |
| Light Source Type: | LED |
| Light Source Life (hours) with Normal Mode: | up to 30000 |
| Lamp Watt: | RGB LED |
| Lens: | F=1.7, f=5.5mm |
| Projection Offset: | 100%+/-5% |
| Throw Ratio: | 1.2 |
| Optical Zoom: | Fixed |
| Image Size: | 24″-100″ |
| Throw Distance: | 0.64m-2.66m, (38″@1m) |
| Keystone: | +/- 40° (V) |
| Audible Noise (Normal): | 26dB |
| Audible Noise (Eco): | 25dB |
| Local Storage: | Total 16GB , (12GB available storage) |
| Input Lag: | 41.5ms |
| Resolution Support: | VGA(640 x 480) to FullHD(1920 x 1080) |
| HDTV Compatibility: | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Horizontal Frequency: | 15K-102KHz |
| Vertical Scan Rate: | 23-120Hz |
INPUT
| HDMI: | 1, (HDMI 1.4/ HDCP 1.4) |
| USB Type C: | 1 (5V/ 2A) |
| Audio-in (Bluetooth): | 1 (BT4.2) |
| USB Type A: | 1, (USB2.0 Reader) |
| SD Card: | Micro SD (32GB, SDHC) |
| Wifi Input: | 1 (5Gn) |
OUTPUT
| Audio out (3.5mm): | 1 |
| Audio-out (Bluetooth): | 1 (BT4.2) |
| Speaker: | 3W Cube x2 |
| USB Type A (Power): | 1 , (USB2.0 – 5V/1A,, share with USB A Input) |
OTHERS
| Power Supply Voltage: | Power adaptor: , Input: 100~240V, Output: 19VDC / 3.42A, , Battery:, 12000mAh(4000mAh 3.7Vx3), (2.5hrs@Normal, 3hrs@Eco) |
| Power Consumption: | Normal: 35W , Standby: <0.5W |
| Operating Temperature: | 0~40℃ |
| Net Weight: | 0.7kg |
| Dimensions (WxDxH) with Adjustment Foot: | 151x126x40mm |
| OSD Language: | English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages |
STANDARD ACCESSORY
| Power Cord: | 1 |
| USB-C Cable: | 1 (1m) |
| Remote Control: | 1 |
| QSG: | Yes |
OPTIONAL ACCESSORY
| Carry Bag: | PJ-CASE-010 |
