EAN: 3663602802402
CL16107A

Bambus

V30521 BX220IM/B3

Safety

These instructions are for your safety. Please read through them thoroughly prior to installation and retain them for future reference.
All fittings must be installed by a competent person in accordance with local regulations (IET wiring regulation BS7671).

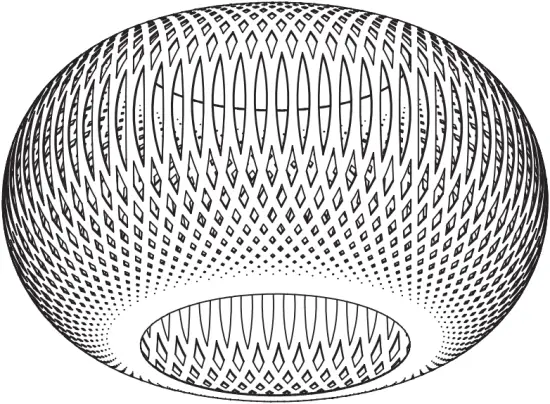

Check the pack and make sure you have all of the parts listed.
Remove all packaging, wrap etc. from the product.
Decide on the appropriate location for your product.
This product is suitable for indoor use only and not for areas constantly subject to moisture such as bathroom.

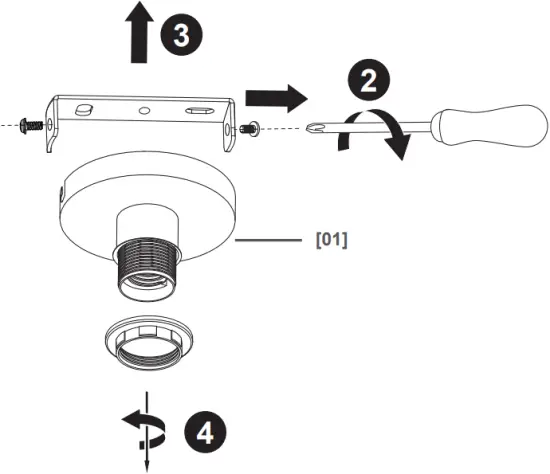

Always refer to the installation drawing for the orientation of the product.

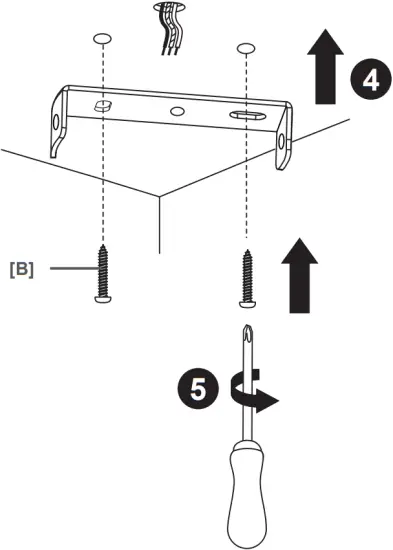

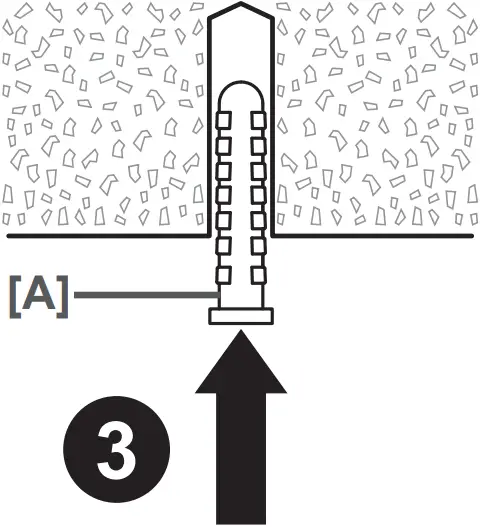

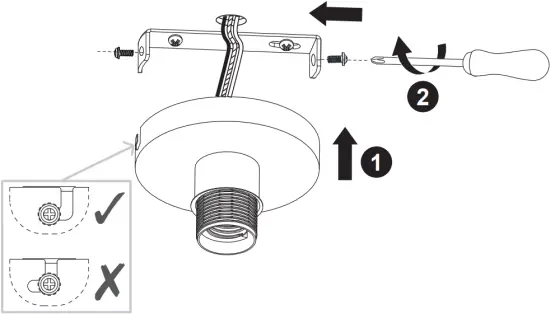

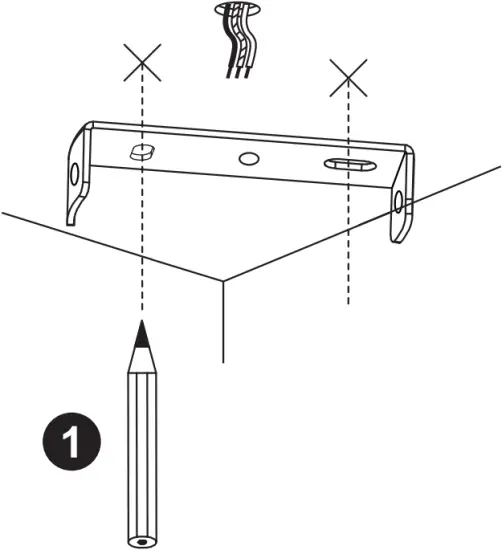

The product must be securely fixed to the mounting surface using the screws and wall plugs supplied. The screws and wall plugs supplied are suitable for “masonry” only. Other fixings not supplied and must be purchased.

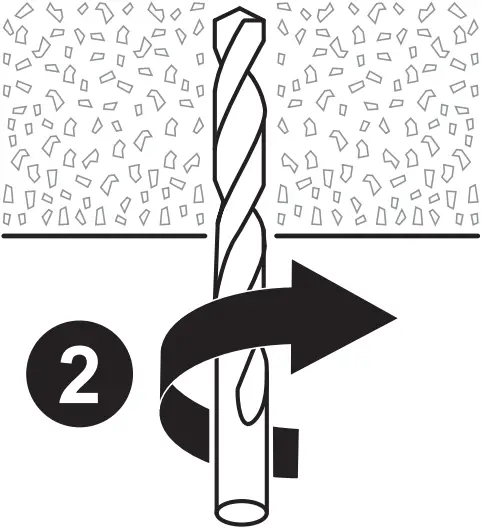

Take care not to drill into any pipes or mains cables beneath the surface during mounting holes preparation.
IMPORTANT: the fixing point(s) selected must be capable of supporting the full weight of the light fitting.

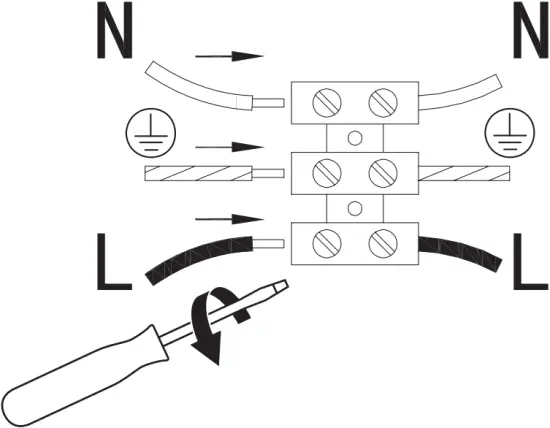

Wiring diagram is for reference only. Always refer to the terminal marking for wiring Ensure that all electrical connections are tight and that no loose strands are left out of the terminal block.
Never put anything on the product or hang anything on any part of this product.
Never use the terminal cables to bear the product weight.

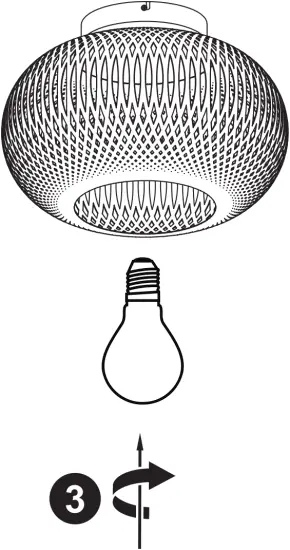

When the product does not light after installation:
> Ensure there is no electricity failure
> Ensure all the connections are secured
If you have any doubt about installation / use of this product, consult a qualified electrician.

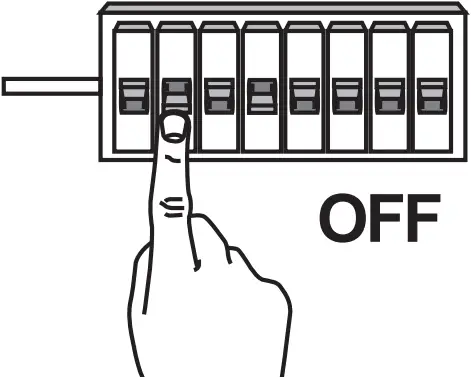

Always disconnect the product from mains at least 10 minutes allowing to cool down before any maintenance or adjustment.

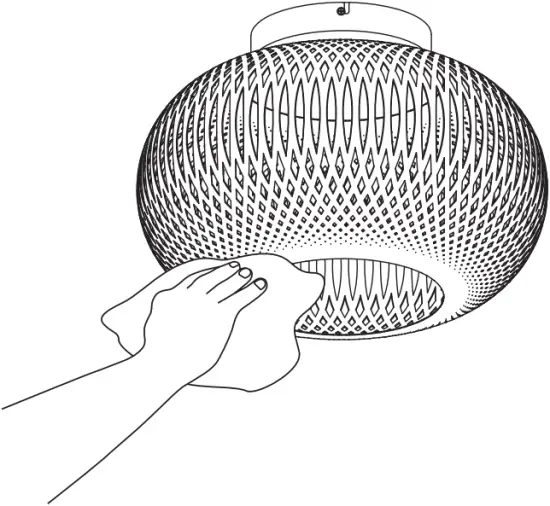

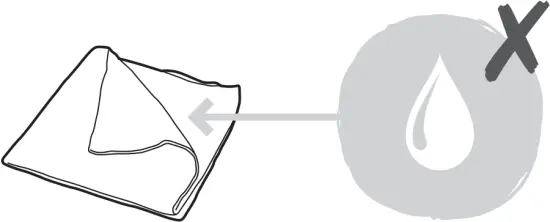

The lamp can be cleaned with a clean dry cloth. Do not immerse it in water.

Technical Data

Supply Voltage:	220-240 V~, 50 Hz

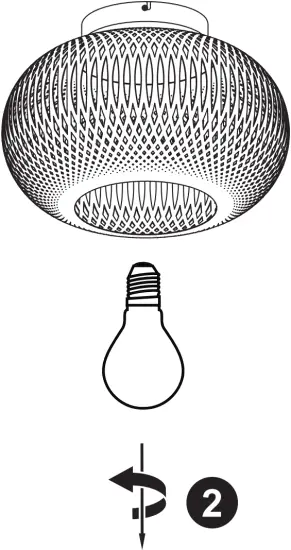

Bulb Type:	1 x Max. 42 W, E27 (check bulb dimensions in relation to space available)
	This product complies with conformity requirements of the applicable European Regulations or Directives.
	This product complies with conformity requirements of the applicable UK Regulations.
	Class I product, must be connected to earth.
	For indoor use only.
	Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice.
xxWyy	xx-year; yy-week of the year

At Colours, we devote special attention to selecting high-quality materials and use manufacturing techniques that enable us to create designer and durable product ranges.

That is why we offer a 2-year warranty against product manufacturing defects.

This product is under warranty for 2 years as from the date of purchase, for normal, non-professional household use. The warranty shall only apply upon presentation of the fill receipt or the invoice. Keep your proof of purchase in a safe place.

The warranty covers product breakdowns and malfunctions under the condition that the product is used in accordance with its intended use and subject to installation and maintenance in accordance with good practice and the information contained in the user’s manual. This product must be installed as that it may be later removed without damaging it.

This contractual warranty does not cover defects and damage caused by the natural wear of parts, bad weather, flooding, heat releases, freezing, damage caused by water quality (hardness, aggressiveness, corrosion, etc.), by the presence of foreign bodies transported by water or otherwise (sand, filings, etc.) or the lack of room ventilation, and damages that could be the consequence of improper use, misuse, negligence, accident or maintenance that is defective or does not comply with good practice or the information in the user’s manual.

The following are also excluded from the warranty: harmful consequences due to the use of accessories and/or non-original equipment manufacturer or improper replacement parts, disassembly or product modification.

The warranty is limited to those parts recognised as defective. Under no circumstances shall it cover fringe expenses (travel, labour) and direct and consequential damage.

Guarantee related queries should be addressed to a store affiliated with the distributor you purchased the product from.

This guarantee is in addition to and does not affect your statutory rights.
