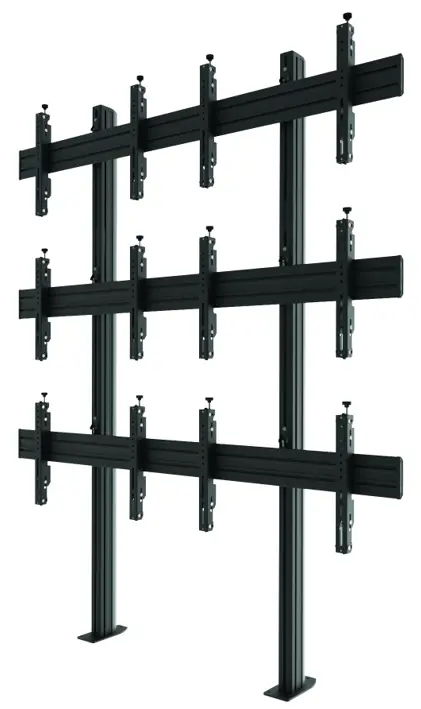

VWSA2347-L
VIDEO WALL BOLT DOWN STAND,
MODULAR 2X3
FOR 42″-47″ SCREENS, LANDSCAPE

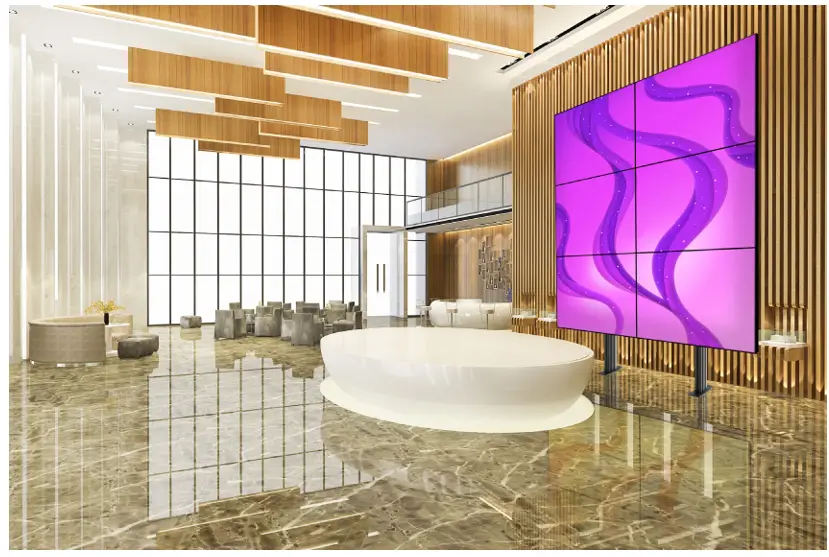

With its modular design, VWSA2347-L allows the installation of six 42″-47″ screens in a 2×3 landscape orientation. The design is characterized by durability, high quality, and aesthetics. The video wall assembled to the floor allows a safe solution to be built in accordance with the expectations of the most demanding customers. VWSA2347-L is used in places where there is a need for dynamic and effective communication with the audience while ensuring maximum safety.
FEATURES
- High quality and aesthetics
- Durable design
- Screen carrying plates made of aluminum
- Up to 6 x 42″-47″ screens
- Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools
- Screen protected against being slid out accidentally
- Integrated cable management system for smart installation
- Screws protect against accidental or unauthorized removal of the screen
PRODUCT SPECIFICATIONS
| Short index | VWSA2347-L |
| Category | Video Wall Bolt Down Stands |
| Product Group | Video Wall Mounts |
| Colour | Black |
| Warranty | Limited 5-years |
| Number of screens | 6 |
| Minimum screen size | 42″ |
| Maximum screen size | 47″ |
| Maximum load | 205 kg |
| VESA Mounting Compatibility | 100×100 up to 600×400 |
 |  |  |  |
| Screen carrying plates made of aluminum | Independent 8-point micro-adjustment ensures perfect alignment of screens without the use of tools | Cable management | Security screws to prevent accidental or unauthorized removal of the screen |

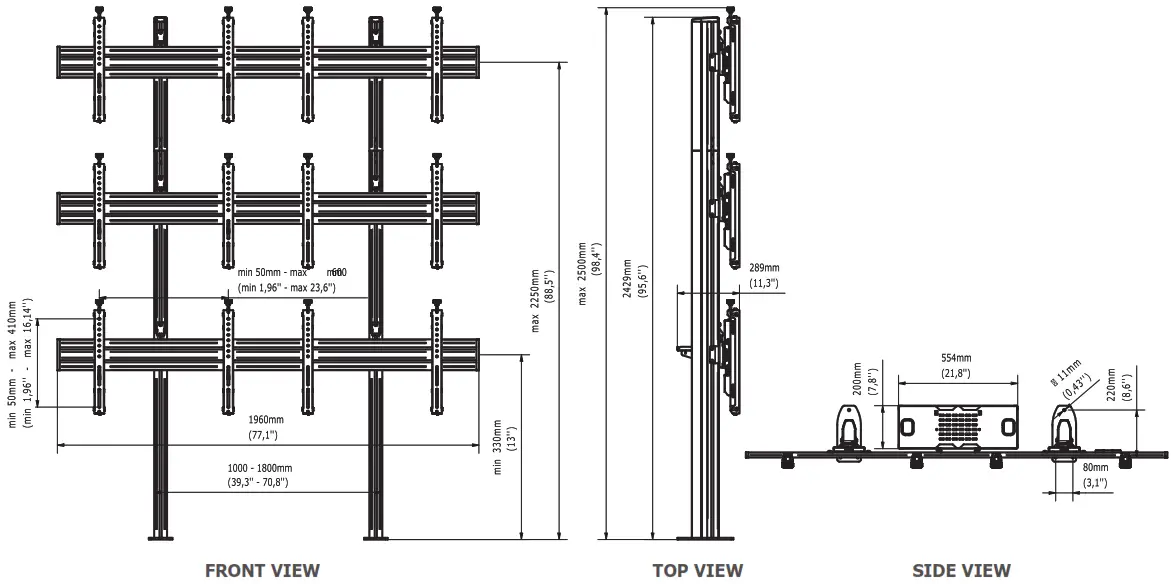

TECHNICAL DRAWINGS
TECHNICAL SPECIFICATIONS
| Product dimensions | W: 1960 mm D: 289 mm H: 2429 mm (W: 77,17″ D: 11,38″ H: 95,63″) |
| Product weight | 80 kg (176 lb) |
| Max. distance from mounting surface | 2250 mm (88,58″) |
| Min. distance from mounting surface | 330 mm (12,99″) |
| Max. mounting pattern | 600 mm x 410 mm |
| Min. mounting pattern | 50 mm x 50 mm |
LOGISTICS DATA
| SAP INDEX | EAN CODE | COLOUR |
| WSTD-VWSA2347-L | 5.9E+12 | BLACK |
HS Code (Harmonized System): 732690, HTS Code (Harmonized Tariff Schedule): 7326909890, Country of Origin: Poland
2021 – EDBAK Sp. z o.o. All rights reserved.
The information included in the specification rejects the current technical specifications at the time of printing. We reserve the right to modify technical or physical specifications without prior notice. EDBAK name and EDBAK logo are registered trademarks of EDBAK Sp. z o.o. All EDBAK images and symbols are the sole property of EDBAK Sp. z o.o. Feedback shall not be held liable for any loss or damage caused by incorrect installation or mounting. Copying this specification in whole or in part is only allowed after obtaining written consent from EDBAK Sp. z o.o.
VWSA2347-L-210701-EN
