MONACOR EDL-206 Weatherproof Flush Mount PA Speakers

MONACOR EDL-206 Weatherproof Flush Mount PA Speakers

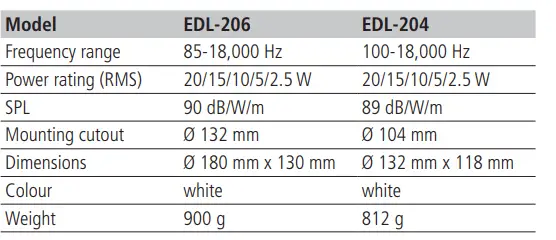

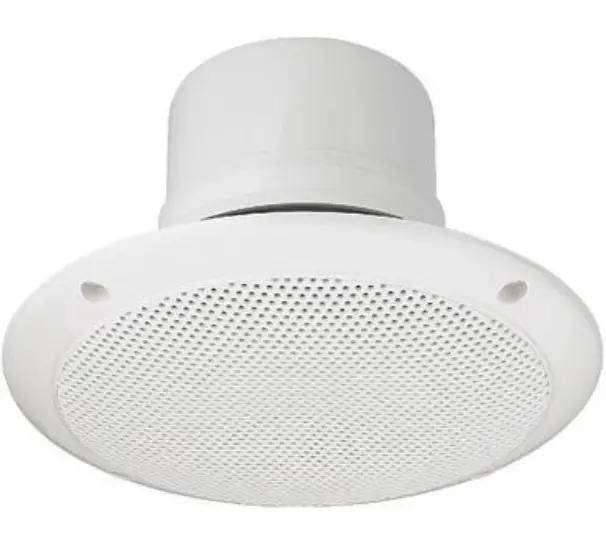

Weatherproof flush-mount PA speakersMONACOR EDL-206 Weatherproof Flush Mount PA Speakers-2

  • 100 V transmission technology
  • Full range speaker with dual cone, perfect sound characteristics
  • Splashproof due to white one-piece plastic design, high-quality polypropylene cone with rubber surround
  • For indoor and outdoor applications
  • Supplied with stainless steel mounting screws

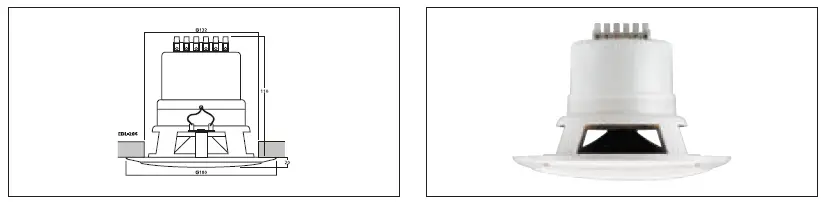

    MONACOR EDL-206 Weatherproof Flush Mount PA Speakers-1

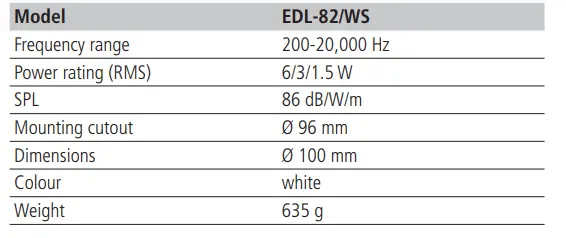

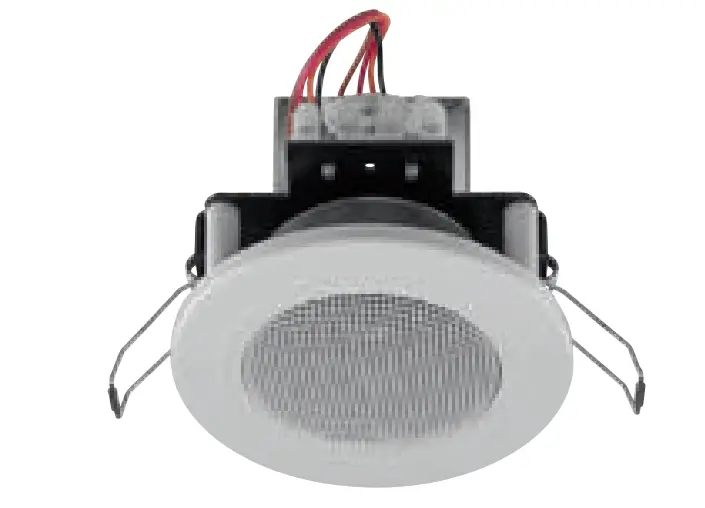

PA ceiling speakerMONACOR EDL-206 Weatherproof Flush Mount PA Speakers-4MONACOR EDL-206 Weatherproof Flush Mount PA Speakers-3

  • 100 V transmission technology
  • White cover
  • Similar design to standard flush-mounted halogen lights
  • Suitable for speech and background music, very consistent frequency response
  • Quick-mounting facility
  • Plastic housing with protective metal grille
  • ABS plastic material, self-extinguishing according to UL 94V-0

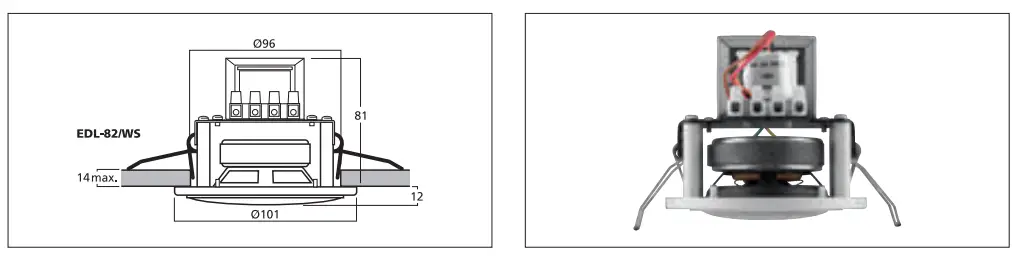

  • For a ceiling thickness from 2 to 14 mmMONACOR EDL-206 Weatherproof Flush Mount PA Speakers-5

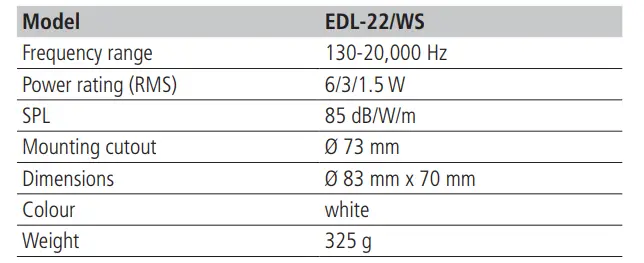

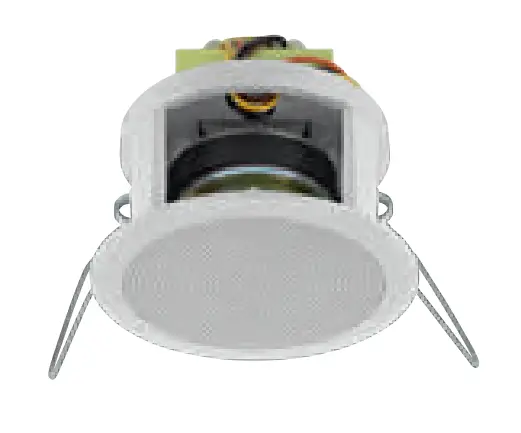

PA ceiling speaker, small and compact design, with a very wide bandwidth reproduction.MONACOR EDL-206 Weatherproof Flush Mount PA Speakers-6MONACOR EDL-206 Weatherproof Flush Mount PA Speakers-7

  • 100 V transmission technology
  • Quick-mounting facility
  • White plastic housing

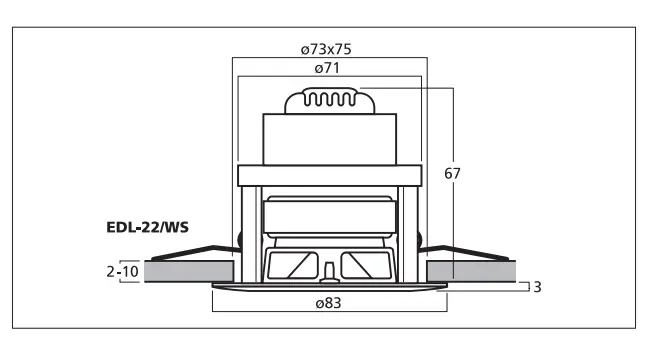

  • For a ceiling thickness from 2 to 10 mmMONACOR EDL-206 Weatherproof Flush Mount PA Speakers-8

Full specifications can be found on our website www.monacor-international.com.
