F1807 PEX Stub Out Elbow
INSTRUCTIONS FOR INSTALLING ASTM F1807 AND F2159 CRIMP FITTINGS FOR JONES STEPHENS PEX TUBING
- Inspect all tools prior to beginning work. Clean and make any necessary repairs or calibrations.

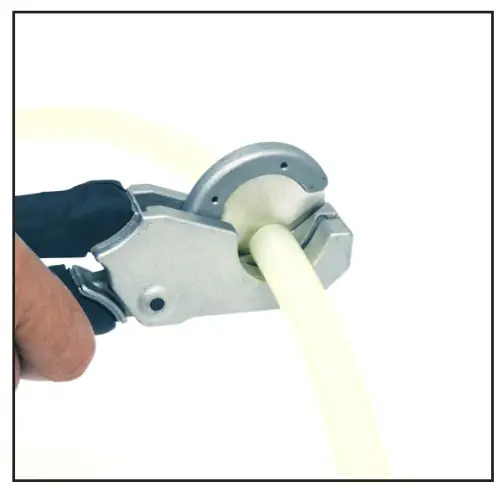

- Using a cutting tool designed for use with PEX pipe, measure and cut pipe to the desired length. Cut at 90 degrees ensuring not to crush or deform the outer diameter. Make a square cut, as an uneven or jagged cut, could result in an improper connection.

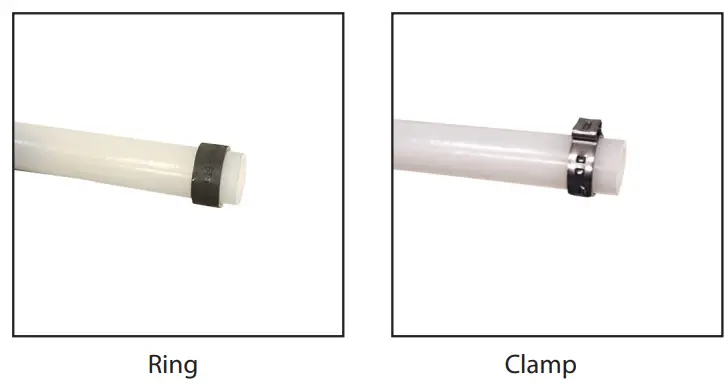

- Slide the compression ring or clamp onto the PEX pipe until it reaches approximately 1/8” below the cut end.

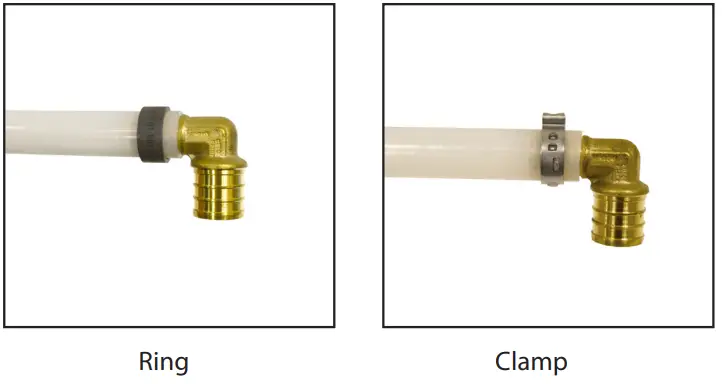

- Insert the fitting into the PEX pipe until the cut end rests against the stop on the fitting.
