29-025 Self-pin universal patch lead

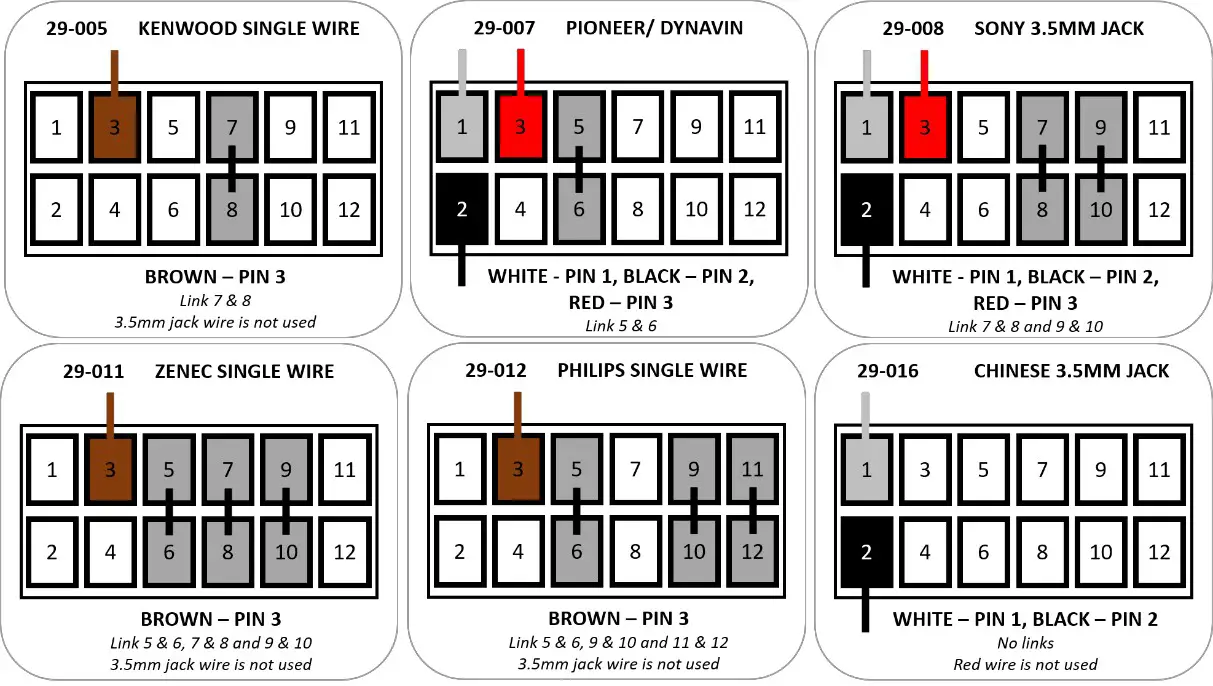

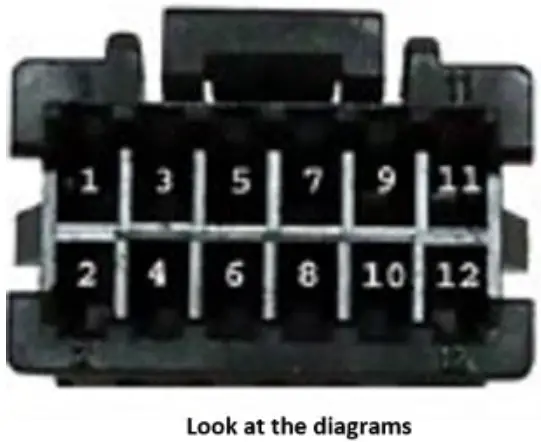

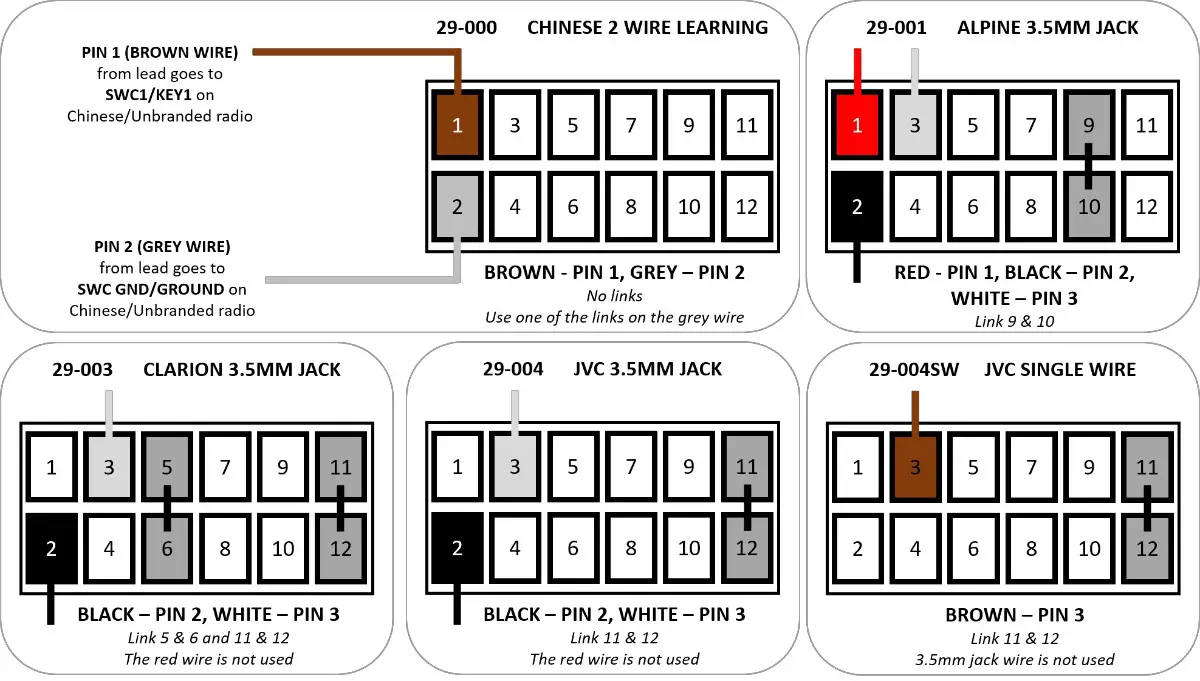

Look at the diagrams
Use either the 3.5mm jack plug or the single Brown wire in pin locations 1,2 & 3
Use the link leads to suit the type of head unit you are fitting.
Carefully lift the latch on the plastic housing to remove a link lead
WHEN FINISHED ALWAYS PLUG THE PATCH LEAD TO THE CONTROL BOX FIRST, BEFORE YOU CONNECT THE CAR HARNESS TO THE POWER

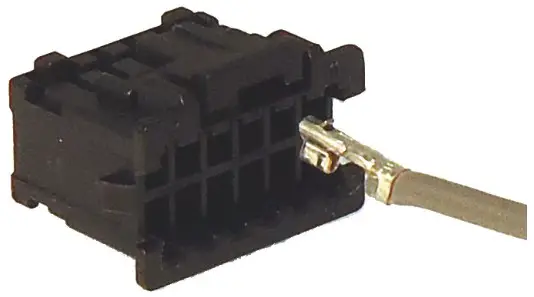

 | Make sure the terminals are inserted the correct way around. Terminal orientation for top row |
 | Terminal orientation for bottom row |

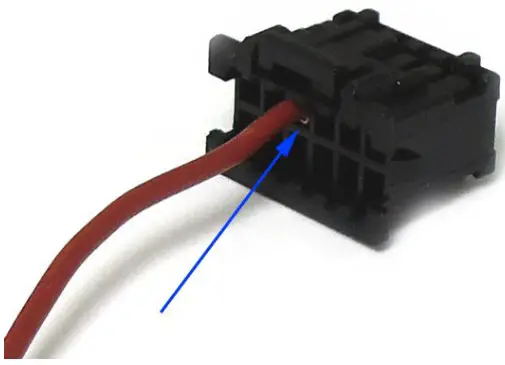

 | Make sure the terminals are fully inserted. If the terminal is still visible from the wire entry side of the connector, it is not fully inserted. |

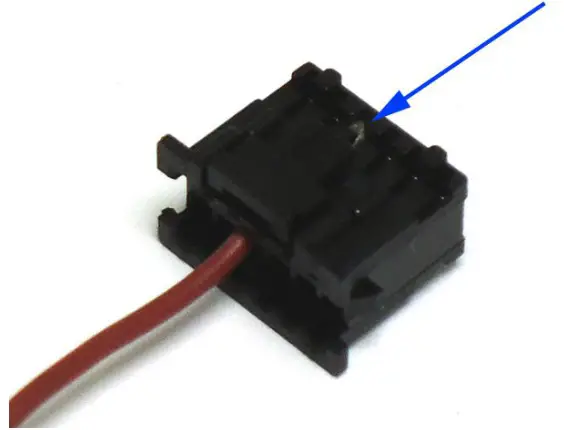

 | The terminal should be visible looking from above/below the connector. |
