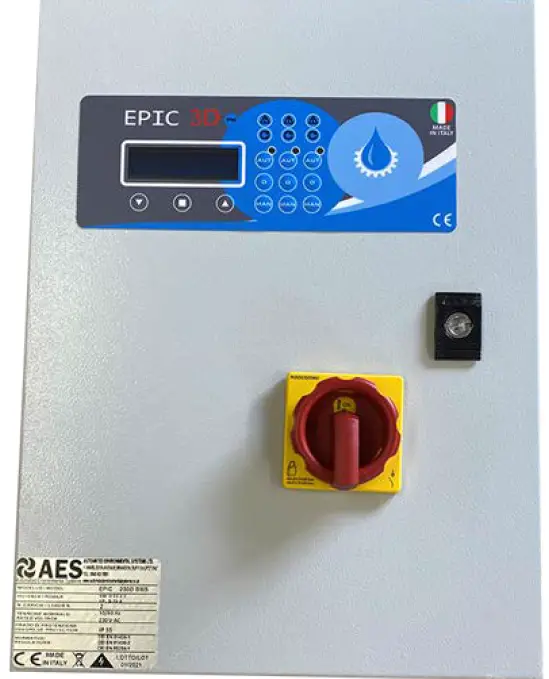

AES EPIC 3D Triple Electronic Pump Control Panel
DIRECT ON LINE ELECTRONIC CONTROL PANEL FOR 3 SINGLE OR THREE PHASE MOTORS
- SELF-LEARNING OF THE PUMP DATA
- ONE PANEL FOR ALL APPLICATIONS
- COMPACT BOX WITH HINGES AND FIXINGS
- LOCKABLE FLAP
MAIN FEATURES
- External blue display
- Power input for 3 motors 1-230V ±10% 50/60HZ
- Power input for 3 motors 3-400V ±10% 50/60HZ
- N.3 AUTO-0-MAN mode selection buttons (manual spring return)
- N.3 “Automatic motor running” green indicator light
- “Power on” blu indicator light
- N.3 STOP, MUTE and reset buttons (0)
- Auxiliary circuit protection fuses
- Main disconnect switch with door lock
- Provision for start-up capacitors (single phase versions)
- Metal box
- Cable glands
- IP55 protection rating (IP65 available on request)
- Ambient temperature: -5/+50 °C
- Relative humidity 50% at 40 °C (condensate free)
BENEFITS
- Same control panel for potable, waste and industrial water applications
- Self learning of the pump data
- Works with float switches, pressure switches, probes or 4÷20 mA sensor
- Switch on and switch off delay
- Min/max amperage reading/protection and alarm
- Min/max Voltage reading/protection and alarm
- Dry running protection with minimum amperage and cos fi
- Min/max water level alarm
- BMS (Building Management system terminals on demand)
- RS485 serial port (on demand) for remote control with Wi-Fi and GPRS
- Rain feature
- Timer
- Motors alternance
- Self holding

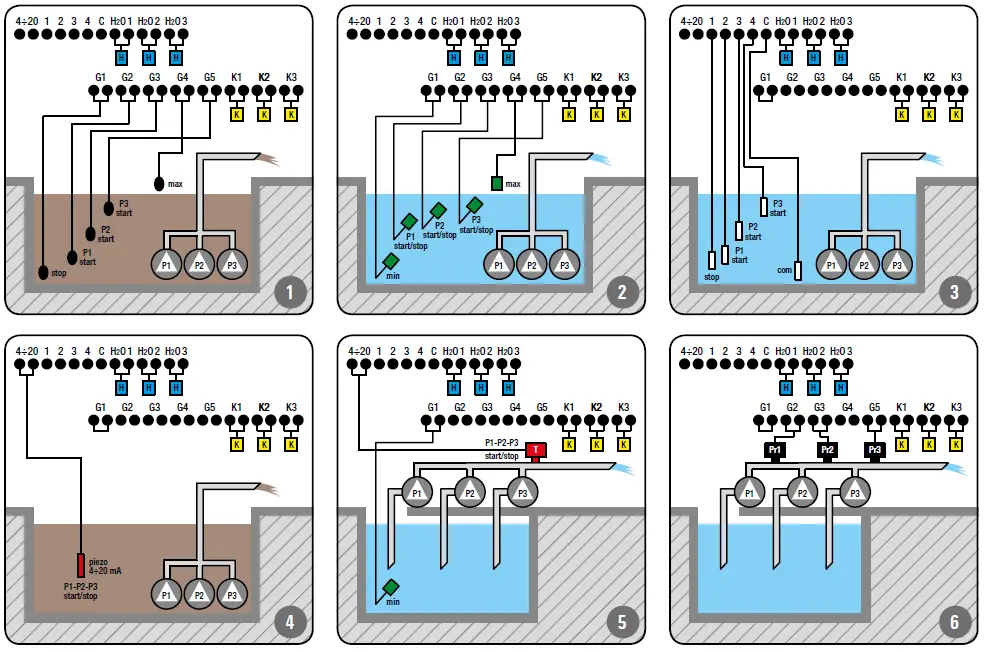

INPUT
- N.1 x Probes level control
- N.5 x Float switches
- N.1 x 4÷20 mA for pressure transducer or level sensor
- N.3 x Water in oil chamber protection
- N.3 x Motor Klixon
ALARMS
- N.1 x Output for buzzer
- N.1 x 12V or NO free contact
- N.1 x 230V or 400V
MODELLI / MODELS
| COD. | MODEL | KW | HP | AMPERE | KG |
| 301D | EPIC 3-230D | 0,37÷2,2 | 0,5÷3 | 3x (2÷16) | 3 |
| 302D | EPIC 3-400/10D | 0,55÷7,5 | 0,75÷10 | 3x (2÷15) | 3 |
| 303D | EPIC 3-400/15D | 7,5÷11 | 10÷15 | 3x (16÷24) | 15 |
| 304D | EPIC 3-400/20D | 7,5÷15 | 10÷20 | 3x (16÷30) | 15 |
SPECIAL FUNCTIONS
- Set/modify parameters with front side buttons and read all parameters on display
- 4÷20 mA comand input (pump control with a piezoresistive sensor or with a pressure transducer) / temperature probe
- Advanced programs:
- TIMER pump start and stop at a predetermined time
