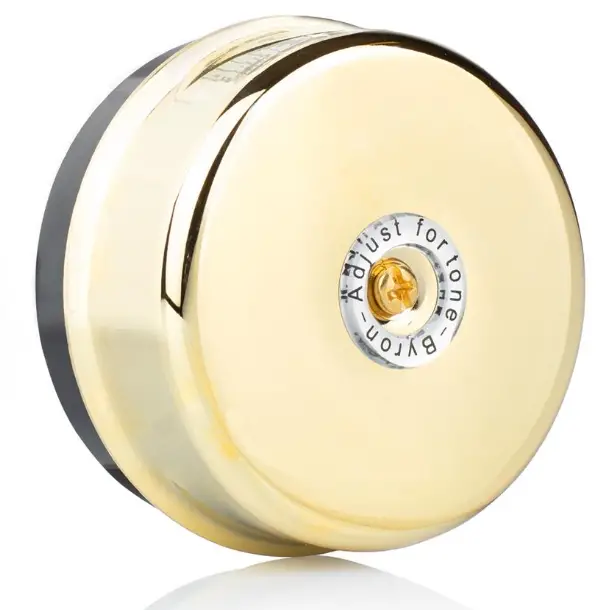

Byron 1200 Wired Underdome Doorbell
Instructions

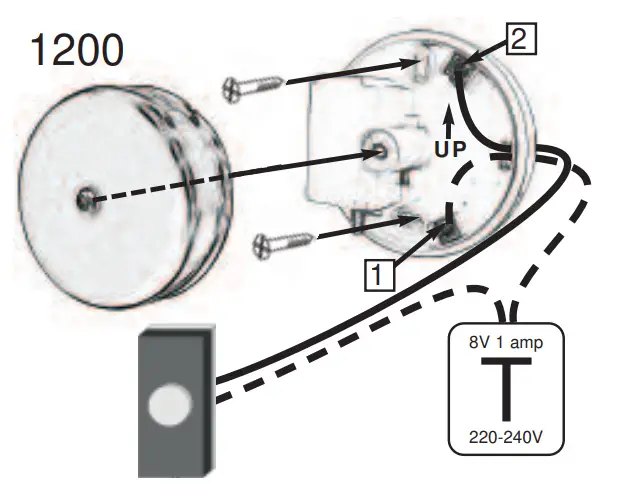

The Underdome bell is powered by an 8 volt 1 amp transformer (not supplied) Wire the bell to terminals 1 & 2 as shown in diagram.
Replace the dome cover and gently tighten the screw, adjust dome clock-wise or anti-clockwise for best tone.
IMPORTANT – DO NOT WIRE DIRECTLY TO THE MAINS. IF IN DOUBT
PLEASE CONSULT A QUALIFIED ELECTRICIAN
