Lev’O+ LPG Level solution LoRaWAN Senior
User Guide
Lev’O +Liquid Level
50-70-209

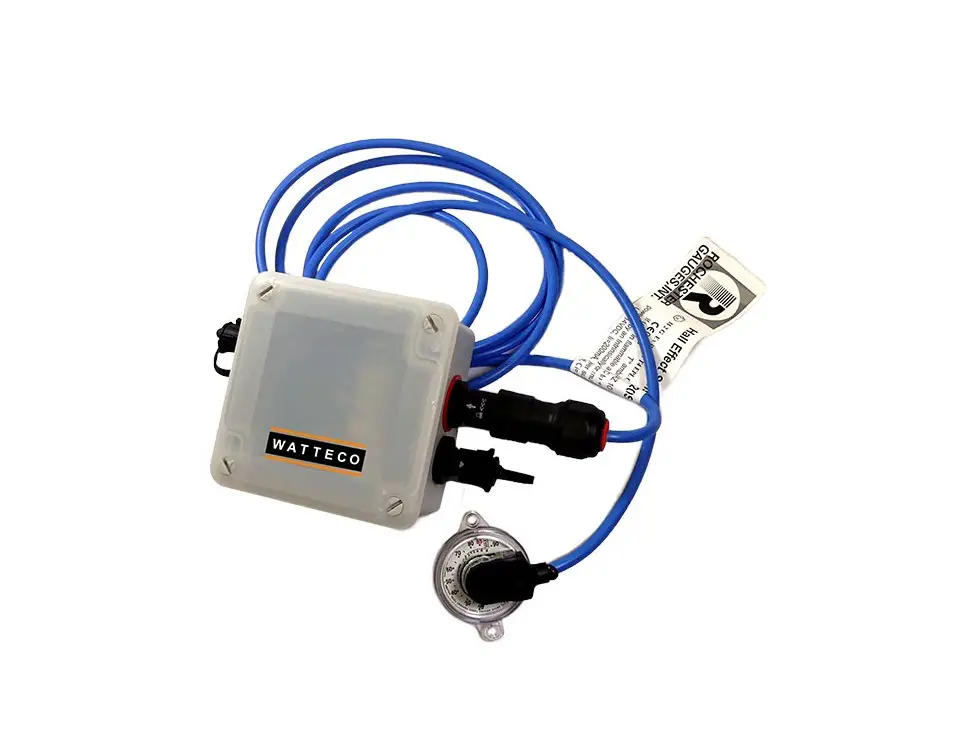

Lev’O + LPG
50-70-210
50-70-211
Start
To start up the LoRaWAN® sensor please refer to the Quick Start Guide provided in his bag or on www.watteco.com. or scan on the side :
https://www.watteco.com/assistance/download-center/

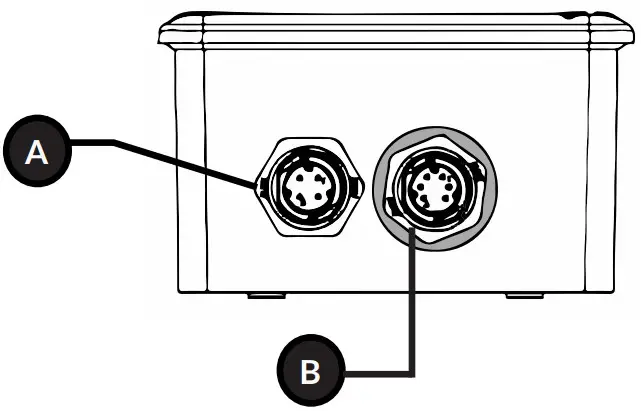

Connectors

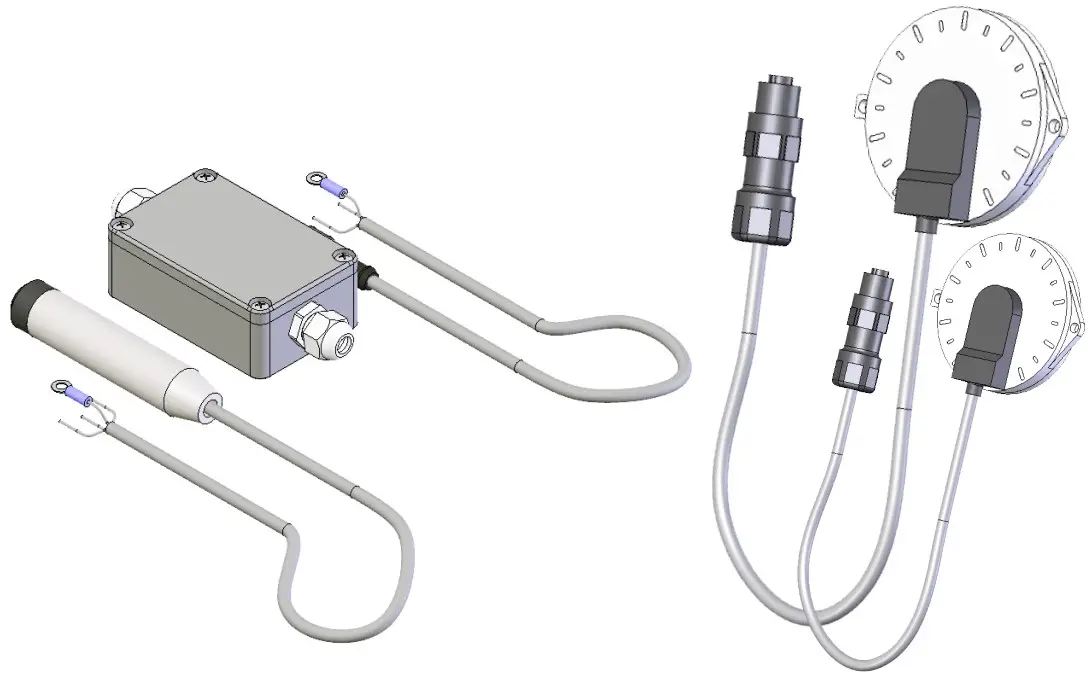

A. Connector [A] is for Levo+ which measures liquid variations 50-70-209.
B. Connector [B] is for Levo+ which measures gas variations 50- 70-210 and 50-70-211.
These probes used with a LoRaWAN® sensor in Atex environments become : Ex II 2G Ex ib IIB, IIC T4 Gb -20°C <= Tamb <= +50°C
Installation Setting up

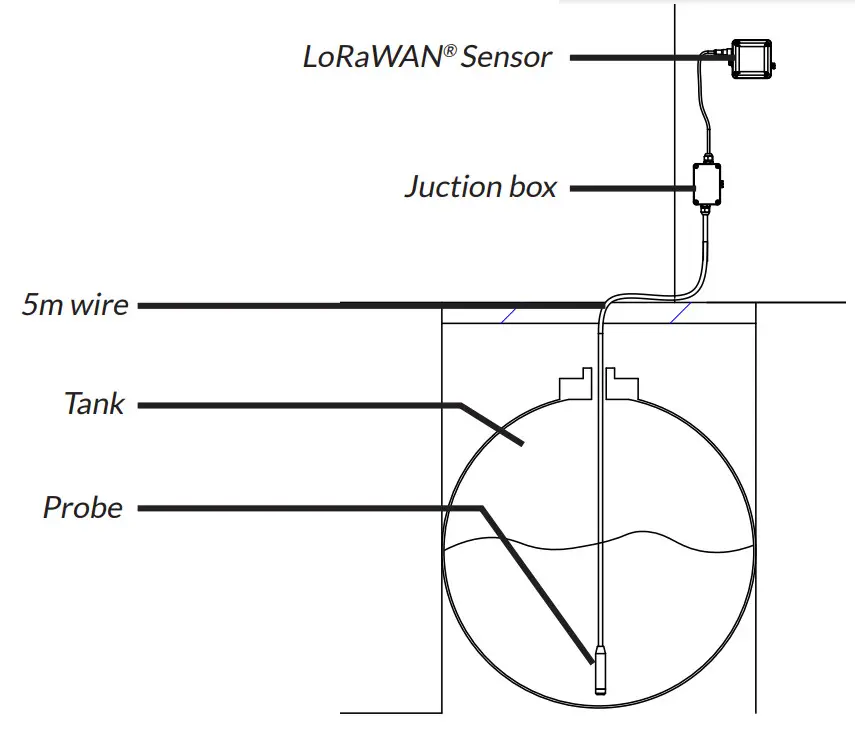

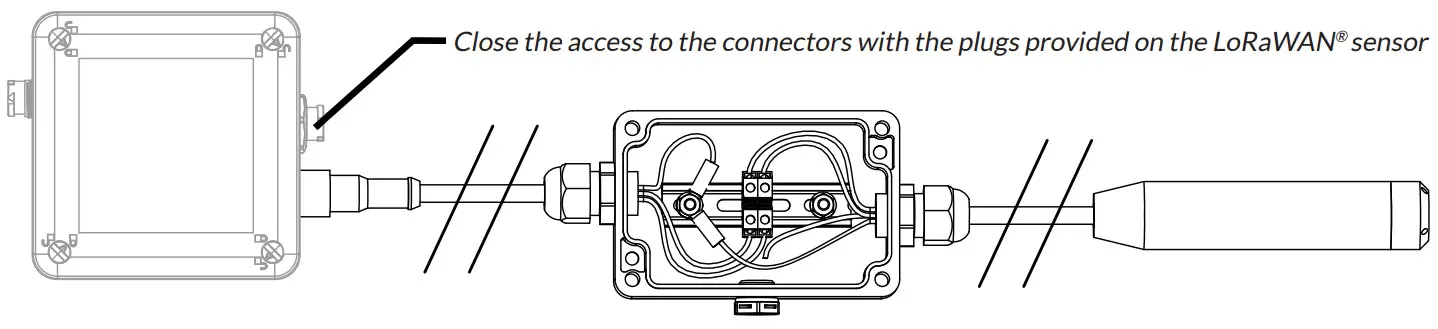

Lev’O + Liquid level installation

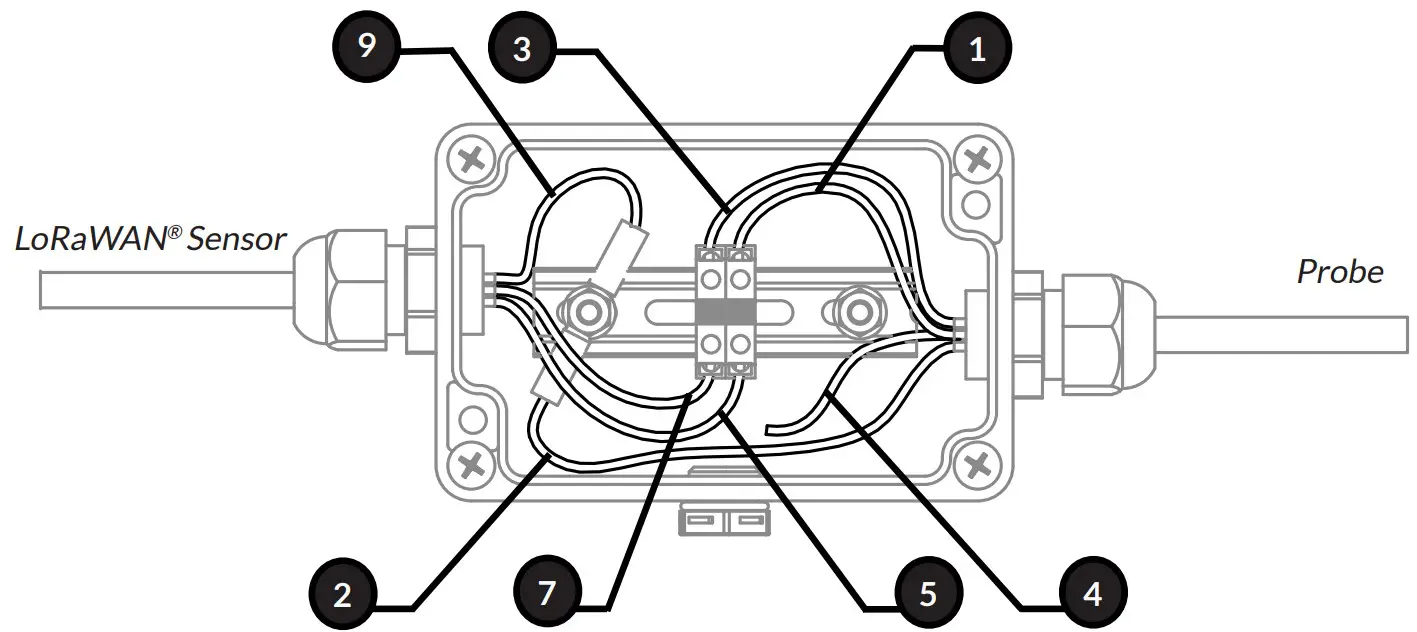

| LoRaWAN® sensor cable | Probe cable |
| 5. Black : Pin 1 OUT V+ | 1. Brown : IN |
| 6. Brown : Pin 2 GND | 2. White : GND |
| 7. Red : Pin 3 IN 4-20mA Measure | 3. Green : OUT |
| 4. Capillary : in the case |

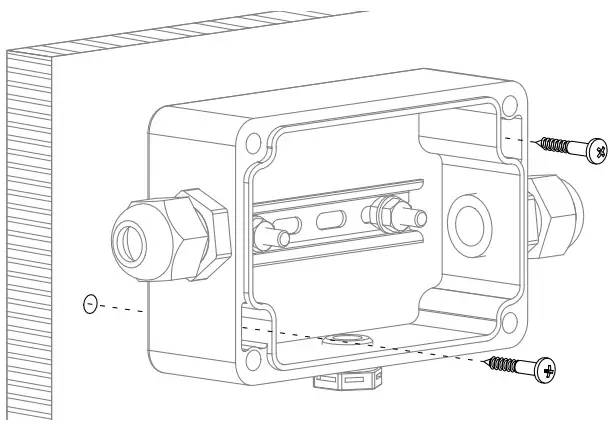

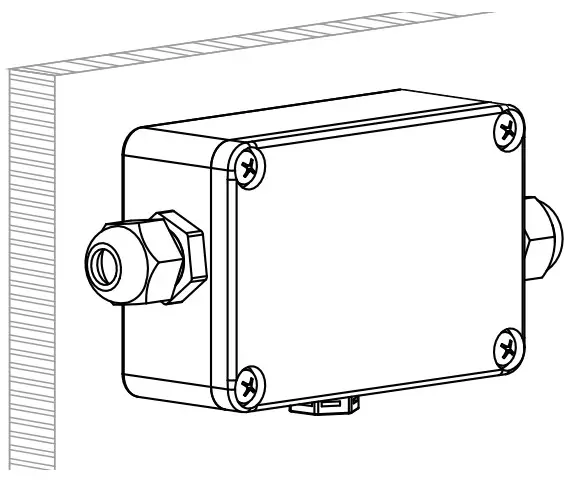

For the installation of the enclosure on a junction wall it is recommended to use M4 screws and length ≥ 20mm. (not supplied).
Ensure that the terminal box is always at atmospheric pressure
Installation Setting up

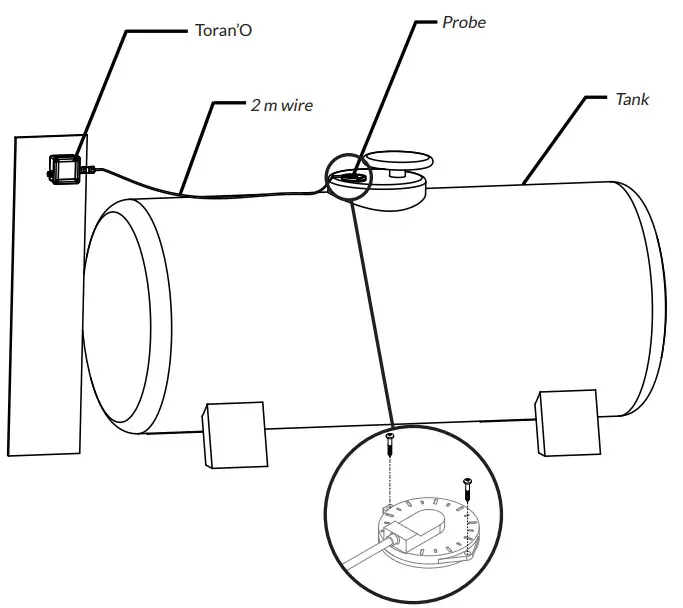

Lev’O+ LPG installation
 |  |
Characteritics
| Reference | 50-70-209 | 50-70-210 | 50-70-211 |
| Class | A | A | A |
| Power Level | +14dBm | +14dBm | +14 dBm |
| Measure: Variations of one level of: Liquid Gas | ✓ | ✓ | ✓ |
| Antenna | Internal | internal | Internal |
| IP rating Junction box | IP65 | N/A | |
| IP rating Probe | IP 68 | ||
|
|
SITE SUPPORT
CERTIFICATIONS
Watteco represented by JC LE BLEIS, declares that the radio equipment type 50-70- 209 / 50-70-210 / 50-70-211 is in conformity with Directive 2014/53/EU (RED) and UKCA. The full text of the EU and UKCA Declaration of Conformity is available at the following web address: https://www.watteco.com/assistance/download-center/
