Watteco Lev’o +liquid Level, Lev’o + Lpg User Guide (+ PDF)

WATTECO Lev’O +Liquid Level, Lev’O + LPG

Contents hide

1 Start

2 Connectors

3 Installation Setting up

4 Characteristics

5 SITE SUPPORT

6 Documents / Resources

6.1 References

7 Related Posts

Start

To start up the LoRaWAN® sensor please refer to the Quick Start Guide provided in his bag or on www.watteco.com. or scan on the side :

Connectors

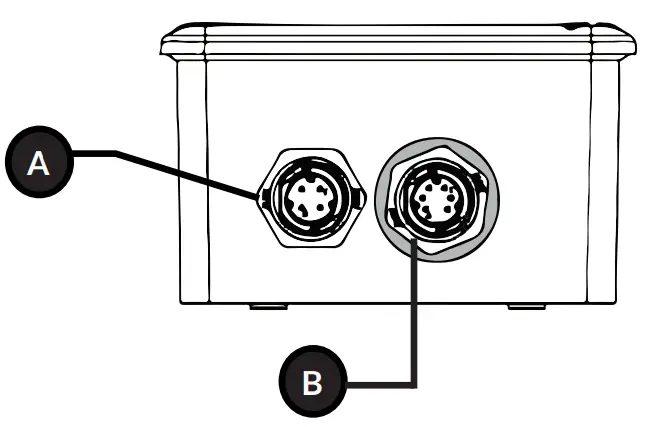

A Connector [A] is for Levo+ which measures liquid variations 50-70-209.
B Connector [B] is for Levo+ which measures gas variations 50- 70-210 and 50-70-211.

These probes used with a LoRaWAN® sensor in Atex environments become : Ex II 2G Ex ib IIB, IIC T4 Gb -20°C <= Tamb <= +50°C

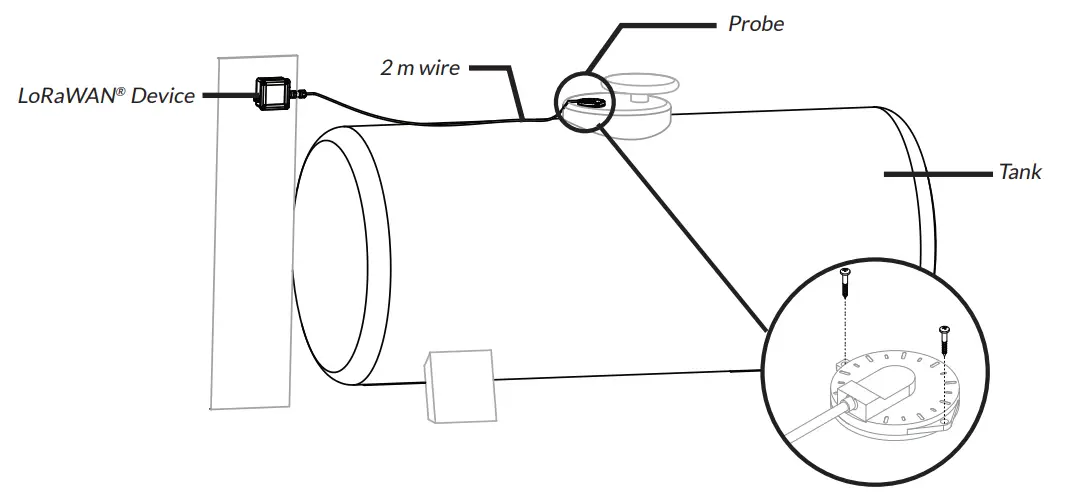

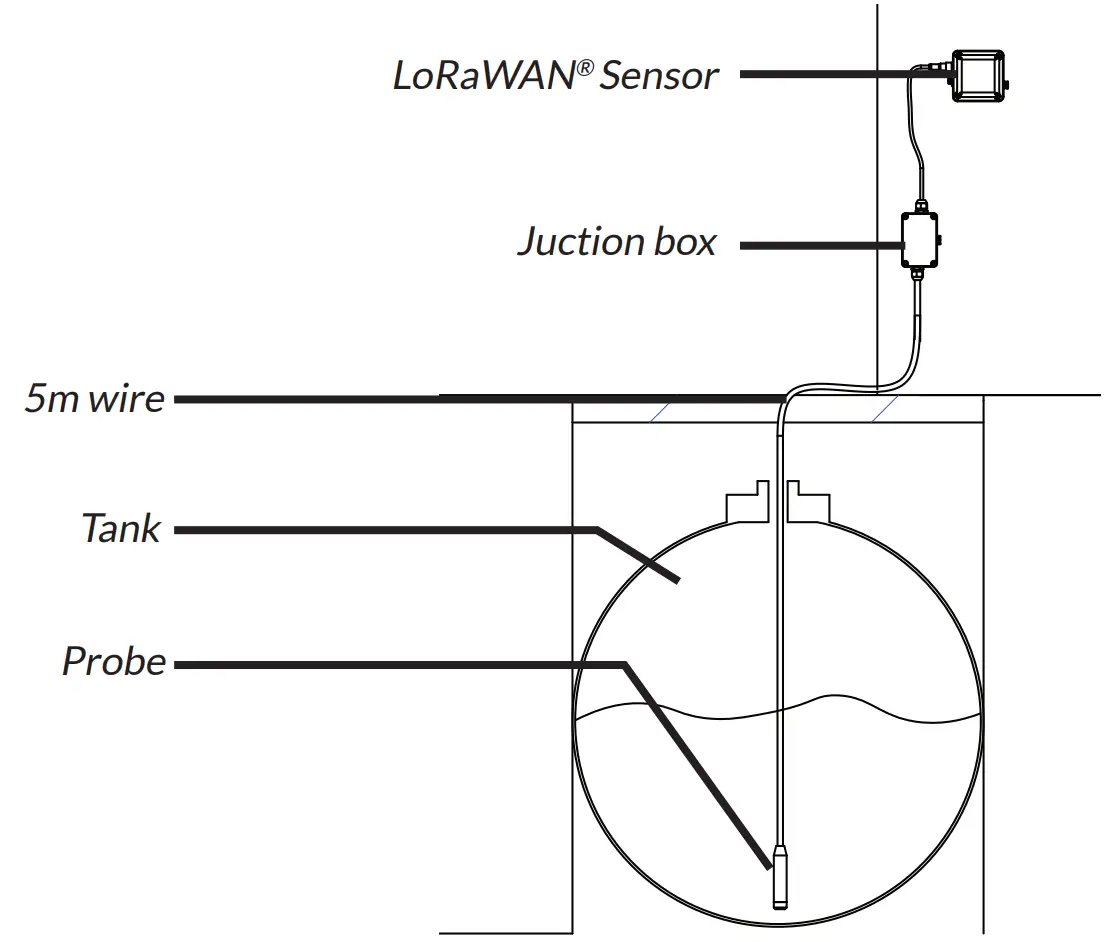

Installation Setting up

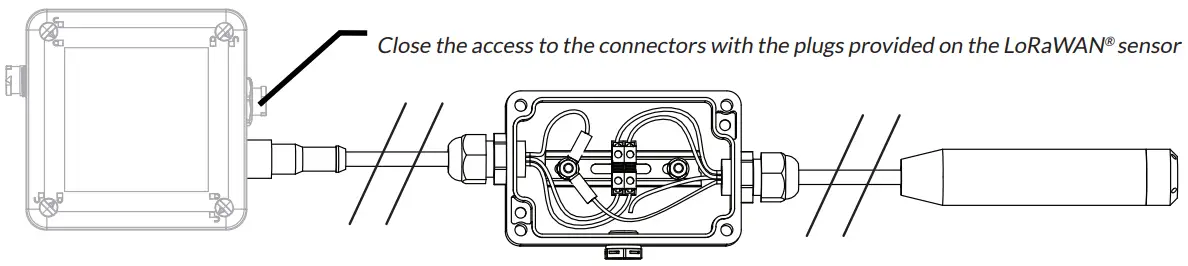

Probe cable	LoRaWAN® sensor cable
1: Brown : IN	5: Black : Pin 1 OUT V+
2: White : GND	6: Brown : Pin 2 GND
3: Green : OUT	7: Red : Pin 3 IN 4-20mA Measure
4: Capillary in the case

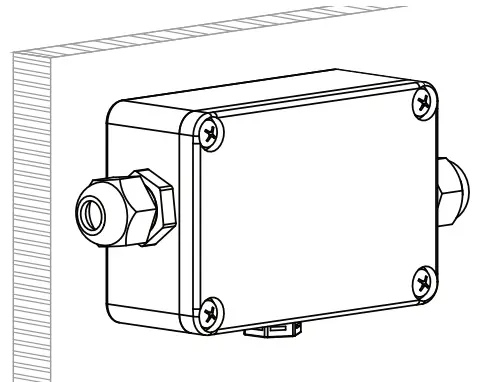

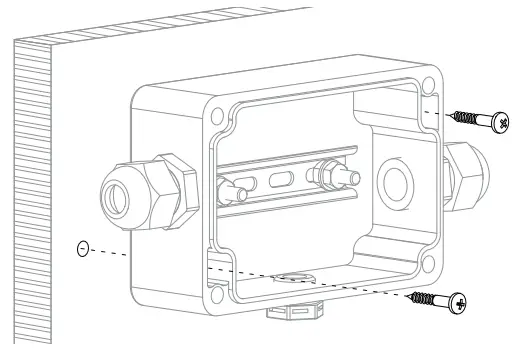

For the installation of the enclosure on a junction wall it is recommended to use M4 screws and length ≥ 20mm. (not supplied).
Ensure that the terminal box is always at atmospheric pressure

Characteristics

*Reference*	50-70-209	50-70-210	50-70-211
*Class*	A	A	A
*Power* *Level*	+14 dBm	+14 dBm	+14 dBm
Measures: Variations of one level of: Liquid Gas	✓	✓	✓
Antenna	Internal	Internal	Internal
IP rating Junction box	IP65	N/A
IP rating Probe	IP 68	IP 65	IP 65

SITE SUPPORT

https://support.watteco.com/

CERTIFICATIONS

Watteco represented by JC LE BLEIS, declares that the radio equipment type 50 70- 209 / 50-70-210 / 50-70-211 is in conformity with Directive 2014/53/EU (RED) and UKCA. The full text of the EU and UKCA Declaration of Conformity is available at the following web address: https://www.watteco.com/assistance/download-center/

IoT device manufacturer

Thanks for choosing WATTECO devices
